334,90 €
IVA incluido
¡En Stock! Entrega en 24/48 horas
Precio Envío: 6,99€
P/N: 911-7E32-004

MSI Z890-A WiFi Socket Intel 1851 ATX

Características destacadas


  • Soporte Intel Core Ultra
  • 4x DDR5 hasta 256GB
  • 3x PCI-E x16 slots
  • THUNDERBOLT™ 4 40Gbps

Pago Seguro

Garantía de 3 años

Envío 24/48 horas

Financia a tu gusto

Descripción

La MSI Z890-A WiFi Socket Intel 1851 ATX se destaca como una opción sobresaliente para entusiastas y usuarios exigentes que buscan rendimiento, estabilidad y la última tecnología en sus sistemas informáticos. Con compatibilidad para los procesadores Intel Core Ultra y un potente chipset Intel Z890, esta placa base está diseñada para llevar tu experiencia de usuario al siguiente nivel, desde juegos hasta tareas de productividad intensivas. Optimizada para soportar lo mejor de los procesadores Intel Core Ultra de la serie 2, su socket LGA 1851 garantiza que puedas aprovechar al máximo el potencial de procesamiento. Equipada con 4 ranuras DDR5, la placa permite una capacidad de memoria máxima de 256GB, soportando velocidades de overclock hasta 9200 MTs gracias a la tecnología Intel XMP 3.0, ideal para aquellos que demandan el máximo rendimiento de sus memorias.


Características de la placa base MSI Z890-A WiFi Socket Intel 1851 ATX

Procesador

  • Supports Intel® Core™ Ultra Processors (Series 2)
  • LGA 1851

Chipset

  • INTEL Z890

Memoria

  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 9200+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s
  • Supports Intel® POR Speed and JEDEC Speed
  • Supports Memory Overclocking and Intel® XMP 3.0
  • Supports Dual-Controller Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM

Slots

  • 3x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Gráficos

  • 1x HDMI™
  • Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz
  • 2x Type-C DisplayPort
  • Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Almacenamiento

  • 4x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 3x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Front)
  • 2x Thunderbolt4 ports (Rear)
  • Support up to 40Gbps transfer rate with Thunderbolt devices
  • Support up to 20Gbps transfer rate with USB4 devices
  • Support up to 10Gbps transfer rate with USB 3.2 devices
  • Support up to 5V/3A,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Support up to 8K display

Audio

  • Realtek® ALC1220P
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

Conectividad y redes

  • Realtek® 8126 5Gbps LAN
  • Intel® Wi-Fi 7
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

  • 1x Thunderbolt5 card connector(JTBT5, support RTD3)
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 6x System Fan
  • 1x EZ Conn-header (JAF_2)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 20Gbps Type C ports

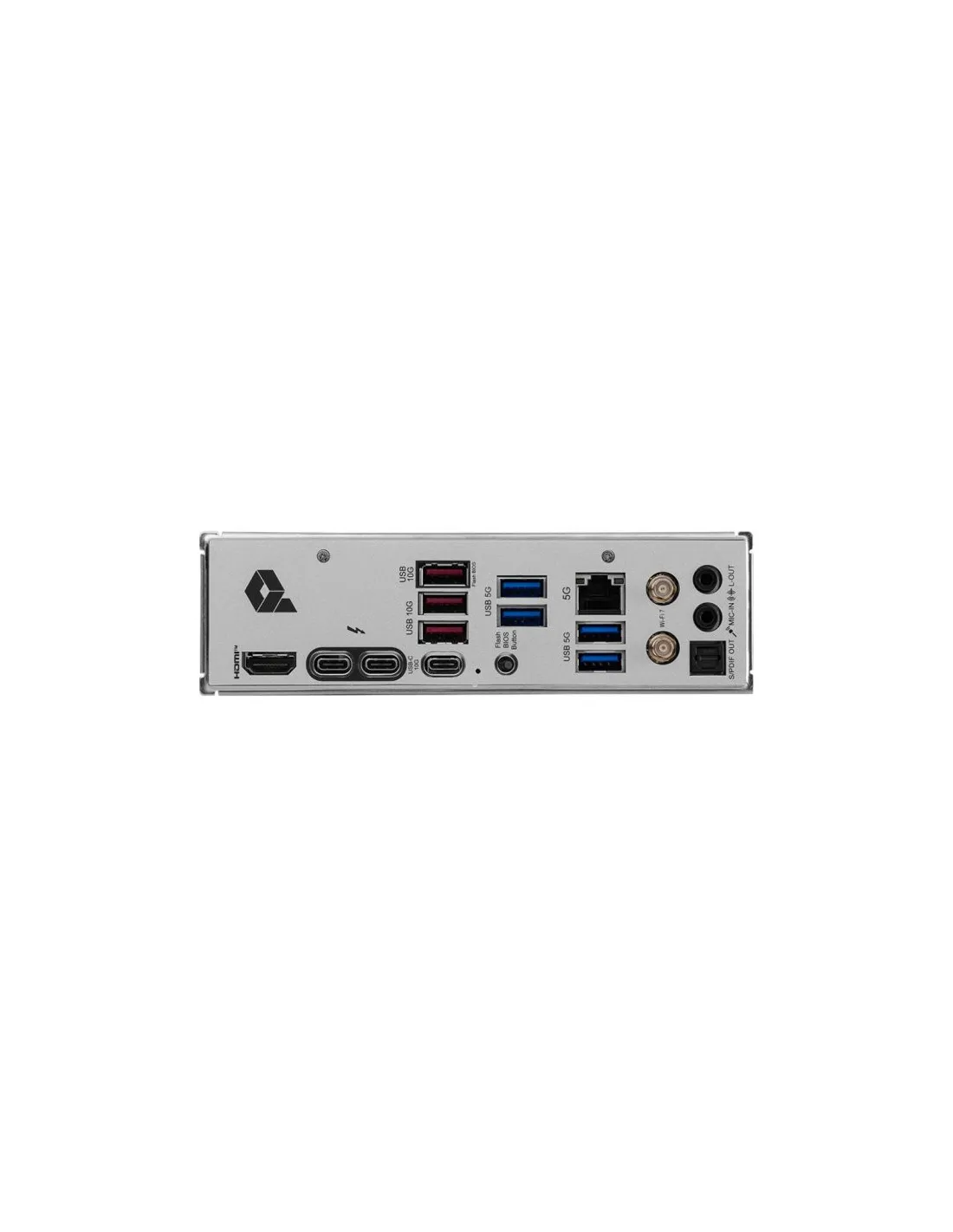

Conectores Traseros

  • USB 10Gbps Type-A
  • USB 5Gbps Type-A
  • 5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • HDMI™
  • Thunderbolt™ 4 40Gbps (Type-C)
  • USB 10Gbps Type-C
  • Flash BIOS Button
  • USB 5Gbps Type-A
  • S/PDIF-OUT

Factor de forma

  • ATX
  • 243.84 mm x 304.8 mm
