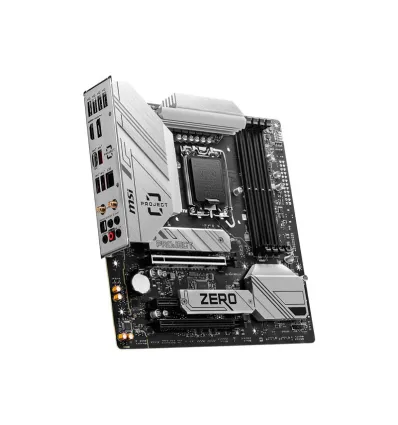

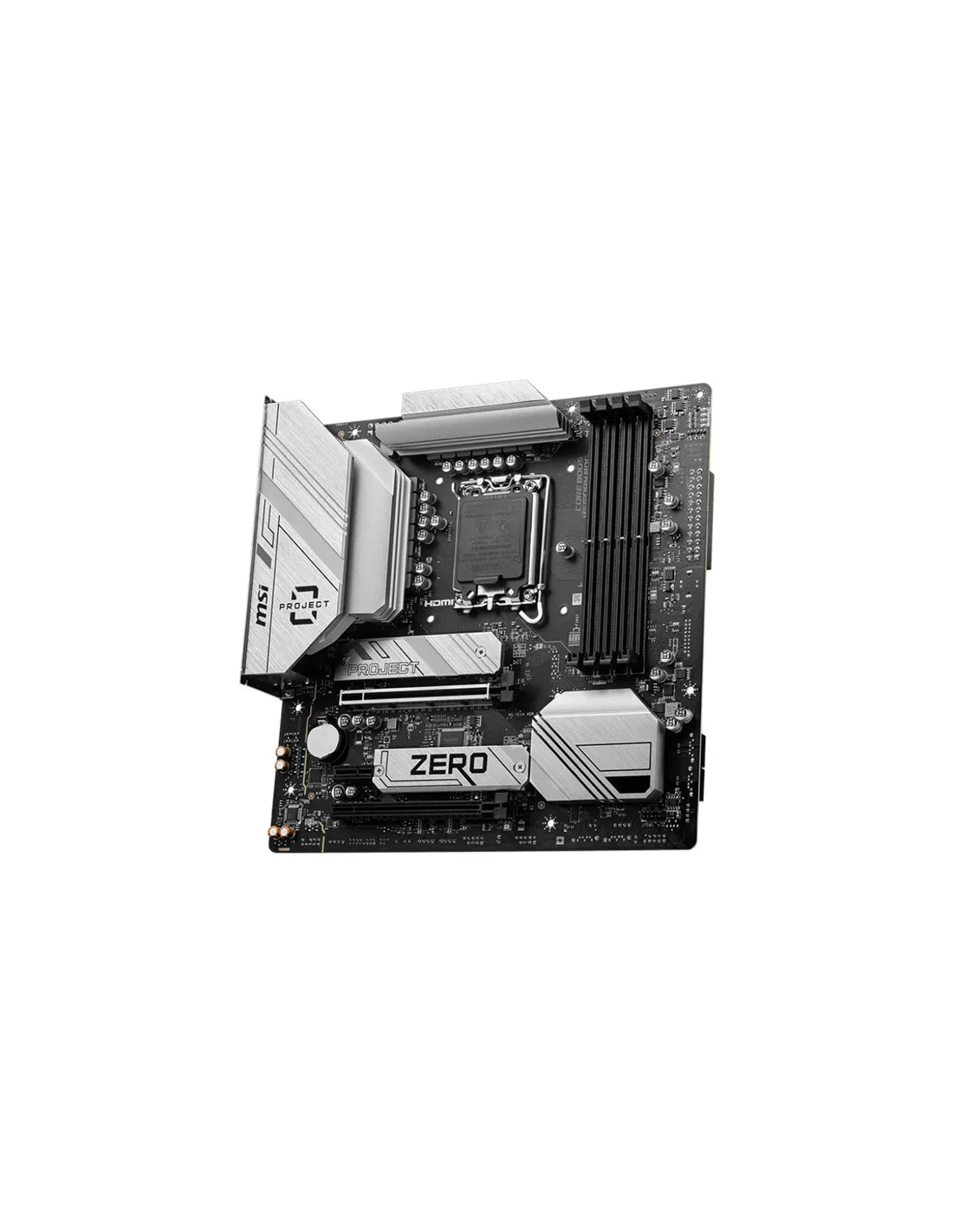

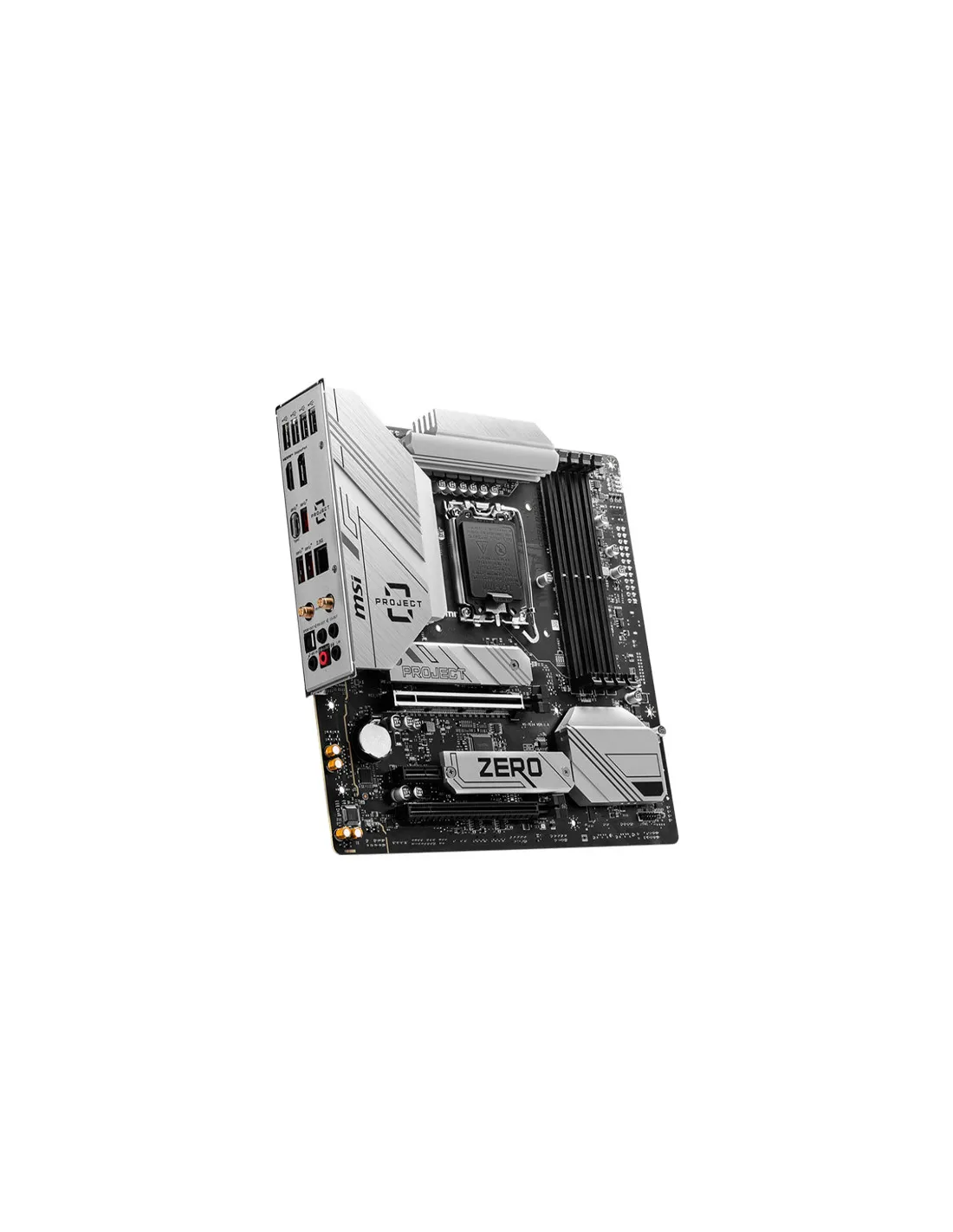

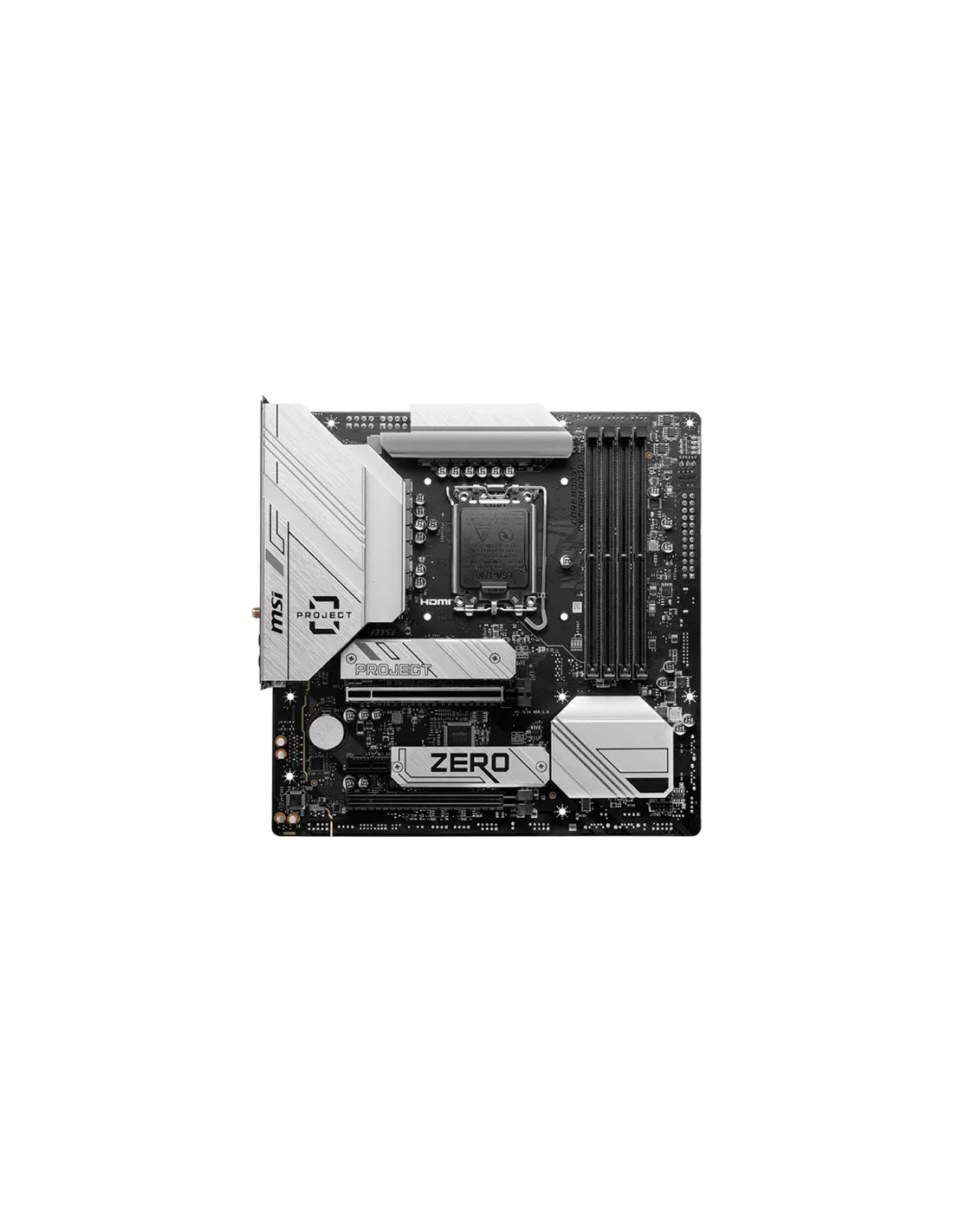

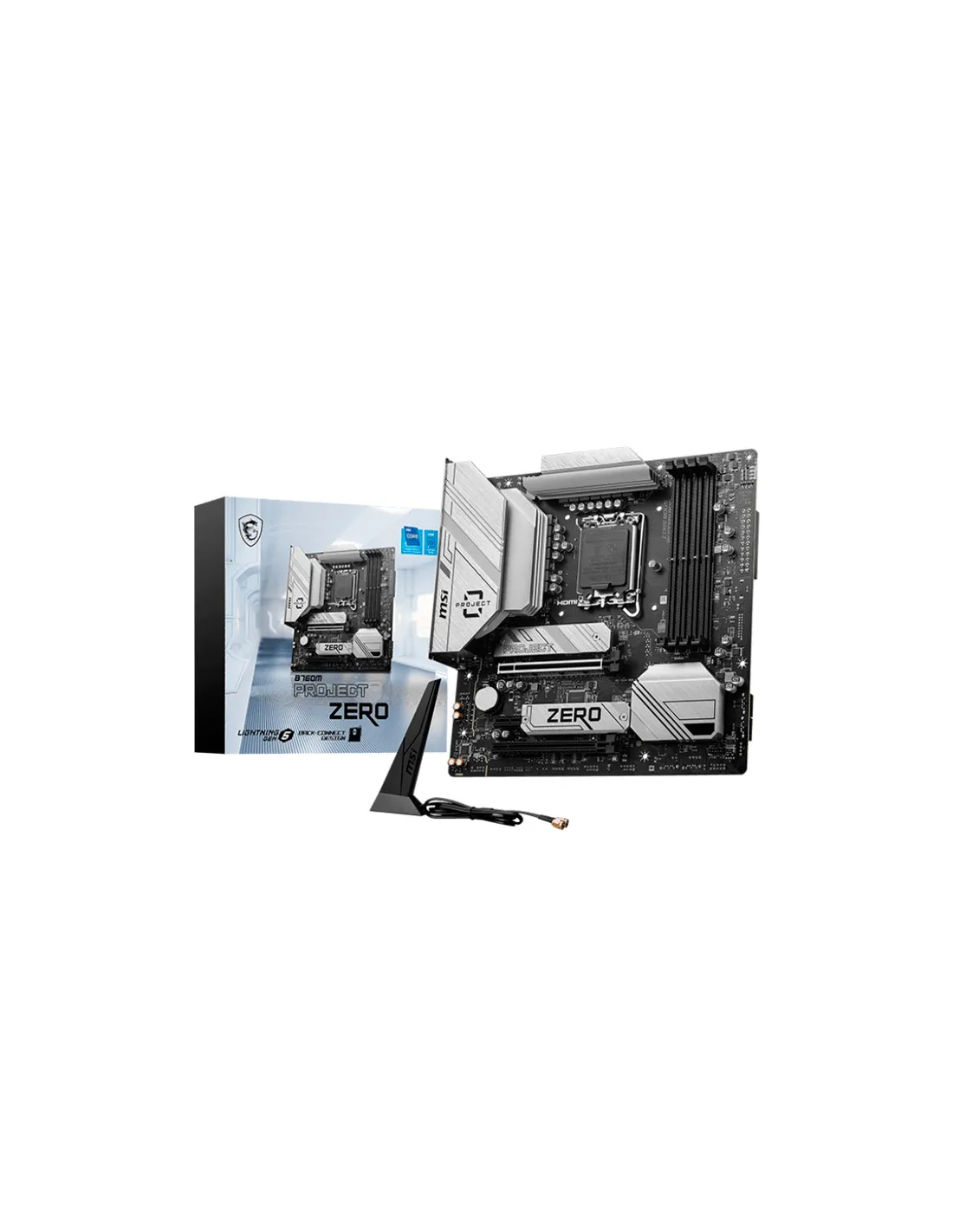

MSI B760M Project Zero Socket 1700 Micro-ATX

Características de la placa base MSI B760M Project Zero

Procesador

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• LGA1700

Chipset

• Intel B760

Memoria

• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile

Slots

• 2 x PCI-E x16 slot
• 1 x PCI-E x1 slot

Gráficos

• 1 x HDMI
• 1 x DisplayPort

Almacenamiento

• 2 x M.2
• 4 x SATA 6G
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 4 x USB 2.0 (Rear)
• 4 x USB 2.0 (Front)
• 2 x USB 5Gbps Type A (Front)
• 3 x USB 10Gbps Type A (Rear)
• 1 x USB 10Gbps Type C (Front)
• 1 x USB 20Gbps Type C (Rear)

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Performance Audio
• Supports S/PDIF output

Conectividad y redes

• Realtek® 2.5Gbps LAN
• Intel® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA

Conectores Internos

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 4x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

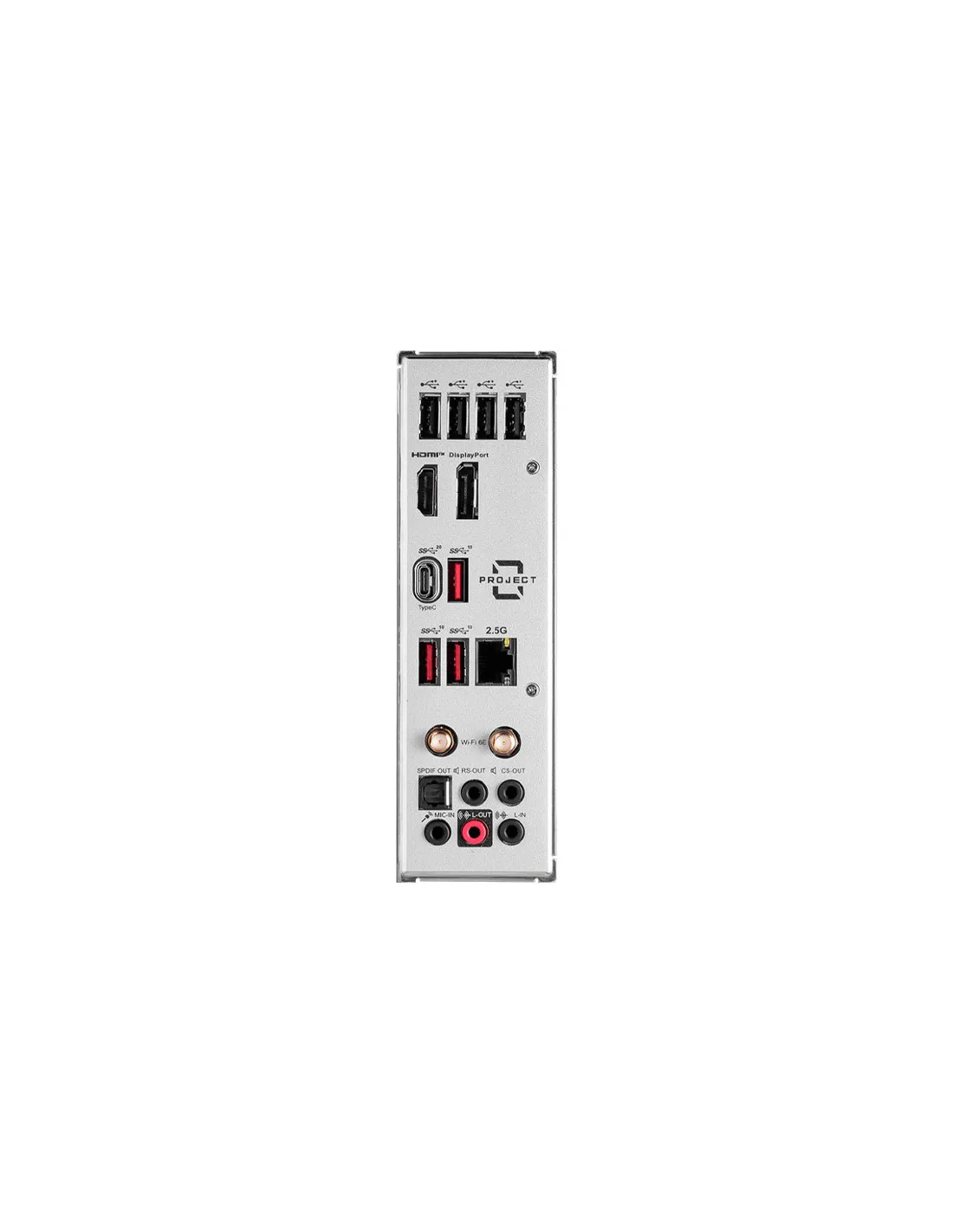

Conectores Traseros

• 4 x USB 2.0
• 1 x HDMI 2.1
• 1 x DisplayPort 1.4
• 3 x USB (10Gbps) Tipo A
• 1 x USB (20Gbps) Tipo C
• 1 x RJ45 (2.5GbE)
• 1 x Antena (Wi-Fi / Bluetooth)
• 1 x S/PDIF
• 5 x Jack 3.5mm

Factor de forma

• Micro-ATX (24.3 x 24.3cm)

Más información en la web del fabricante:

• https://www.msi.com/Motherboard/B760M-PROJECT-ZERO/Specification
