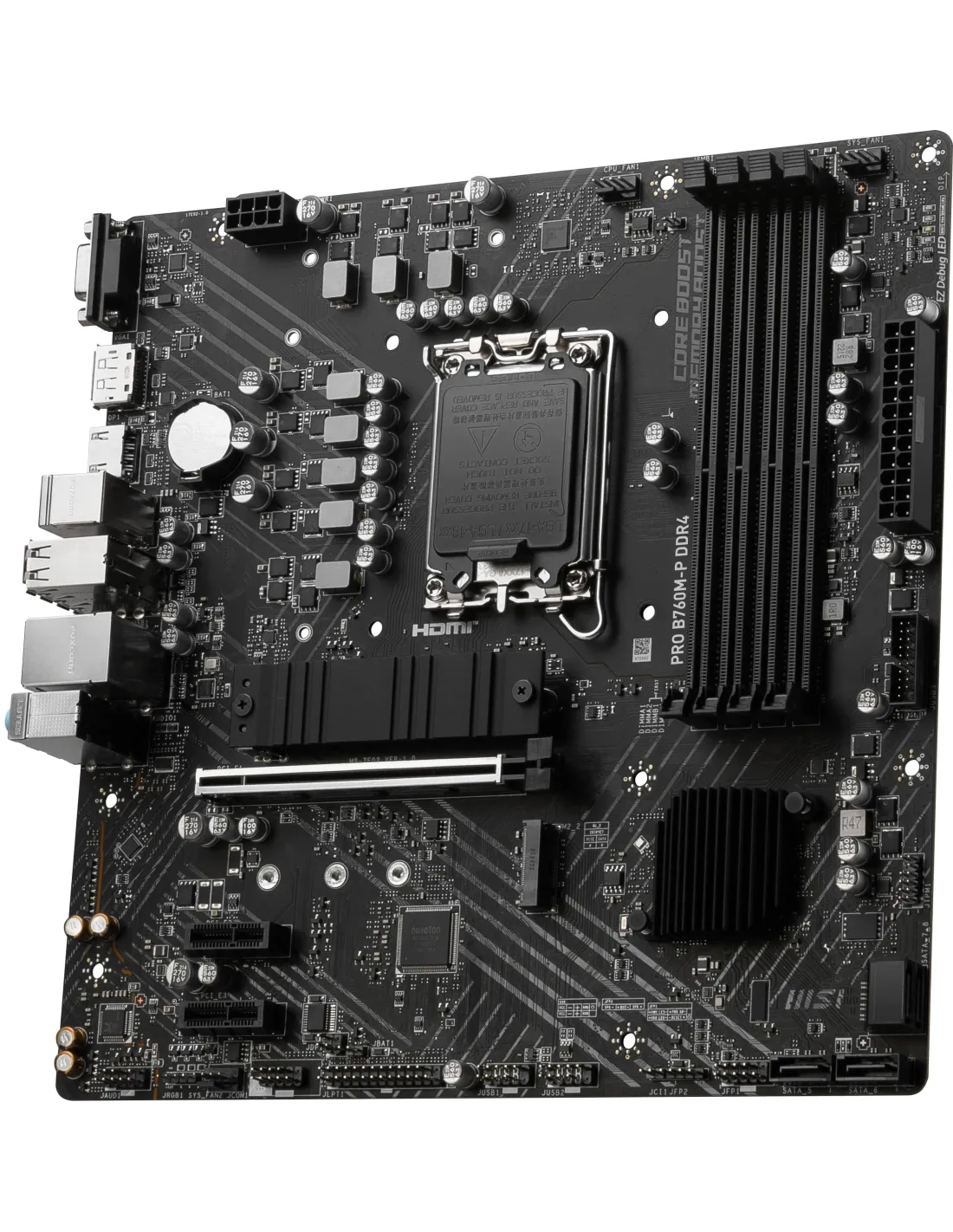

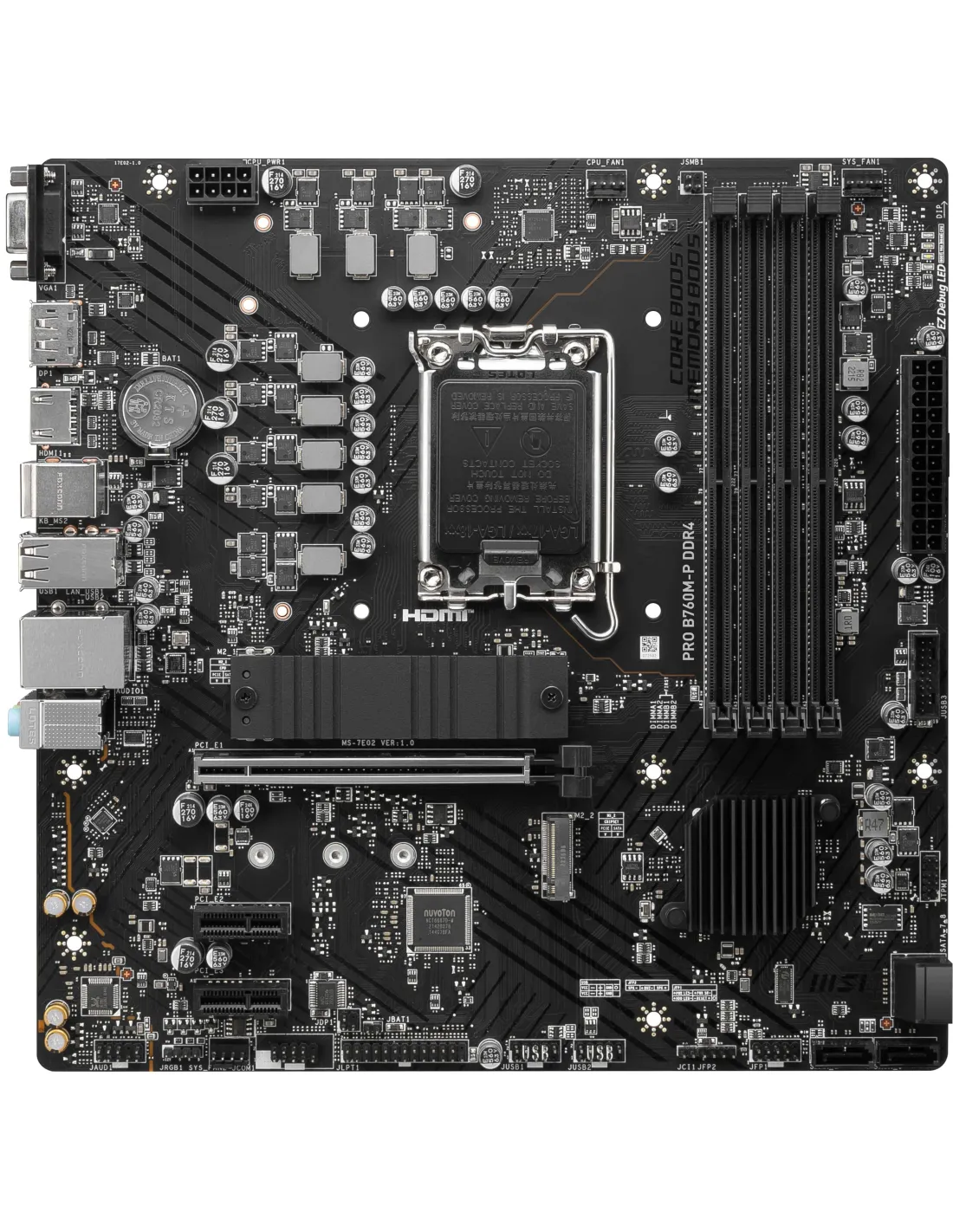

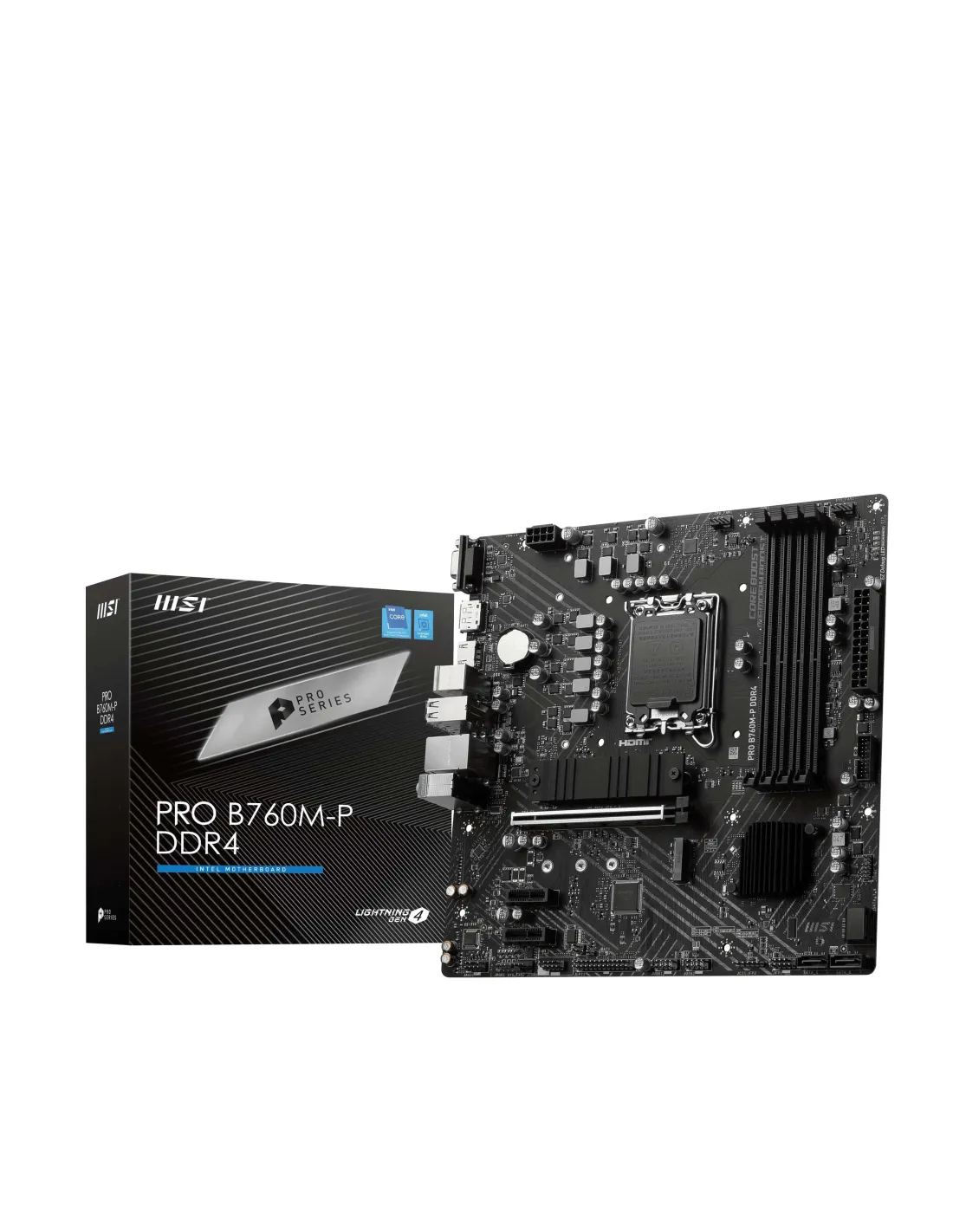

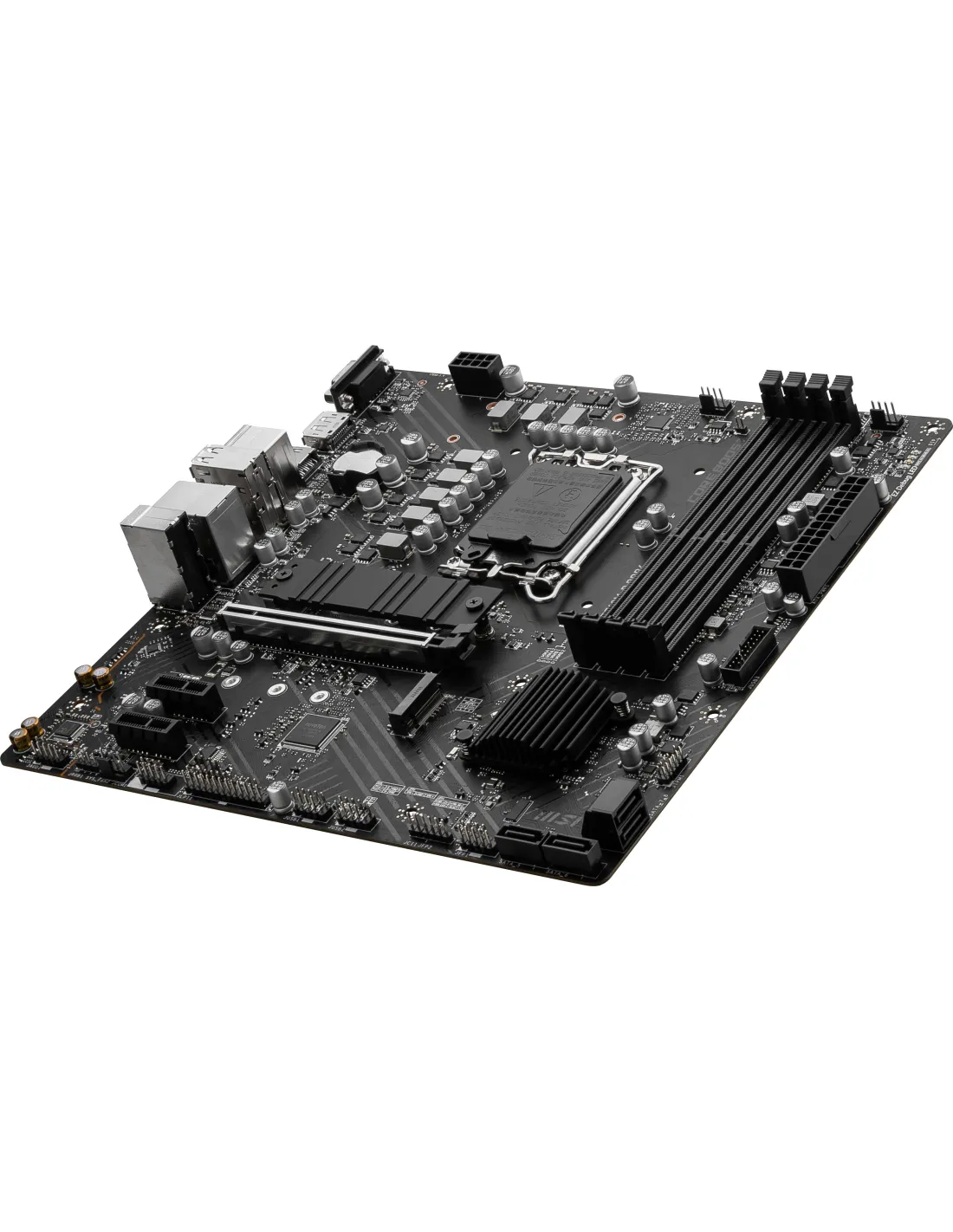

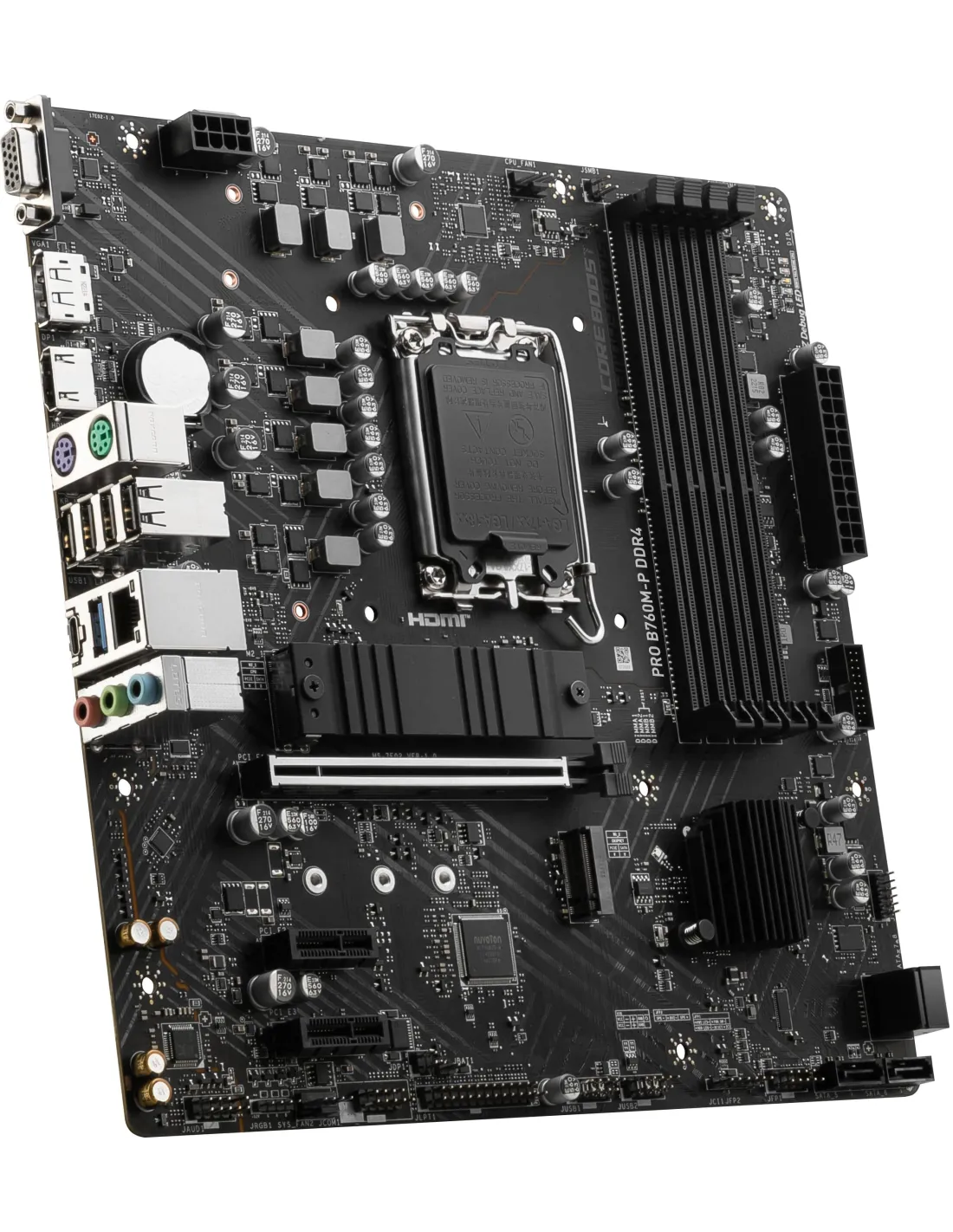

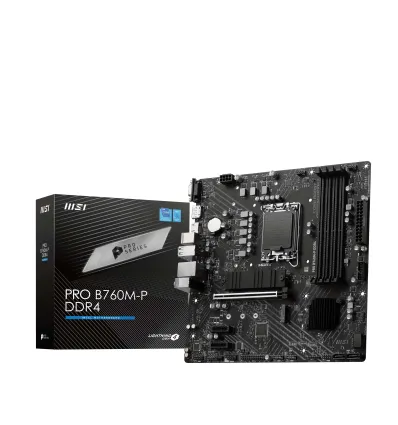

MSI PRO B760M-P DDR4 Socket 1700

Características de la Placa base MSI PRO B760M-P DDR4 Socket 1700

Procesador

• Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Chipset

• Intel B760

Memoria

• 4x DDR4 RAM slots, Maximum Memory Capacity 128GB
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile

Slots

• 1x PCI-E 4.0 x16 slot
• 2x PCI-E 4.0 x1 slot

Gráficos

• 1x HDMI 1.4
• 1x DisplayPort 1.4
• VGA

Almacenamiento

• 2x M.2 Gen4 x 4 64Gbps slots
• 4 x SATA 6Gb/s ports

USB

• 1x USB 3.2 Gen2 10Gbps (1 Type C)
• 3x USB 3.2 Gen1 5Gbps (3 Type A)
• 8x USB 2.0

Audio

• 8-Channel (7.1) HD Audio with Audio Boost

Conectividad

• Realtek RTL8111H Gigabit LAN

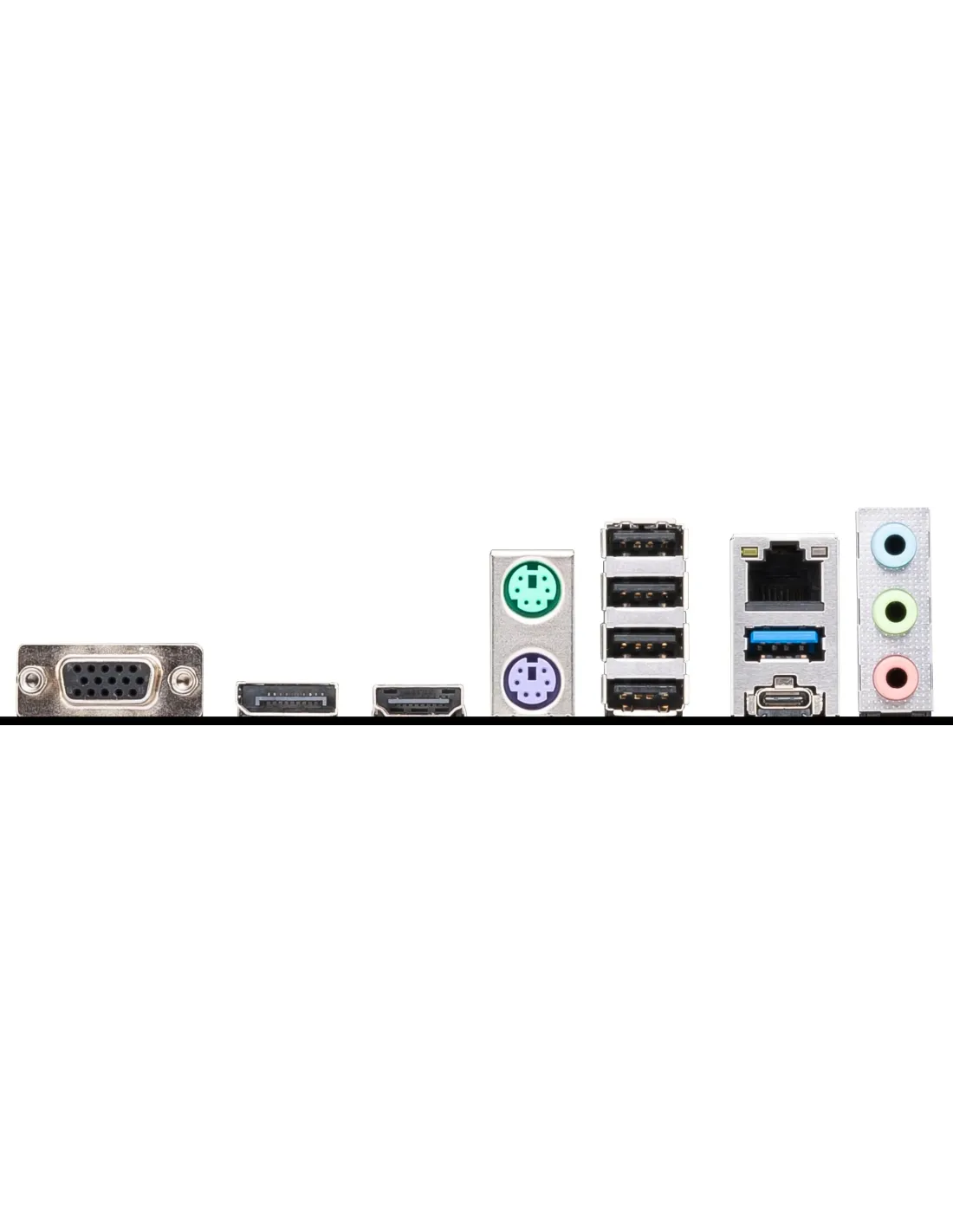

Conectores Traseros

• VGA
• 1 x DisplayPort 1.4
• 1 x HDMI 2.1
• Keyboard / Mouse connector
• 4 x USB 2.0
• 1 x LAN Port
• HD Audio Connectors
• 1 x USB 3.2 (Gen 1) Tipo A (5 Gbps)
• 1 x USB 3.2 Gen 2 10Gbps Type-C

Factor de forma

• Micro ATX
