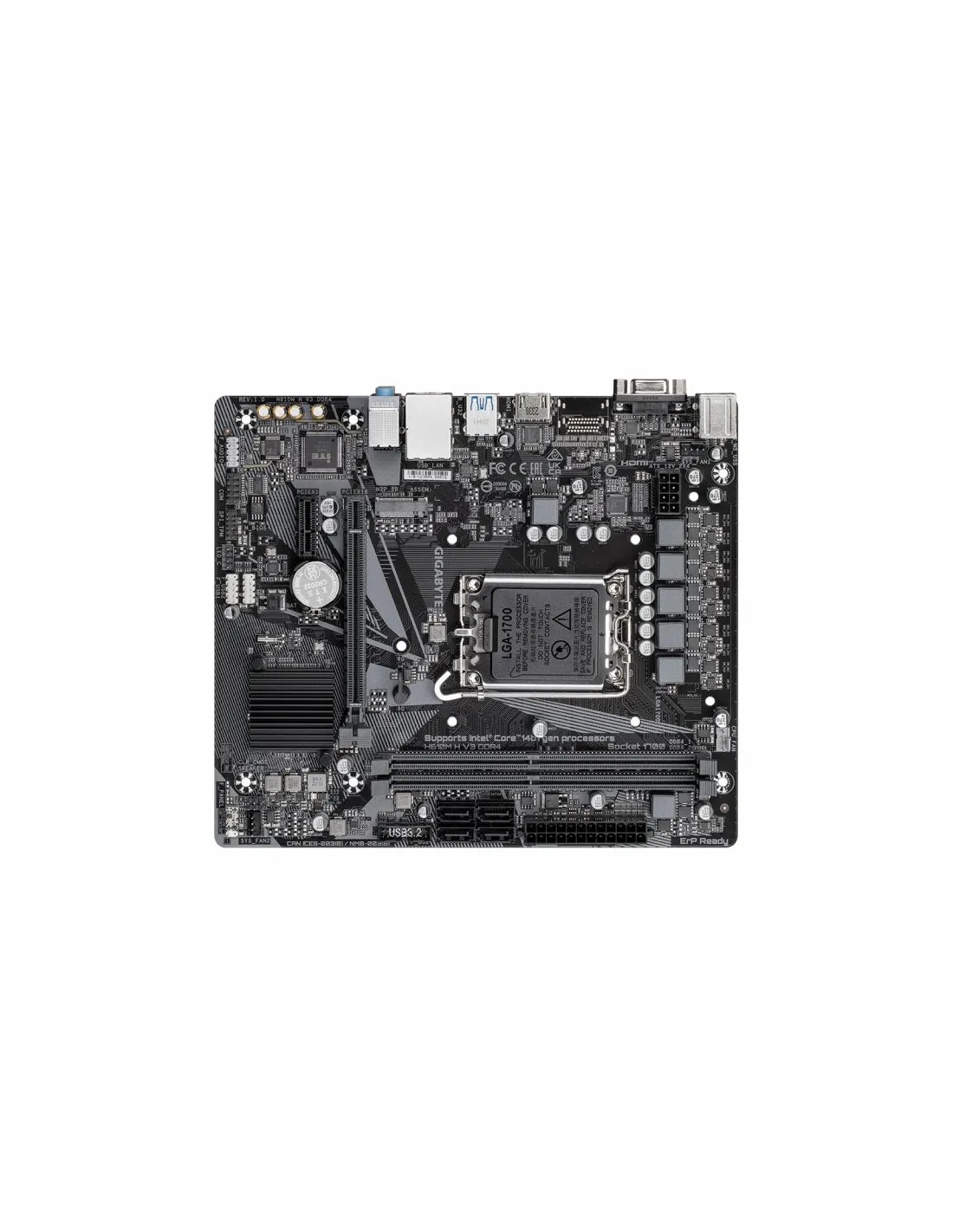

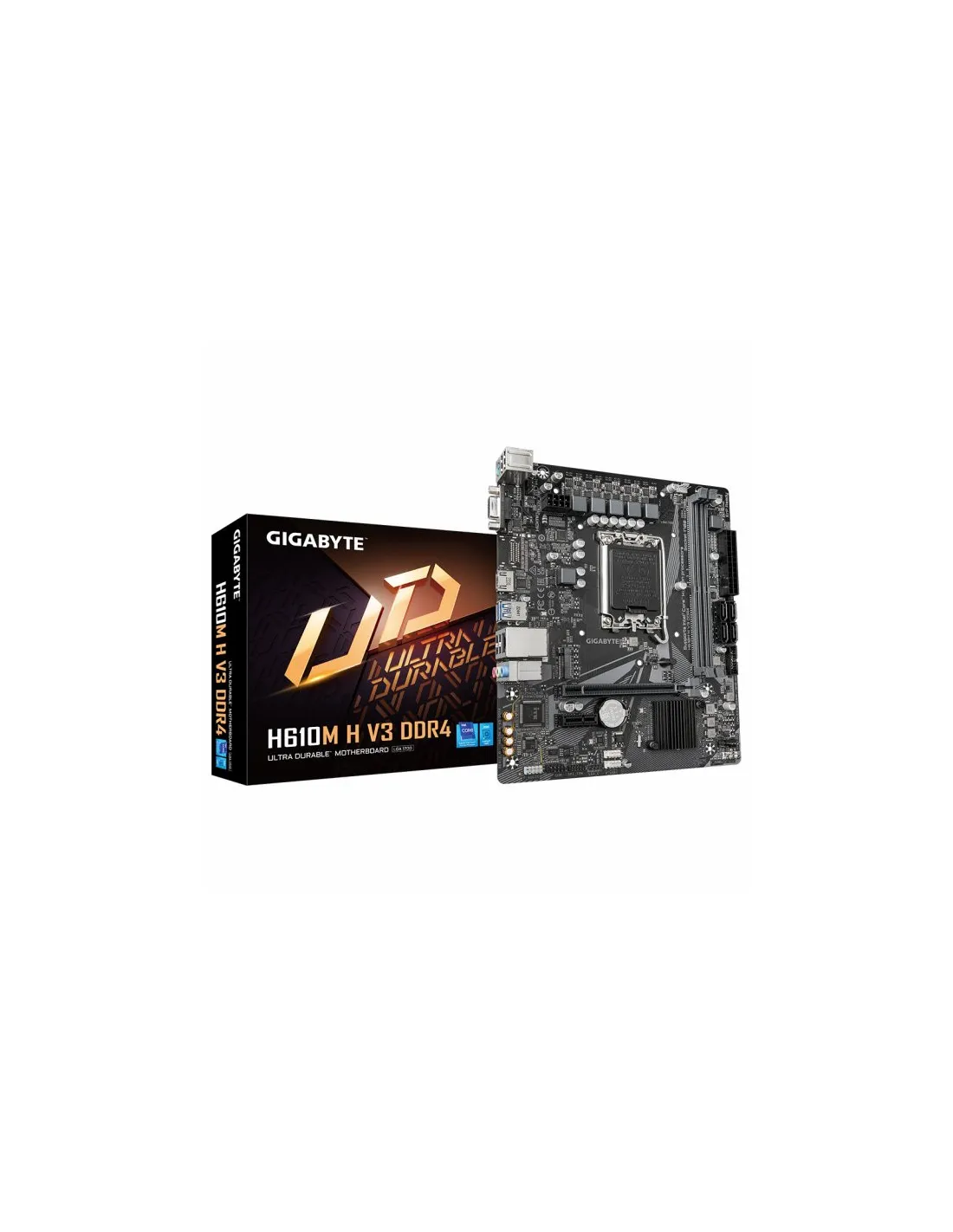

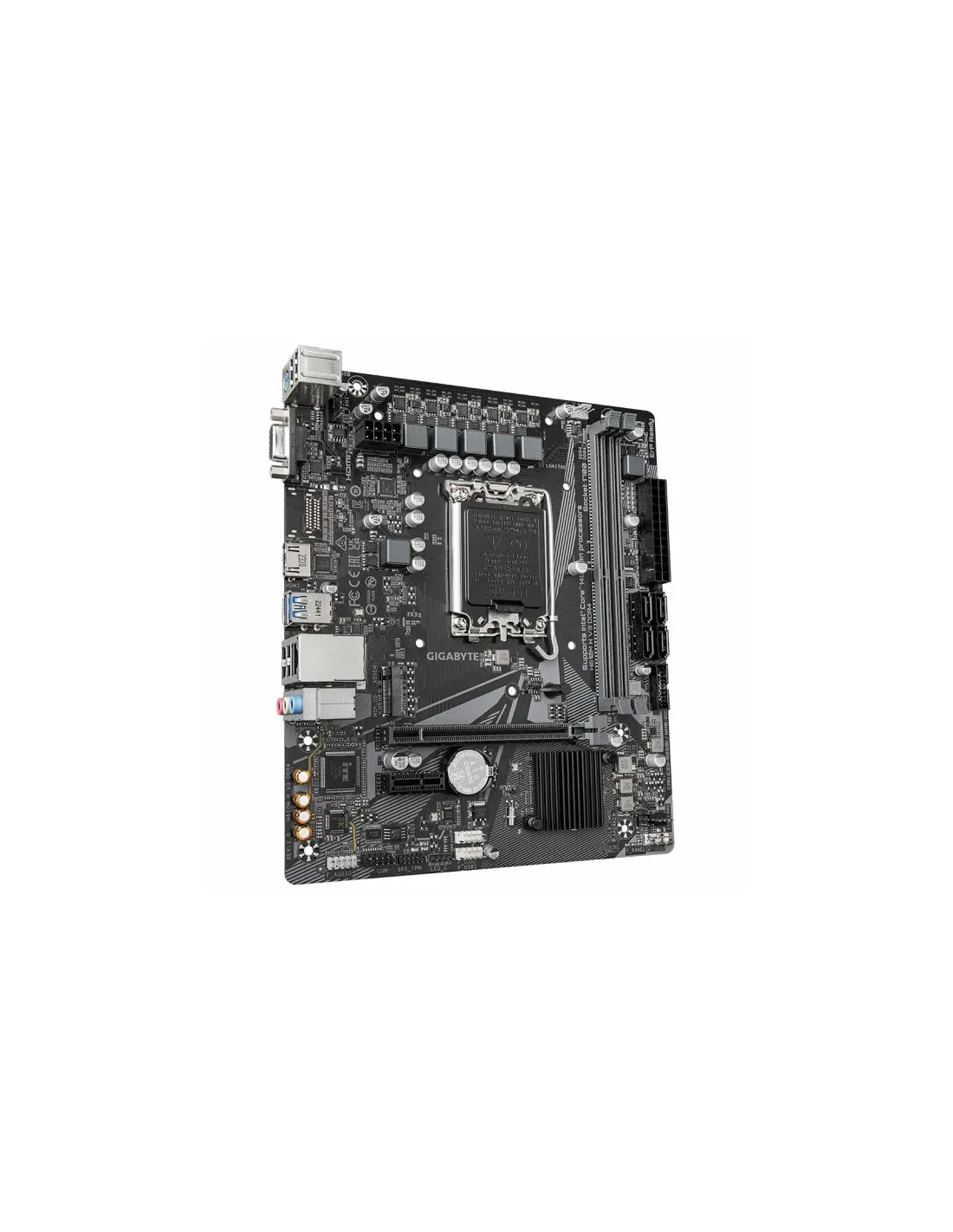

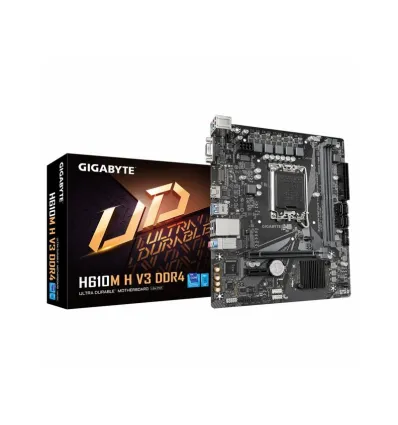

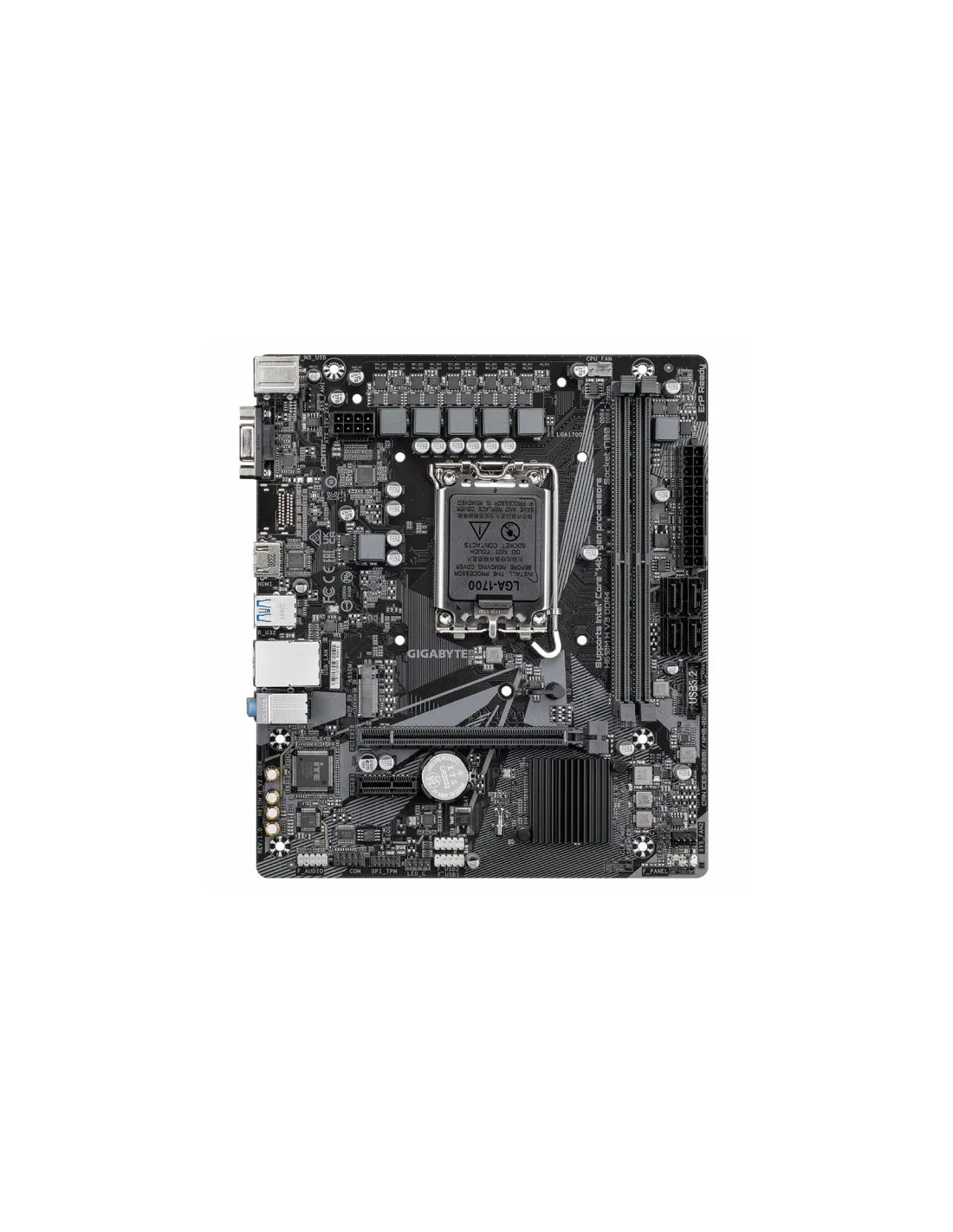

Gigabyte H610M H V3 DDR4 Socket Intel 1700 Micro ATX

Características de la placa base Gigabyte H610M H V3 DDR4 Socket Intel 1700 Micro ATX

Procesador

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• L3 cache varies with CPU

Chipset

• Intel® H610 Express Chipset

Memoria

• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Slots

• CPU:
• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset:
• - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Gráficos

• Integrated Graphics Processor-Intel® HD Graphics support:
• - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

• Chipset:
• - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
• support)
• - 4 x SATA 6Gb/s connectors

USB

• Chipset:
• - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• - 4 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

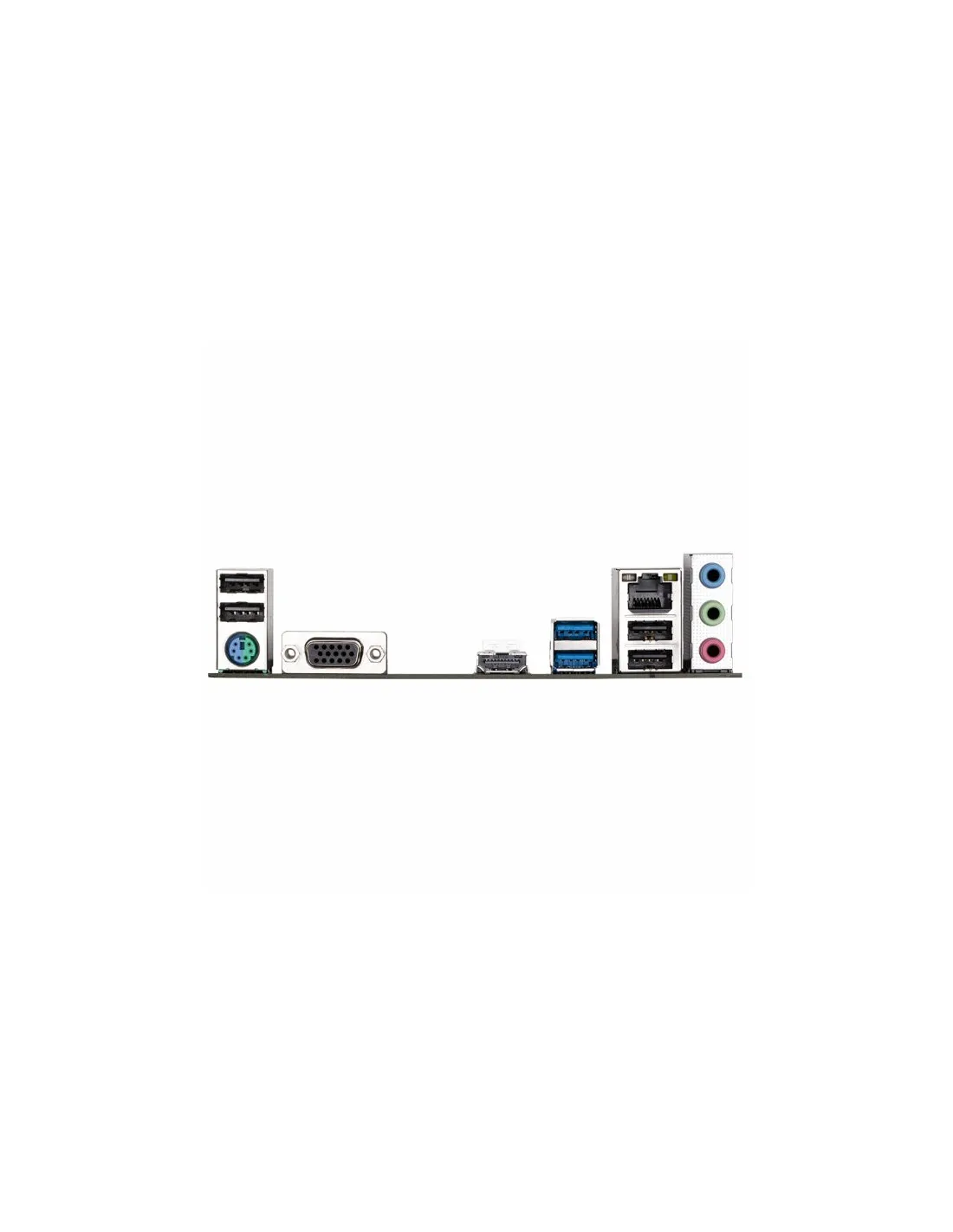

Conectores Traseros

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• Micro ATX (22.3cm x 19.3cm)
