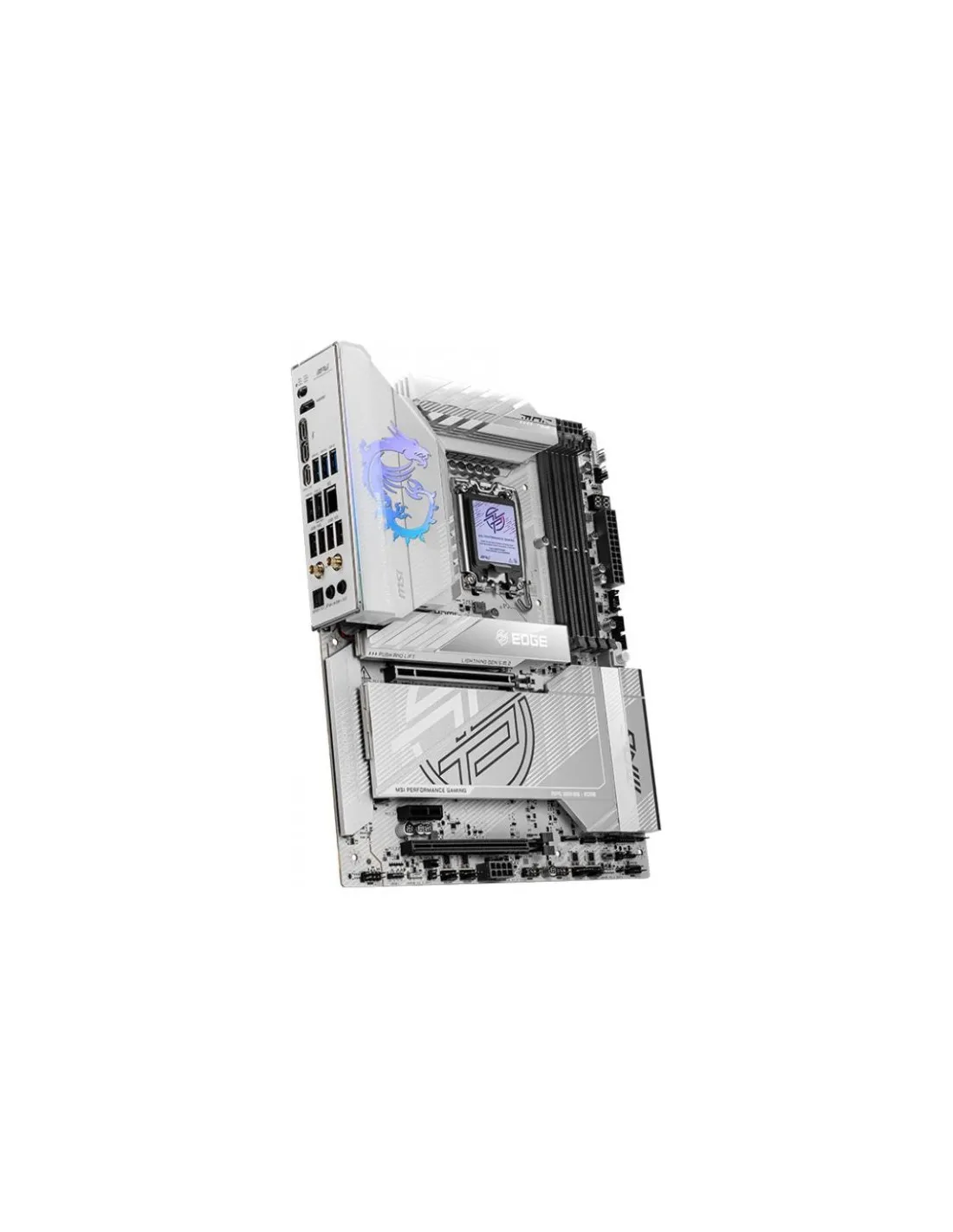

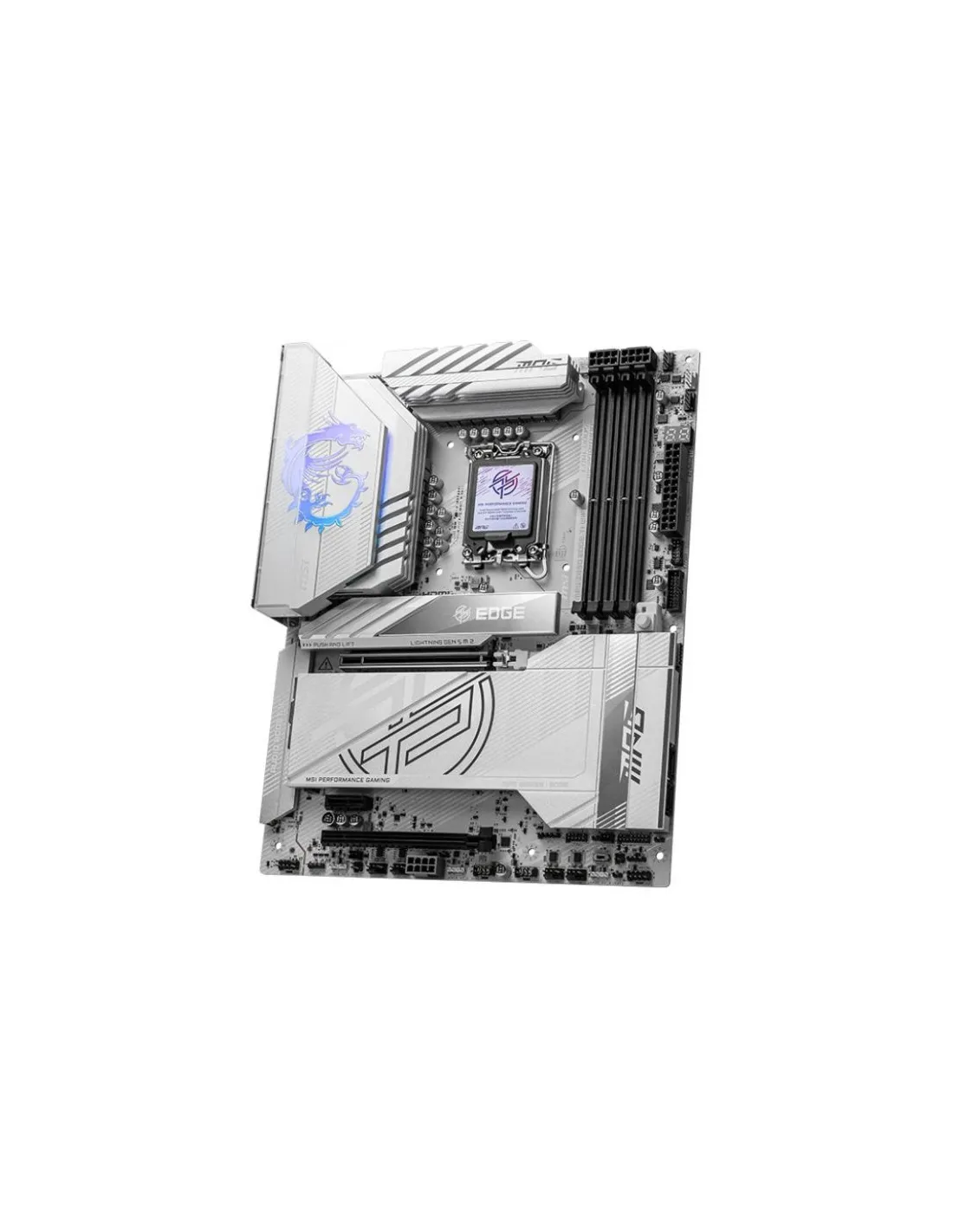

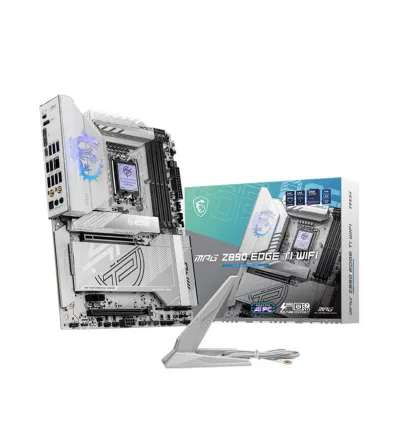

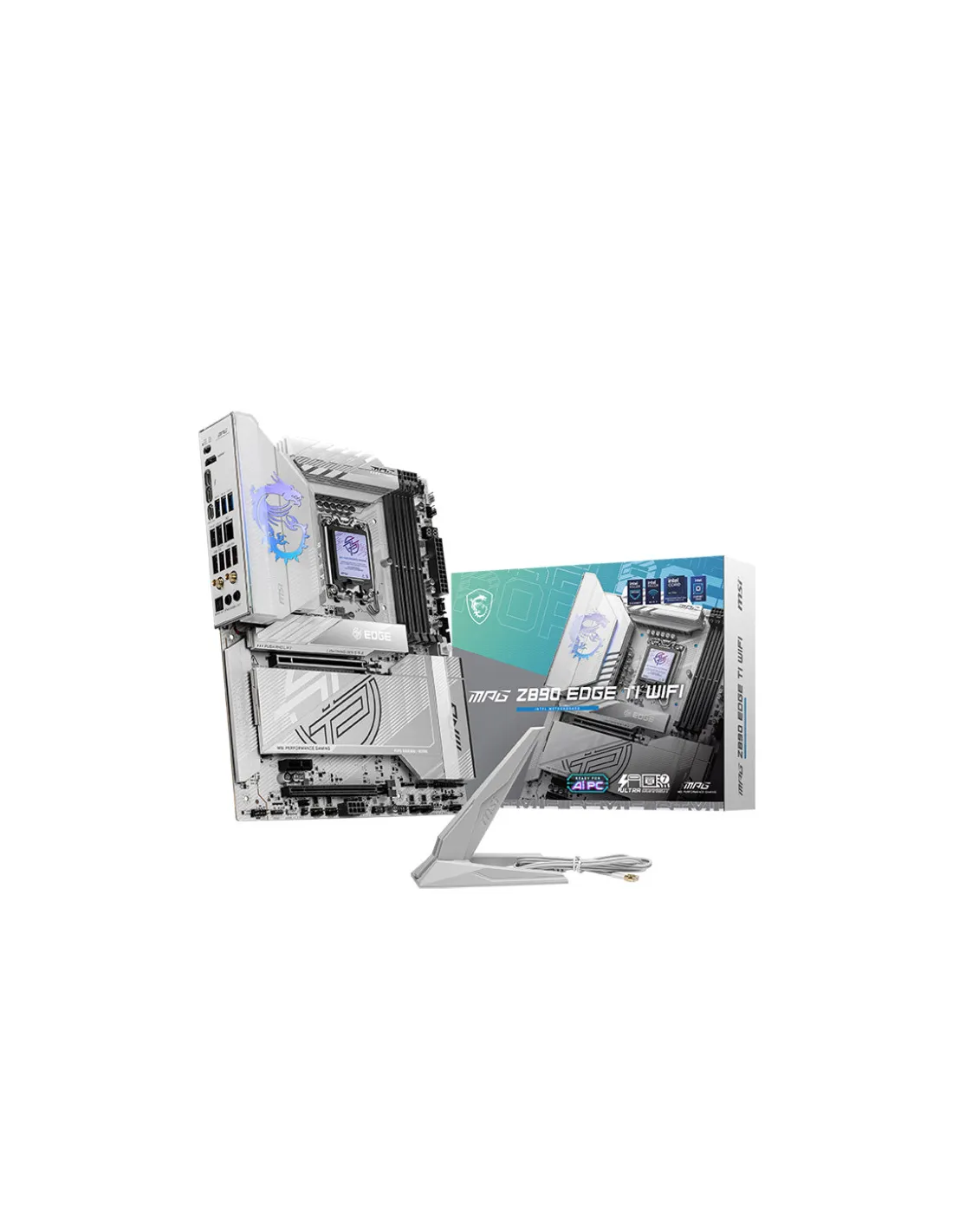

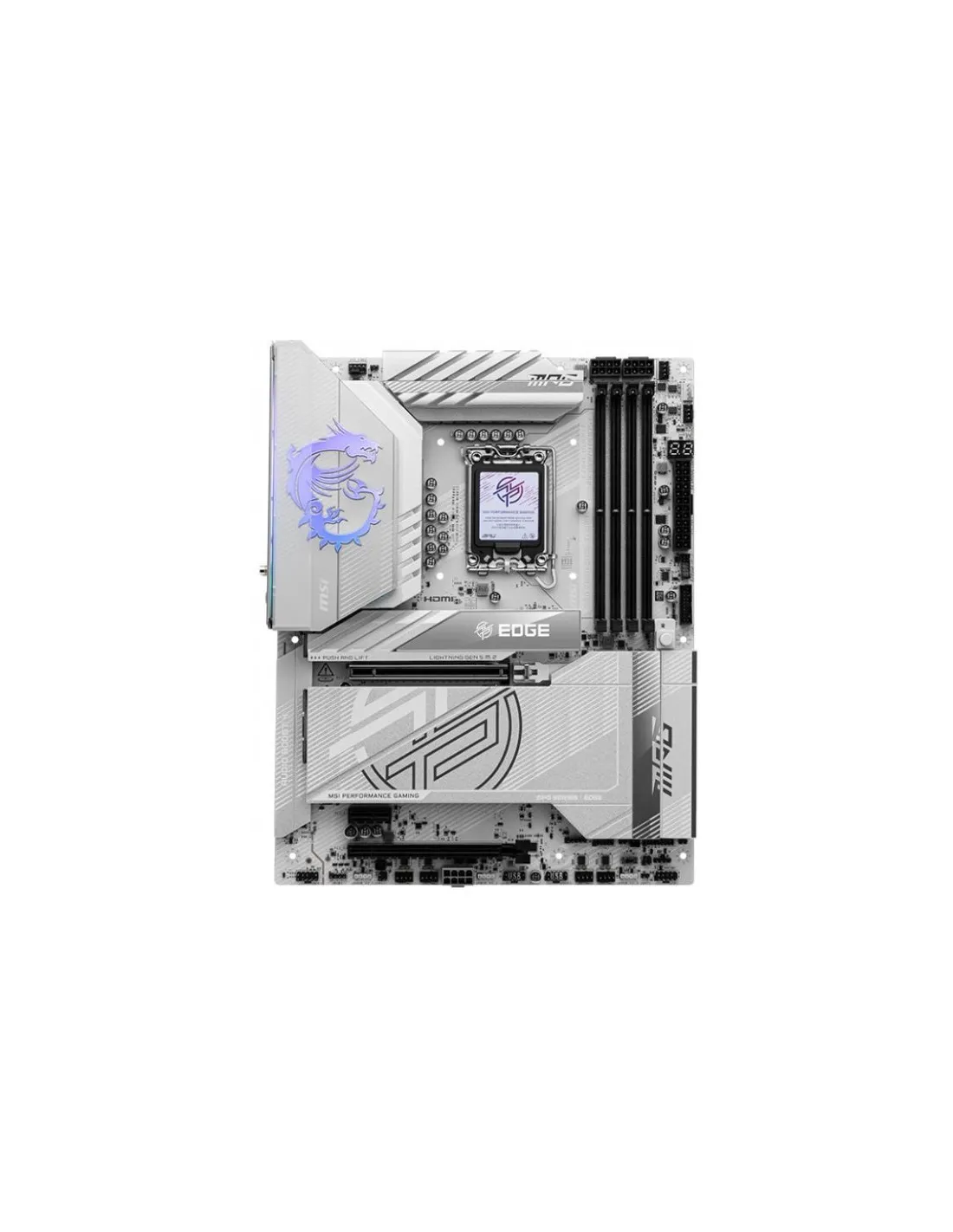

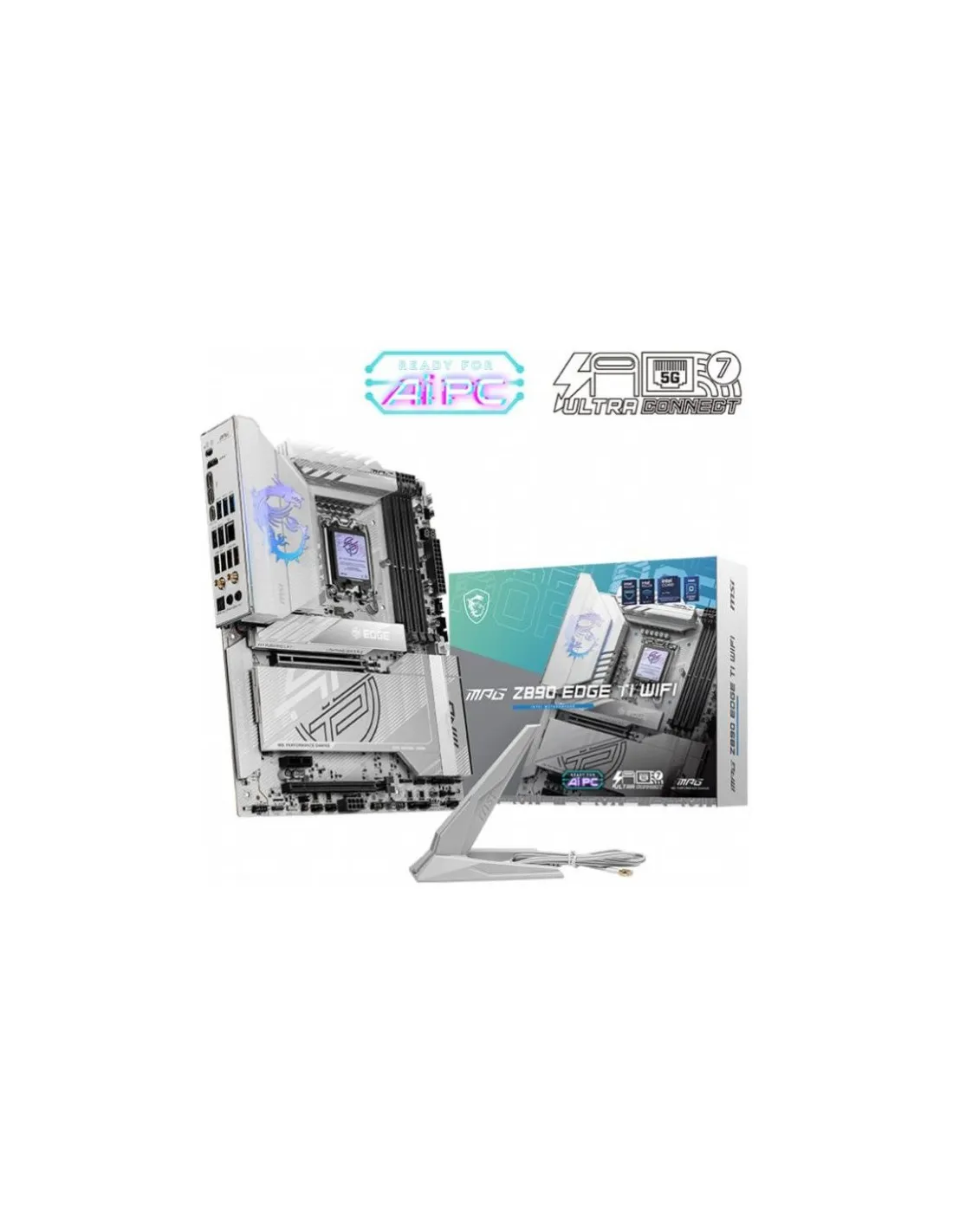

MSI MPG Z890 Edge Ti WiFi Socket 1851 ATX

Características de la placa base MSI MPG Z890 Edge Ti WiFi Socket 1851 ATX

Procesador

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA 1851

Chipset

• Intel Z890

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
• Supports Intel POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Slots

• 2x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Gráficos

• 1x HDMI™
• Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz
• 2x Type-C DisplayPort
• ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz

Almacenamiento

• 5x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
• 4x SATA 6G
• Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices

USB

• 1x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 4x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)

Audio

• Realtek® ALC1220P Codec
• 7.1-Channel USB High Definition Audio
• Supports S/PDIF output

Conectividad y redes

• 1x Intel® Killer™ E5000B 5G LAN
• Intel® Killer™ BE1750x Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM

Conectores Internos

• 1x Thunderbolt5 card connector(JTBT5, support RTD3)
• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 6x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Thermal Sensor connectors(T_SEN)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 20Gbps Type C ports

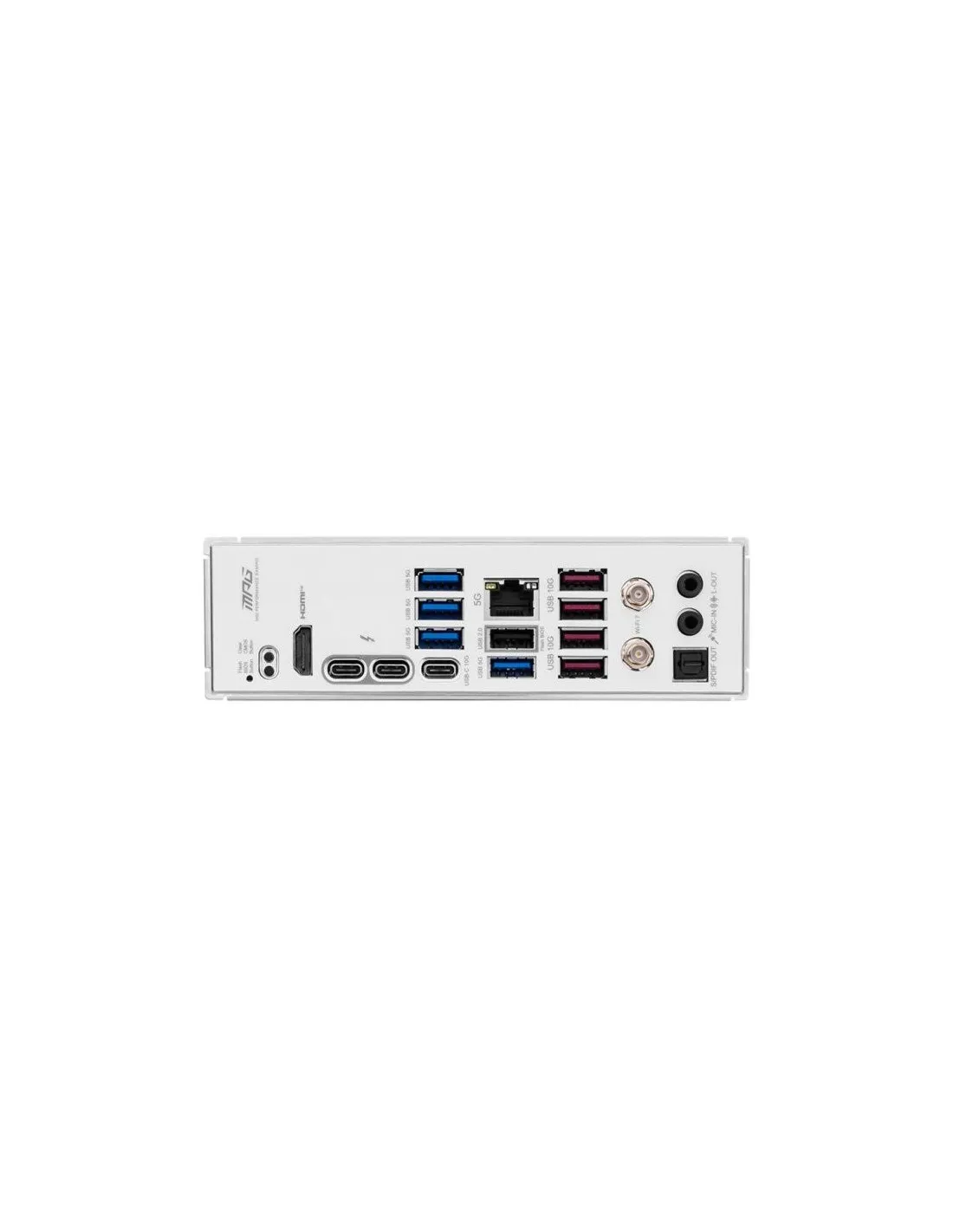

Conectores Traseros

• 2x Thunderbolt4 ports (Rear)
• USB 5Gbps Type-A
• 5G LAN
• USB 10Gbps Type-A
• Wi-Fi / Bluetooth
• Audio Connectors
• Clear CMOS Button
• Flash BIOS Button
• HDMI™
• Thunderbolt 4
• USB 10Gbps Type-C
• USB 2.0
• Optical S/PDIF Out

Factor de forma

• ATX (243.84mm x 304.8mm)
