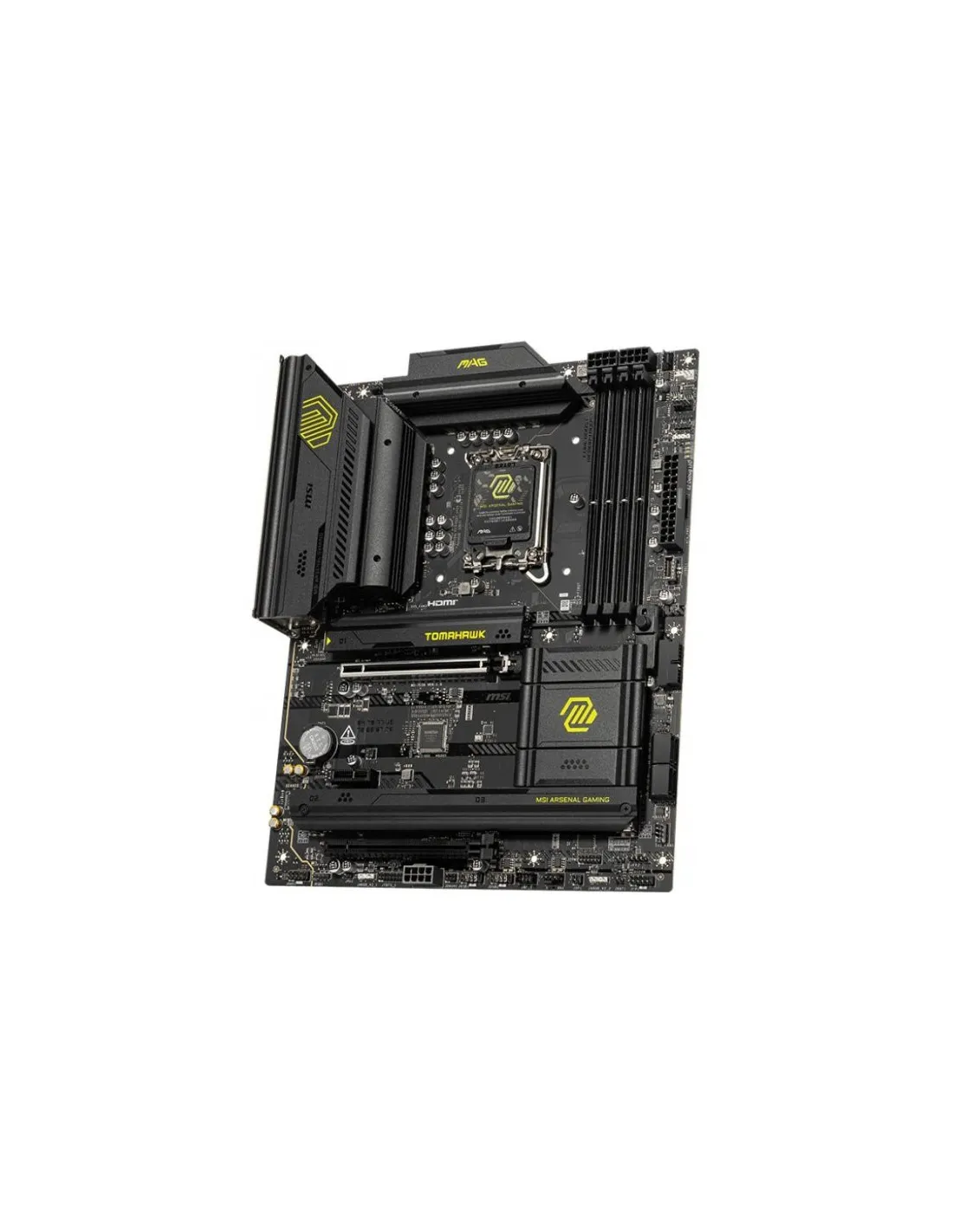

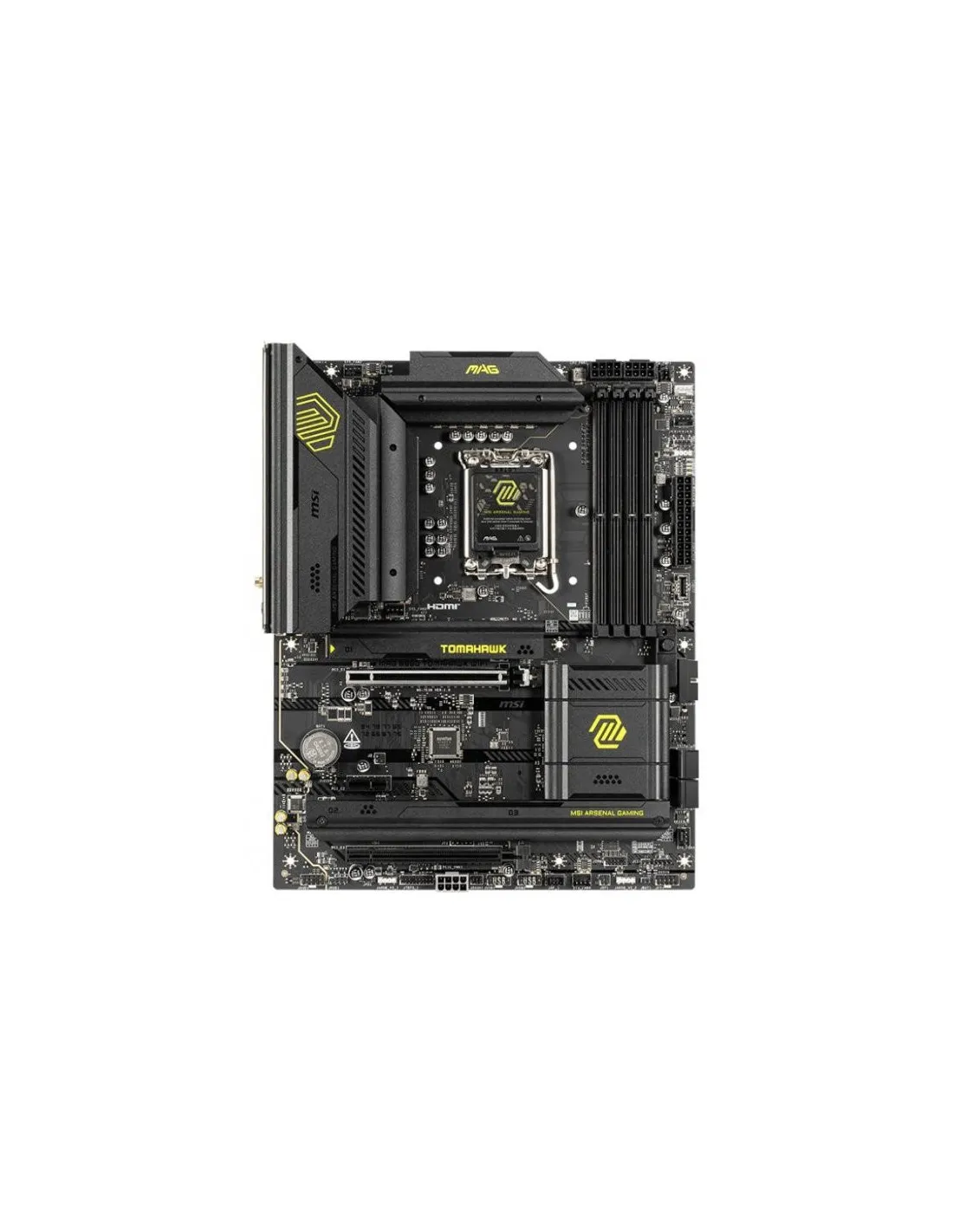

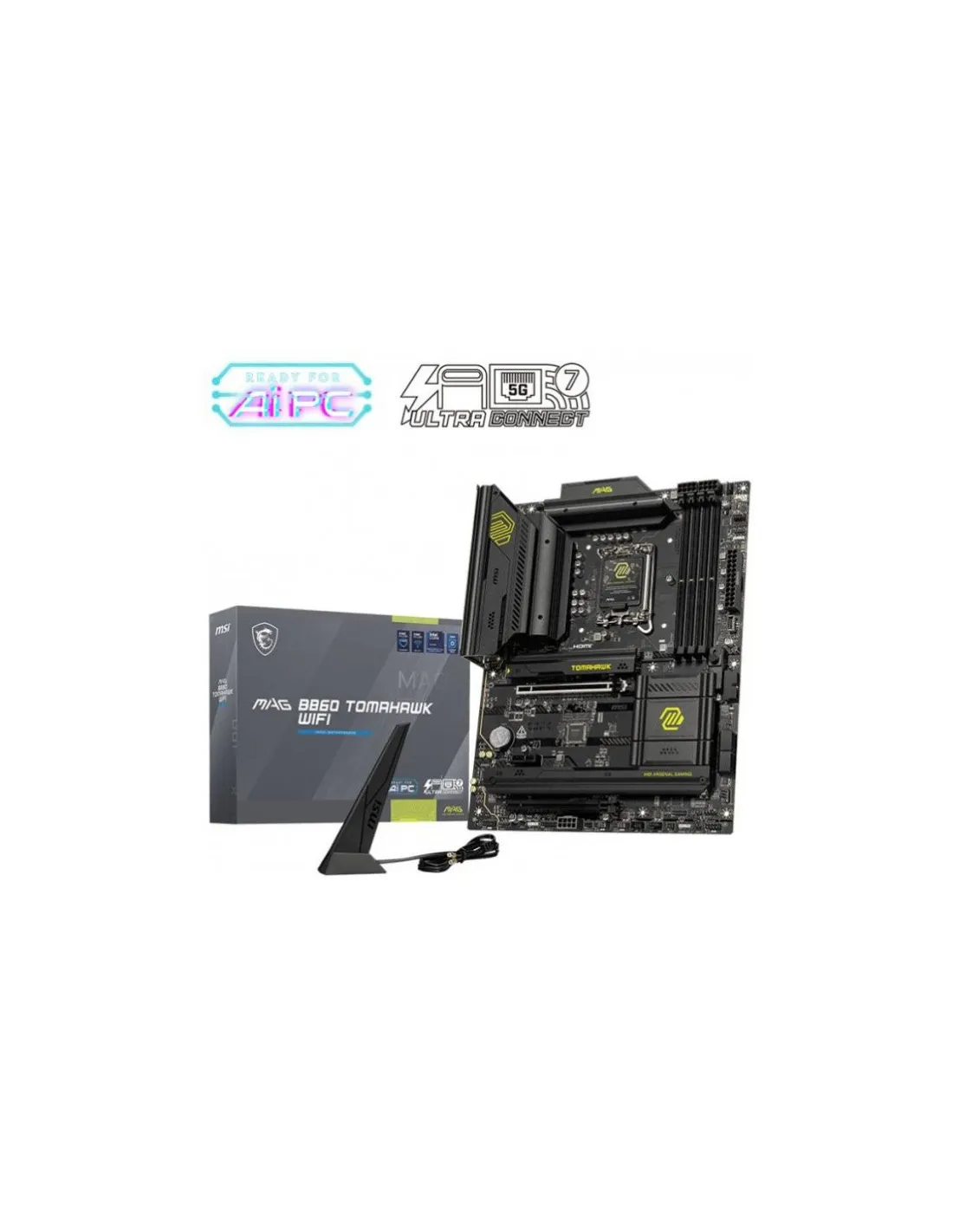

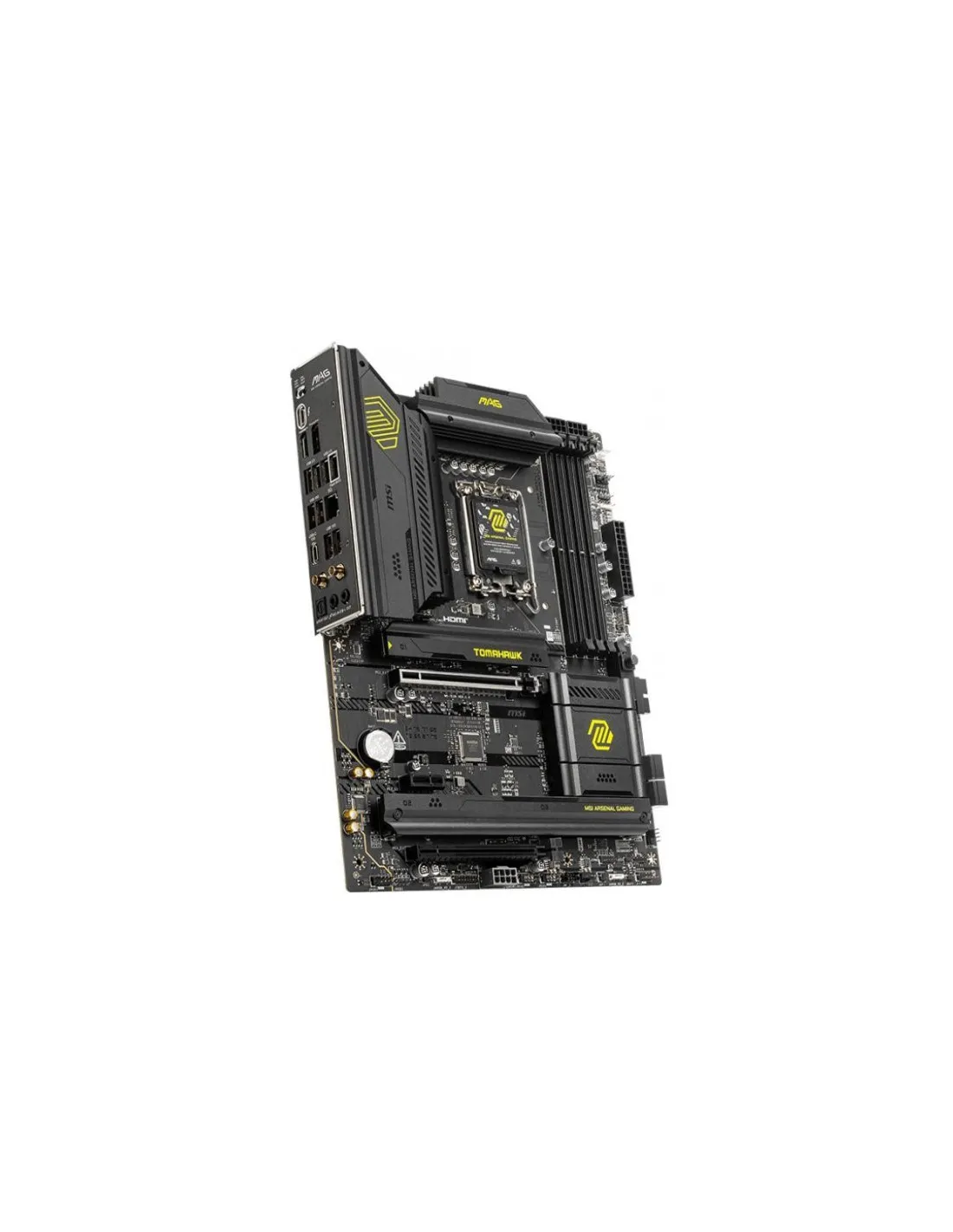

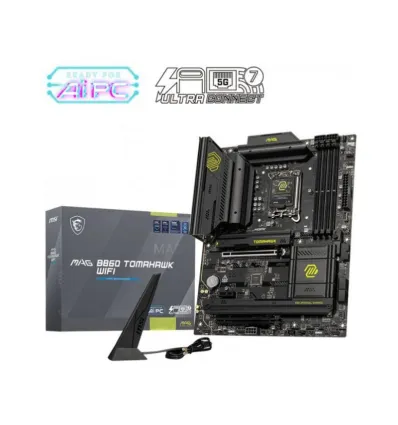

MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX

Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
Placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX
250,91 €
IVA incluido
¡En Stock! Entrega en 24/48 horas
Precio Envío: 6,99€
P/N: 911-7E39-001

MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX

Características destacadas


  • Intel® Core™ Ultra Support
  • DDR5 Up to 9200+ MTs
  • 3x M.2 PCIe Slots
  • Wi-Fi 7 & Bluetooth® 5.4

Pago Seguro

Garantía de 3 años

Envío 24/48 horas

Financia a tu gusto

Descripción

La MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX es una placa base de última generación diseñada para los entusiastas del rendimiento y la estabilidad. Con soporte para los procesadores Intel® Core™ Ultra, esta potente plataforma ofrece un rendimiento excepcional gracias a sus capacidades de overclocking y soporte para memorias DDR5. Ideal para gamers y profesionales que buscan aprovechar al máximo sus sistemas, esta placa base combina tecnología de vanguardia con características avanzadas para una experiencia informática sin igual. Está equipada con cuatro ranuras DDR5 que admiten hasta 256 GB de memoria, lo que permite velocidades de hasta 9200 MT/s en configuraciones específicas. El soporte para Intel® XMP 3.0 y la capacidad de overclocking garantizan que puedas exprimir hasta la última gota de potencia de tus módulos de RAM. Esta plataforma ofrece soporte para modos de memoria de doble canal y controladores duales, asegurando un rendimiento multitarea fluido y eficiente.


Características de la placa base MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX

Procesador

  • Supports Intel® Core™ Ultra Processors (Series 2)
  • LGA 1851

Chipset

  • INTEL B860

Memoria

  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 9200+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s
  • Supports Intel® POR Speed and JEDEC Speed
  • Supports Memory Overclocking and Intel® XMP 3.0
  • Supports Dual-Controller Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM

Slots

  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Gráficos

  • 1x HDMI™
  • Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz
  • 1x DisplayPort
  • Support DisplayPort 1.4, maximum resolution of 4K 60Hz
  • 1x Type-C DisplayPort
  • Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Almacenamiento

  • 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Front)
  • 4x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 40Gbps Type C (Rear)
  • Thunderbolt Resource CPU
  • 1x Thunderbolt4 ports (Rear)
  • Supports up to 40Gbps transfer rate with Thunderbolt devices
  • Supports up to 20Gbps transfer rate with USB4 devices
  • Supports up to 10Gbps transfer rate with USB 3.2 devices
  • Supports up to 5V/3A,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display

Audio

  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

Conectividad y redes

  • Intel® Killer™ E5000 5Gbps LAN
  • Intel® Killer™ BE1750x Wi-Fi 7
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

Conectores Internos

  • 1x Thunderbolt5 card connector(JTBT5, support RTD3)
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 5x System Fan
  • 1x EZ Conn-header (JAF_1)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 1x OC dashboard connector(JDASH1)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports

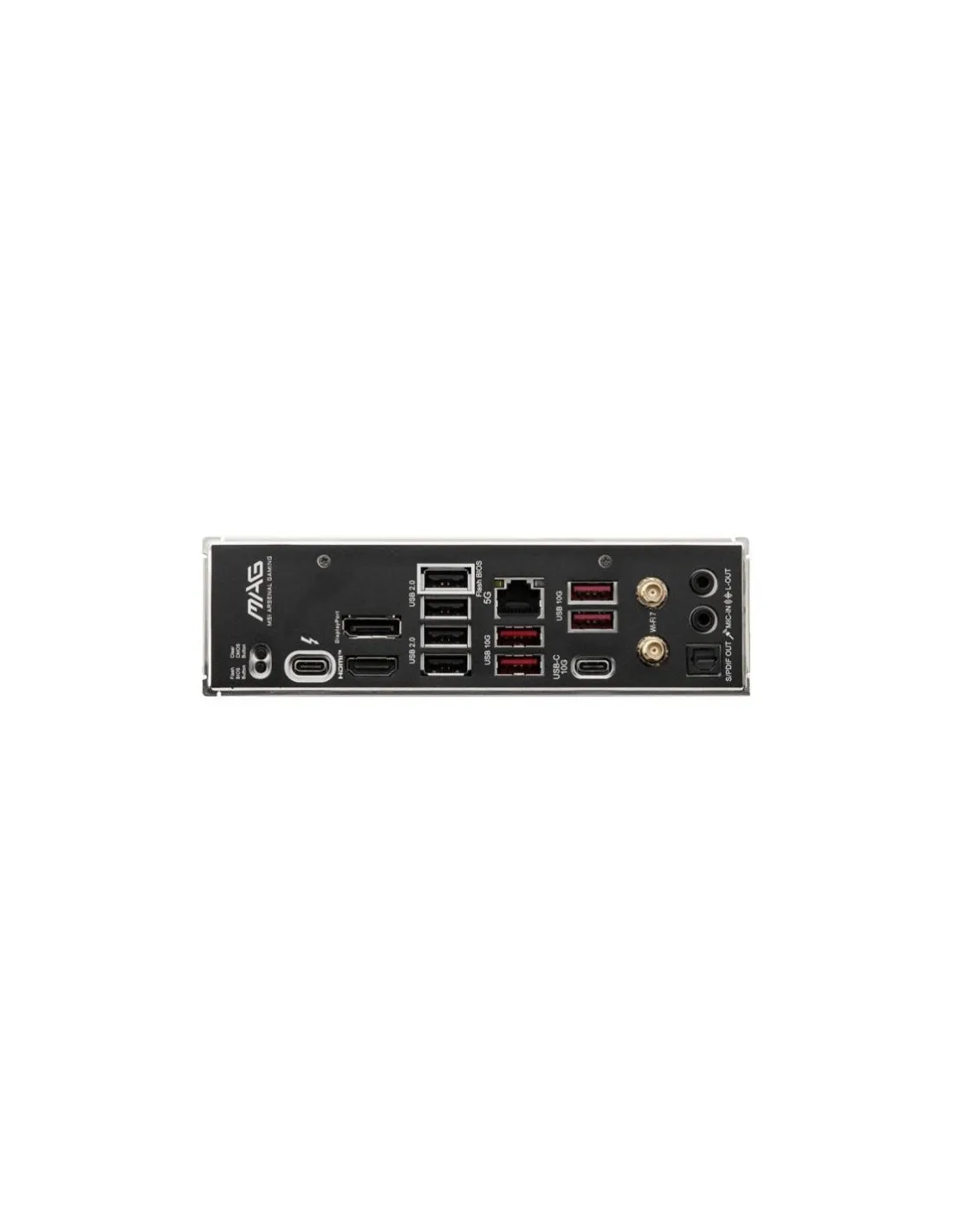

Conectores Traseros

  • Clear CMOS Button
  • DisplayPort
  • USB 2.0 (Flash BIOS Port)
  • 5G LAN
  • USB 10Gbps Type-A
  • Audio Connectors
  • Flash BIOS Button
  • Thunderbolt™ 4 40Gbps (Type-C)
  • HDMI™
  • USB 2.0
  • USB 10Gbps Type-A
  • USB 10Gbps Type-C
  • Wi-Fi / Bluetooth
  • S/PDIF-OUT

Factor de forma

  • ATX
  • 243.84mmx304.8mm

Más información en la web del fabricante:

Comprar MSI MAG B860 Tomahawk WIFI Socket Intel 1851 ATX en RED Computer
