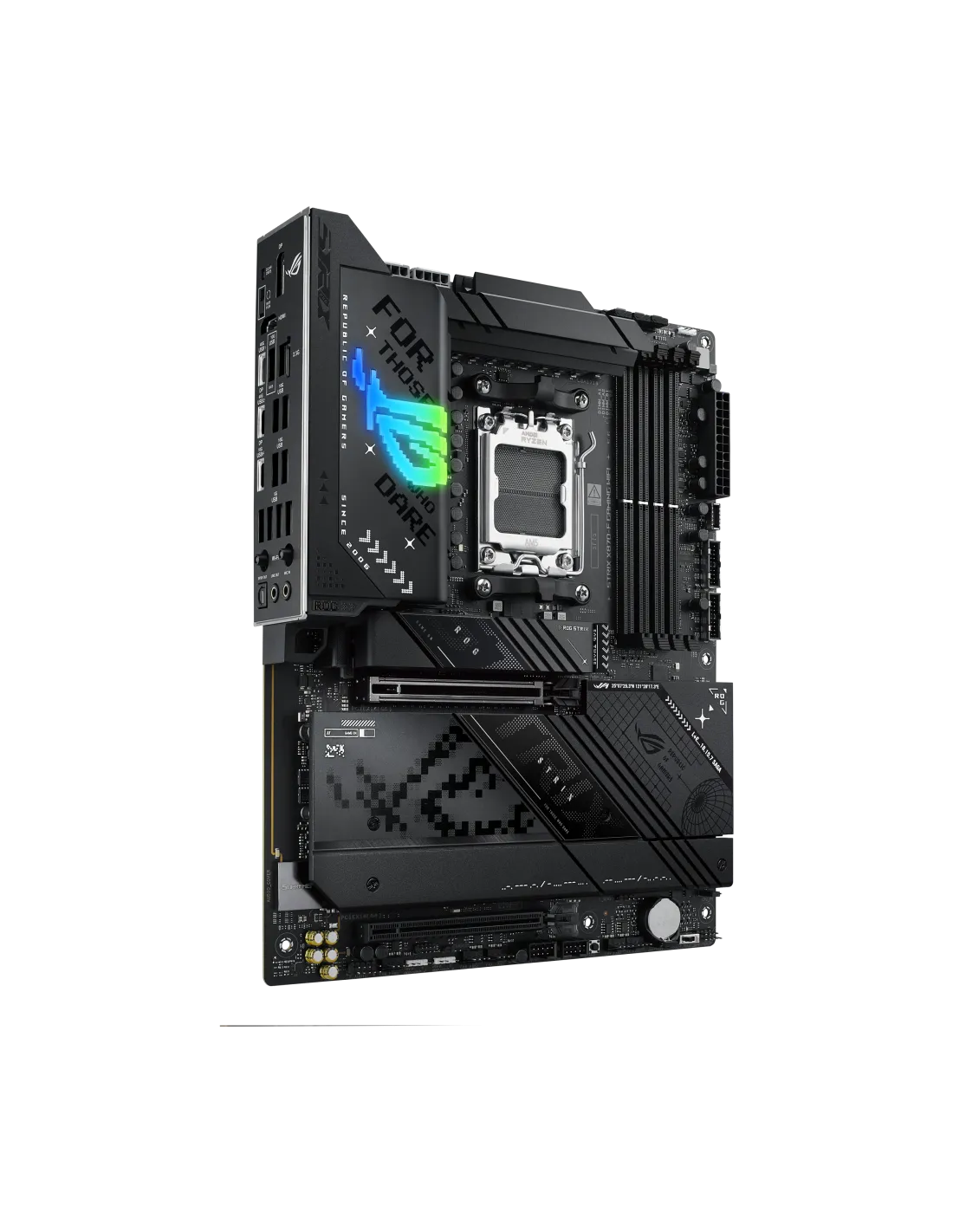

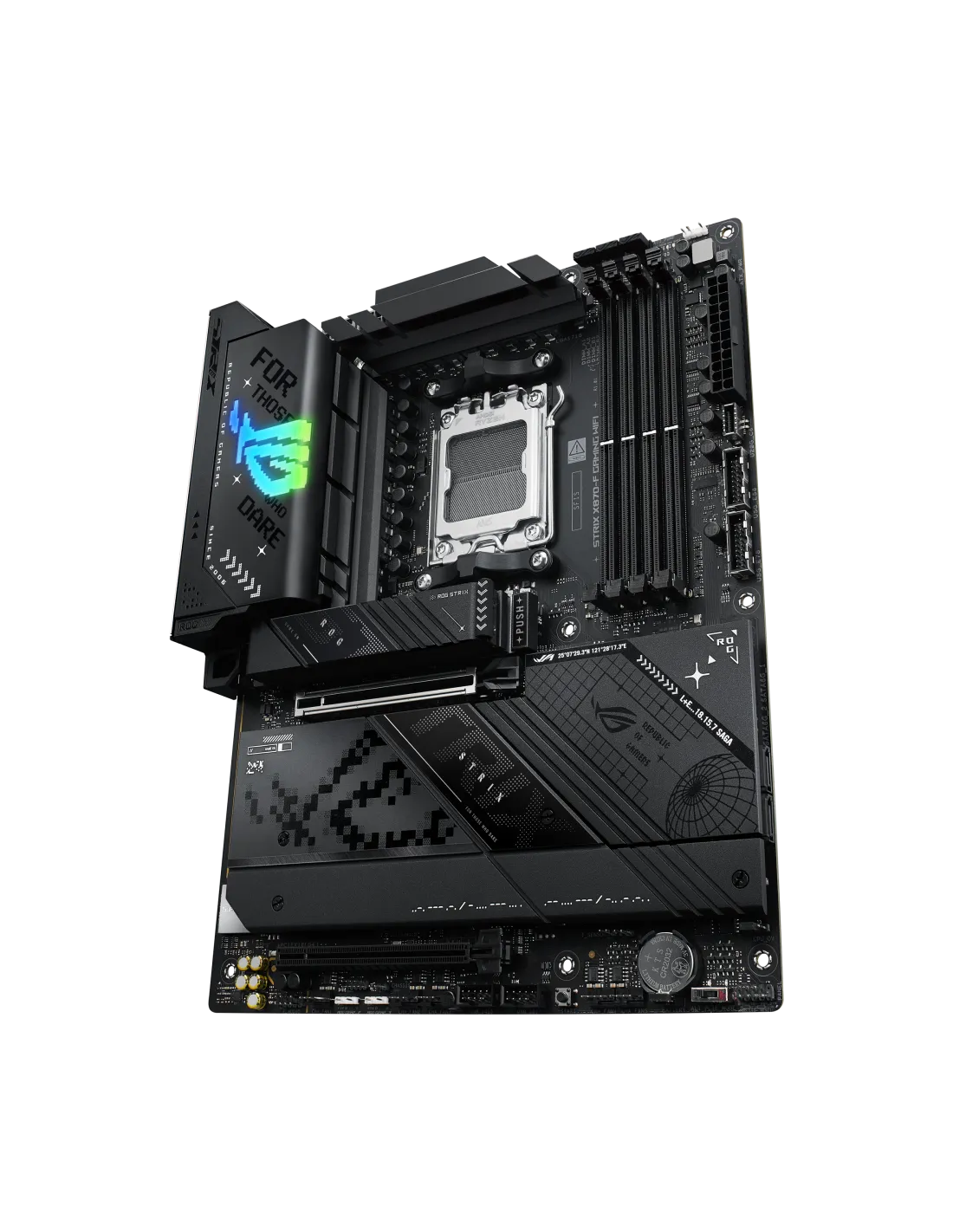

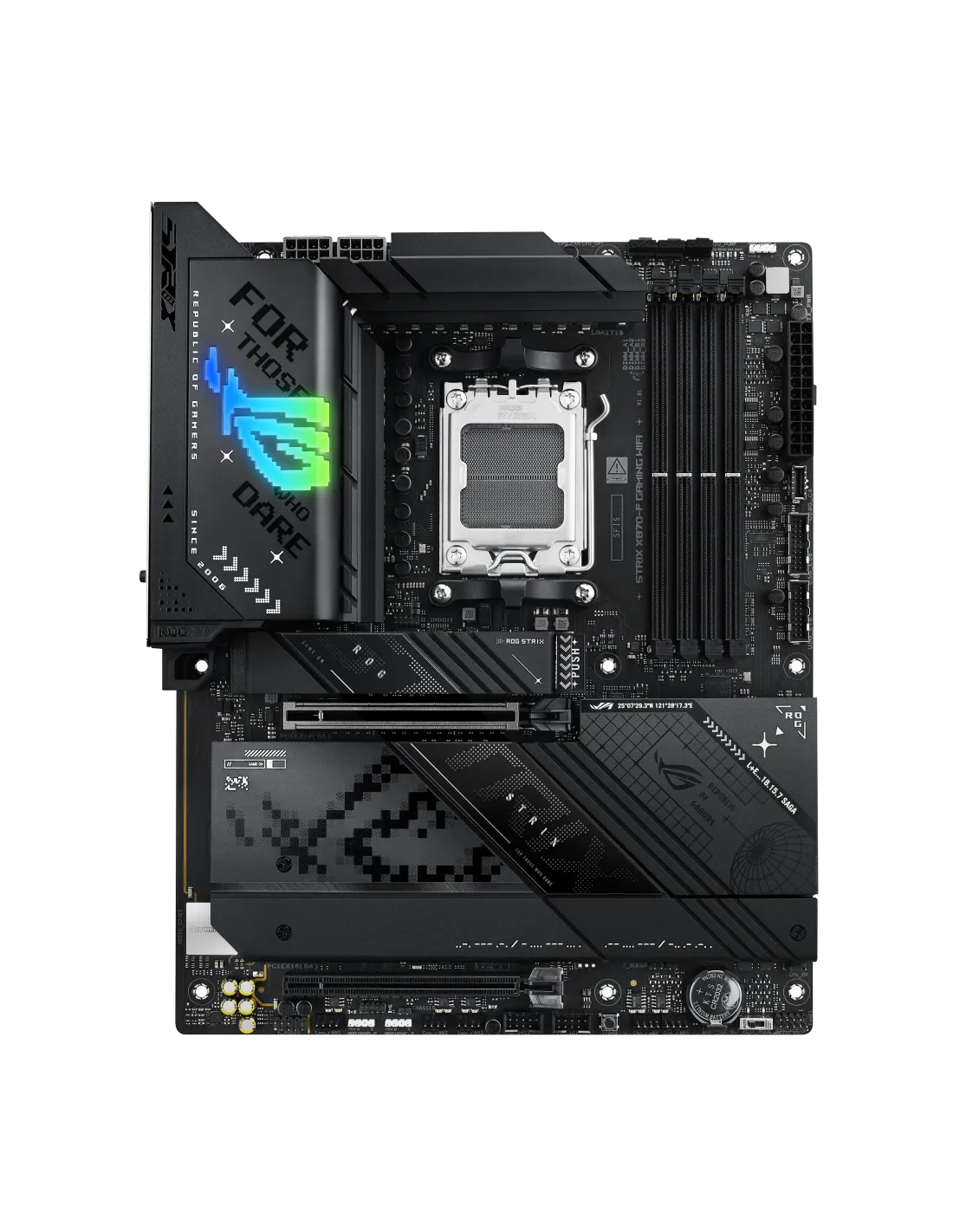

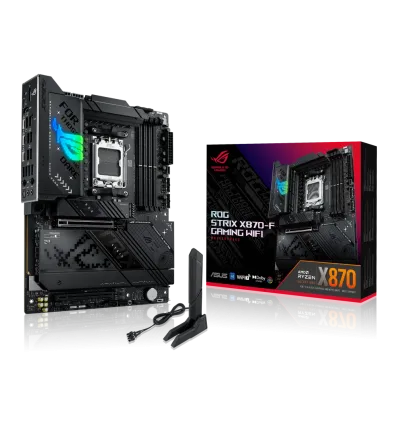

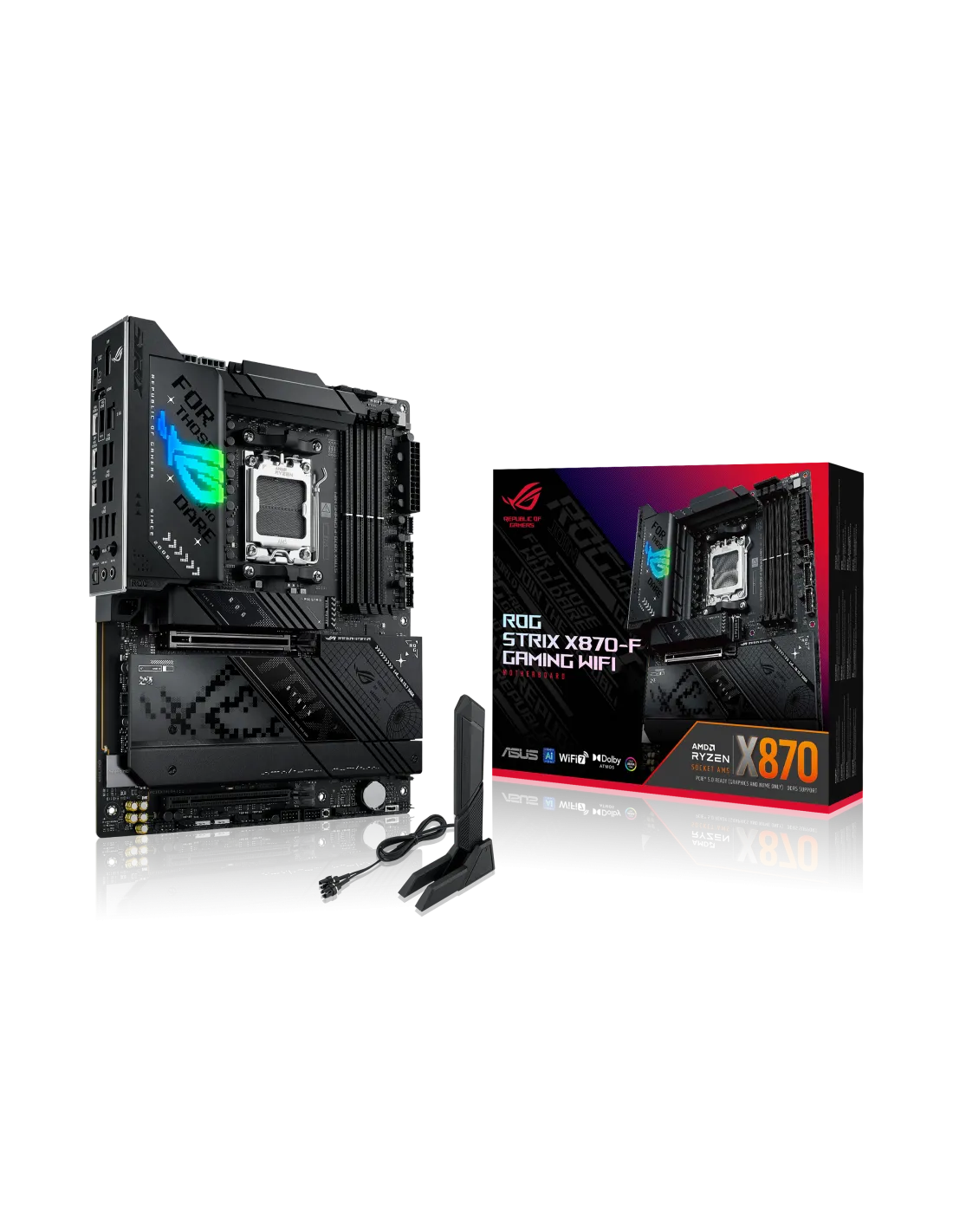

Asus ROG Strix X870-F Gaming WiFi Socket AM5 ATX
Descripción
La ASUS ROG STRIX X870-F GAMING WIFI es la opción definitiva para los amantes del gaming y los entusiastas del hardware. Es compatible con una amplia gama de procesadores, incluyendo las series AMD Ryzen 7000, 8000 y 9000. Esto garantiza que puedas aprovechar al máximo las capacidades de los más recientes CPUs, brindando una plataforma robusta y versátil para todas tus necesidades informáticas, gracias a su socket AM5. El soporte para memoria DDR5 y una capacidad máxima de 192 GB aseguran que tengas el mejor rendimiento y velocidad en tareas exigentes. Las ranuras DIMM permiten una instalación fácil y una expansión sin problemas, proporcionando la flexibilidad que todo gamer y profesional necesita.
Características de la placa base Asus ROG Strix X870-F Gaming WiFi
Procesador
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
- AMD X870
Memoria
- 4 x DIMM slots, max. 192GB, DDR5
- Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered Memory
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
Slots
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
Gráficos
- 1 x DisplayPort
- 1 x HDMI™ port
- 2 x USB4® (40Gbps) ports support USB
- Type-C® display outputs
Almacenamiento
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 2 x SATA 6Gb/s ports
USB
- 2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)
- 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x USB 20Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Conectividad y redes
- 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard
- Wi-Fi 7
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
- Bluetooth® v5.4
Conectores Internos
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 5 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connectors
- 4 x M.2 slots (Key M)
- 2 x SATA 6Gb/s ports
- 1 x USB 20Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 3 x Addressable Gen 2 headers
- 1 x Alteration PCIe mode switch
- 1 x Chassis Intrusion header
- 1 x CPU Over voltage jumper
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x Start button
- 1 x 10-1 pin System Panel header
- 1 x Thermal Sensor header

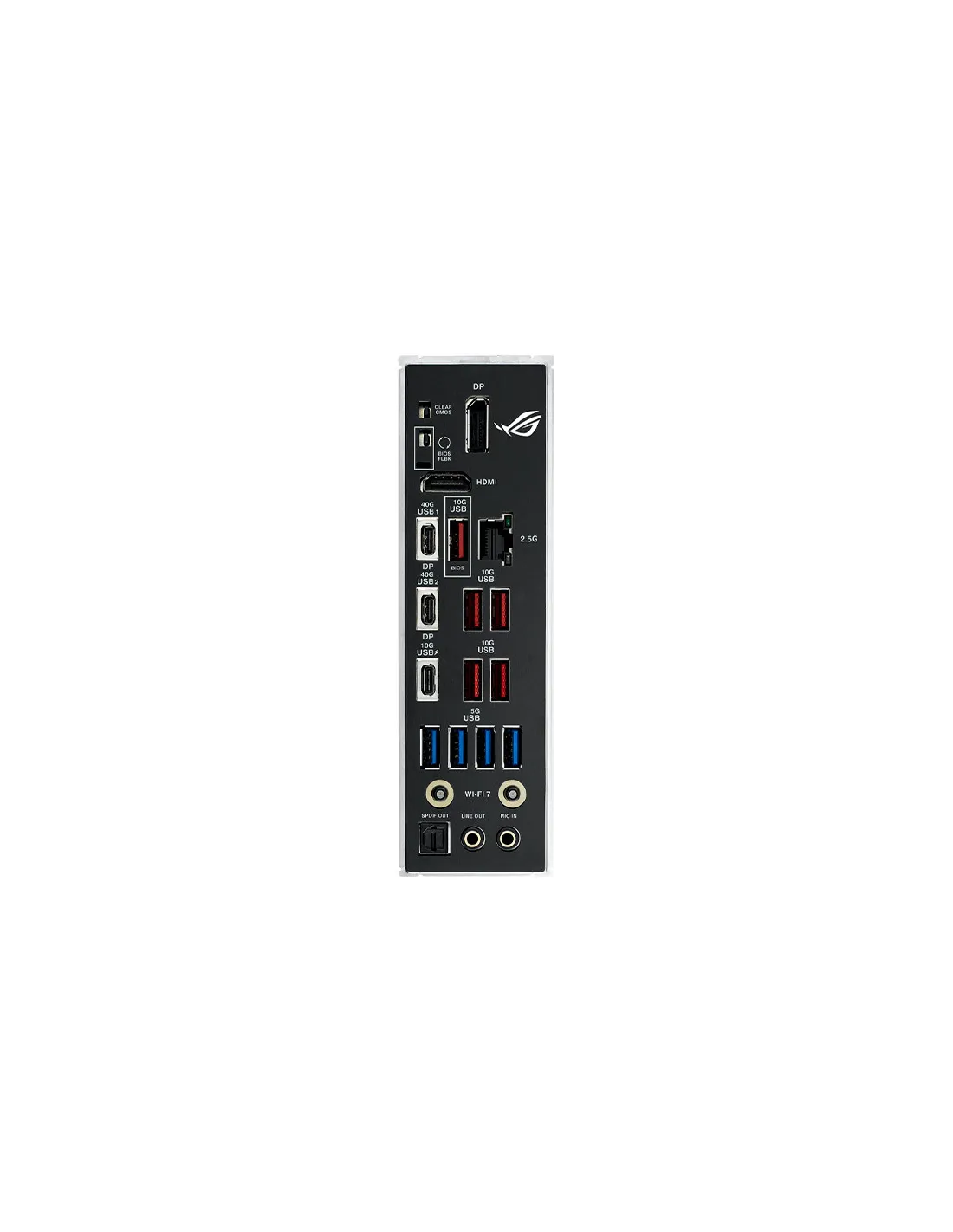

Conectores Traseros
- 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)
- 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet
- 2 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
Factor de forma
- ATX (30.5 x 24.4cm)
