Gigabyte X870 Eagle WiFi 7 Socket AM5 ATX

Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX
Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX
Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX
Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX
Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX
Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX
Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX
Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX
276,90 €
IVA incluido
¡En Stock! Entrega en 24/48 horas
Precio Envío: 6,99€
P/N: 9MX87EG7-00-10

Pago Seguro

Garantía de 3 años

Envío 24/48 horas

Financia a tu gusto

Descripción

La Gigabyte X870 Eagle WiFi 7 Socket AM5 ATX es la elección ideal para aquellos que buscan un rendimiento superior y fiabilidad sin concesiones. Equipada con el socket AM5, esta placa base es compatible con los procesadores AMD Ryzen de las series 9000, 8000 y 7000, ofreciéndote una eficiencia y velocidad inigualables. Con su capacidad para alojar hasta 256 GB de memoria DDR5, disfrutarás de un sistema siempre rápido, incluso cuando realices multi tarea intensiva. La integración de WiFi 7 en esta placa base te garantiza una conexión ultra rápida y estable, perfecta para juegos en línea, streaming 4K y transferencias rápidas de archivos. Además, sus numerosos puertos USB, incluyendo varios puertos USB 3.2 Gen 2, te ofrecen una conectividad sin restricciones para todos tus periféricos y dispositivos.


Características de la Placa base Gigabyte X870 Eagle WiFi7 Socket AM5 ATX

Procesador

  • AMD Socket AM5, support for:
  • AMD Ryzen™ 9000 Series Processors/
  • AMD Ryzen™ 8000 Series Processors/
  • AMD Ryzen™ 7000 Series Processors

Chipset

  • AMD X870

Memoria

  • Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • Chipset:
  • 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Gráficos

  • Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
  • 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

  • CPU+ASMedia USB4® controller:
  • 2 x USB4® USB Type-C® ports on the back panel
  • CPU:
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 1 x USB 3.2 Gen 1 port on the back panel
  • CPU+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel

Conectividad y redes

  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard
  • Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard

Conectores Internos

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 3 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

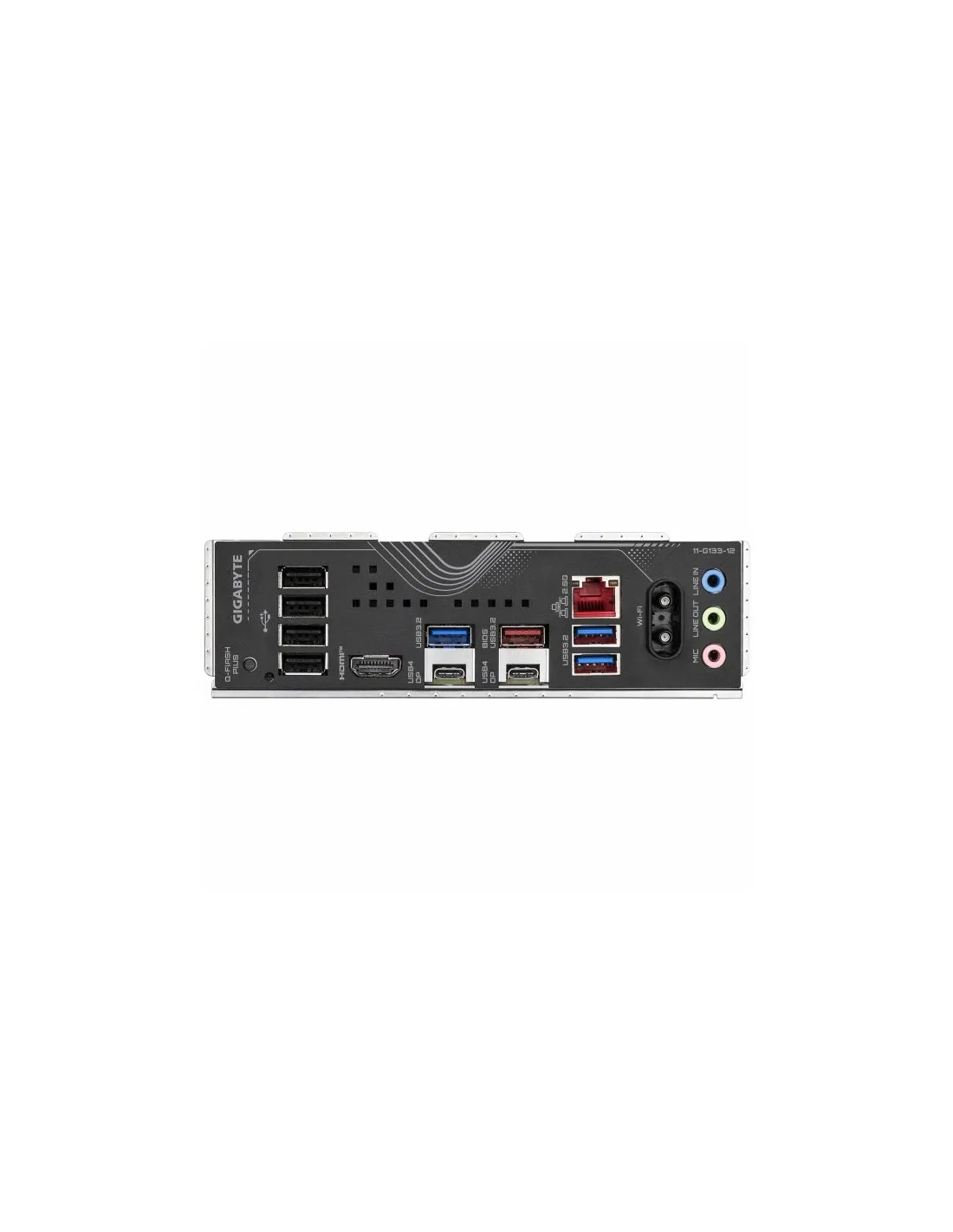

Conectores Traseros

  • 1 x Q-Flash Plus button
  • 2 x antenna connectors (2T2R)
  • 1 x HDMI port*
  • 2 x USB4® USB Type-C® ports (DisplayPort*)
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks

Factor de forma

  • ATX Form Factor; 30.5cm x 24.4cm

Más información en la web del fabricante:

Comprar Gigabyte X870 Eagle WiFi 7 Socket AM5 ATX en RED Computer
