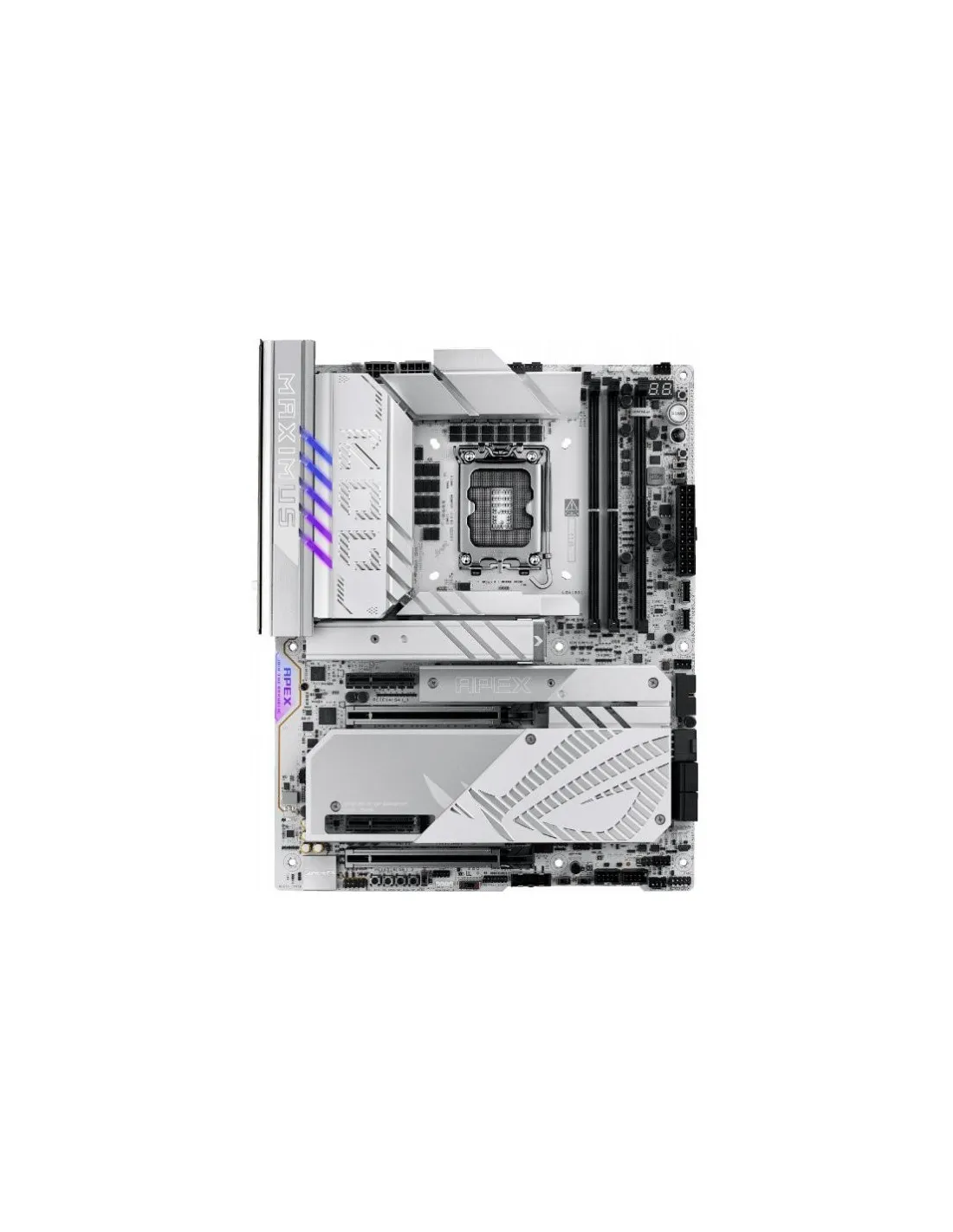

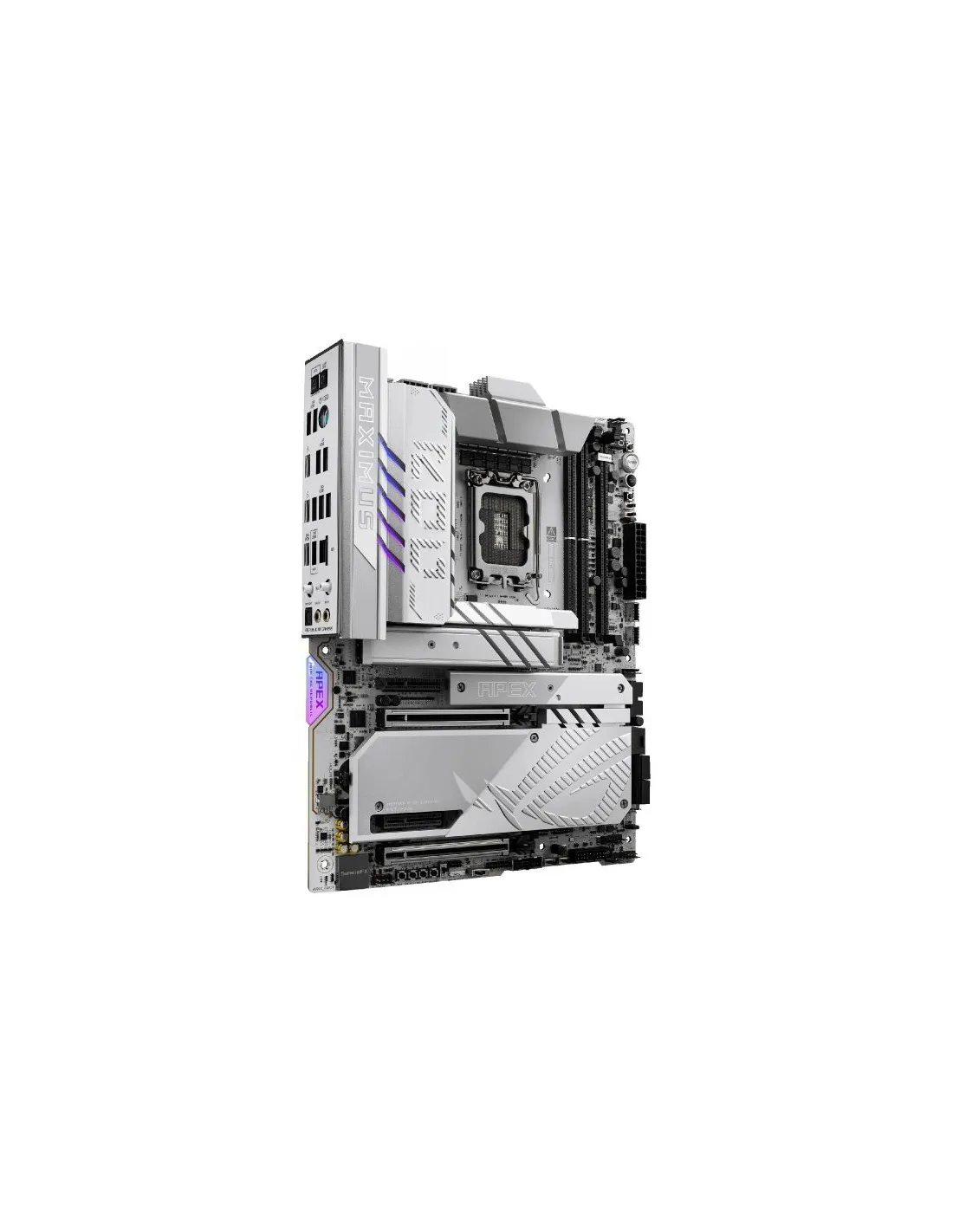

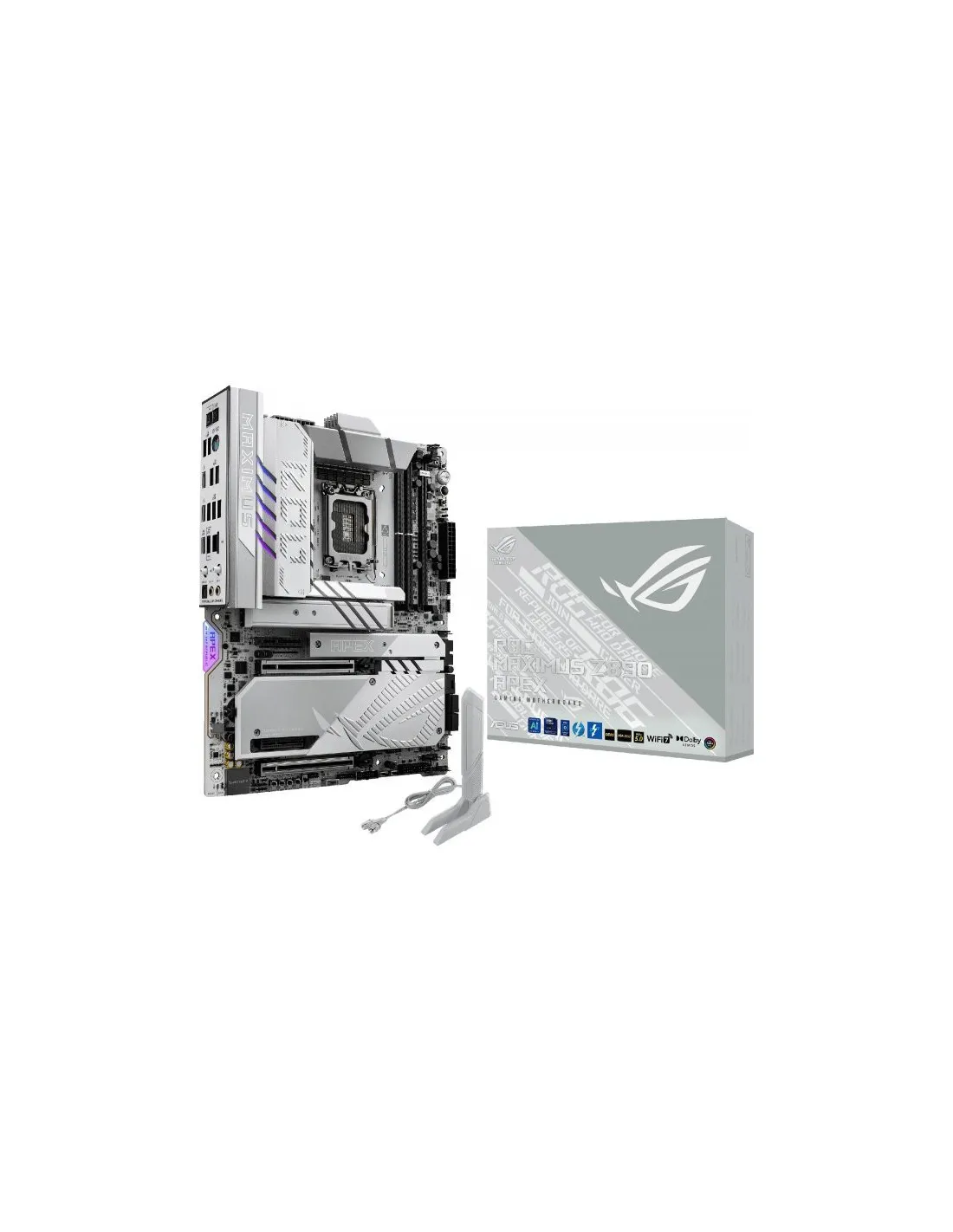

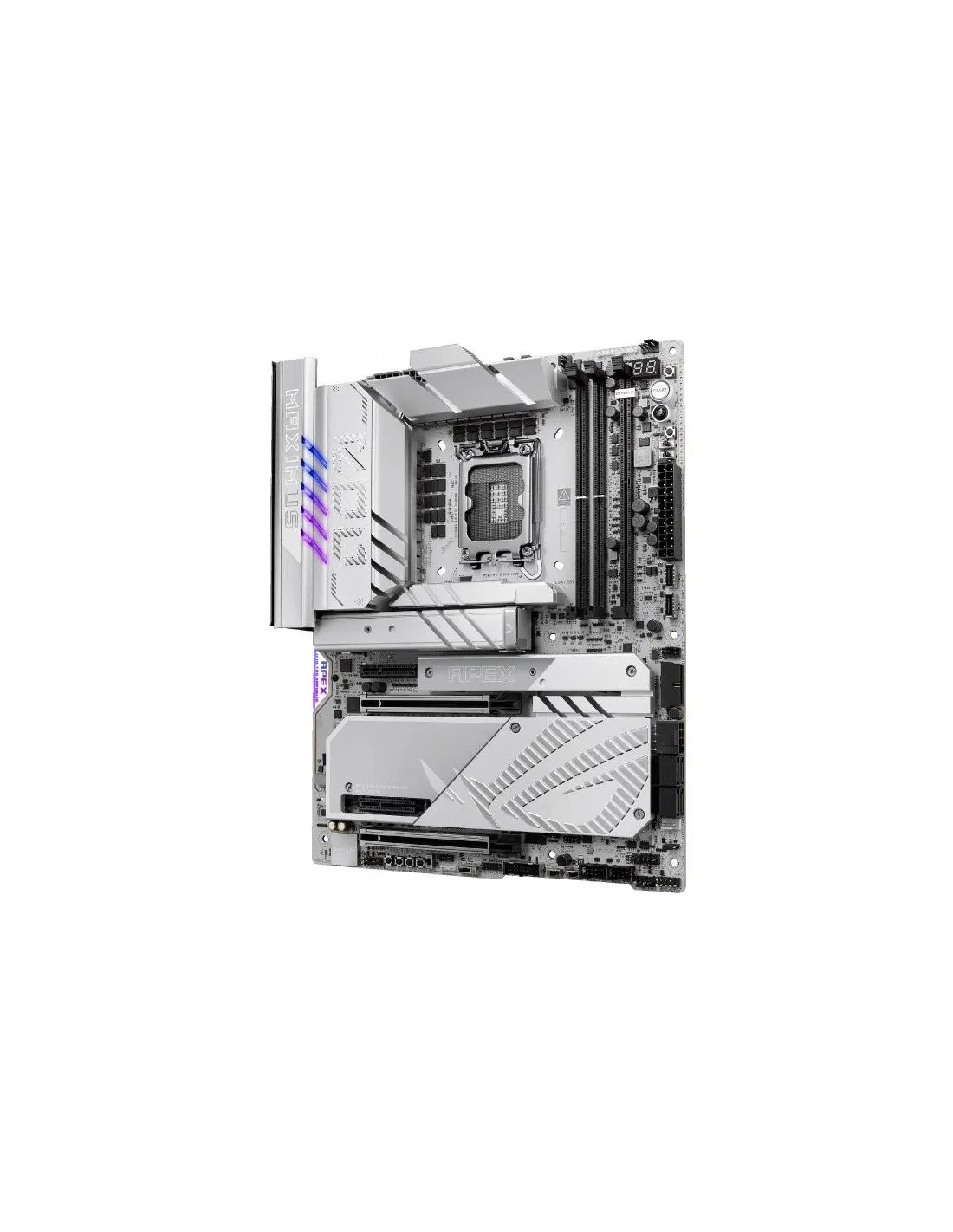

Asus ROG Maximus Z890 Apex Socket 1851 ATX

Características de la placa base Asus ROG Maximus Z890 Apex Socket 1851 ATX

Procesador

• Support Intel® Core™ Ultra Processors(series 2) , LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

• Intel® Z890 Chipset

Memoria

• 2 x DIMM slots, max. 96GB, DDR5
• Supports up to 8800+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual Channel Memory Architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• ASUS Enhanced Memory Profile III (AEMP III)

Slots

• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
• 2 x PCIe 4.0 x4 slots

Gráficos

• 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**

Almacenamiento

• Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports*
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
• DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 4 x USB 10Gbps ports (4 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C® power delivery output: max. 5V/3A

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

Conectividad y redes

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth® v5.4***

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 2 x 4-pin Chassis Fan headers
• 2 x 4-pin Full Speed Fan headers
• 1 x W_PUMP+ header
• 1 x Extra Flow Fan header
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• 1 x 8-pin PCIe Power connector
• 4 x M.2 slots (Key M)
• 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 1 x 80 Light Bar jumper
• 3 x Addressable Gen 2 headers
• 1 x Alteration PCIe mode switch
• 4 x BCLK button
• 1 x BIOS Switch button
• 1 x FlexKey button
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x LN2 Mode jumper
• 1 x Pause switch
• 18 x ProbeIt Measurement Points
• 1 x ReTry button
• 2 x RSVD switches
• 1 x RSVD header
• 1 x Safe Boot button
• 1 x Slow Mode switch
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

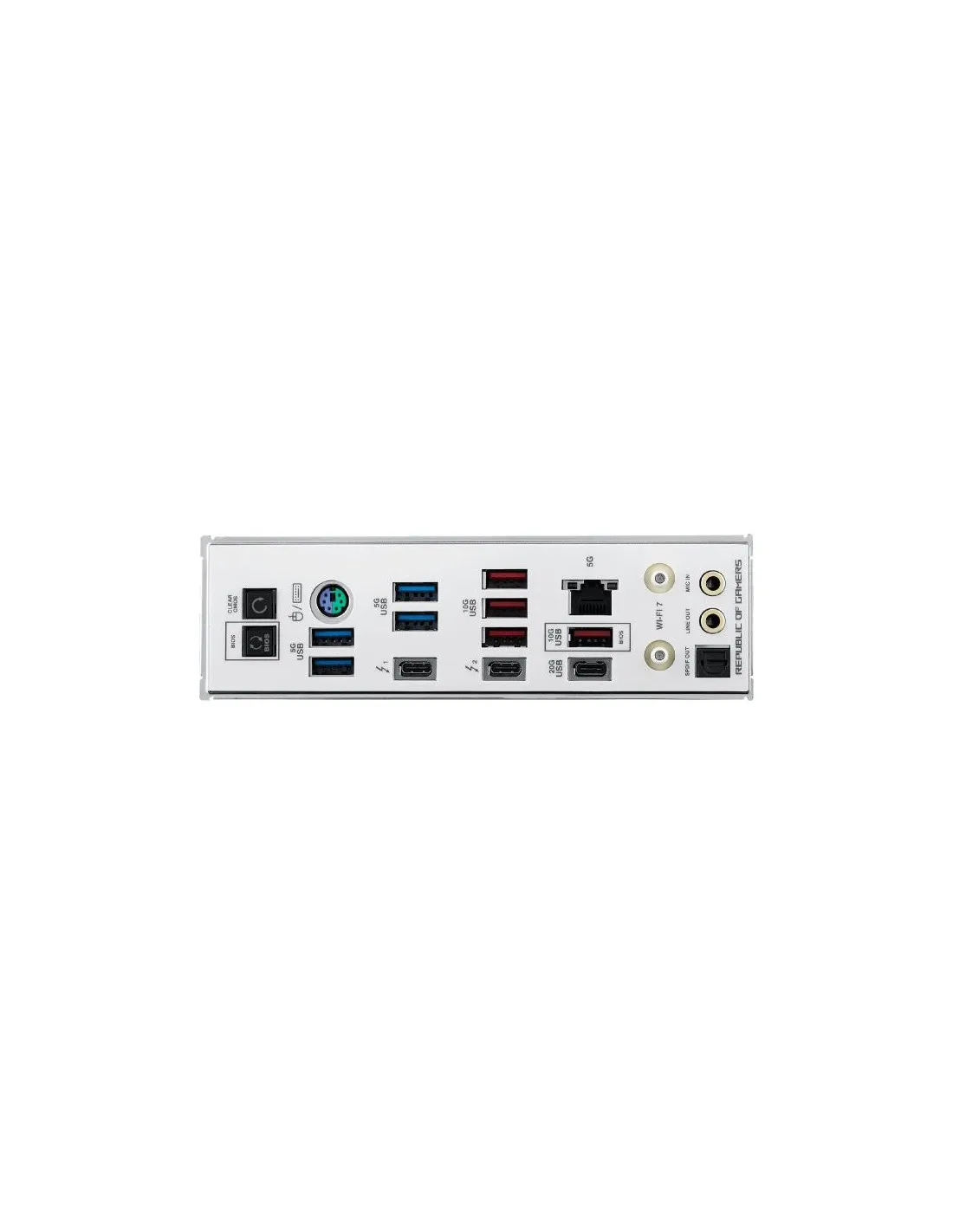

Conectores Traseros

• 2 x Thunderbolt™ 4 ports (USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 4 x USB 10Gbps ports (4 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x Wi-Fi Module
• 1 x Realtek 5Gb Ethernet port
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™  button
• 1 x Clear CMOS button
• 1 x PS/2 keyboard/mouse combo port

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )
