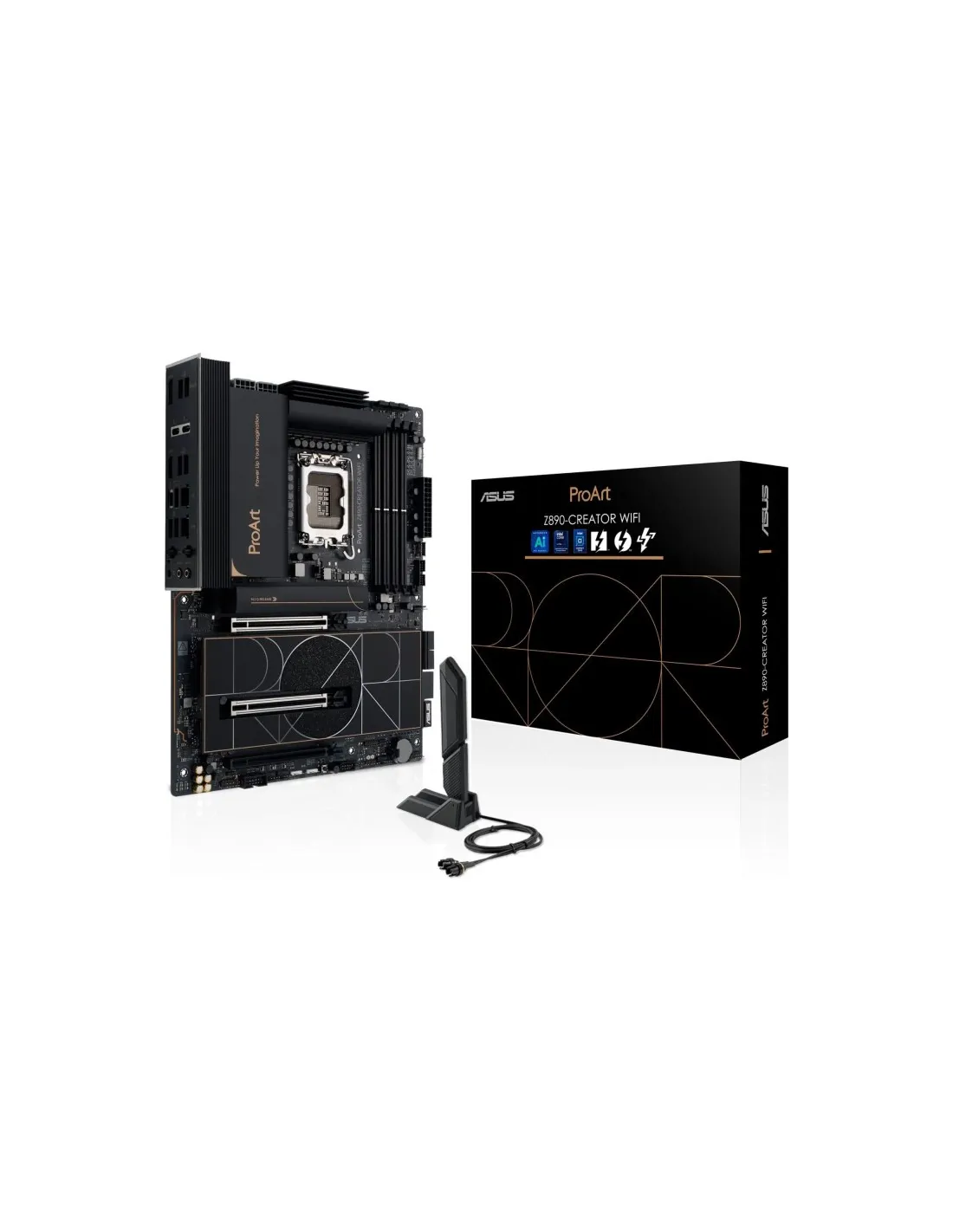

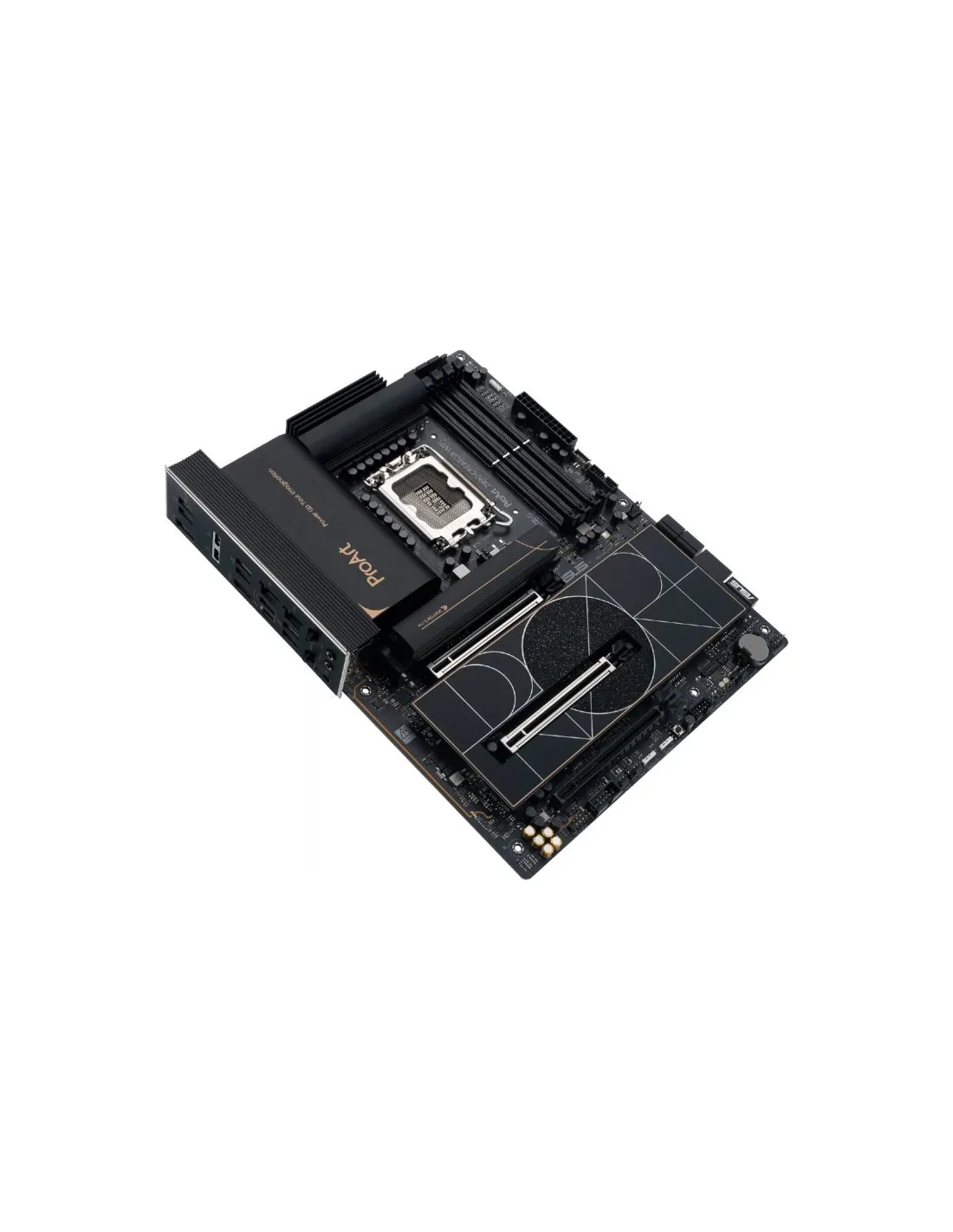

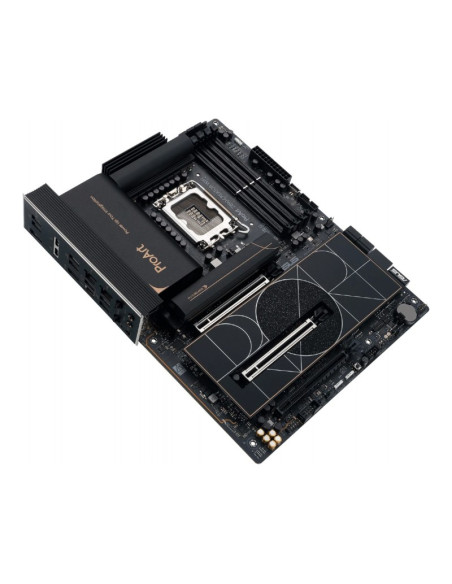

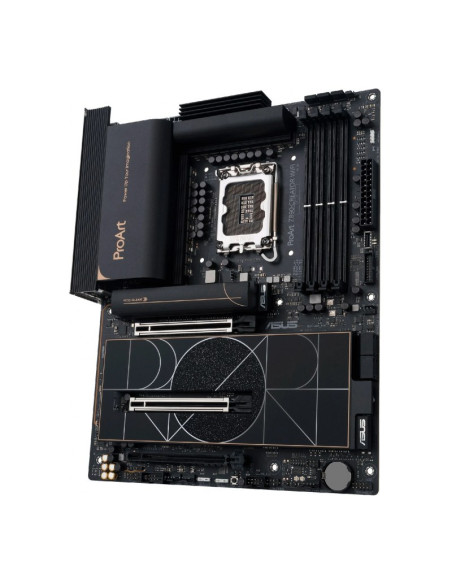

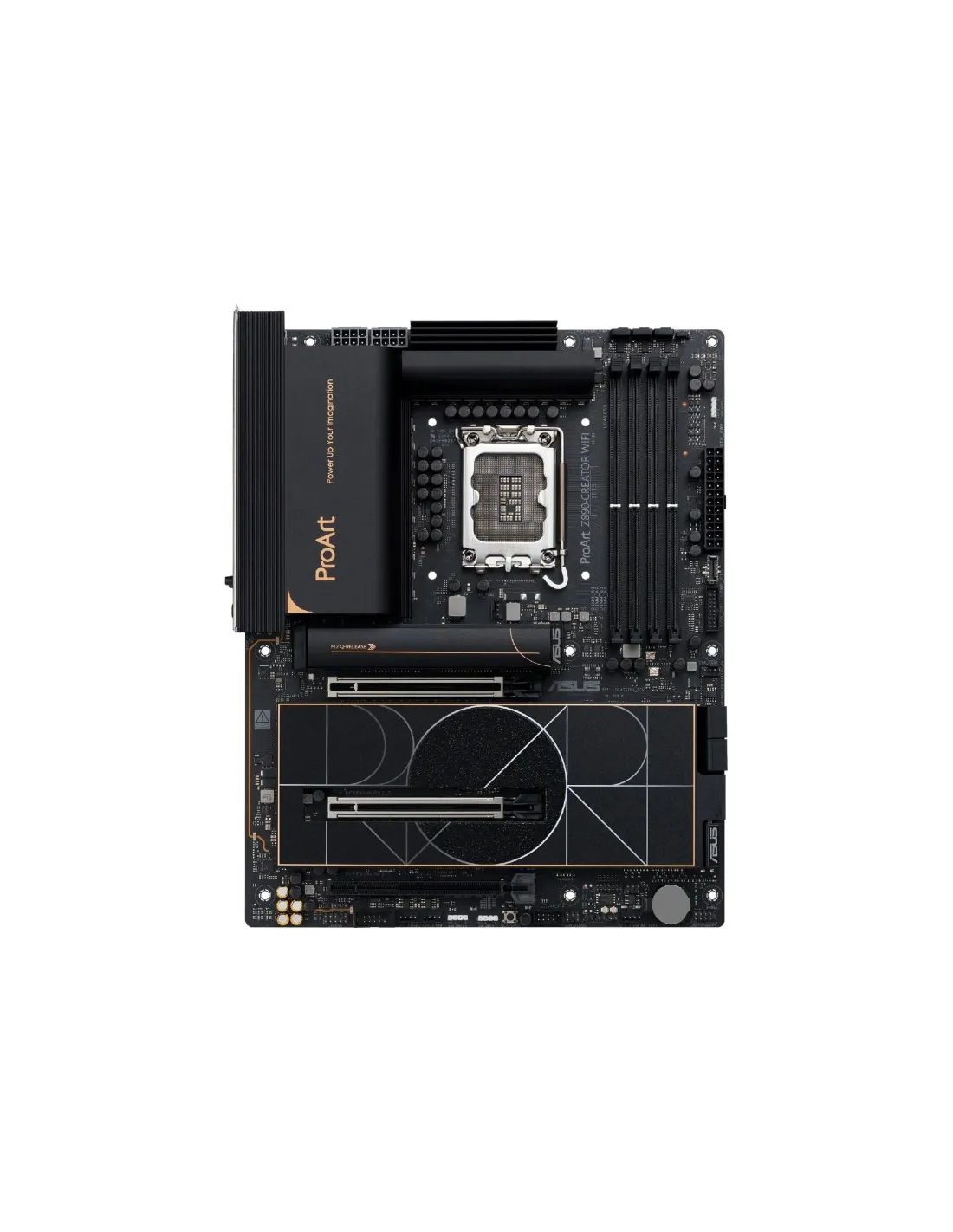

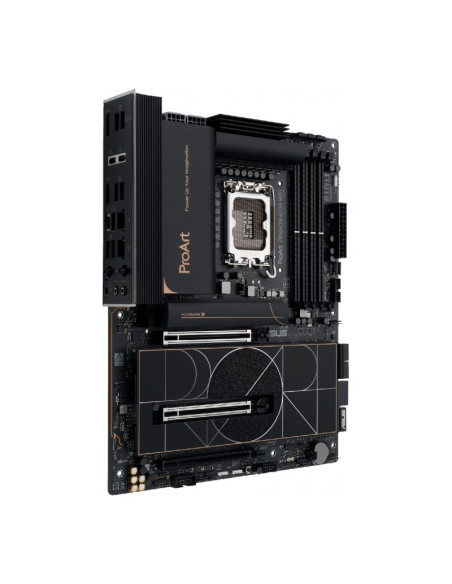

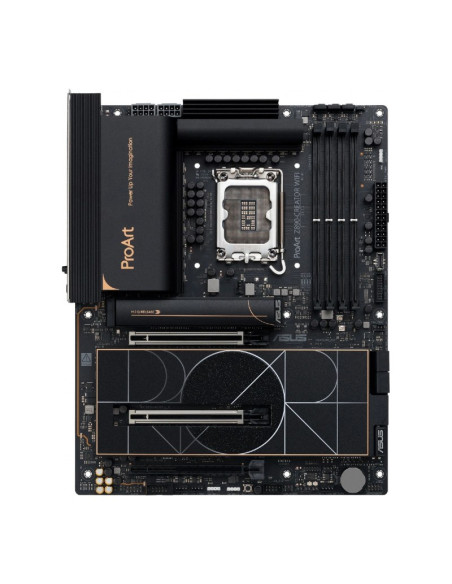

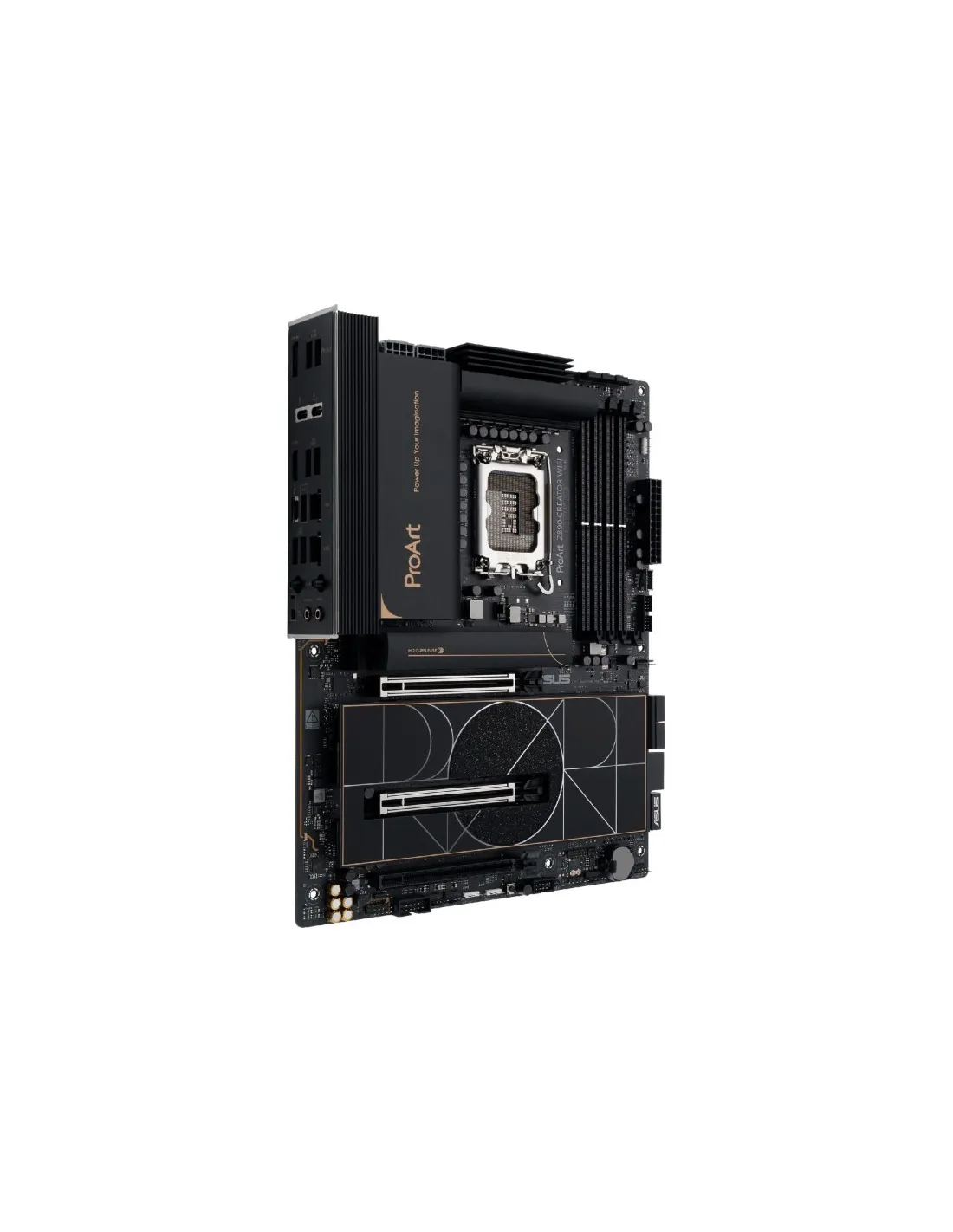

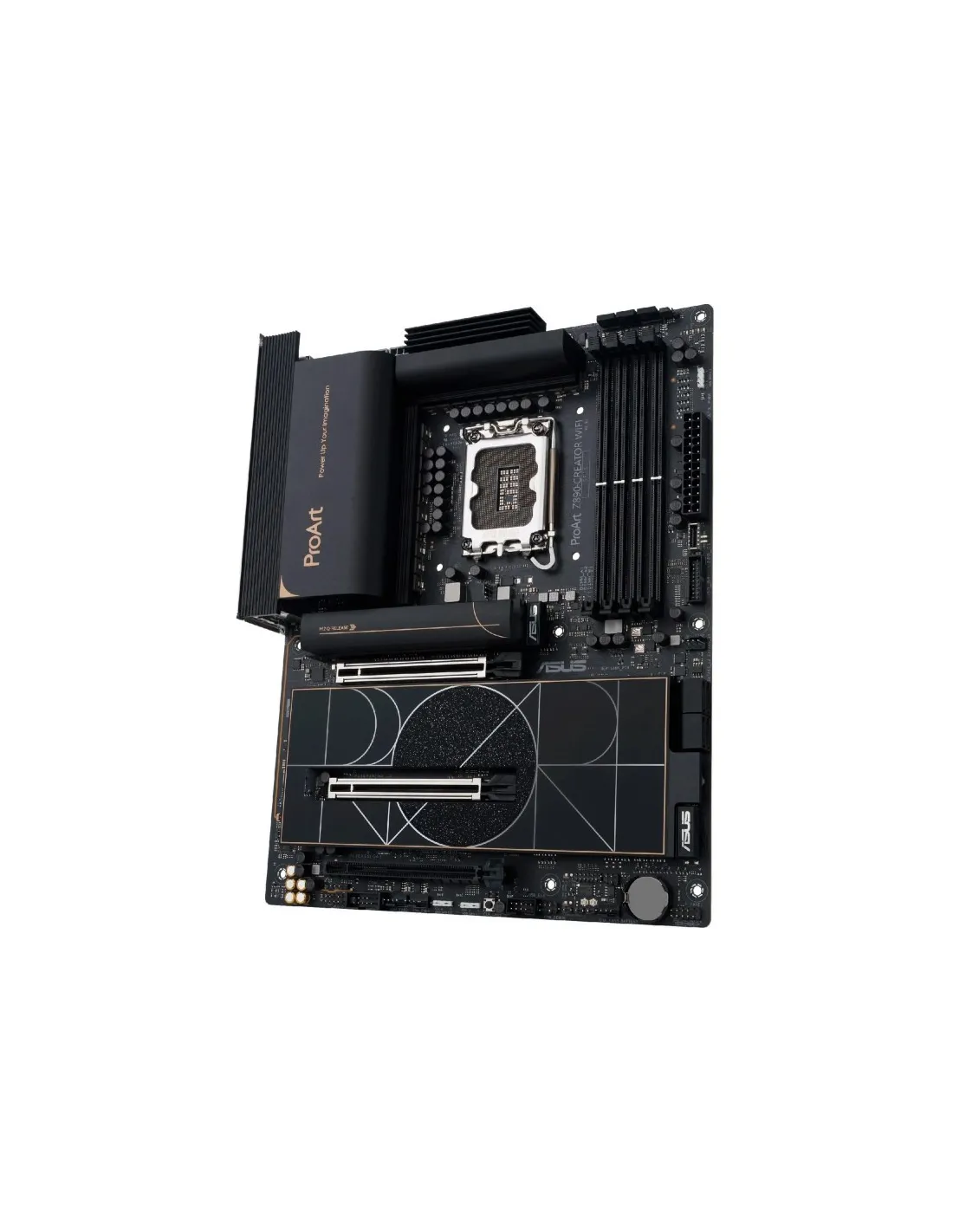

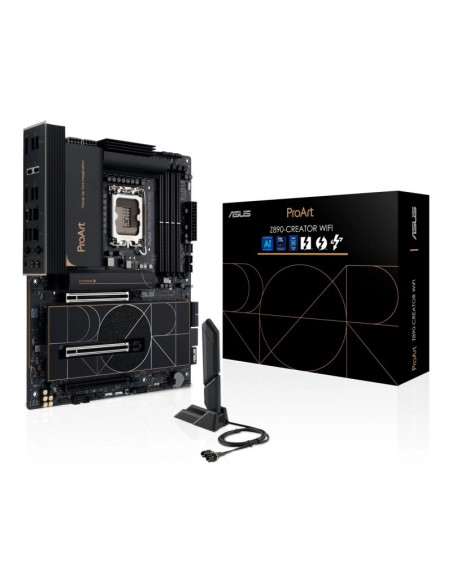

Asus ProArt Z890 Creator WiFi Socket 1851 ATX

Características de la placa base Asus ProArt Z890 Creator WiFi

Procesador

• Support Intel® Core™ Ultra Processors (Series 2), LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel Z890 Chipset

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III (AEMP III)
• Support DIMM Fit
• Support DIMM Flex

Slots

• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Gráficos

• 1 x HDMI™ port
• 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs
• 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
• M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
• 4 x SATA 6Gb/s ports

USB

• 2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 6 x USB 10Gbps ports (6 x Type-A )
• 1 x USB 2.0 port (1 x Type-A )
• 1 x USB 20Gbps (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• USB Type-C® power delivery output: max. 5V/3A

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*Audio Features
• Gold-plated audio jacks
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth® v5.4

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• 5 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• 3 x Addressable Gen2 headers
• 1 x Clear CMOS button
• 1 x COM Port header
• 1 x CPU Over voltage jumper
• 1 x Chassis Intrusion header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

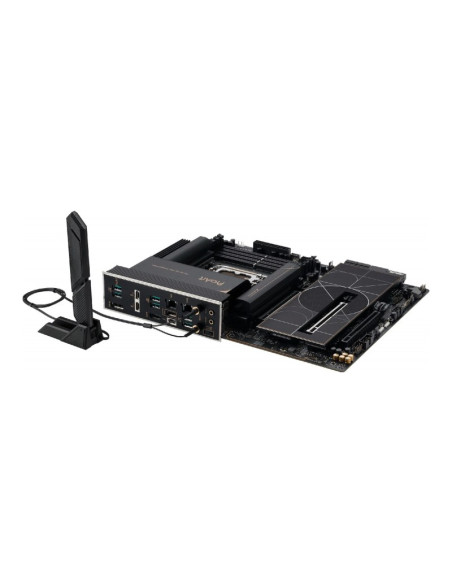

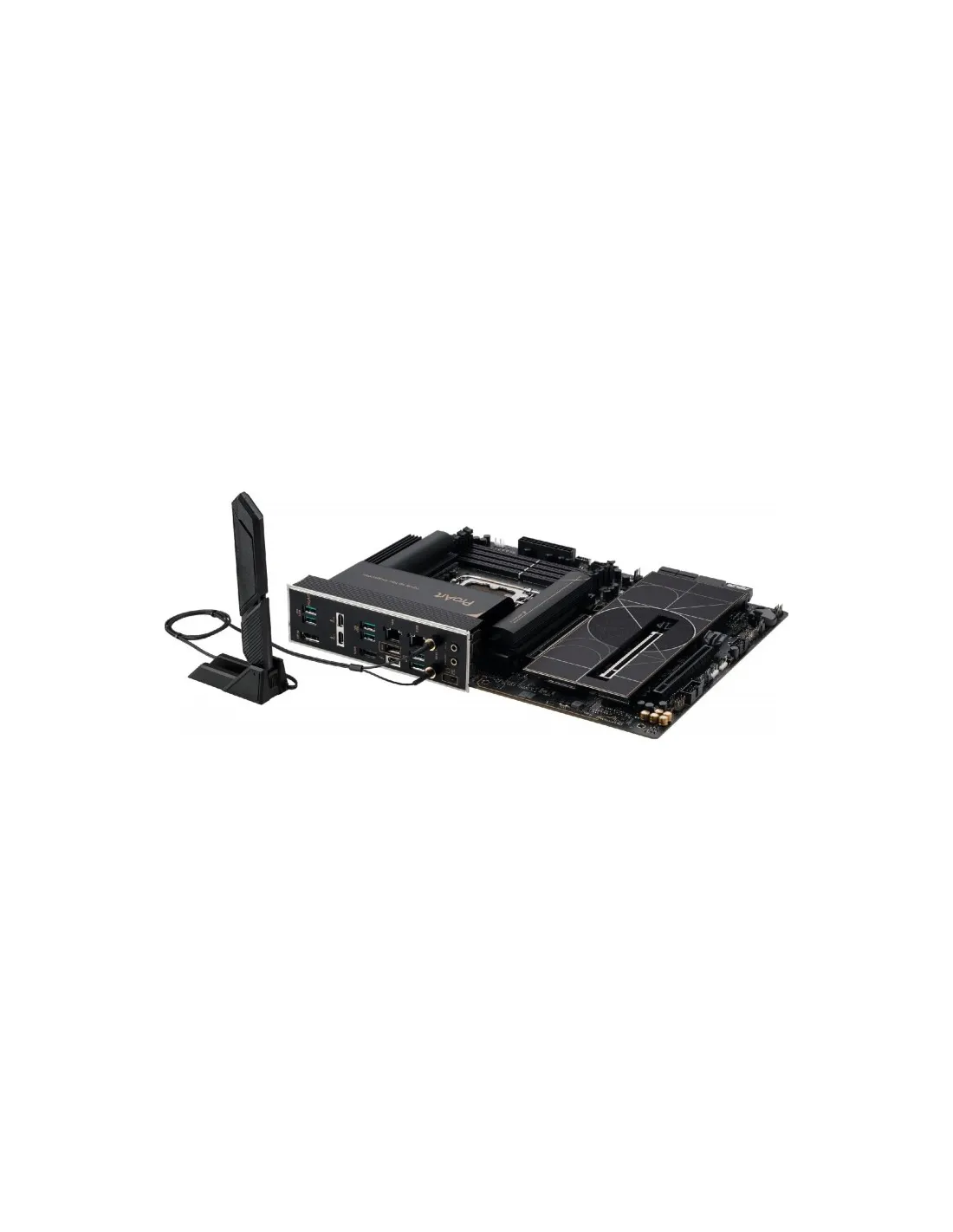

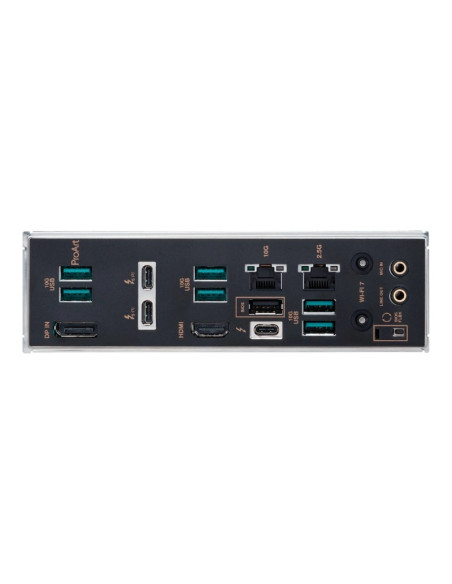

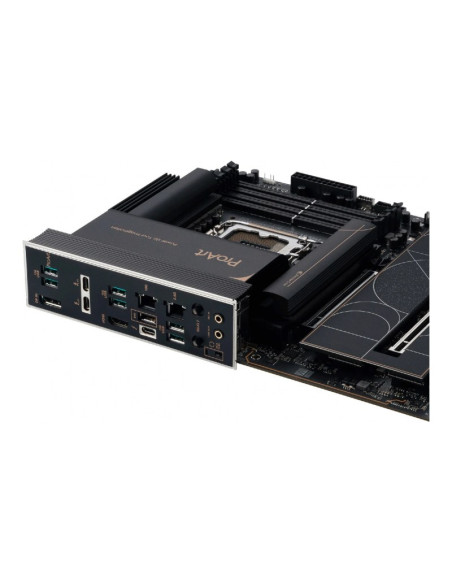

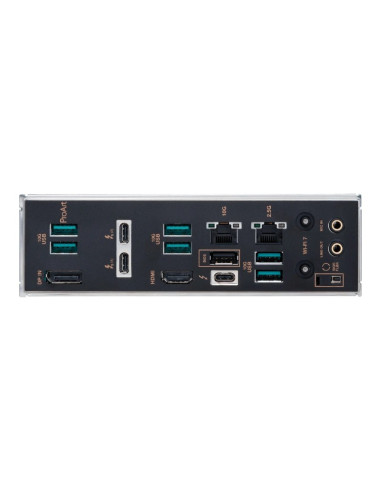

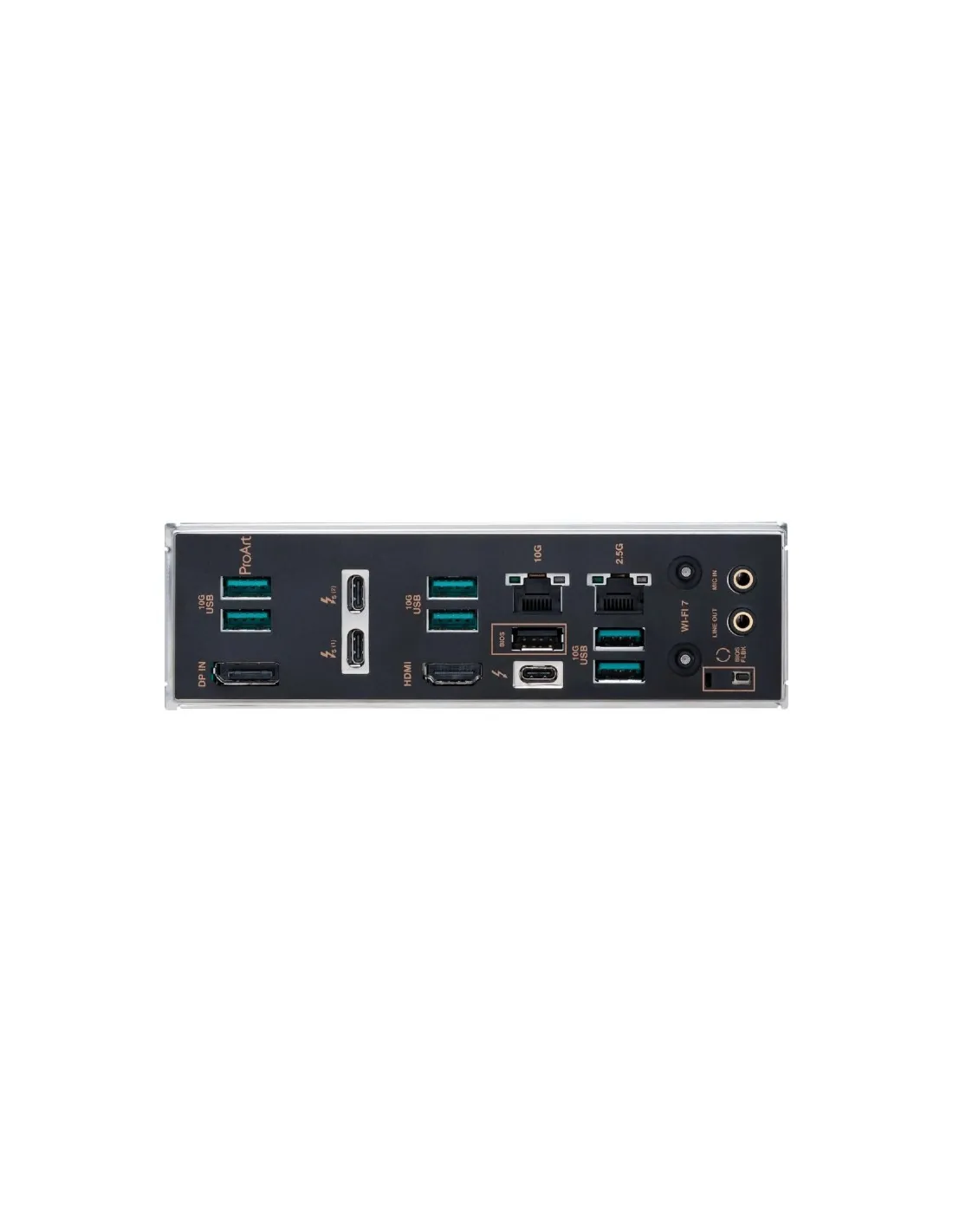

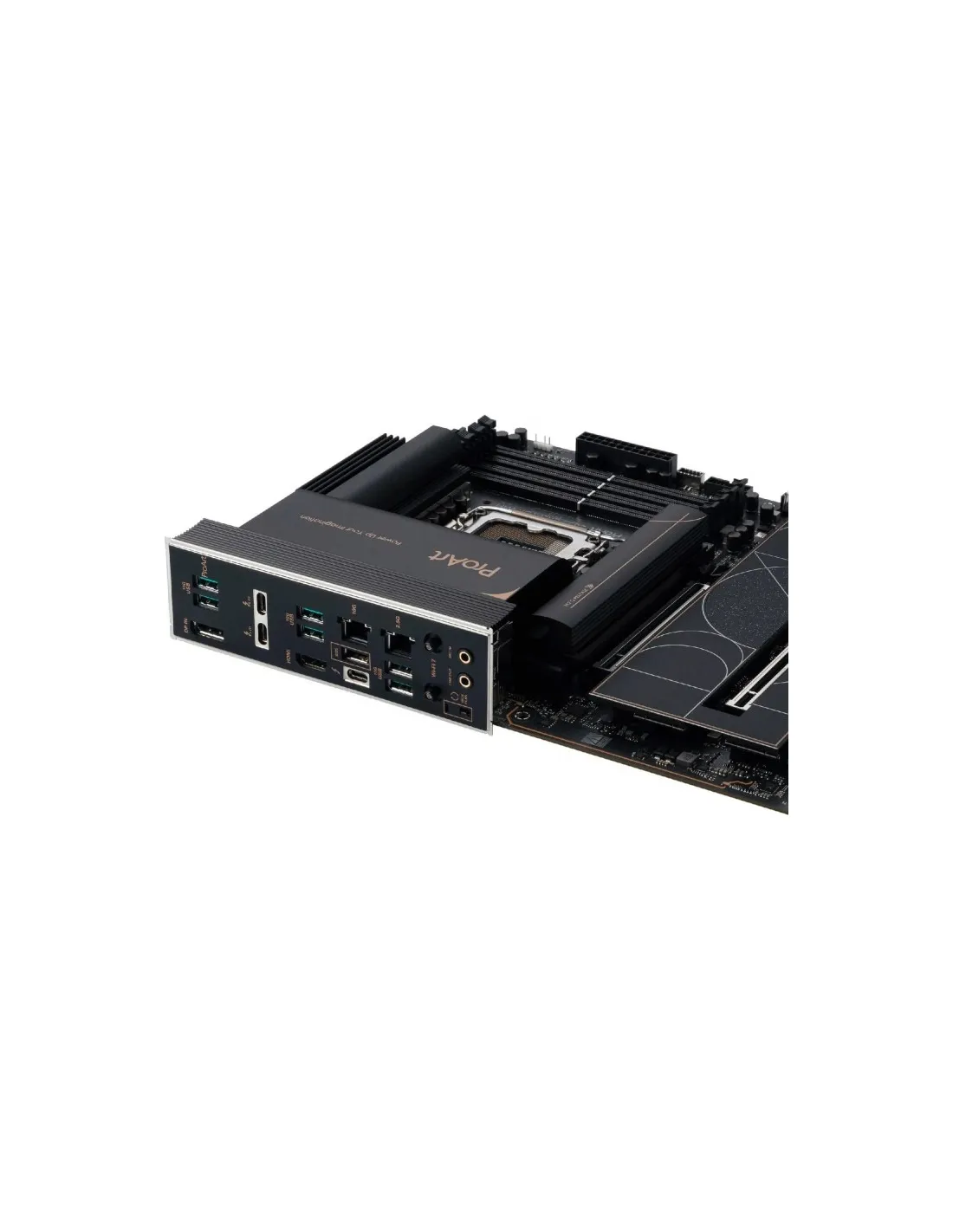

Conectores Traseros

• 2 x Thunderbolt™ 5 USB Type-C® ports
• 1 x Thunderbolt™ 4 USB Type-C® port
• 6 x USB 10Gbps ports (6 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMI™ port
• 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Gold-plated audio jacks
• 1 x BIOS FlashBack™ button

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )

Más información en la web del fabricante:

• https://www.asus.com/motherboards-components/motherboards/proart/proart-z890-creator-wifi/techspec/
