Asus Prime H610M-K Socket 1700 mATX
Descripción
La placa base Asus Prime H610M-K con socket 1700, tiene un formato mATX para que tengas potencia, eficiencia y ahorro de espacio en tu setup. Tiene un total de dos ranuras DDR5 para la memoria RAM, dando una capacidad total de 96GB.
Procesador
- Intel Socket LGA1700 for 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
- Intel H610
Memoria
- 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
Gráficos
- 1 x VGA
- 1 x HDMI
Slots
- 1 x PCIe 4.0 x16 slot
- 1 x PCIe 3.0 x1 slot
Almacenamiento
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- 4 x SATA 6Gb/s ports
Conectores USB
- 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Conectividad y Redes
- 1 x Realtek 1Gb Ethernet
Conectores Internos
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x COM Port header
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header

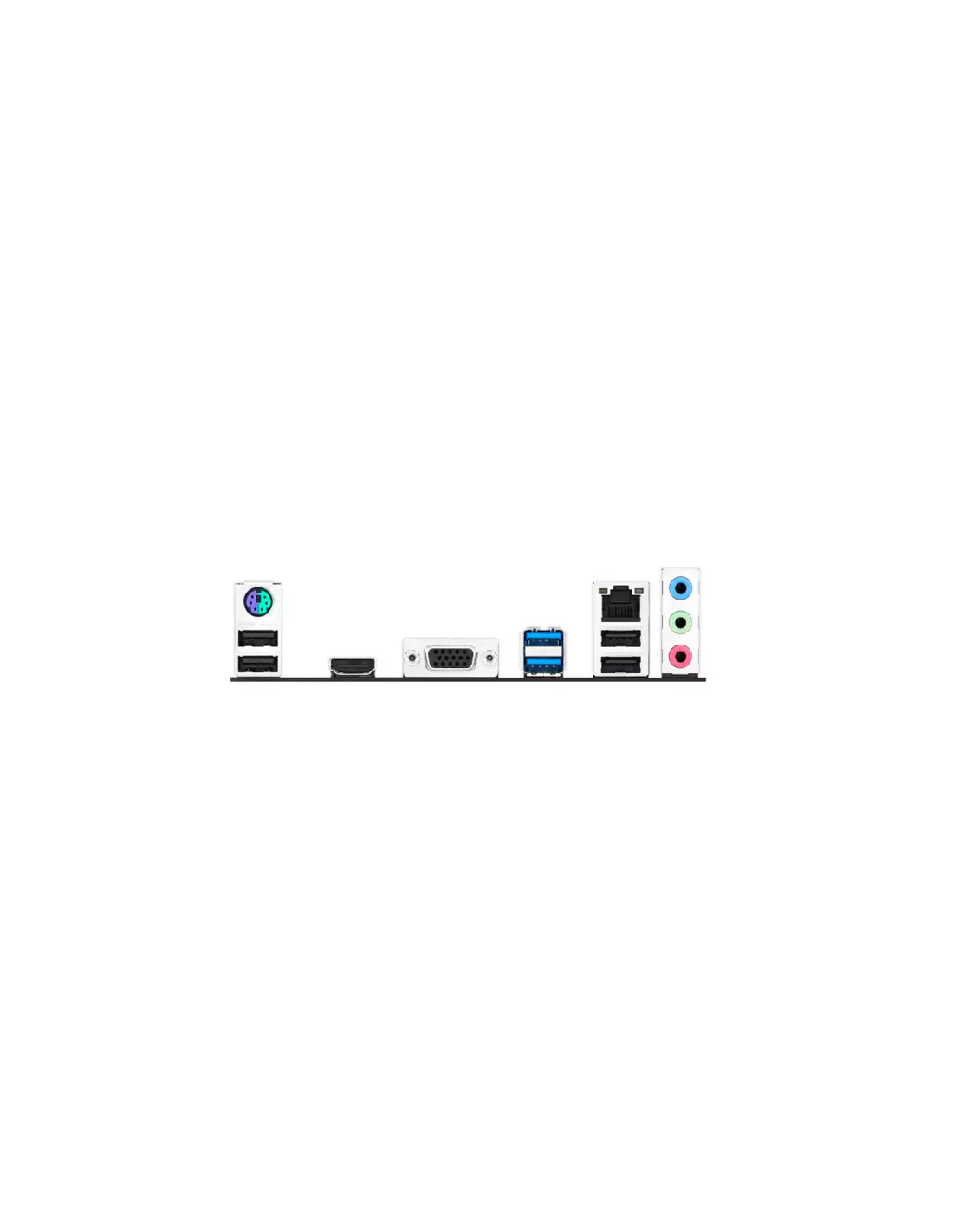

Conectores Traseros
- 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x VGA port
- 1 x HDMI™ port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Factor de forma
- Micro ATX ( 23.4 x 20.3cm)
Comprar Asus Prime H610M-K Socket 1700 mATX en RED Computer
