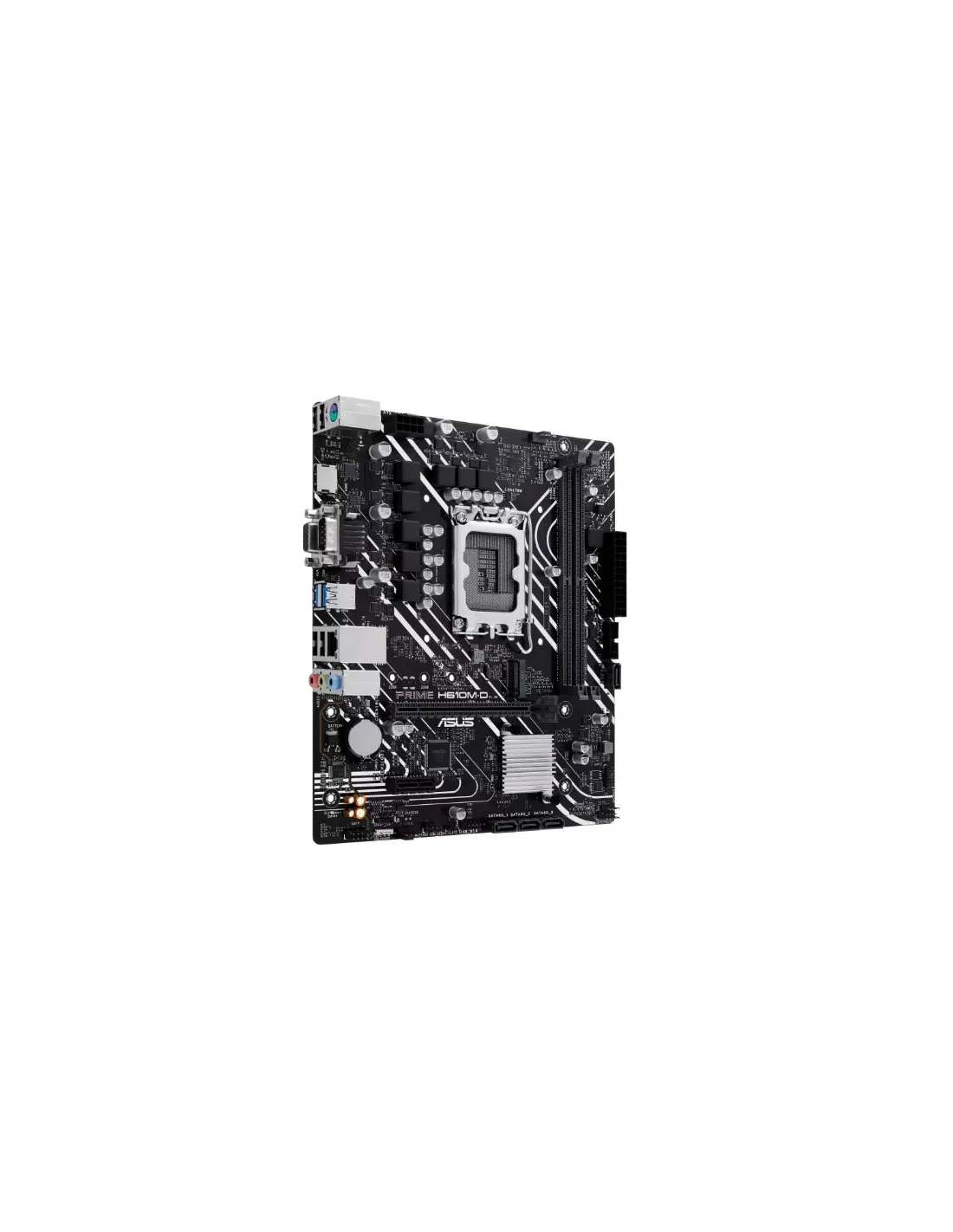

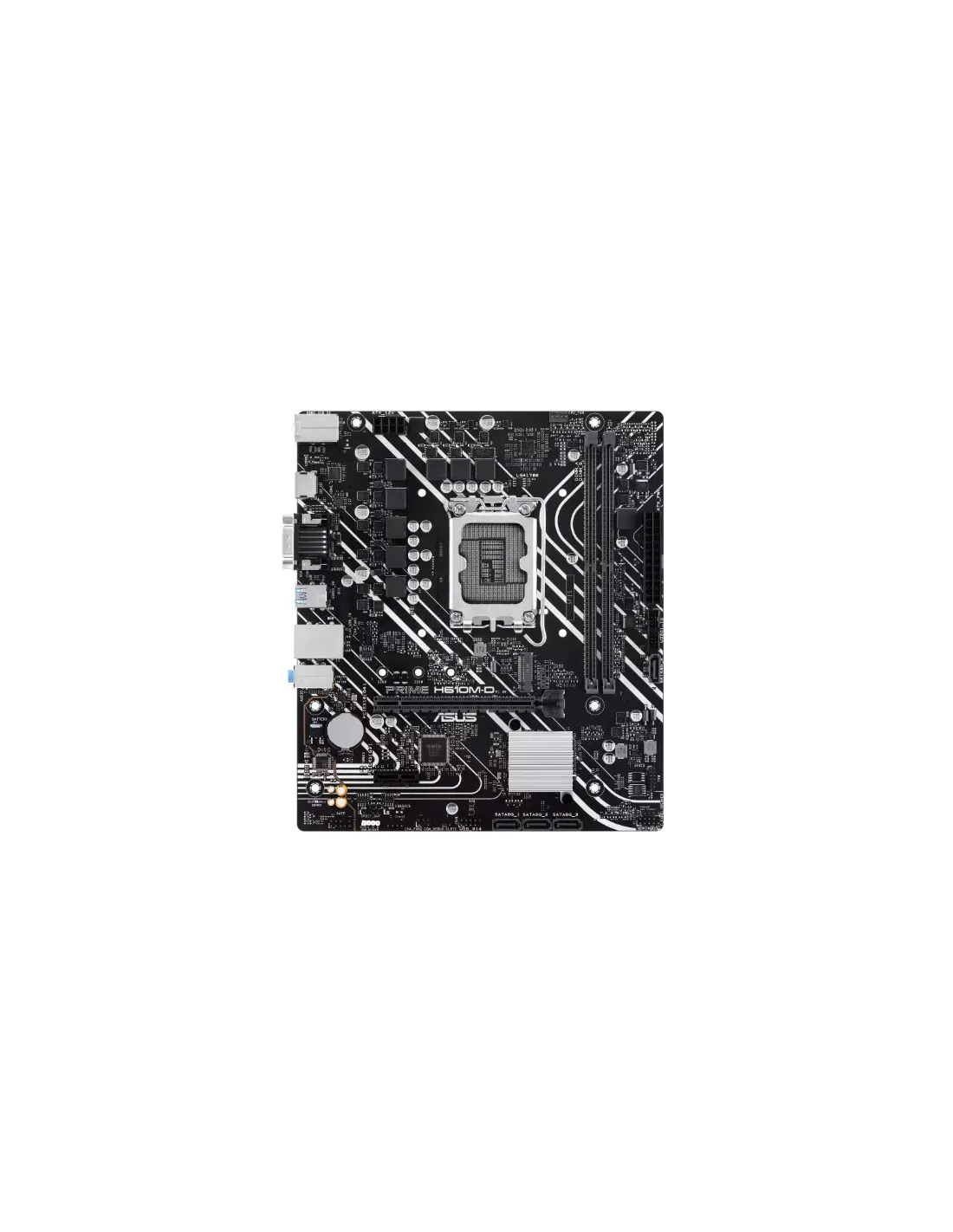

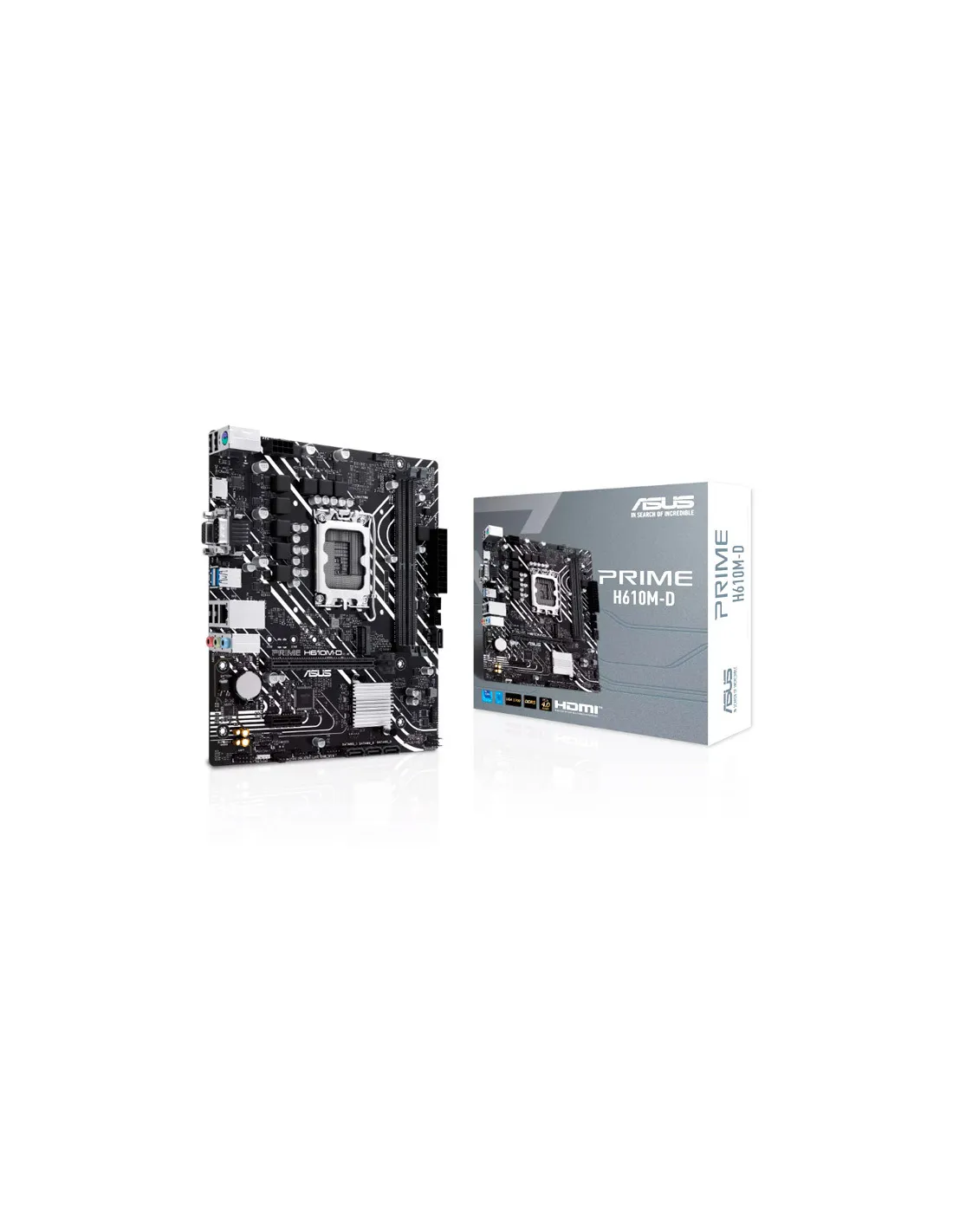

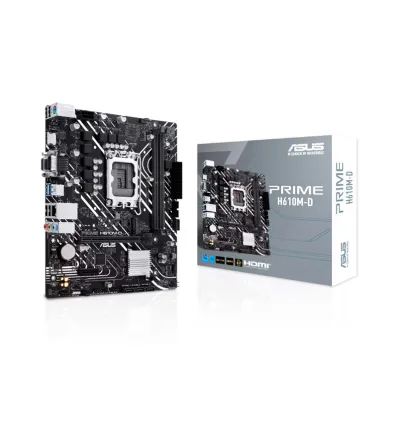

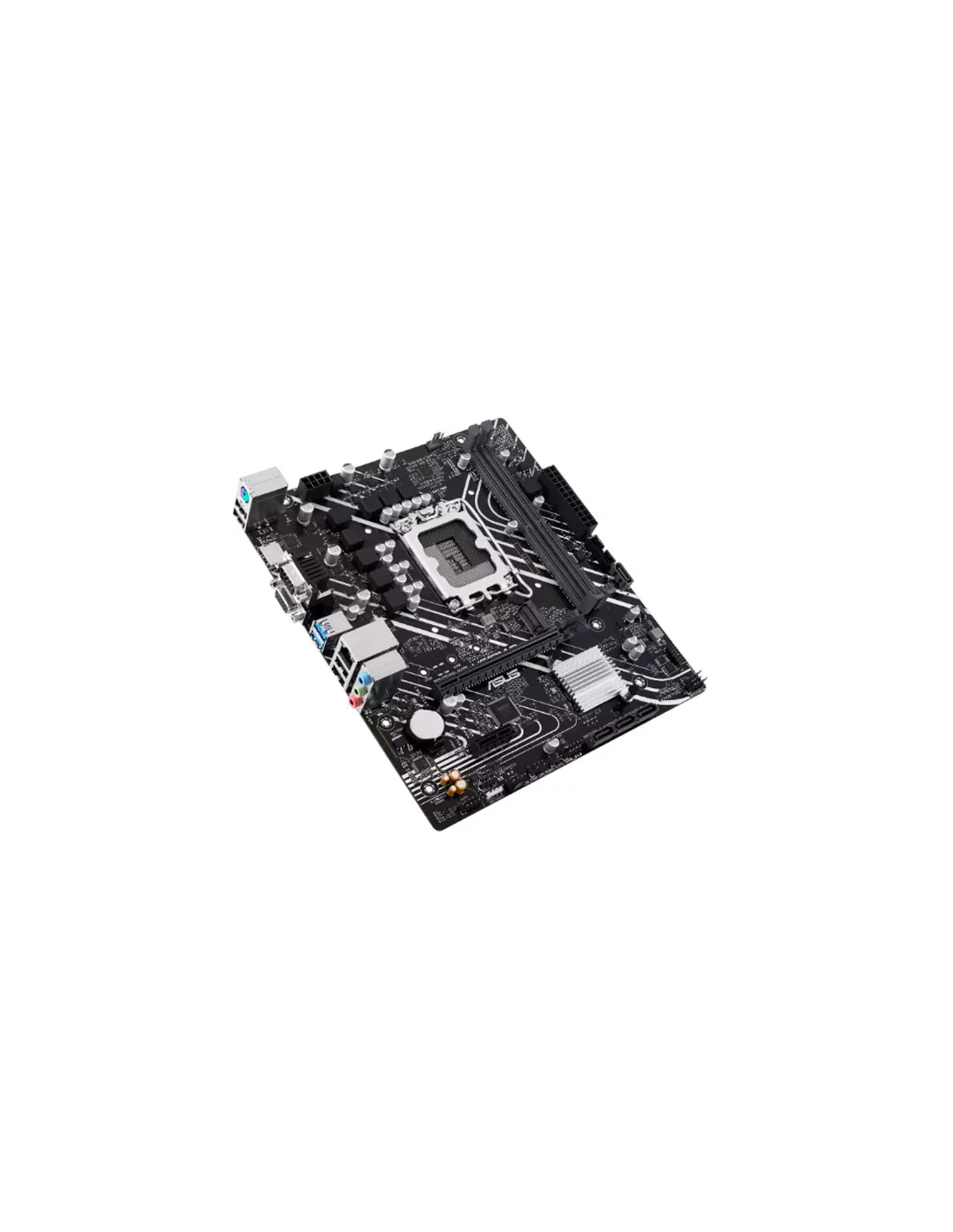

Asus Prime H610M-D Socket 1700 Micro-ATX

Características de la placa base Asus Prime H610M-D Socket 1700 Micro-ATX

Procesador

• Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

• Intel H610

Memoria

• 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Gráficos

• 1 x VGA
• 1 x HDMI

Slots

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Almacenamiento

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• 4 x SATA 6Gb/s ports

Conectores USB

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y Redes

• 1 x Realtek 1Gb Ethernet

Conectores Internos

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Conectores Traseros

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x VGA port
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x COM port
• 1 x PS/2 Keyboard/Mouse combo port

Factor de forma

• micro-ATX ( 23.4 cm x 20.3 cm )
