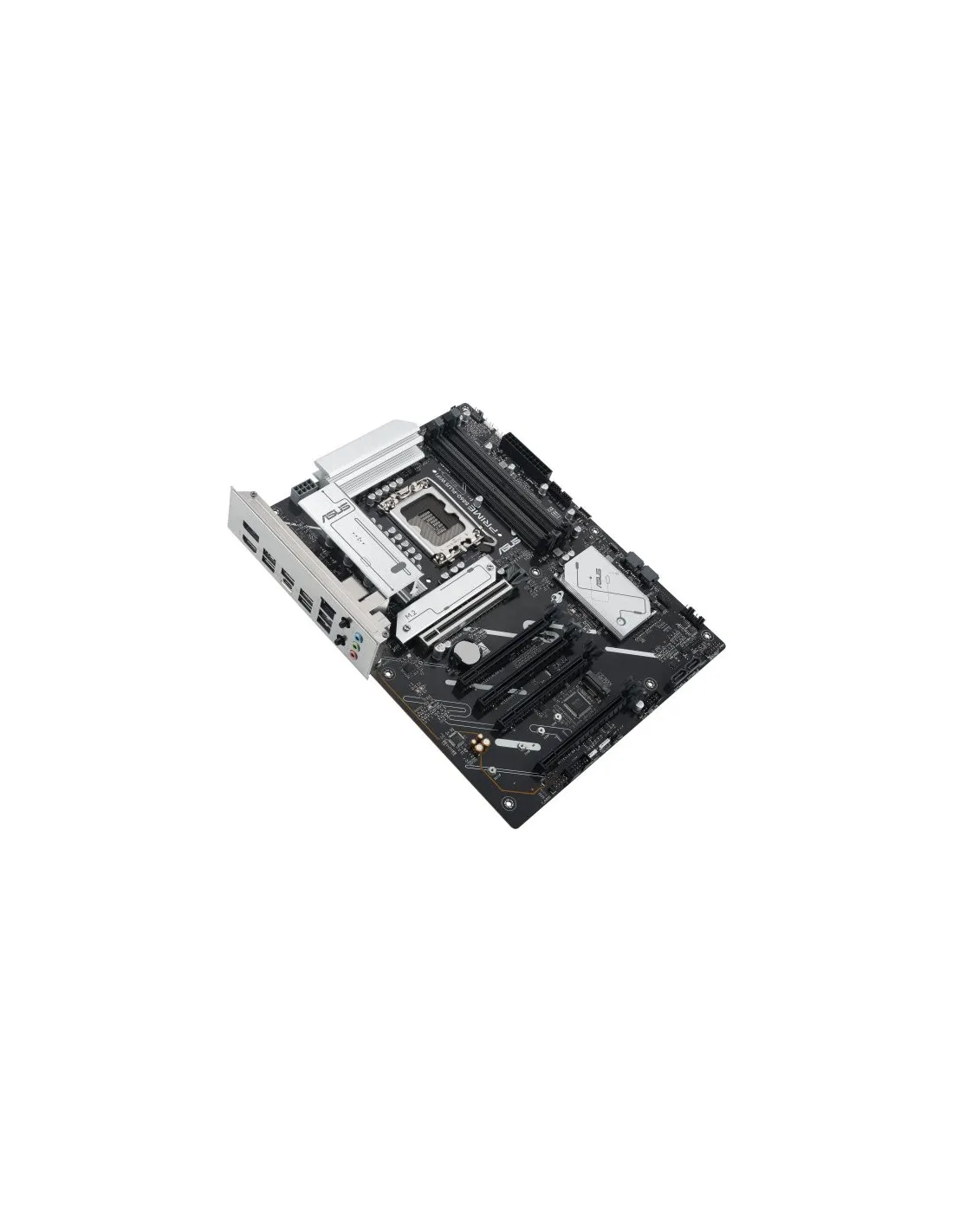

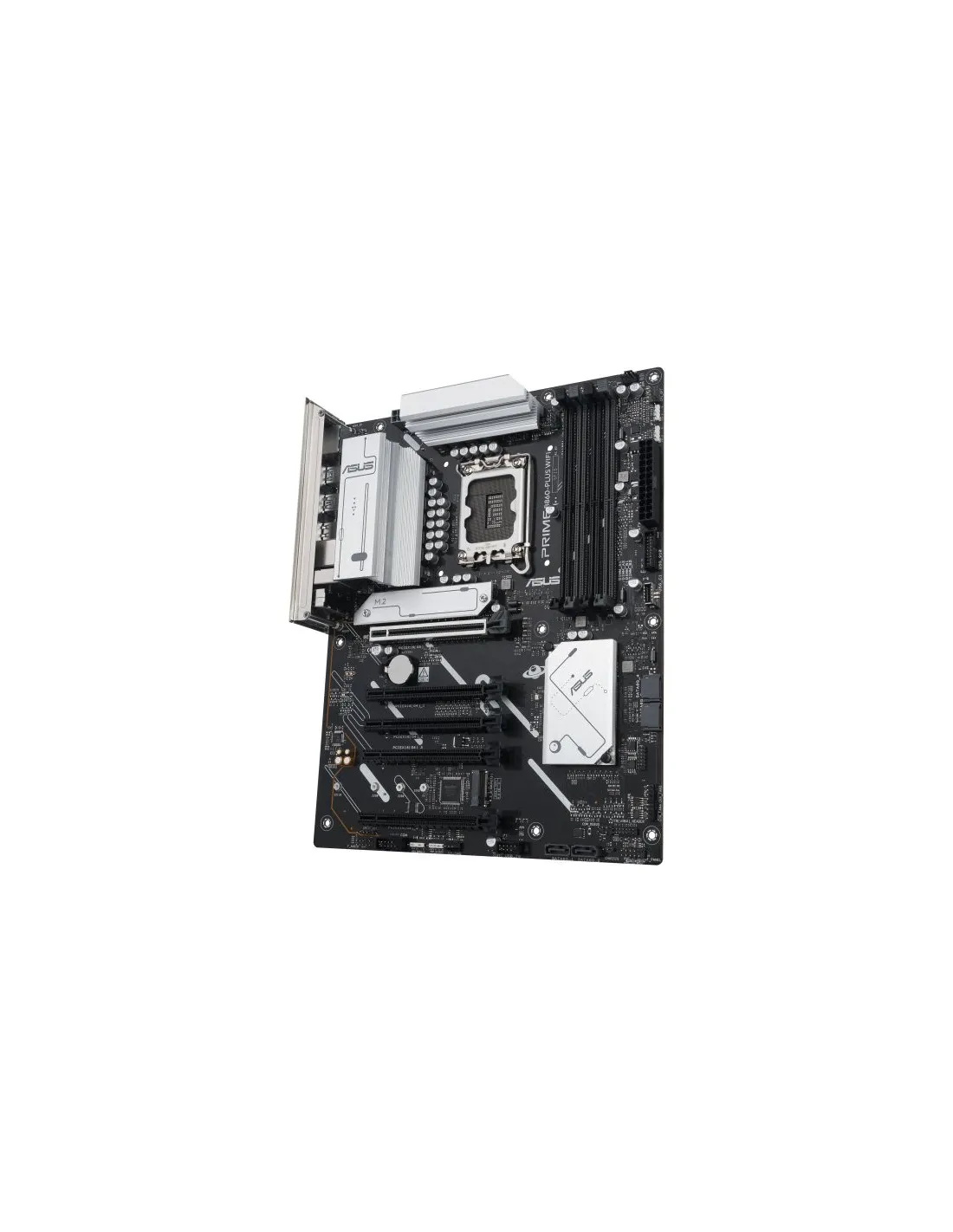

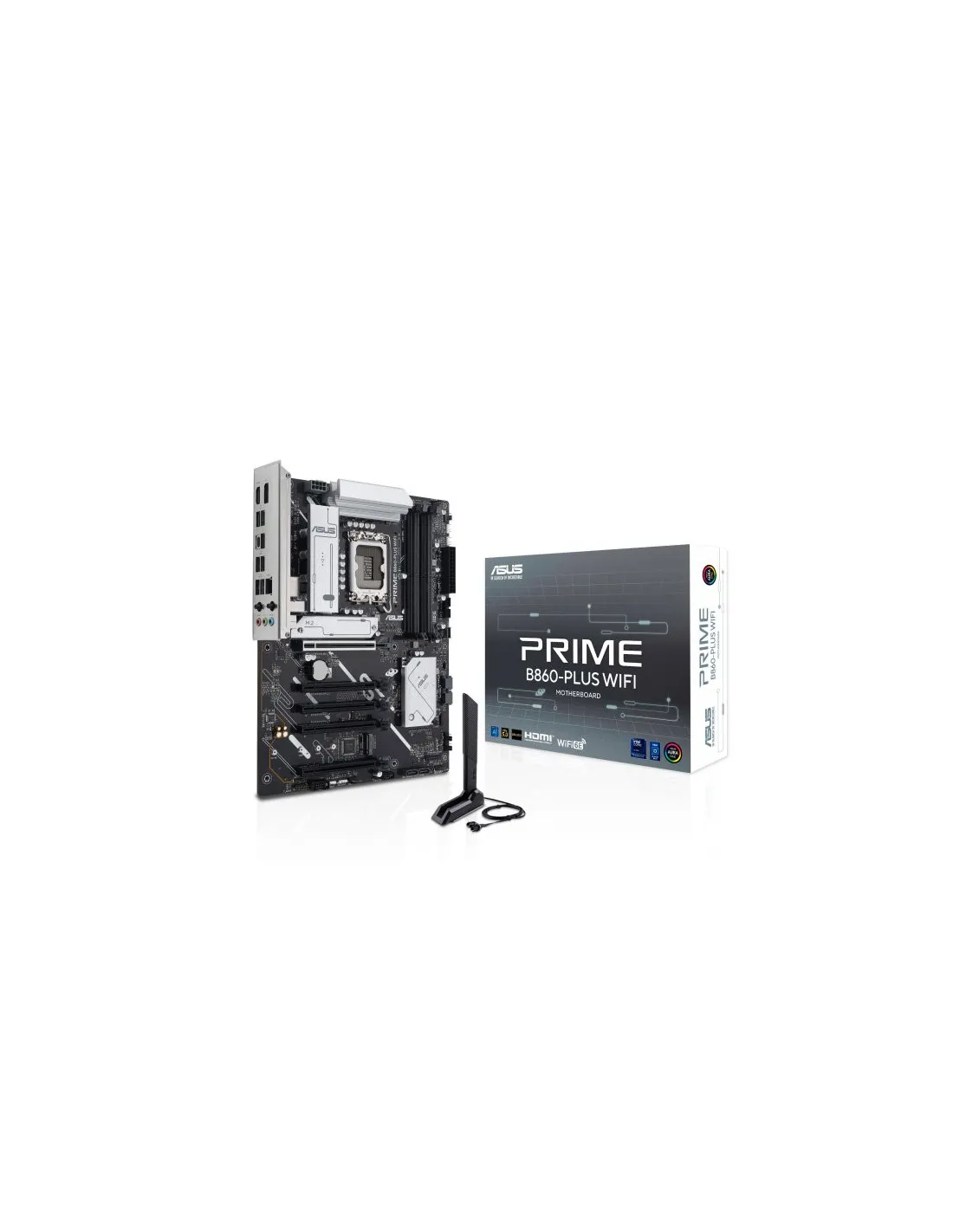

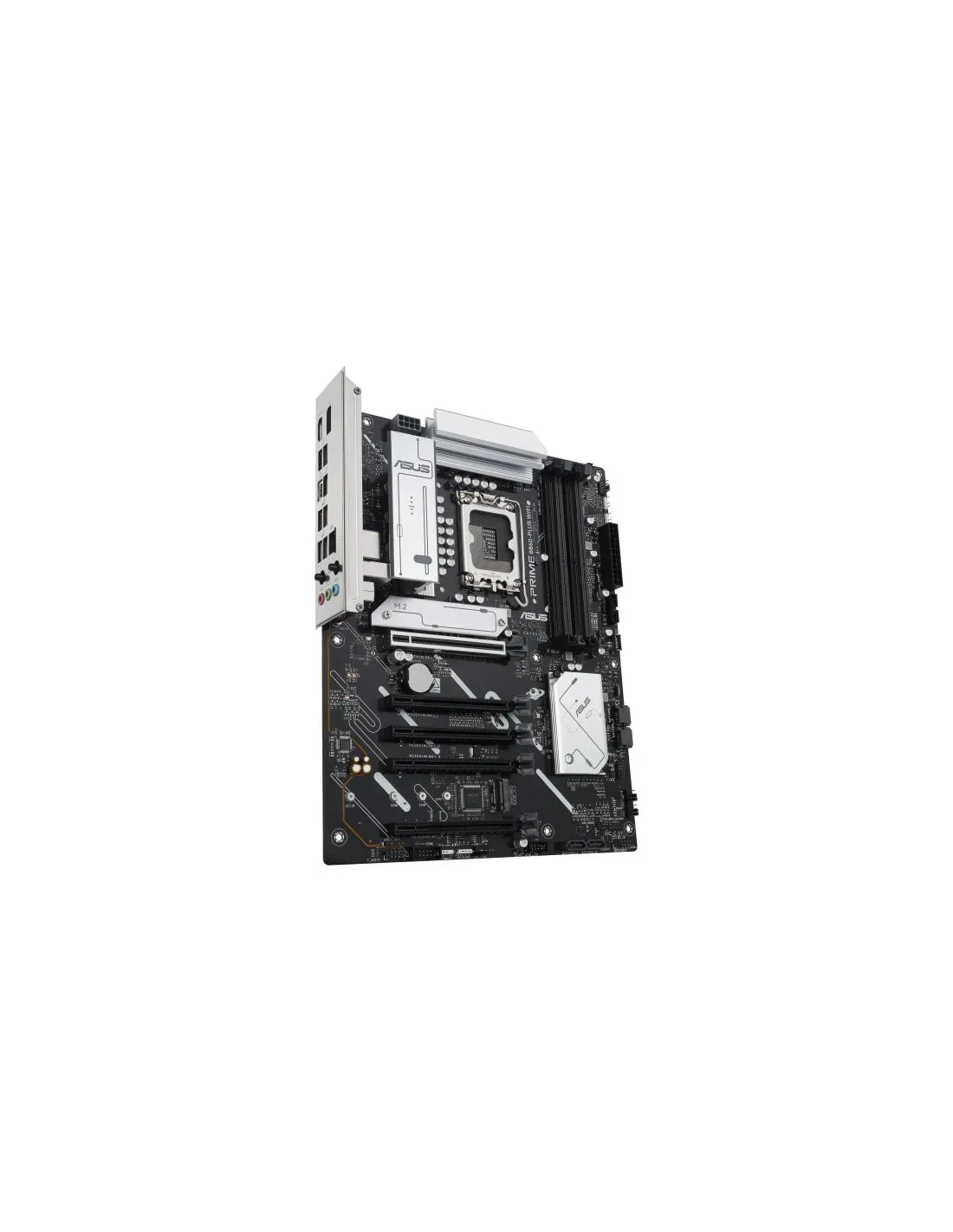

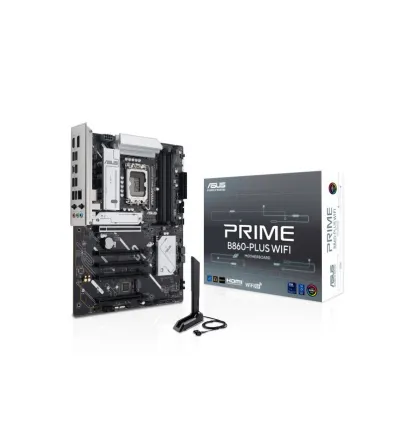

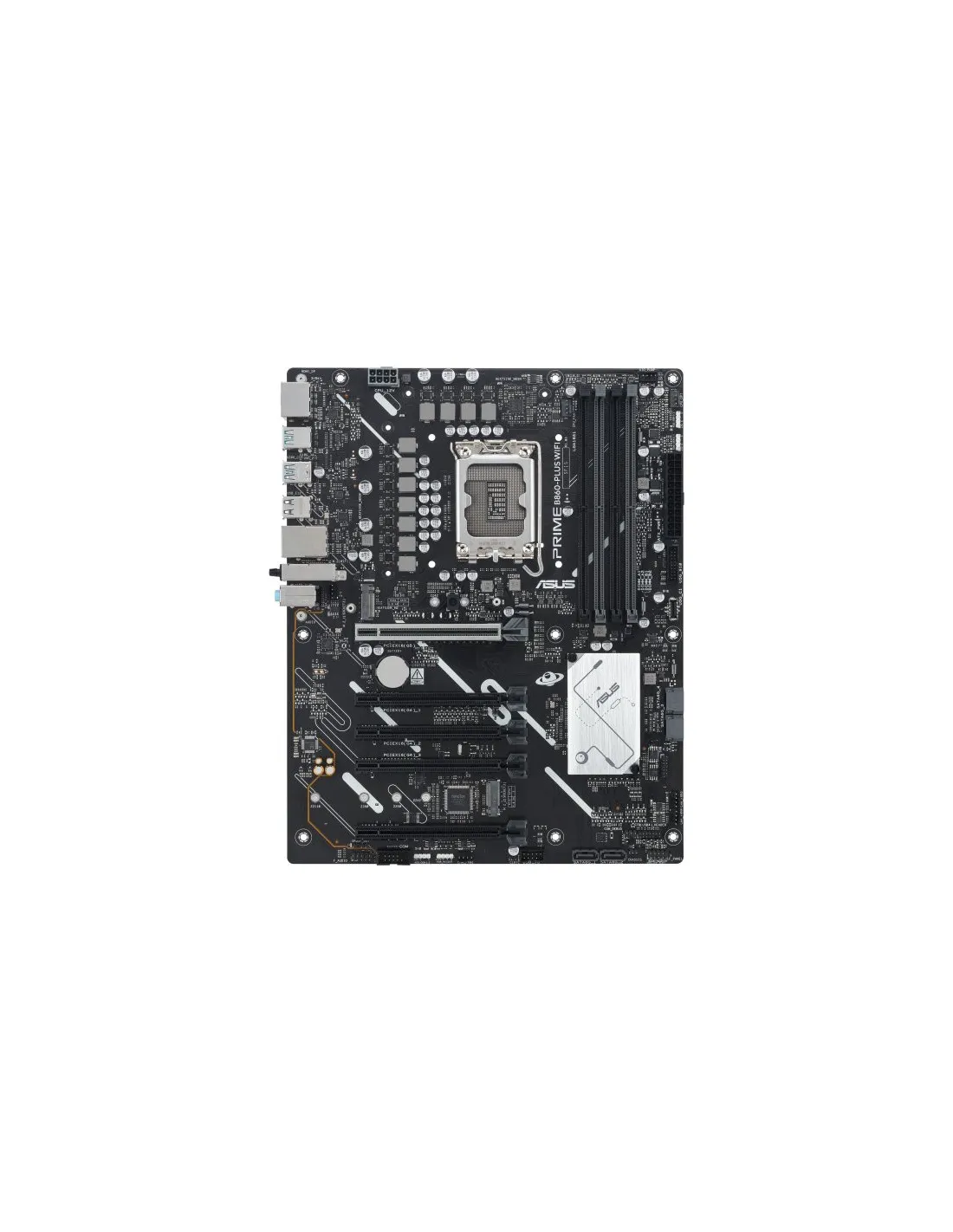

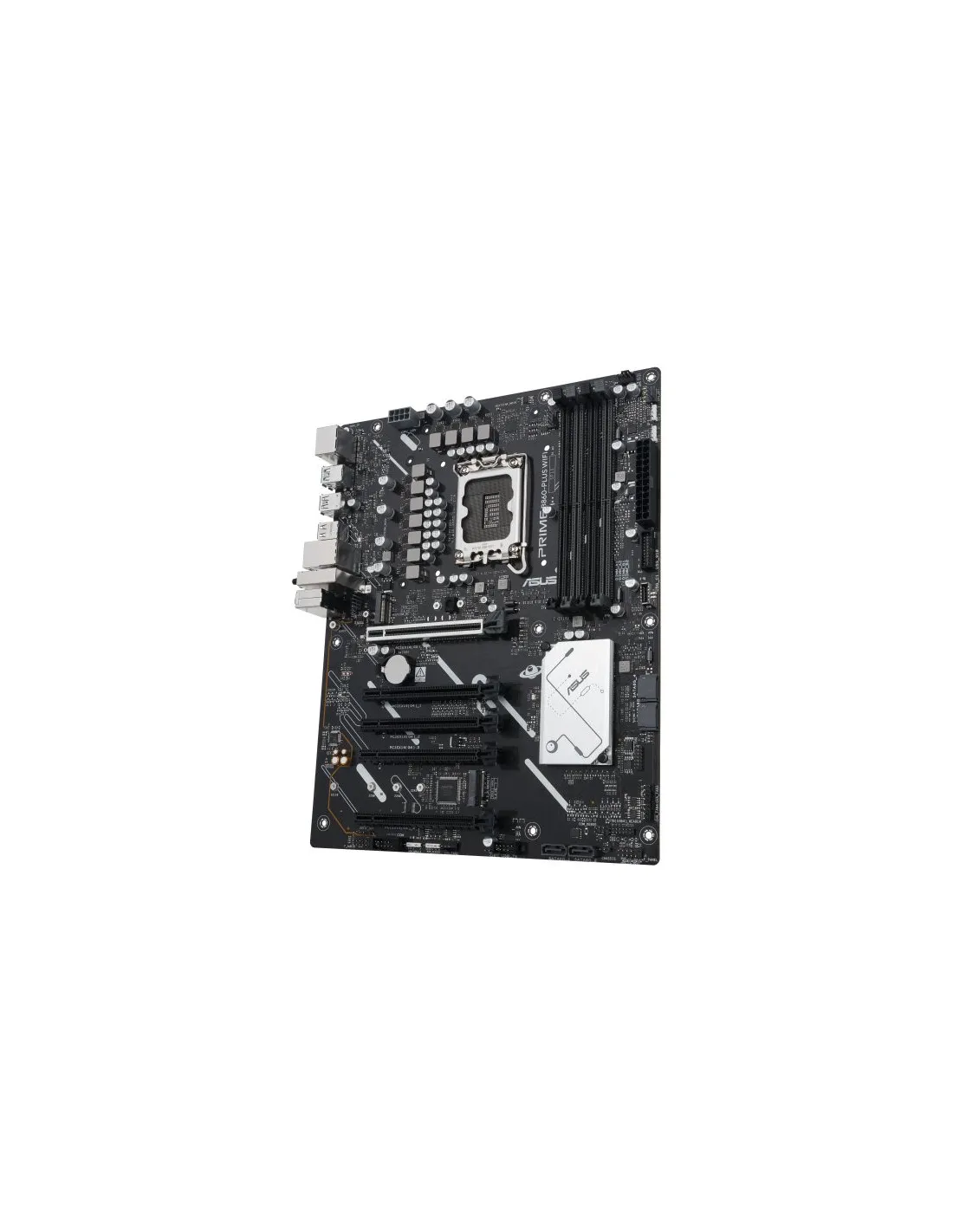

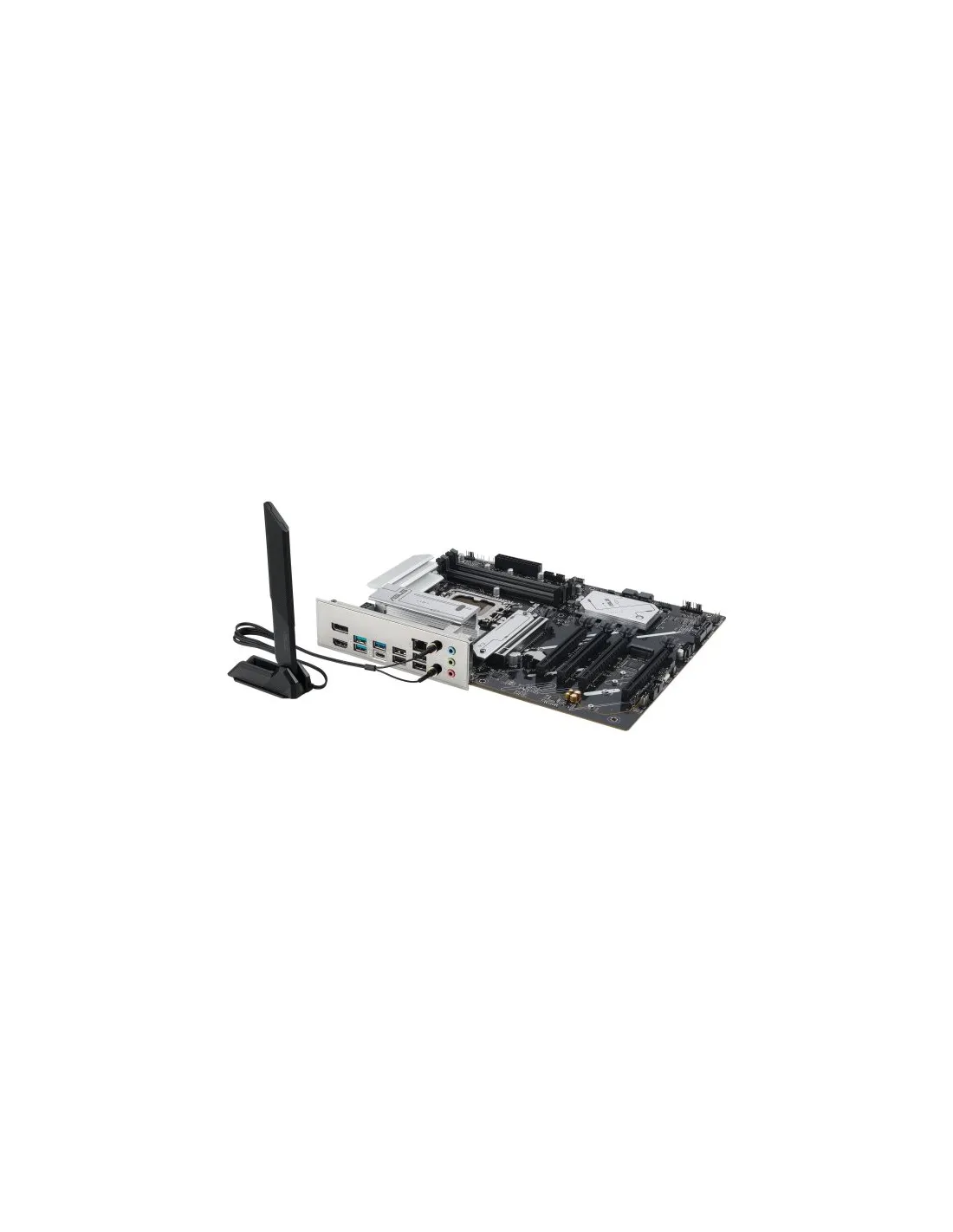

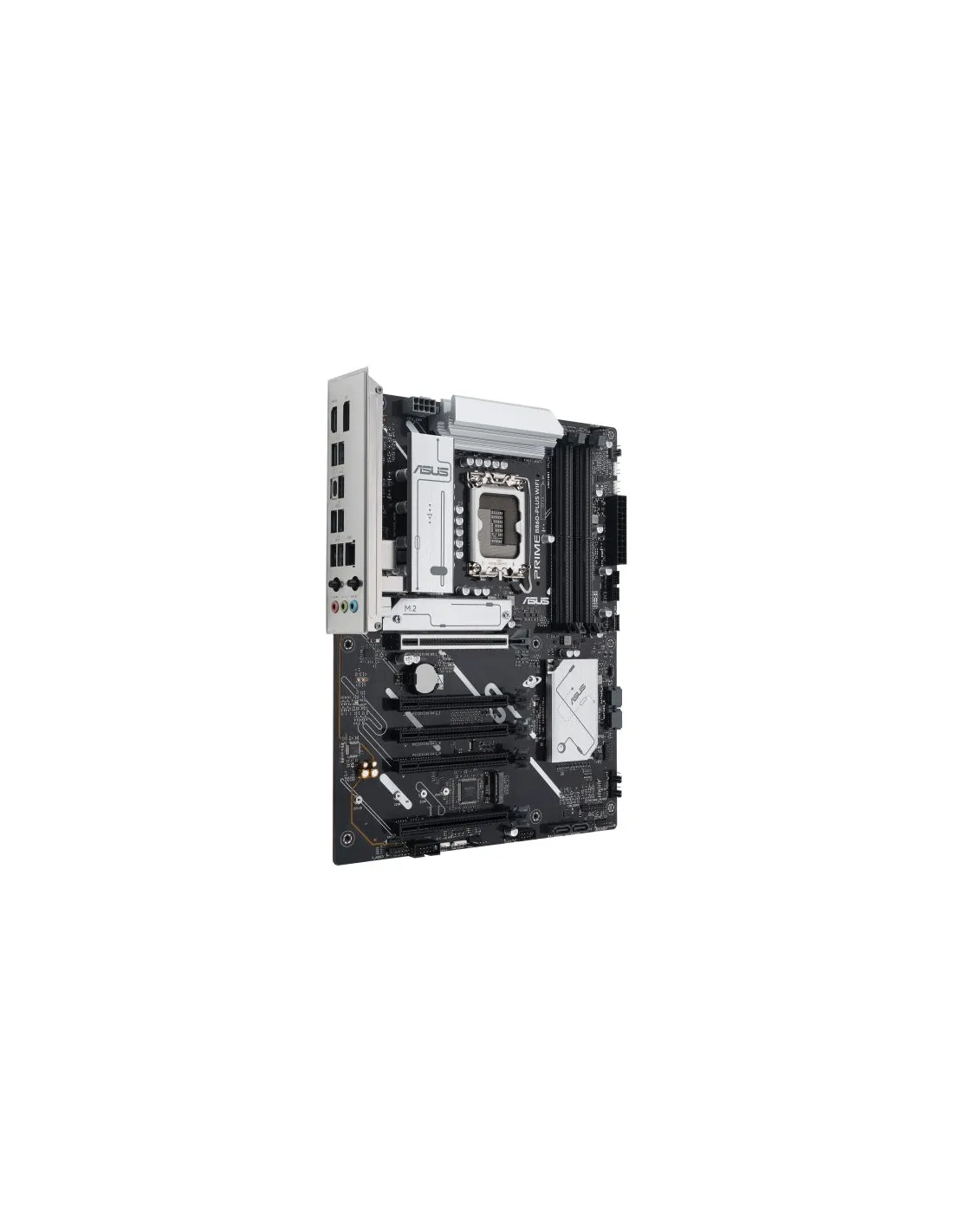

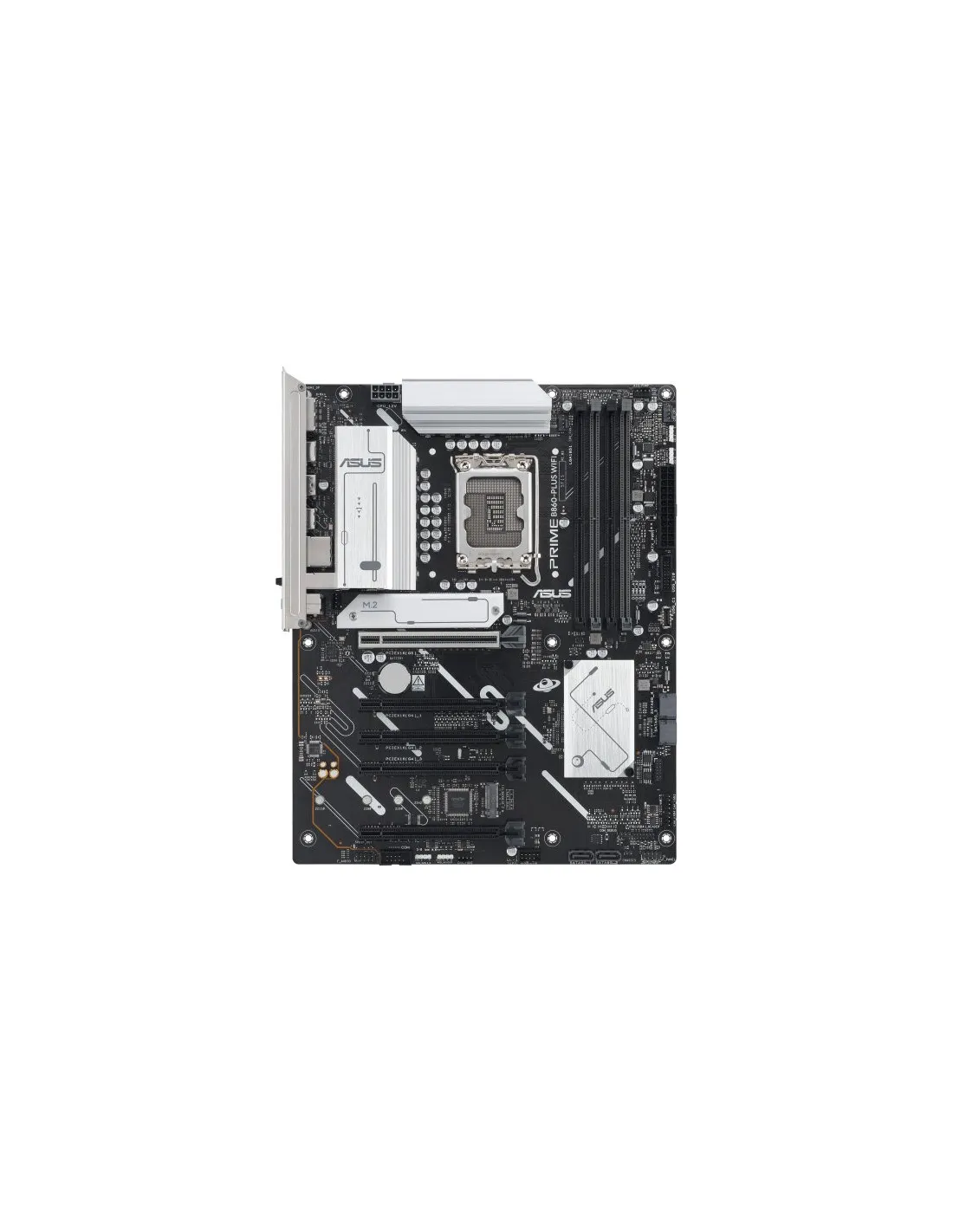

Asus Prime B860-Plus WiFi Socket Intel 1851 ATX

Características de la placa base Asus Prime B860-Plus WiFi Socket Intel 1851 ATX

Procesador

• Intel Core Ultra (Series 2)
• LGA1851

Chipset

• Intel B860

Memoria

• 4 ranuras DIMM, max. 256GB, DDR5
• Admite hasta 8666+MT/s (OC), Non-ECC, DIMM sin ECC, sin búfer y con reloj sin búfer (CUDIMM)
• Arquitectura de memoria de doble canal
• Admite DIMM Fit
• Admite módulo de memoria Intel ® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III (AEMP III)

Gráficos

• 1 x DisplayPort**
• 1 x HDMI

Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 3 x PCIe 4.0 x16 slots (support x1 mode)

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Conectores USB

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 2 x USB 10Gbps ports (2 x Type-A)
• 1 x USB 5Gbps port (1 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 5Gbps port (1 x USB Type-C®)
• 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y Redes

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth® v5.3**

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 5Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin Front System Panel header
• 1 x Thunderbolt™ (USB4®) header

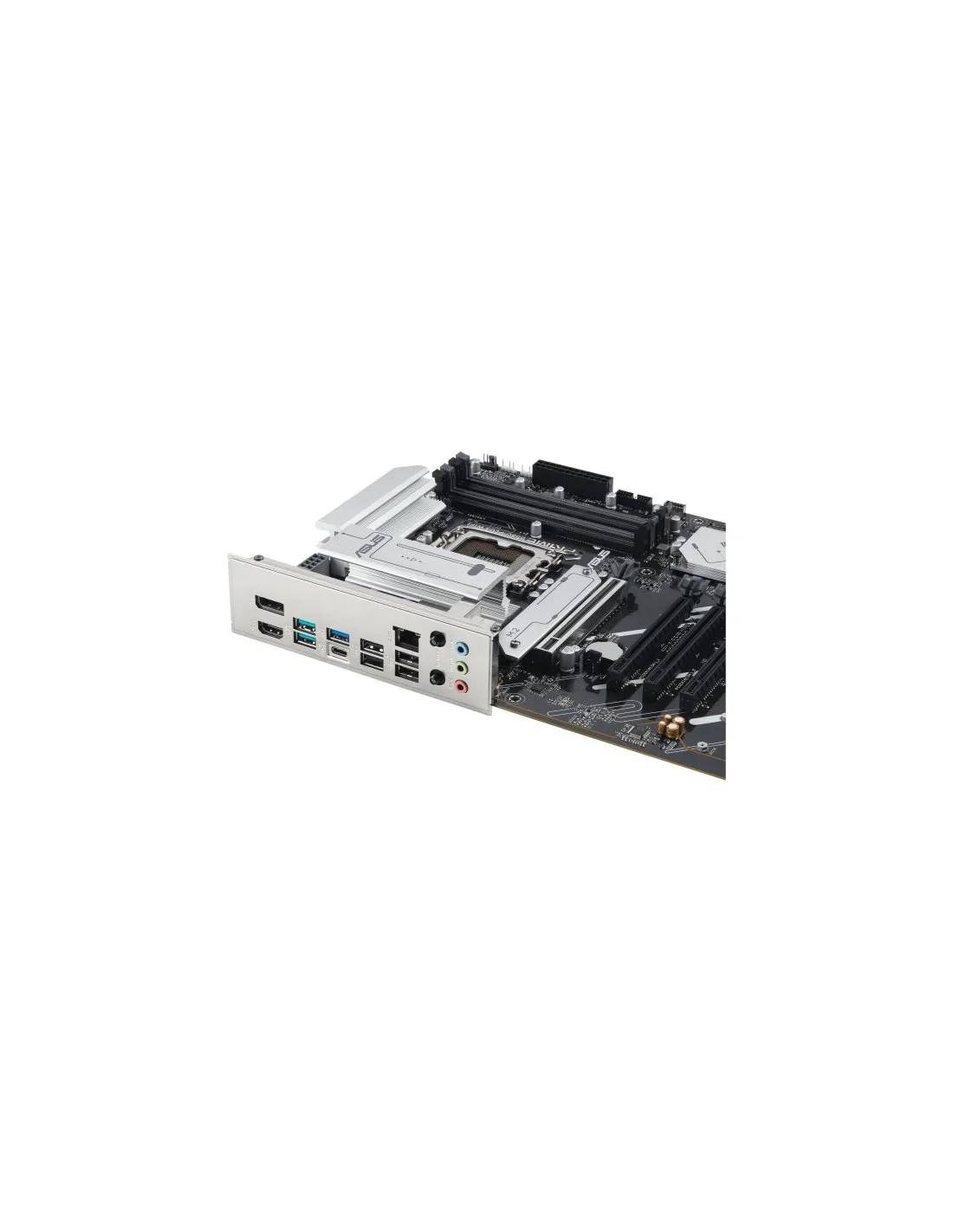

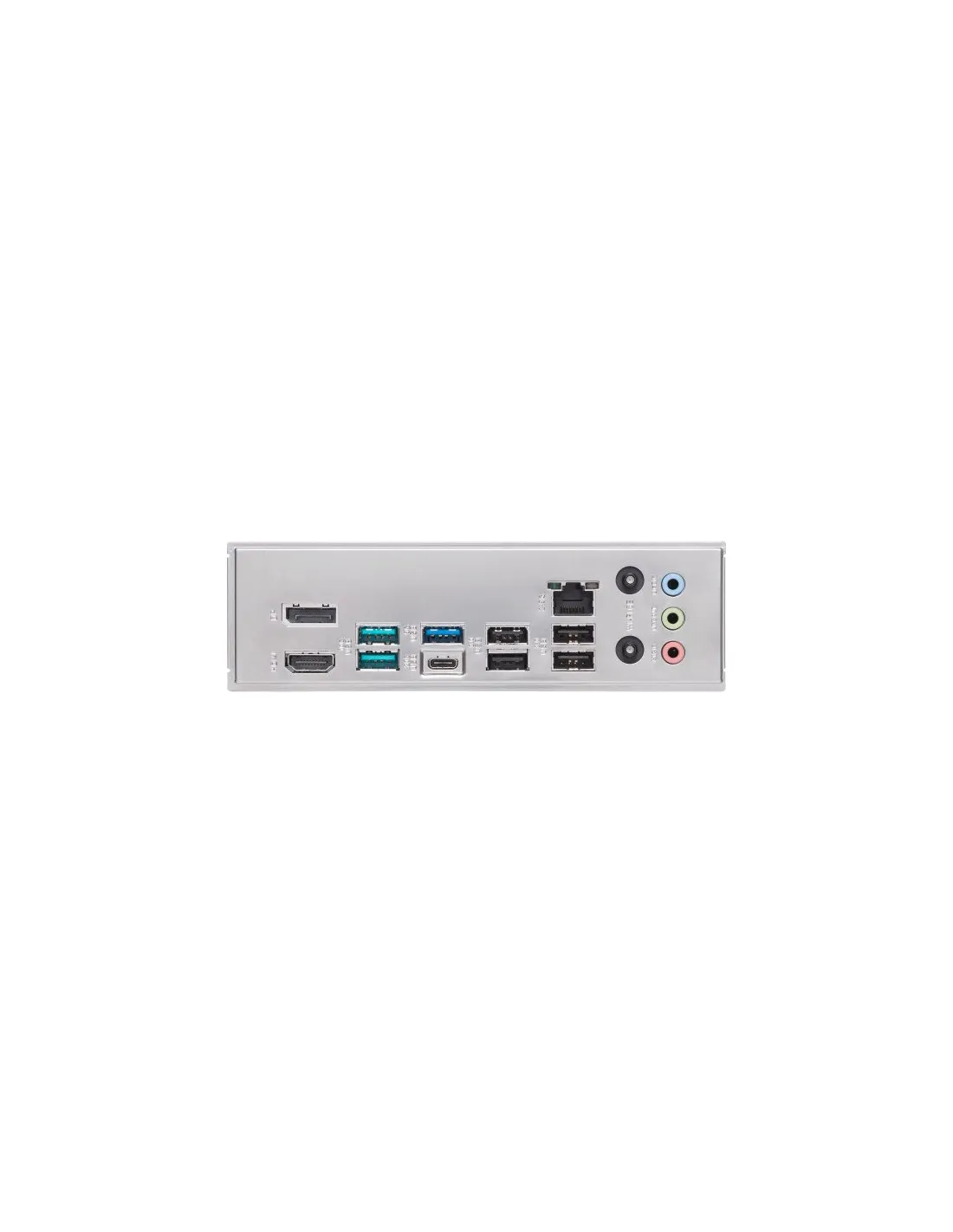

Conectores Traseros

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 2 x USB 10Gbps ports (2 x Type-A)
• 1 x USB 5Gbps port (1 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )
