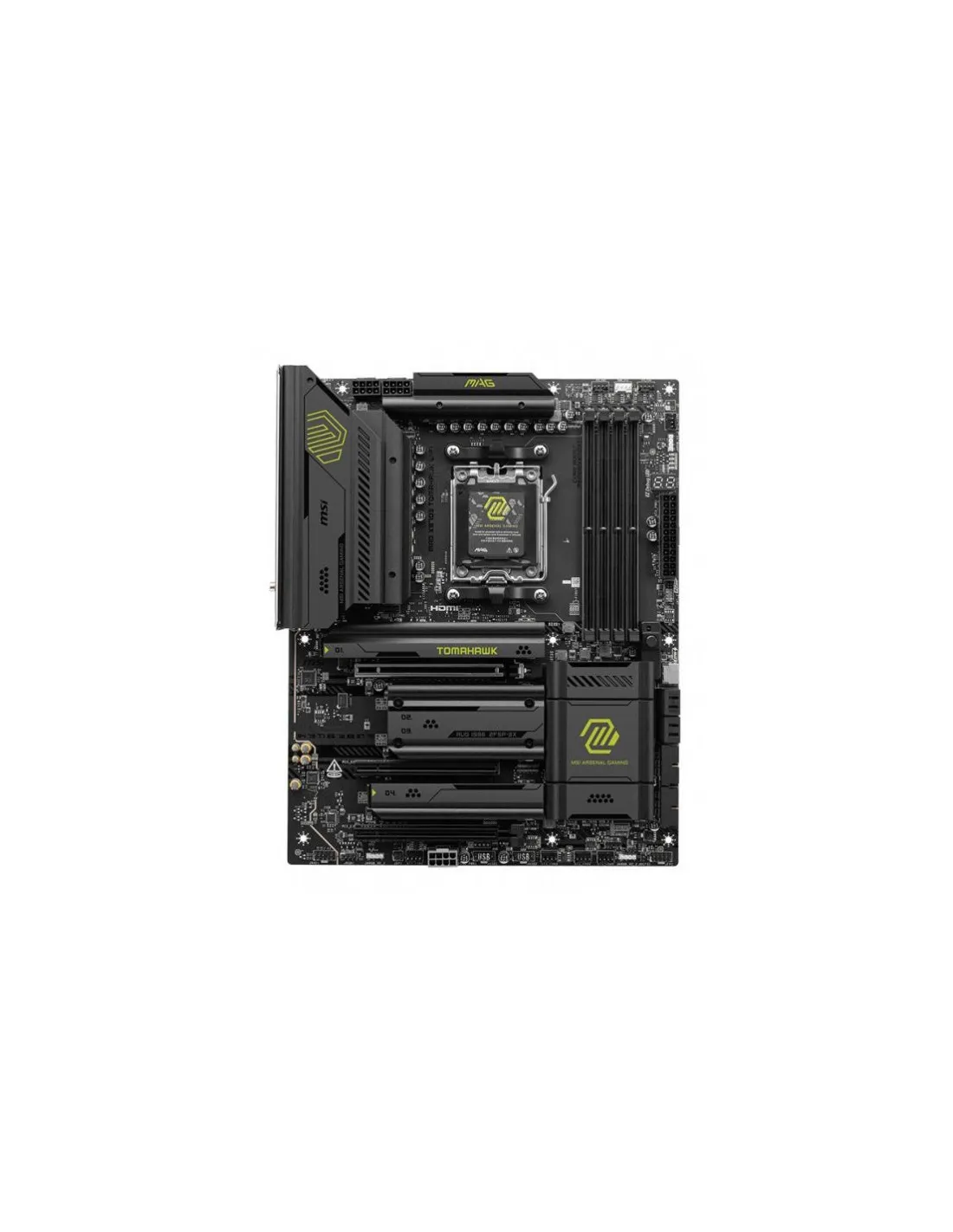

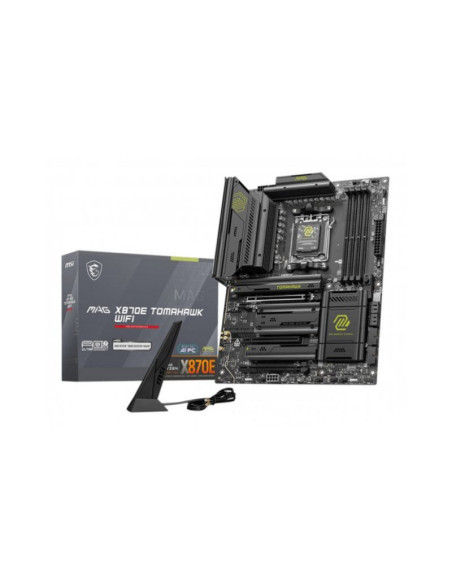

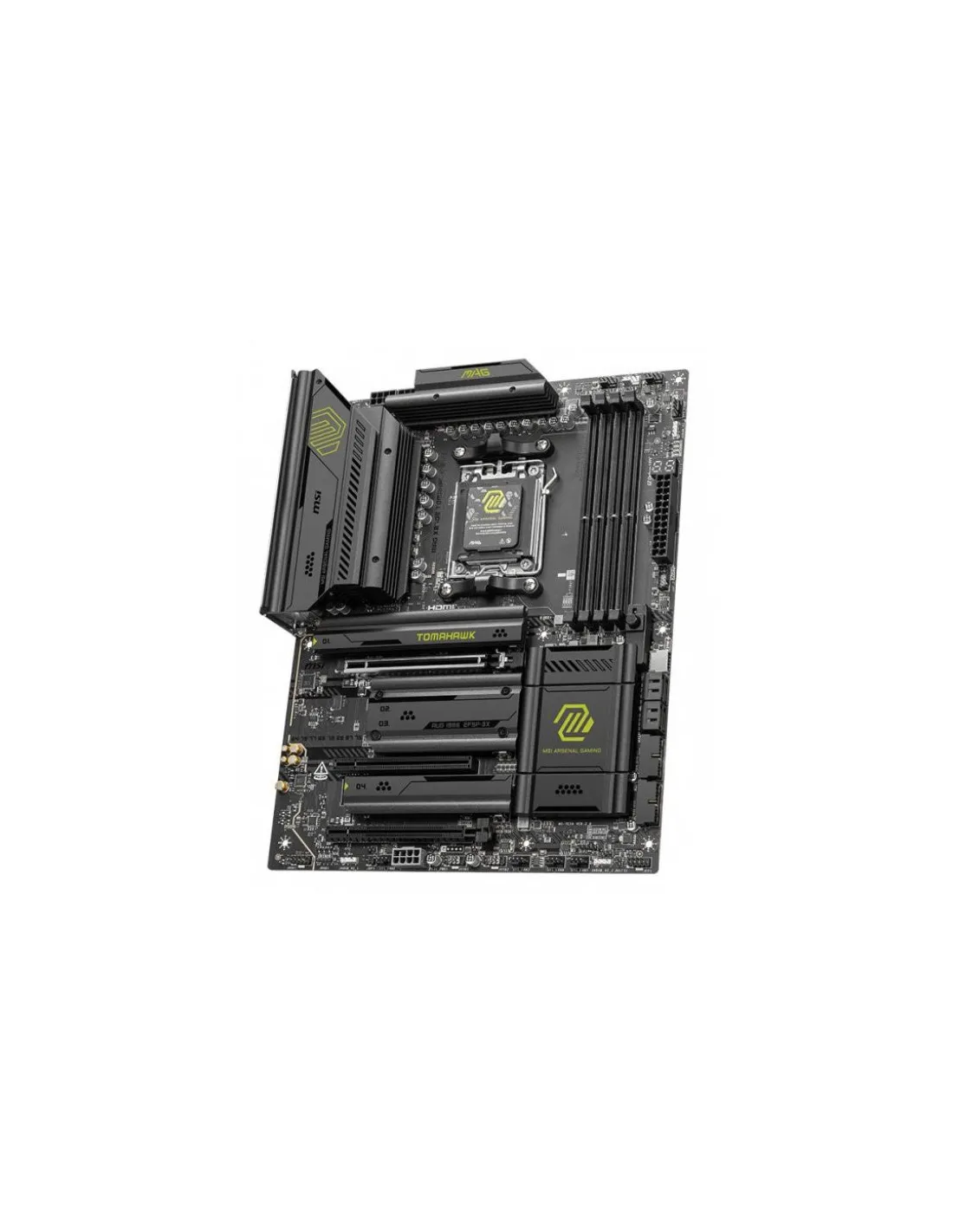

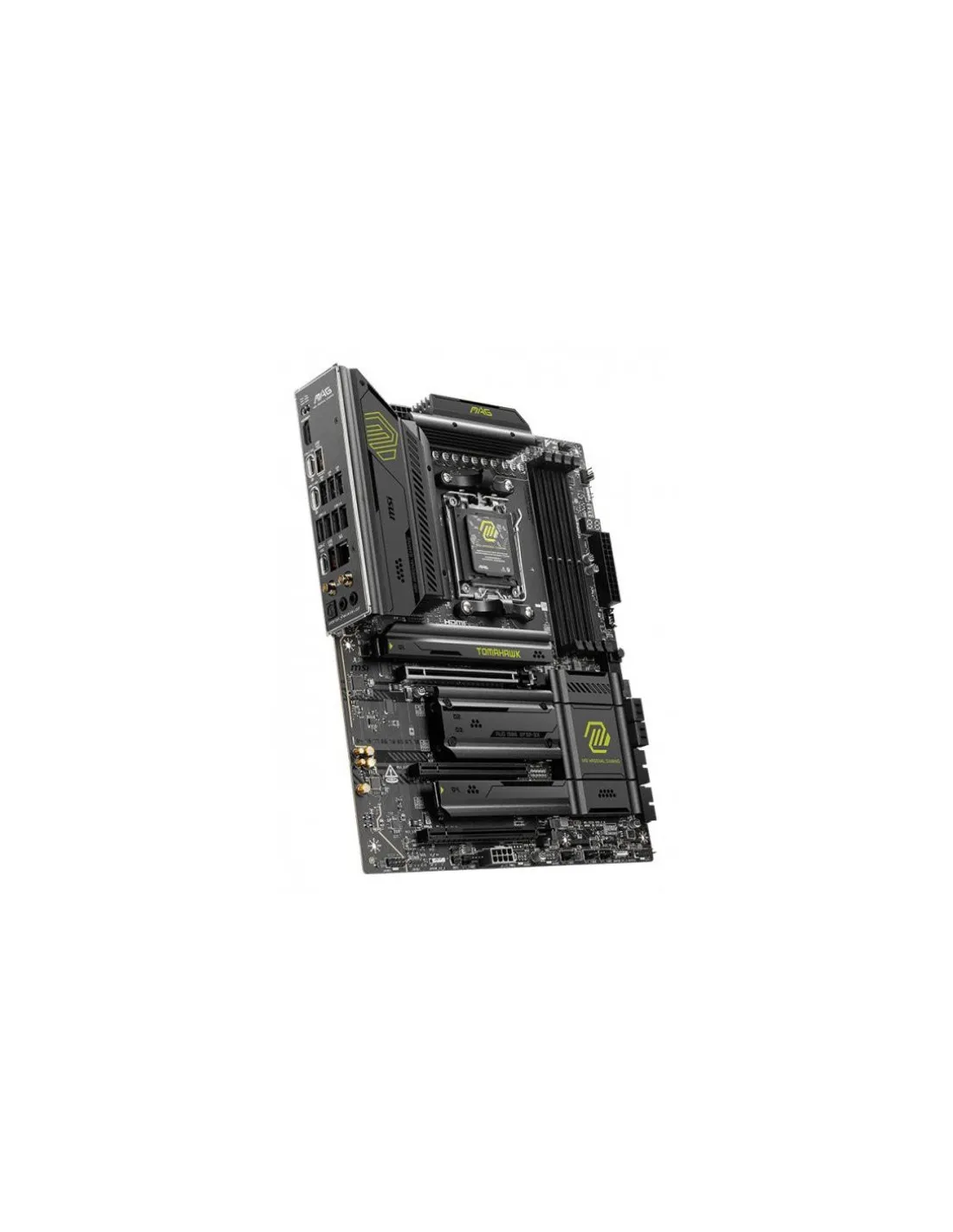

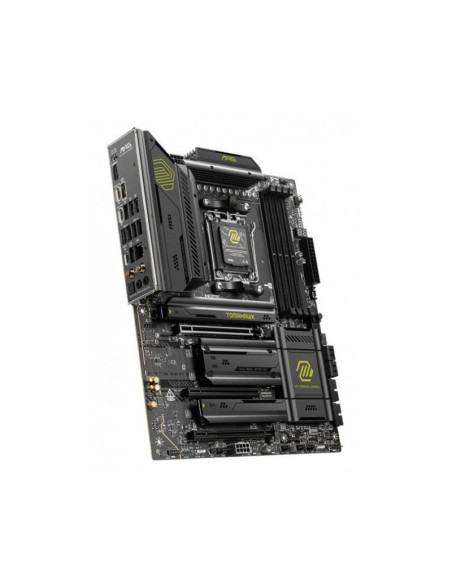

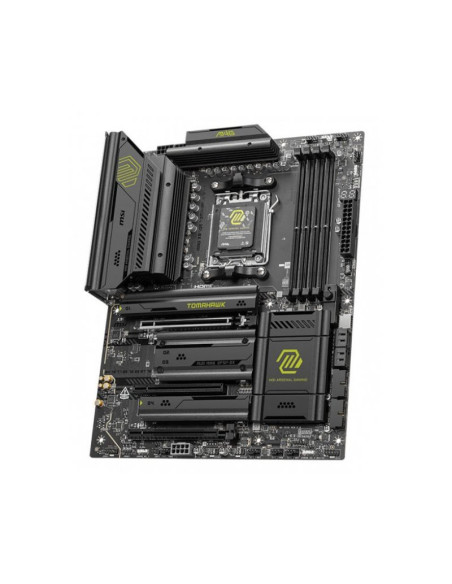

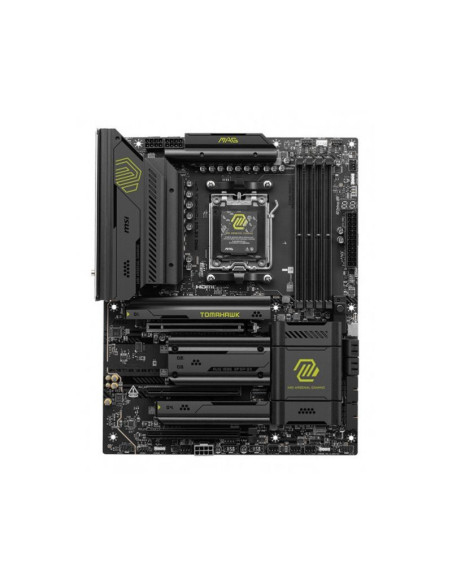

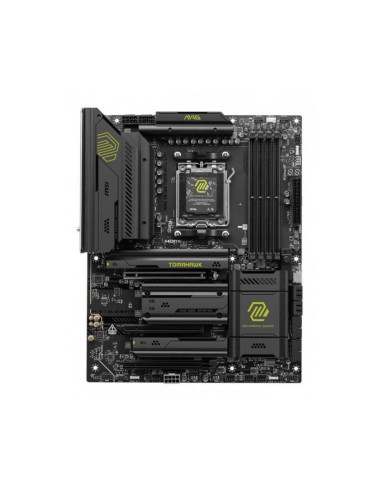

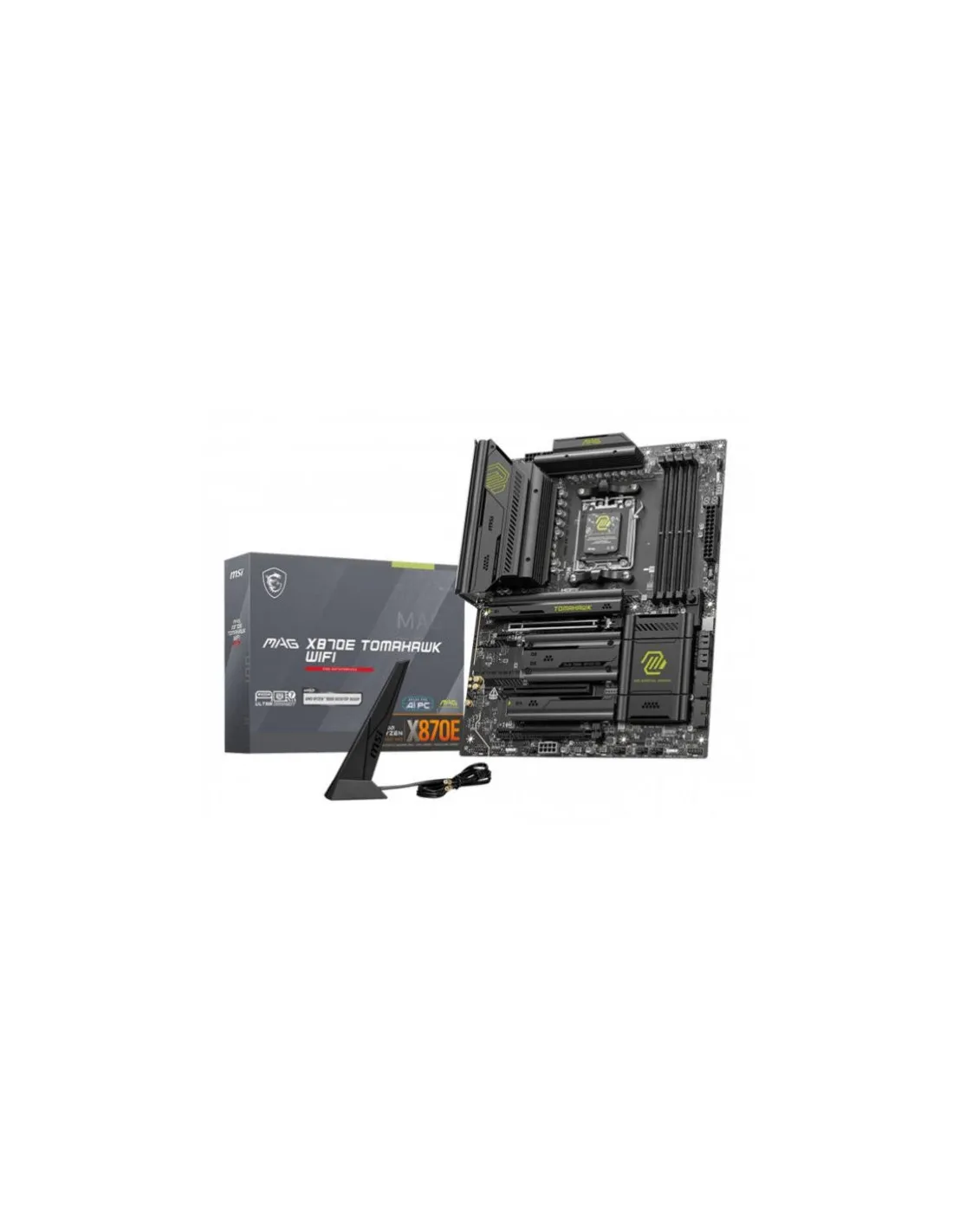

MSI MAG X870E TomaHawk WiFi Socket AM5 ATX

Características de la placa base MSI MAG X870E TomaHawk WiFi

Procesador

• Socket AM5
• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

• AMD X870E

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPO™
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only

Slots

• 3 x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Gráficos

• 1 x HDMI
• 2 x Type-C DisplayPort
• USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

Almacenamiento

• 4 x M.2
• 4 x SATA 6G
• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

• 4 x USB 2.0 (Rear)
• 4 x USB 2.0 (Front)
• 3 x USB 5Gbps Type A (Rear)
• 4 x USB 5Gbps Type A (Front)
• 2 x USB 10Gbps Type A (Rear)
• 1 x USB 10Gbps Type C (Rear)
• 1 x USB 20Gbps Type C (Front)
• 2 x USB 40Gbps Type C (Rear)

Audio

• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

Conectividad y redes

• 1 x Realtek® 8126 5G LAN
• Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

• 1 x Power Connector(ATX_PWR)
• 2 x Power Connector(CPU_PWR)
• 1 x Power Connector(PCIE_PWR 8pin)
• 1 x CPU Fan
• 1 x Combo Fan (Pump_Sys Fan)
• 6 x System Fan
• 1 x EZ Conn-header (JAF_2)
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 3 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x RGB LED connector(JRGB)
• 1 x TPM pin header(Support TPM 2.0)
• 4 x USB 2.0 ports
• 4 x USB 5Gbps Type A ports
• 1 x USB 20Gbps Type C ports

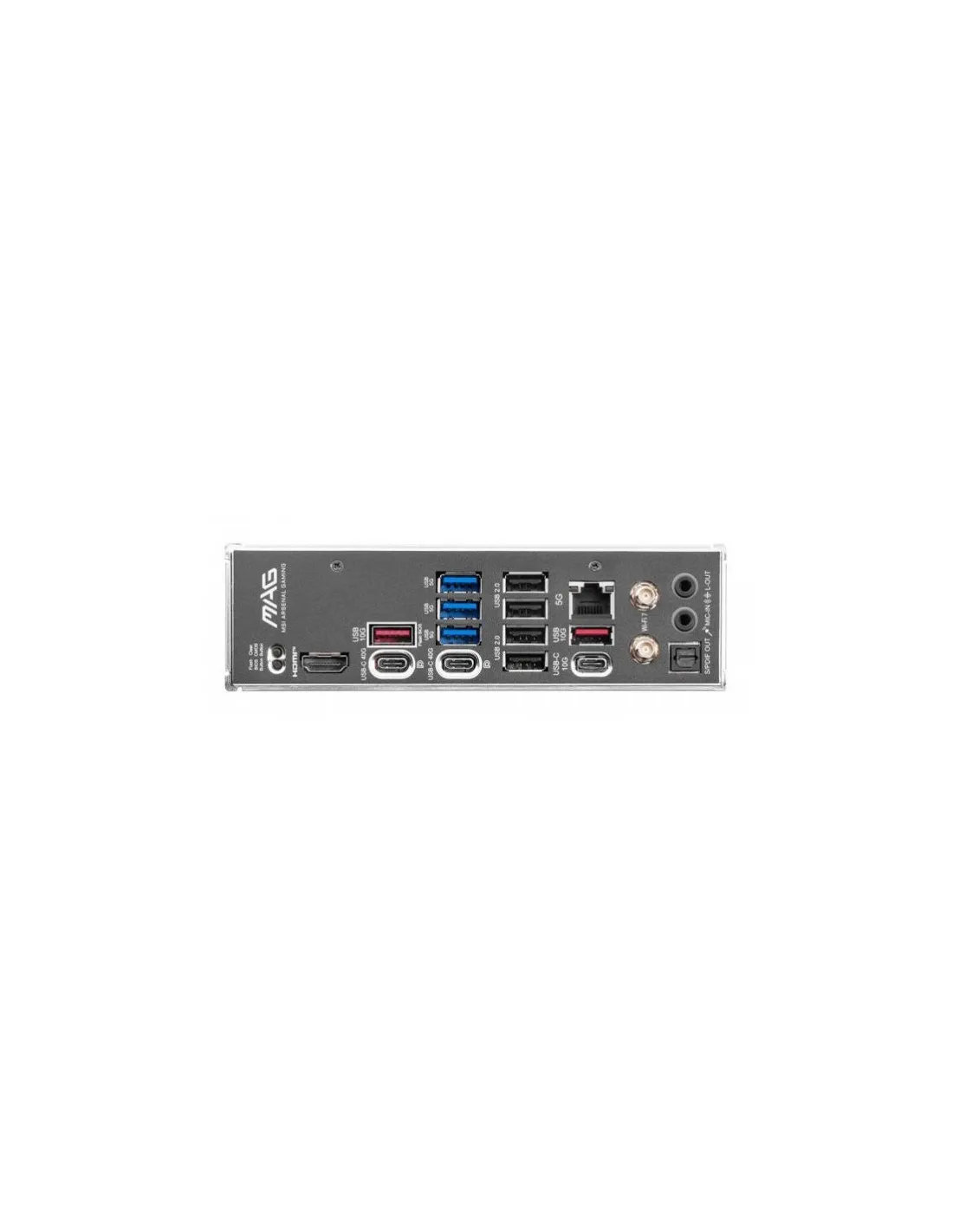

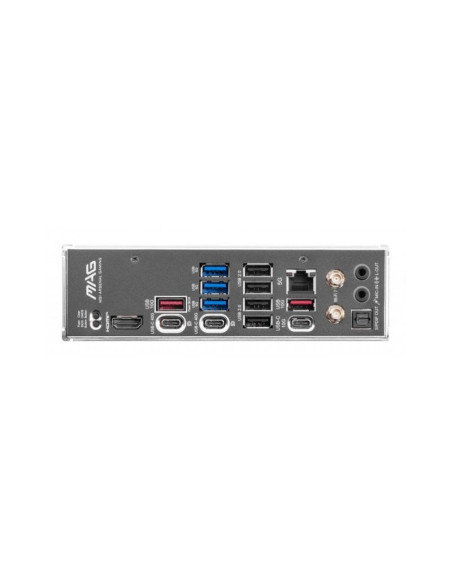

Conectores Traseros

• 1 x HDMI
• 2 x USB Tipo C (40Gbps)
• 1 x USB Tipo C (10Gbps)
• 2 x USB Tipo A (10Gbps)
• 3 x USB Tipo A (5Gbps)
• 4 x USB 2.0
• 1 x RJ45 (1GbE)
• 2 x Antena (WiFi / Bluetooth)
• 2 x Jack 3.5mm
• 1 x S/PDIF Out

Factor de forma

• ATX (24.8 x 30.4mm)
