284,89 €
IVA incluido
¡En Stock! Entrega en 24/48 horas
Precio Envío: 6,99€
P/N: 911-7E62-02S

MSI MAG B850 Tomahawk Max WIFI Socket AMD AM5 ATX

Características destacadas


  • Soporte para procesadores AMD Ryzen™
  • Chipset AMD B850
  • 4x DDR5 hasta 256GB
  • 3x PCI-E x16 slots

Pago Seguro

Garantía de 3 años

Envío 24/48 horas

Financia a tu gusto

Descripción

La MSI MAG B850 Tomahawk Max WIFI Socket AMD AM5 ATX es una joya tecnológica que promete revolucionar tu experiencia de computación. Diseñada para satisfacer a los entusiastas del hardware, ofrece un rendimiento impresionante y una conectividad de vanguardia. Con compatibilidad para procesadores de última generación como la serie AMD Ryzen™ 9000, y el innovador soporte para memorias DDR5, esta placa base no solo es potente, sino que también está preparada para los desafíos del futuro. Potencia, velocidad y flexibilidad se combinan en este producto, lo que la convierte en una opción casi obligada para los entusiastas del hardware que buscan llevar su equipo al siguiente nivel. Con el socket AM5, esta placa base soporta los poderosos procesadores AMD Ryzen™ 9000, 8000 y 7000 series, ofreciendo una capacidad de procesamiento excepcional. Su chipset AMD B850 garantiza un rendimiento robusto y eficiente, permitiendo al usuario experimentar lo mejor de la tecnología AMD.


Características de la placa base MSI MAG B850 Tomahawk Max WIFI Socket AMD AM5 ATX

Procesador

  • Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  • Socket AM5

Chipset

  • AMD B850

Memoria

  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8400+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 4800+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPO™
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only

Slots

  • 3x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Gráficos

  • 1x HDMI™
  • Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz

Almacenamiento

  • 4x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
  • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G
  • M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M2_2 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 1x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 2x USB 10Gbps Type A (Rear)
  • 3x USB 10Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Front)

Audio

  • Realtek® ALC4080 Codec
  • 7.1-Channel USB High Performance Audio
  • Supports up to 32-bit/384kHz playback on front panel
  • Supports S/PDIF output

Conectividad y redes

  • Realtek® 8126VB 5G LAN
  • Wi-Fi 7 Solution
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 6x System Fan
  • 1x EZ Conn-header (JAF_2)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 20Gbps Type C ports

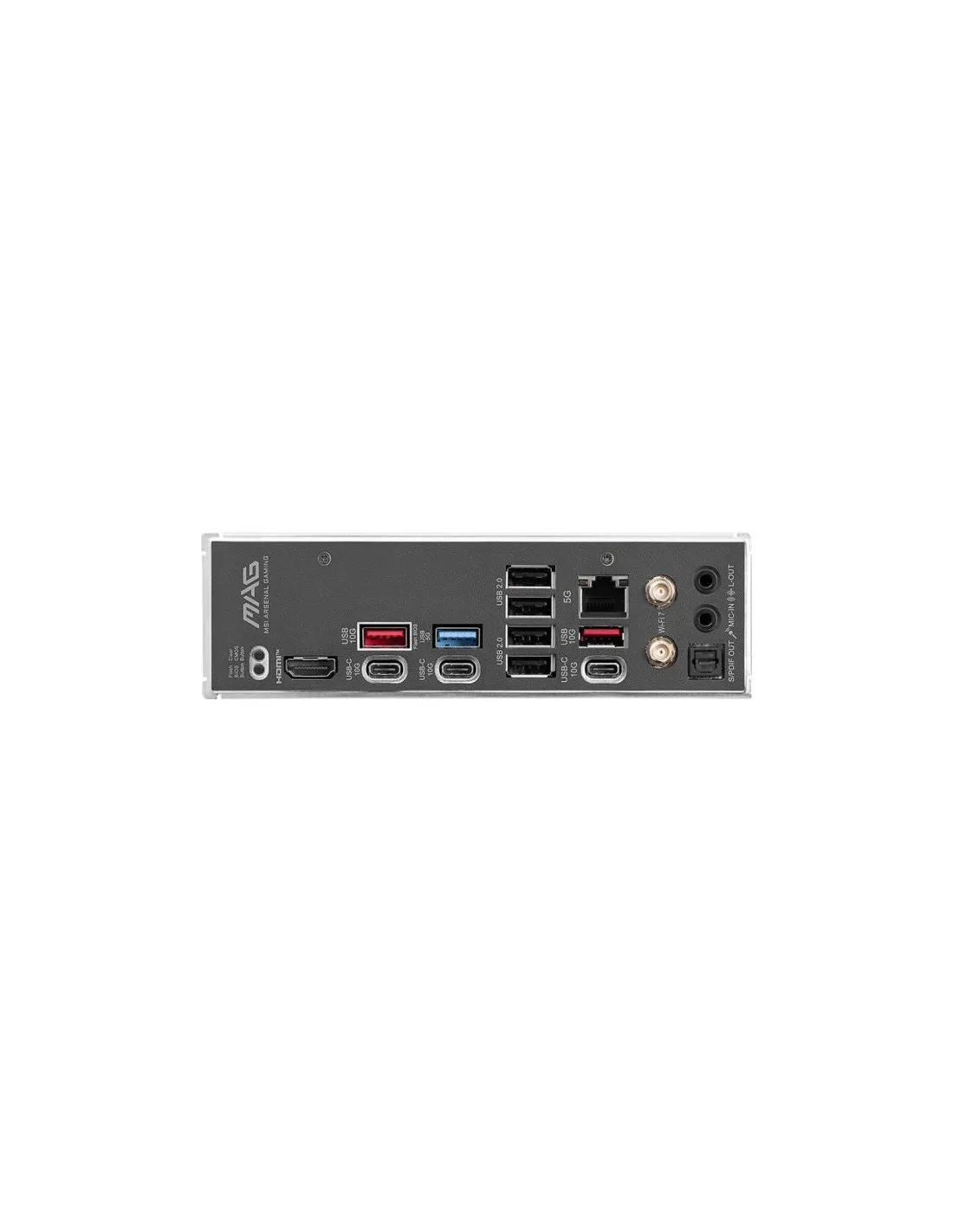

Conectores Traseros

  • Clear CMOS Button
  • USB 10Gbps Type-A
  • USB 5Gbps Type-A
  • USB 2.0
  • 5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 10Gbps Type-C
  • USB 10Gbps Type-C
  • USB 10Gbps Type-A

Factor de forma

  • ATX (243.84mmx304.8mm)

Más información en la web del fabricante:
