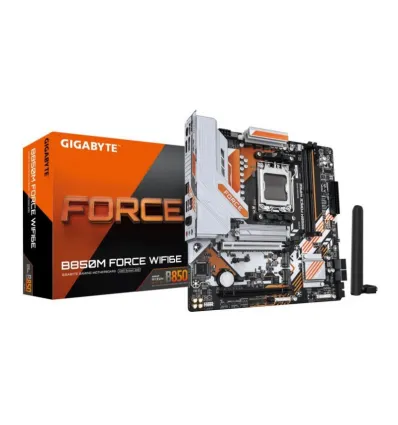

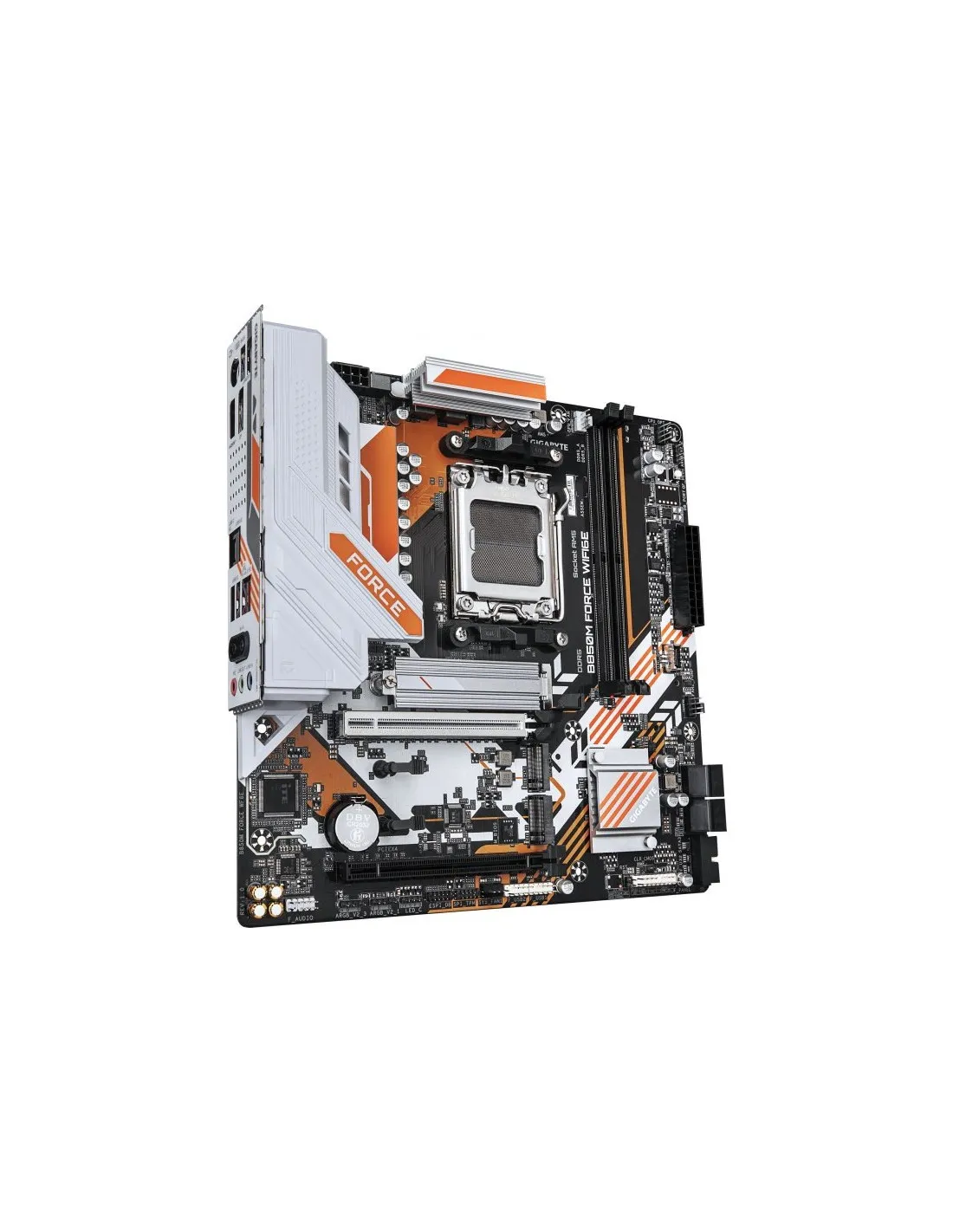

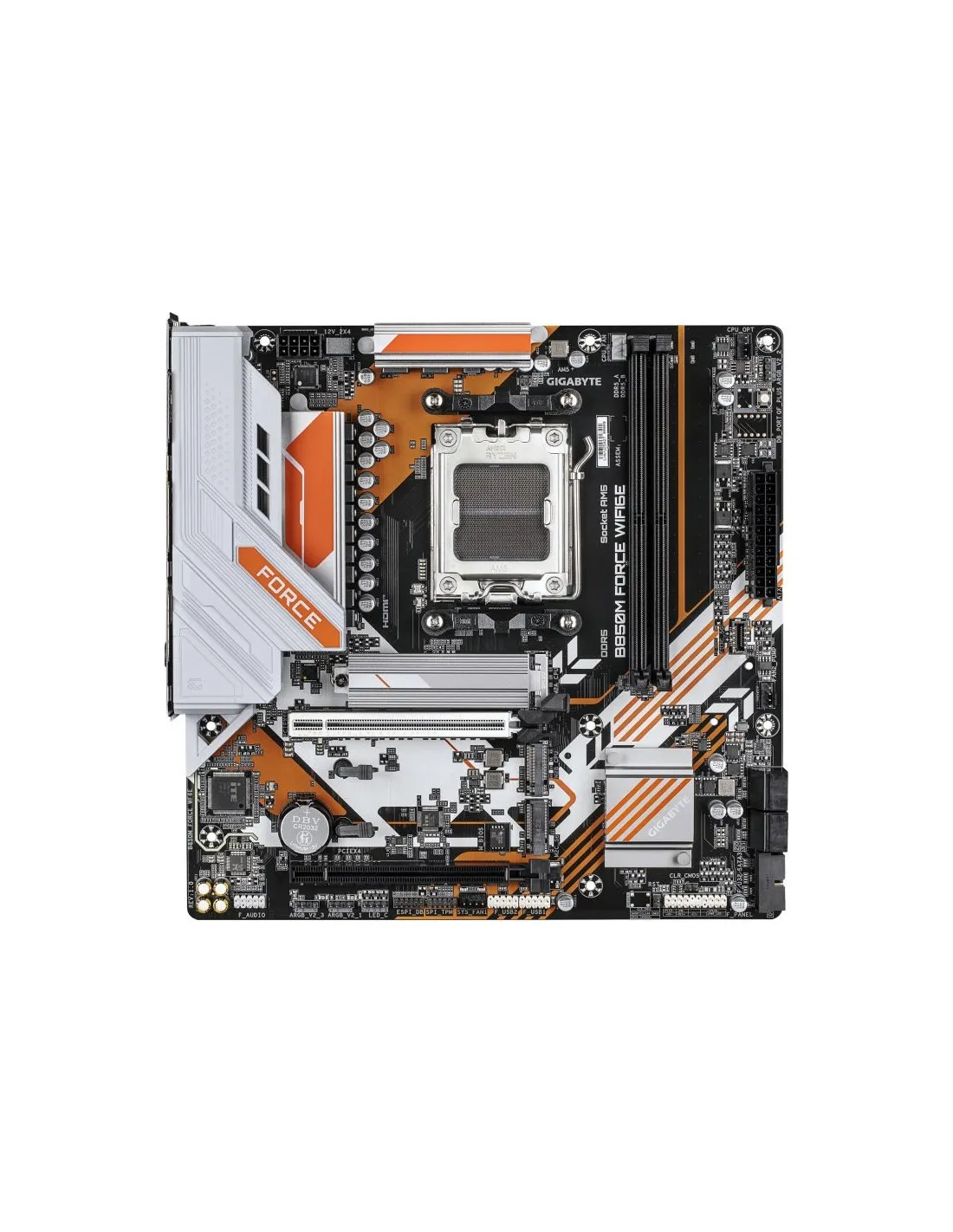

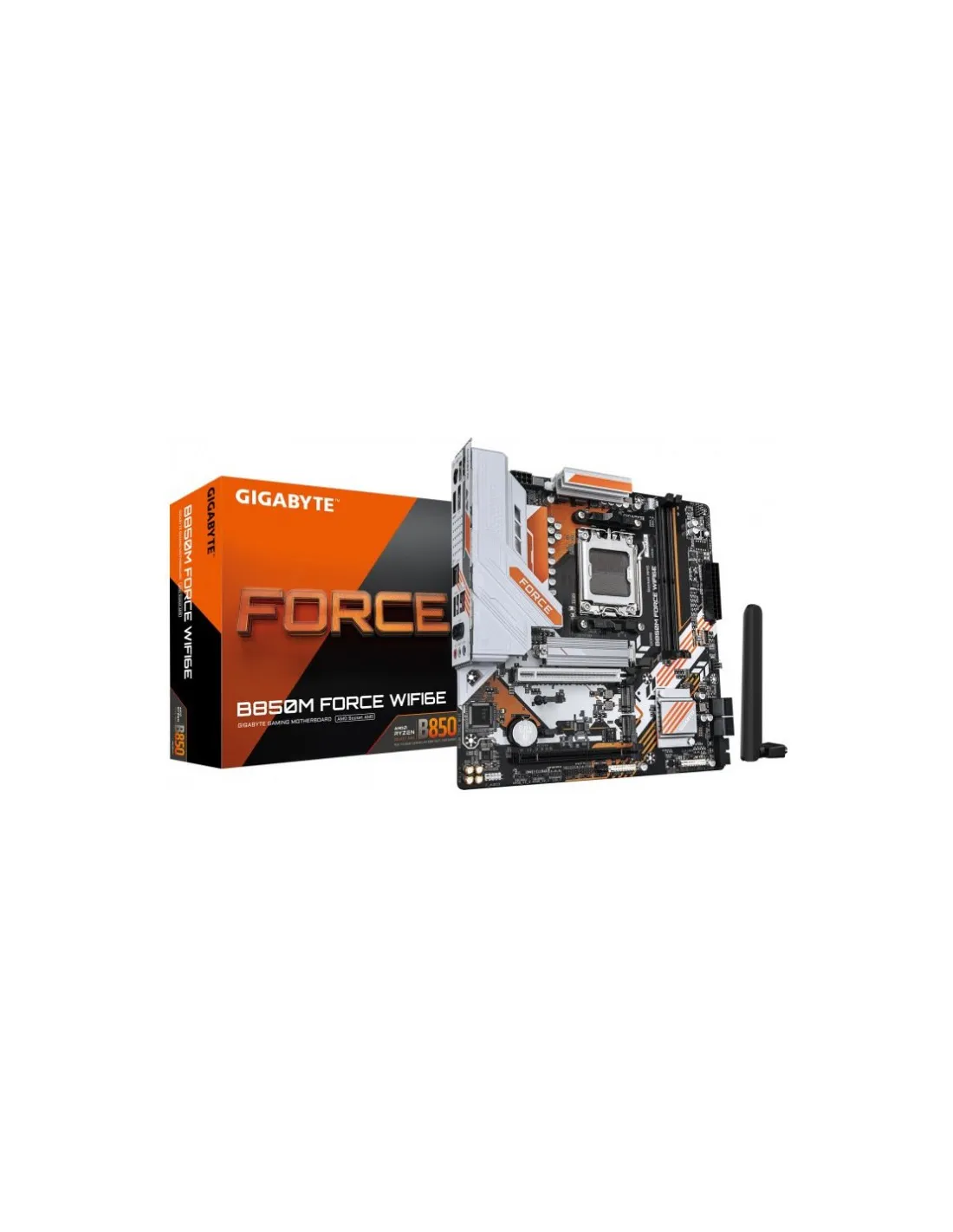

Gigabyte B850M Force WIFI6E Socket AM5 Micro-ATX

Características de la placa base Gigabyte B850M Force WIFI6E

Procesador

• AMD Socket AM5
• Compatible con AMD Ryzen 9000 / 8000 / 7000 Series

Chipset

• AMD B850

Memoria

• Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support forA MD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Gráficos

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
• 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 1 x USB 2.0/1.1 port on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• MediaTek Wi-Fi 6E MT7902
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

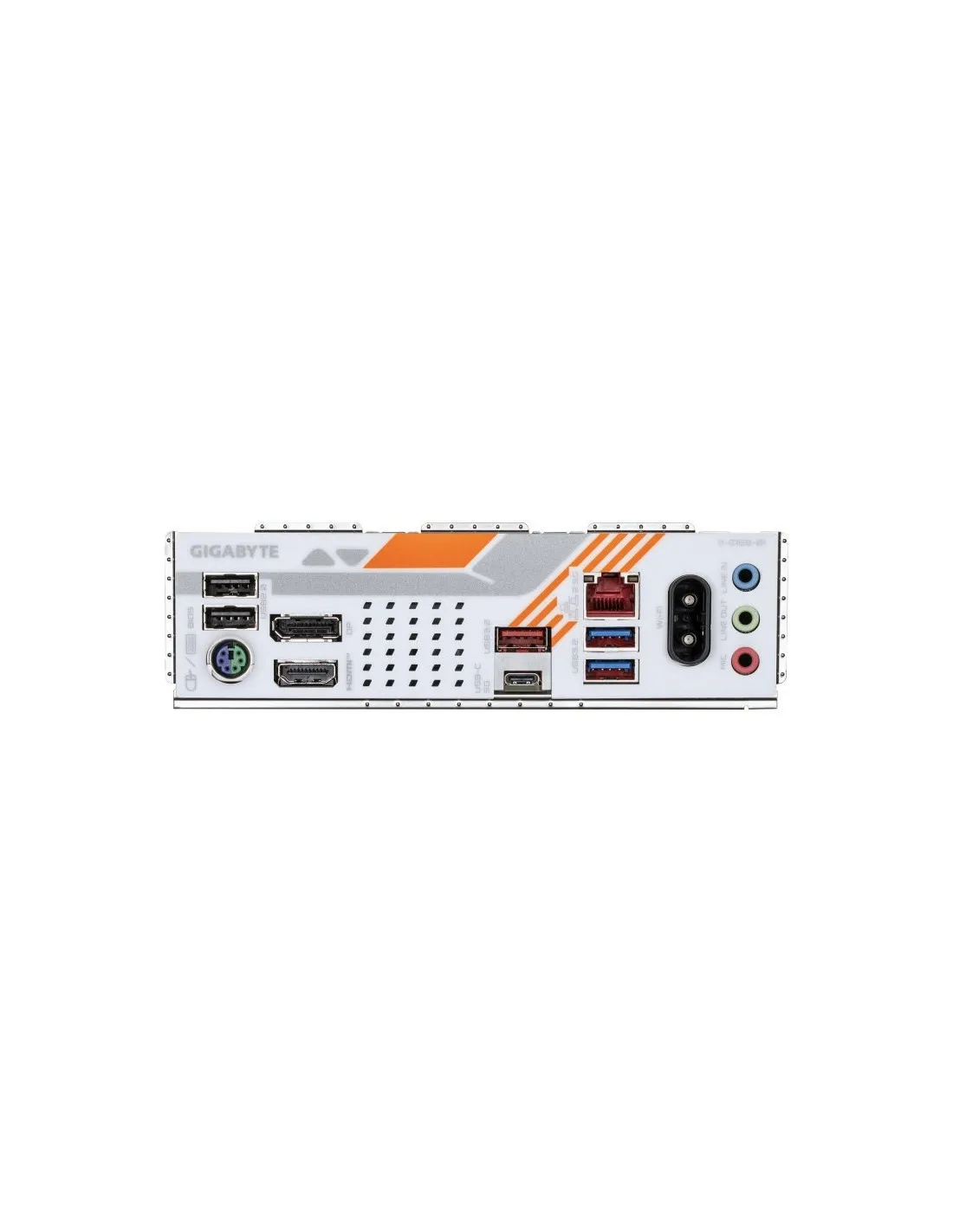

Conectores Traseros

• 1 x HDMI port (Note)
• 1 x DisplayPort (Note)
• 1 x PS/2 keyboard/mouse port
• 1 x USB Type-C® port, with USB 3.2 Gen 1 support
• 2 x USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 2 x antenna connectors (1T1R)
• 3 x audio jacks

Factor de forma

• Micro ATX(24.4 x 24.4cm)
