Gigabyte B650M S2H Socket AM5 Micro-ATX
Descripción
La Gigabyte B650M S2H Socket AM5 Micro-ATX es la placa base ideal tanto para los entusiastas de la informática como para los profesionales que requieren fiabilidad y eficiencia en sus equipos. Diseñada específicamente para procesadores AMD de las series 7000 y 8000, incluye compatibilidad con memoria DDR5 RAM y una capacidad de memoria interna máxima de 96 GB para que tu sistema funcione sin problemas y a máxima velocidad. La Gigabyte B650M S2H te proporciona varias opciones de almacenamiento para satisfacer todas tus necesidades. Soporta tanto discos duros (HDD) como unidades de estado sólido (SSD), y admite interfaces de disco de almacenamiento como M.2 y SATA III. Además, cuenta con opciones RAID 0, 1 y 10, lo que permite configuraciones de almacenamiento avanzadas y seguras.
Características de la placa base Gigabyte B650M S2H
Procesador
- AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
Chipset
- AMD B650
Memoria
- Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
Gráficos
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Almacenamiento
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Conectividad y redes
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Conectores Internos
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- 1 x Clear CMOS jumper

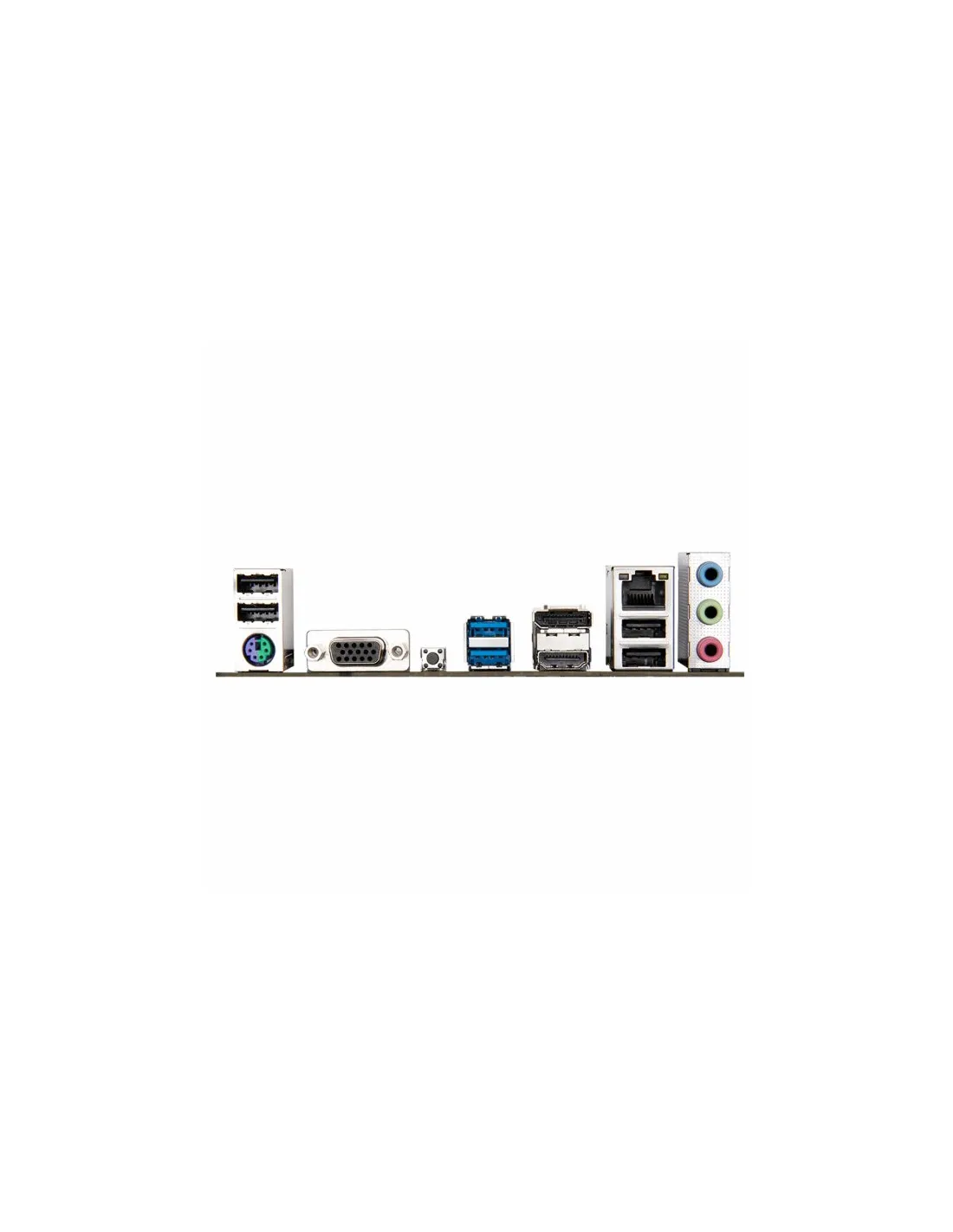

Conectores Traseros
- 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x Q-Flash Plus button
- 2 x USB 3.2 Gen 1 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x RJ-45 port
- 3 x audio jacks
Factor de forma
- Micro-ATX (23 x 22.5cm)
