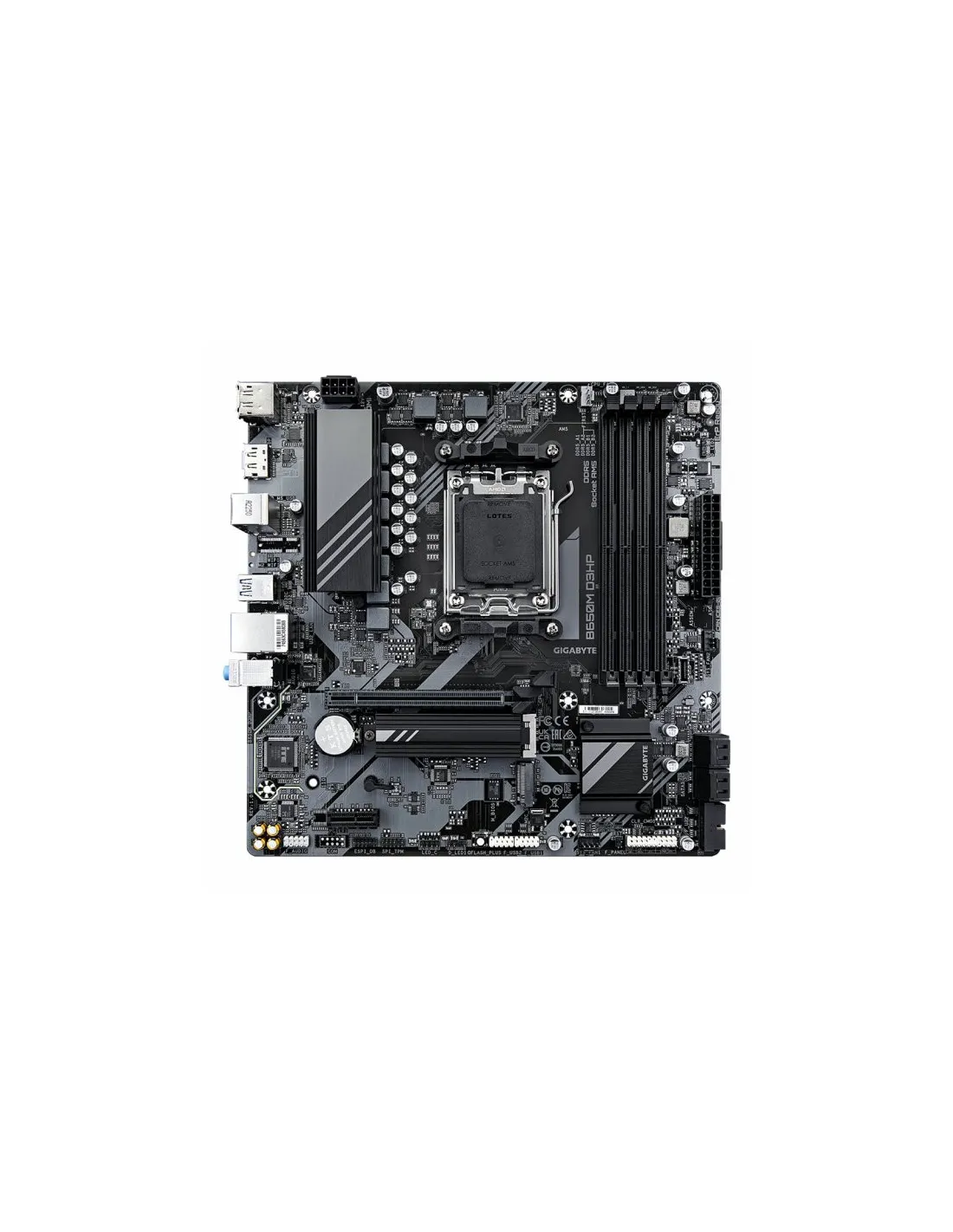

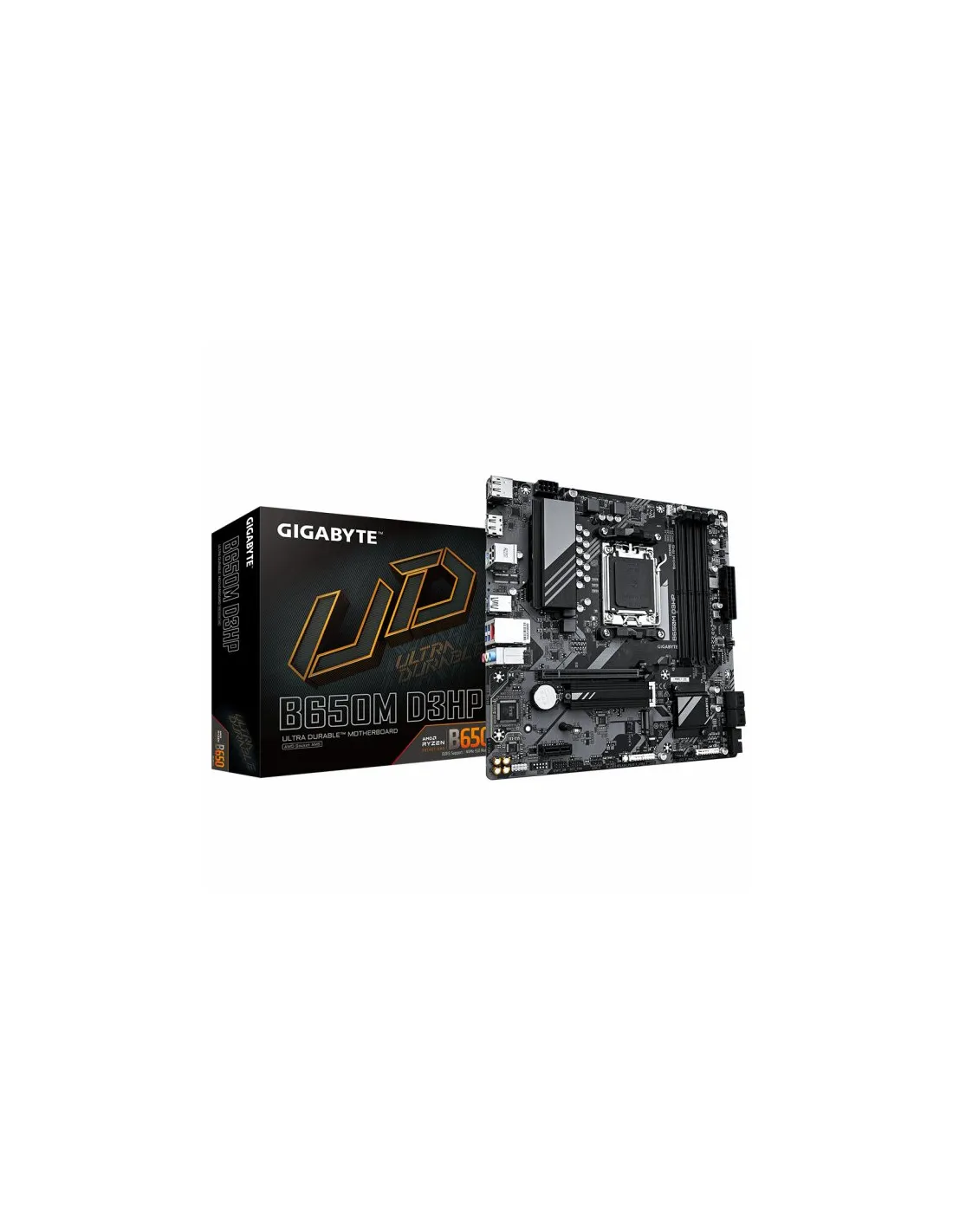

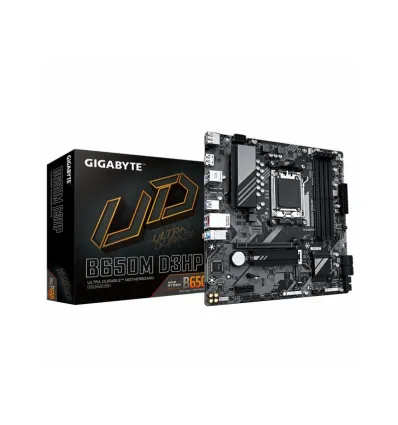

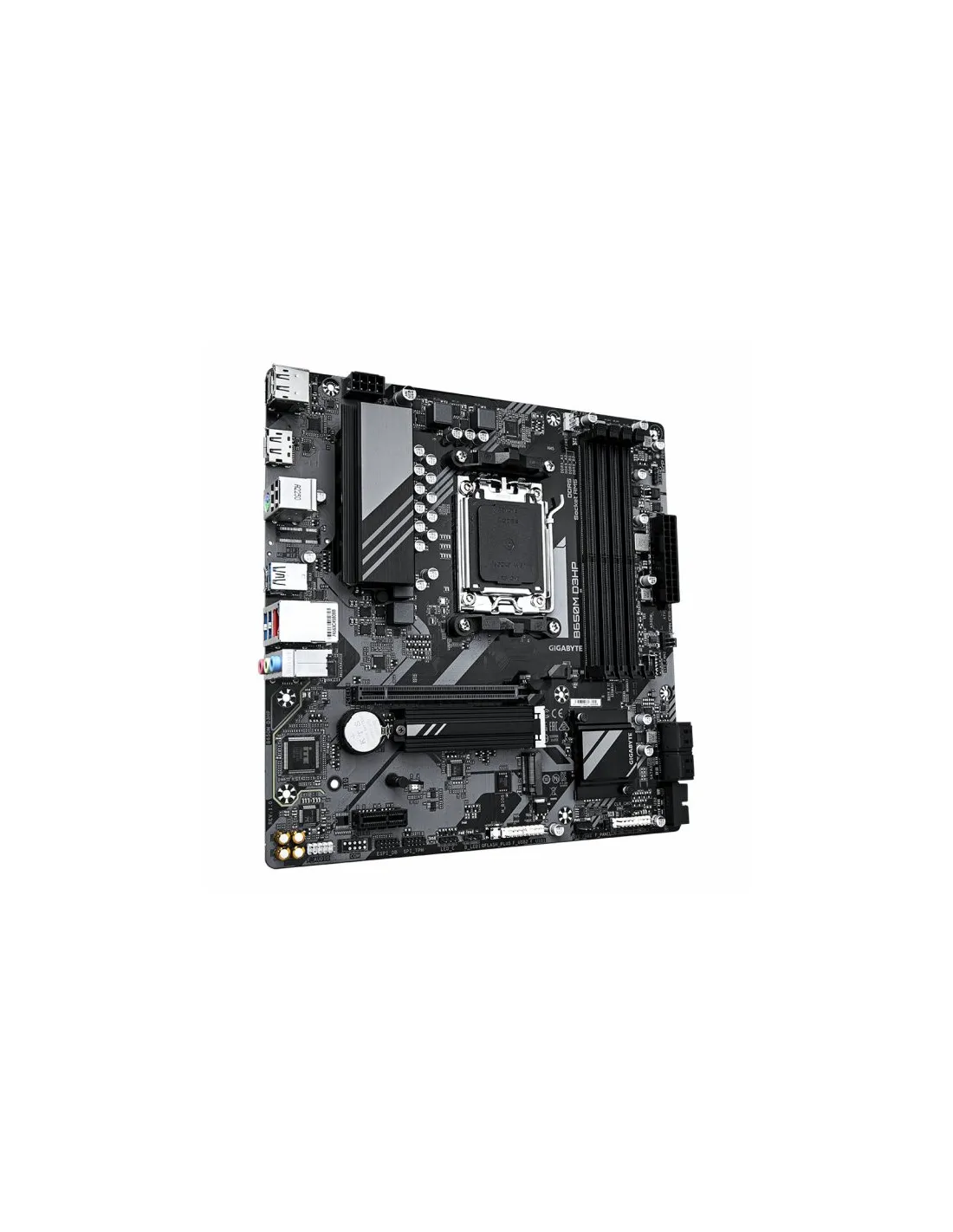

Gigabyte B650M D3HP Socket AM5 Micro-ATX
- -13,00 €
Descripción
La Gigabyte B650M D3HP Socket AM5 Micro-ATX es la placa base ideal para quienes buscan una combinación perfecta entre rendimiento y versatilidad. Este producto está especialmente diseñado para soportar los últimos procesadores AMD Ryzen de las series 7000 y 8000, ofreciendo una base sólida para una experiencia de alta calidad. Con un equilibrio perfecto entre características avanzadas y facilidad de uso, esta placa base micro-ATX es la elección perfecta tanto para jugadores como para profesionales.
Características de la placa base Gigabyte B650M D3HP
Procesador
- AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
Chipset
- AMD B650
Memoria
- Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Gráficos
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Almacenamiento
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs
- 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB 2.0/1.1 port on the back panel
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Conectividad y redes
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Conectores Internos
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper

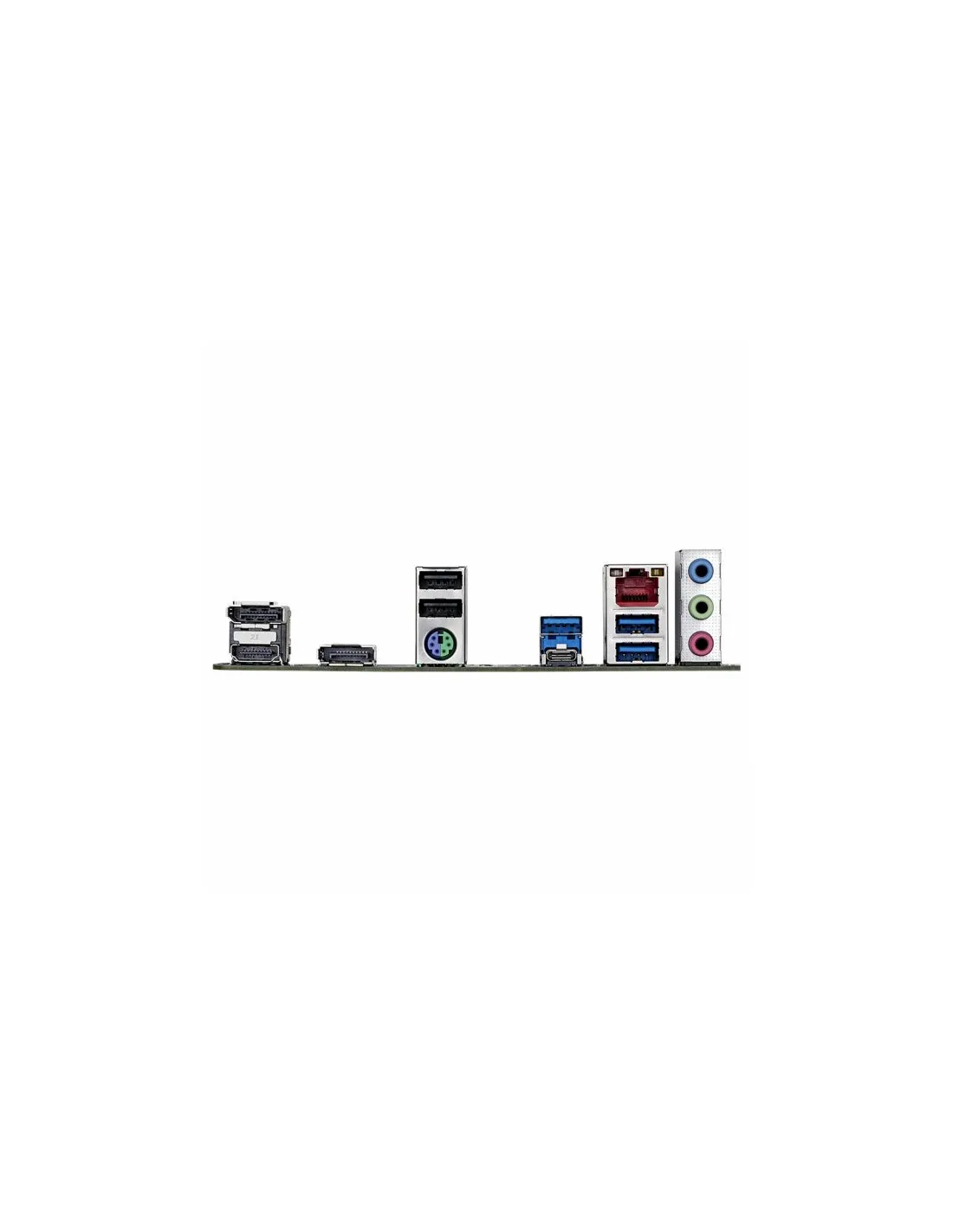

Conectores Traseros
- 1 x PS/2 keyboard/mouse port
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 3 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x HDMI port
- 2 x DisplayPorts
- 1 x RJ-45 port
- 3 x audio jacks
Factor de forma
- Micro ATX Form Factor; 24.4cm x 24.4cm
Más información en la web del fabricante:
