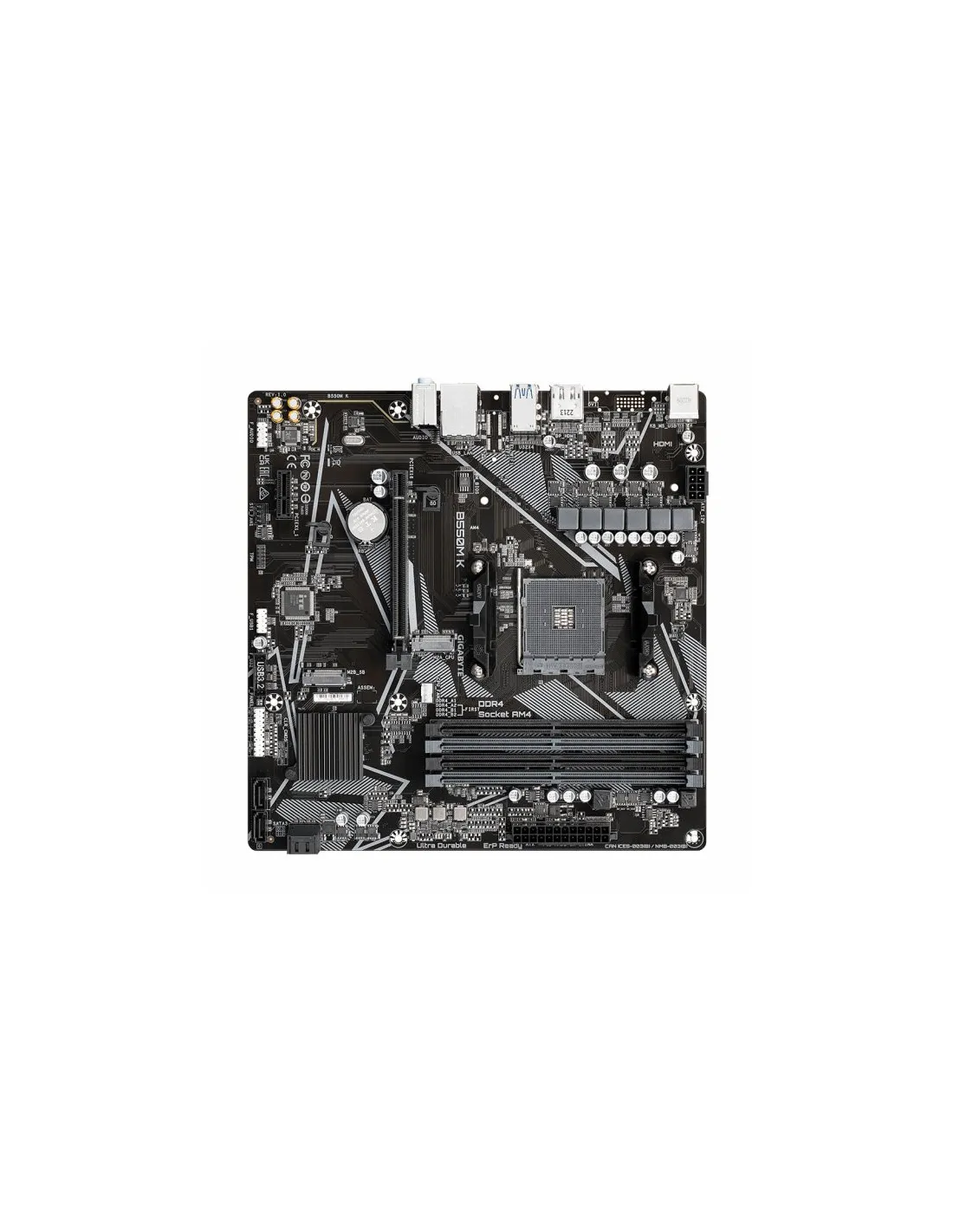

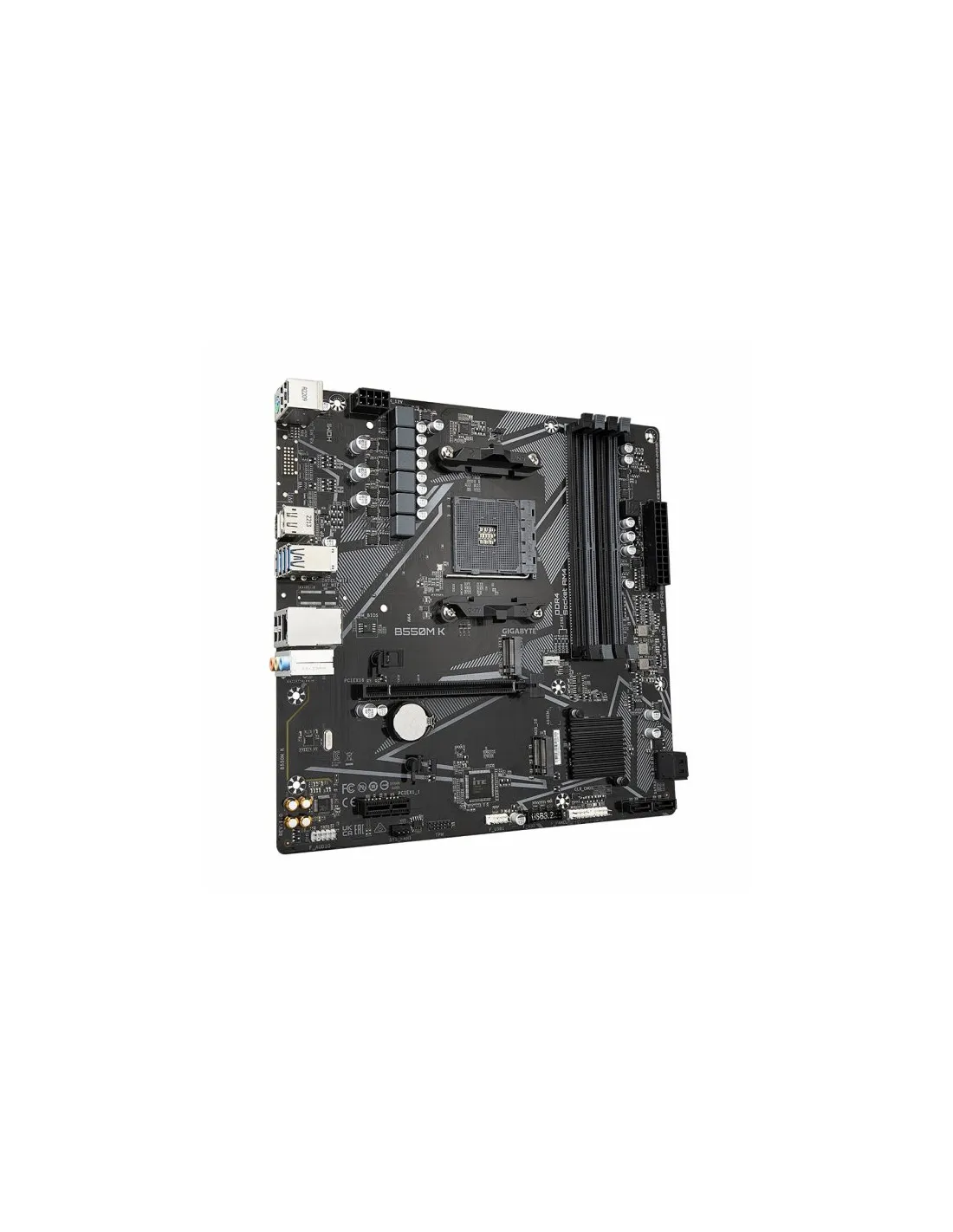

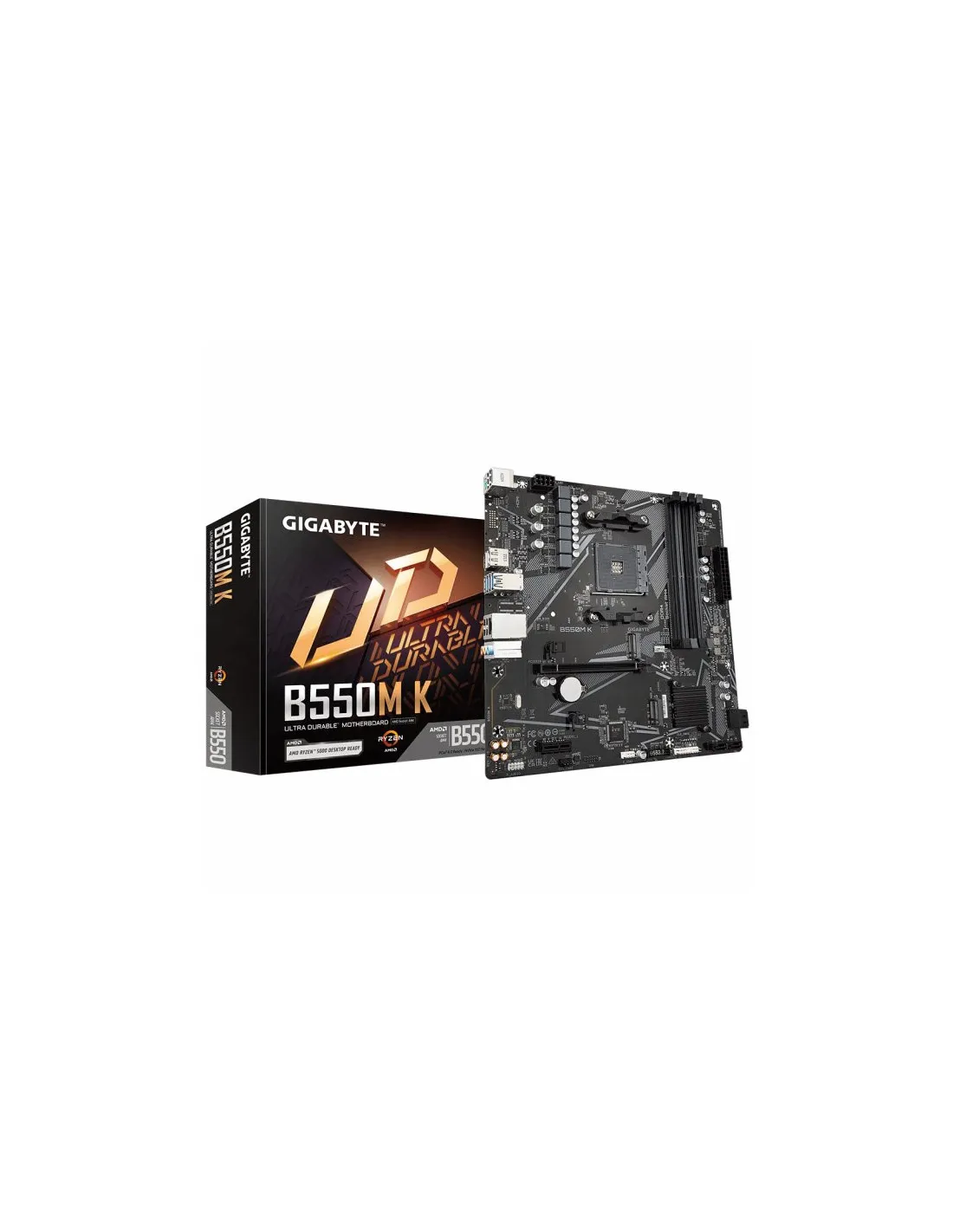

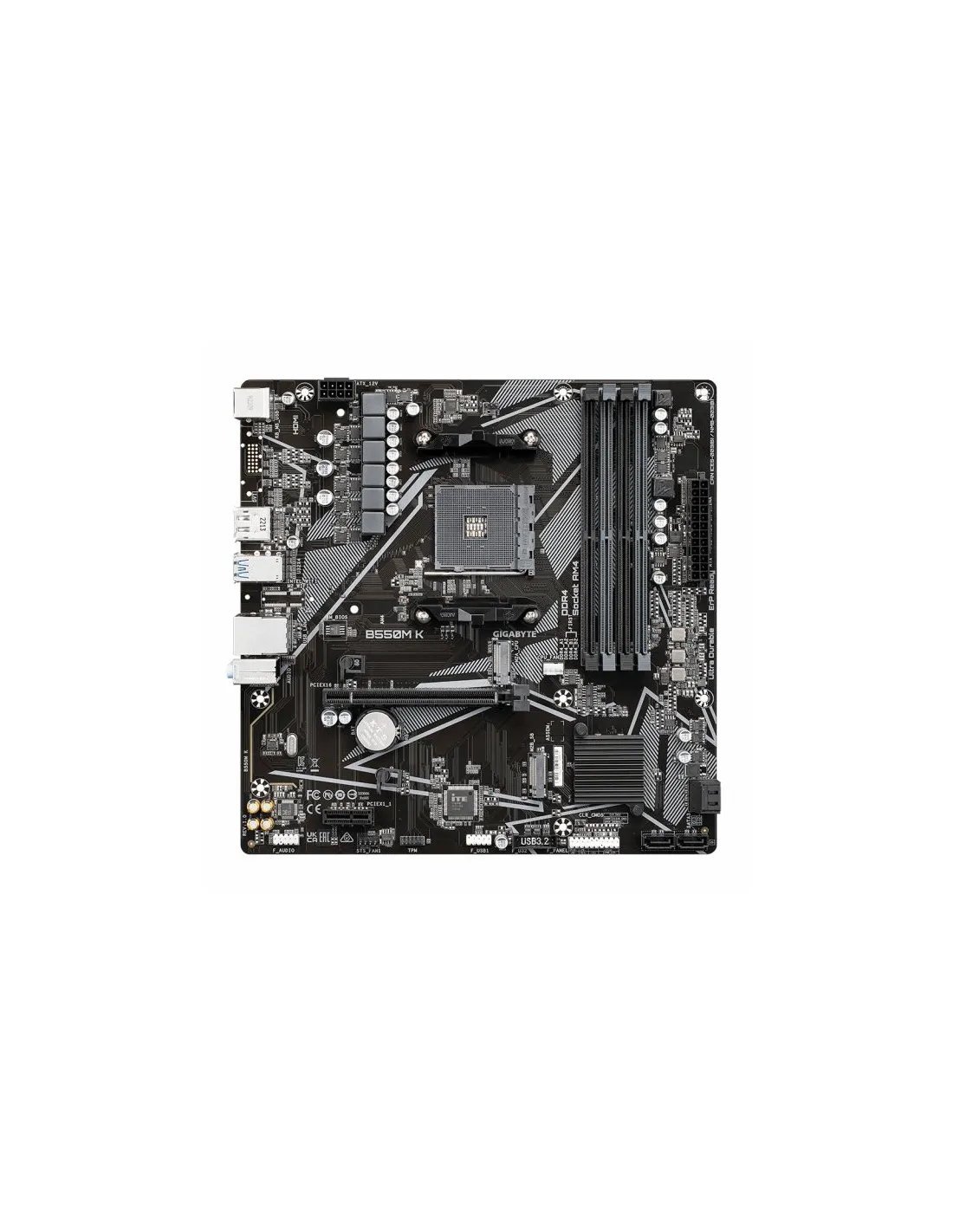

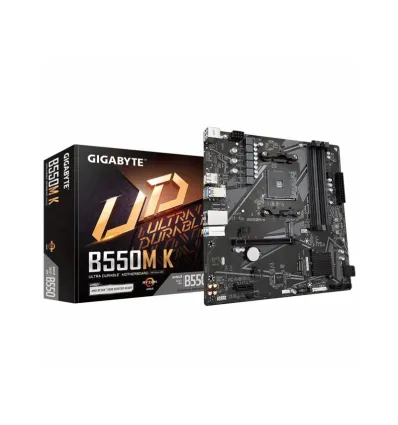

Gigabyte B550M K Socket AMD AM4 Micro-ATX
Descripción
La Gigabyte B550M K Socket AMD AM4 Micro-ATX es una solución ideal para aquellos que buscan sacar el máximo provecho a su sistema sin sacrificar espacio ni rendimiento. Esta placa base está diseñada para procesadores AMD, utilizando el zócalo AM4, siendo especialmente compatible con los AMD Ryzen de la serie 5000. Ofrece soporte para tecnologías avanzadas que garantizan un rendimiento impresionante en cualquier tarea o juego. El chipset B550 proporciona soporte robusto para overclocking, permitiéndote exprimir cada gota de rendimiento de tu CPU. Esta placa base combina la potencia y eficiencia necesarias para ofrecer una experiencia informática fluida, perfecta para gamers, creadores de contenido o cualquier usuario que exija un alto rendimiento. Con su diseño Micro-ATX, encaja perfectamente en cualquier configuración, asegurando una instalación sencilla y práctica.
Características de la placa base Gigabyte B550M K Socket AMD AM4 Micro-ATX
Procesador
- AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Chipset
- AMD B550
Memoria
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Slots
- 1 x PCI Express x16 slot, integrated in the CPU:
- AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
- 1 x PCI Express x1 slot, integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
Gráficos
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Almacenamiento
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
- Supporting PCIe 3.0 x2 SSDs
- 4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
USB
- CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
- Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Conectividad y redes
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Conectores Internos
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x Clear CMOS jumper

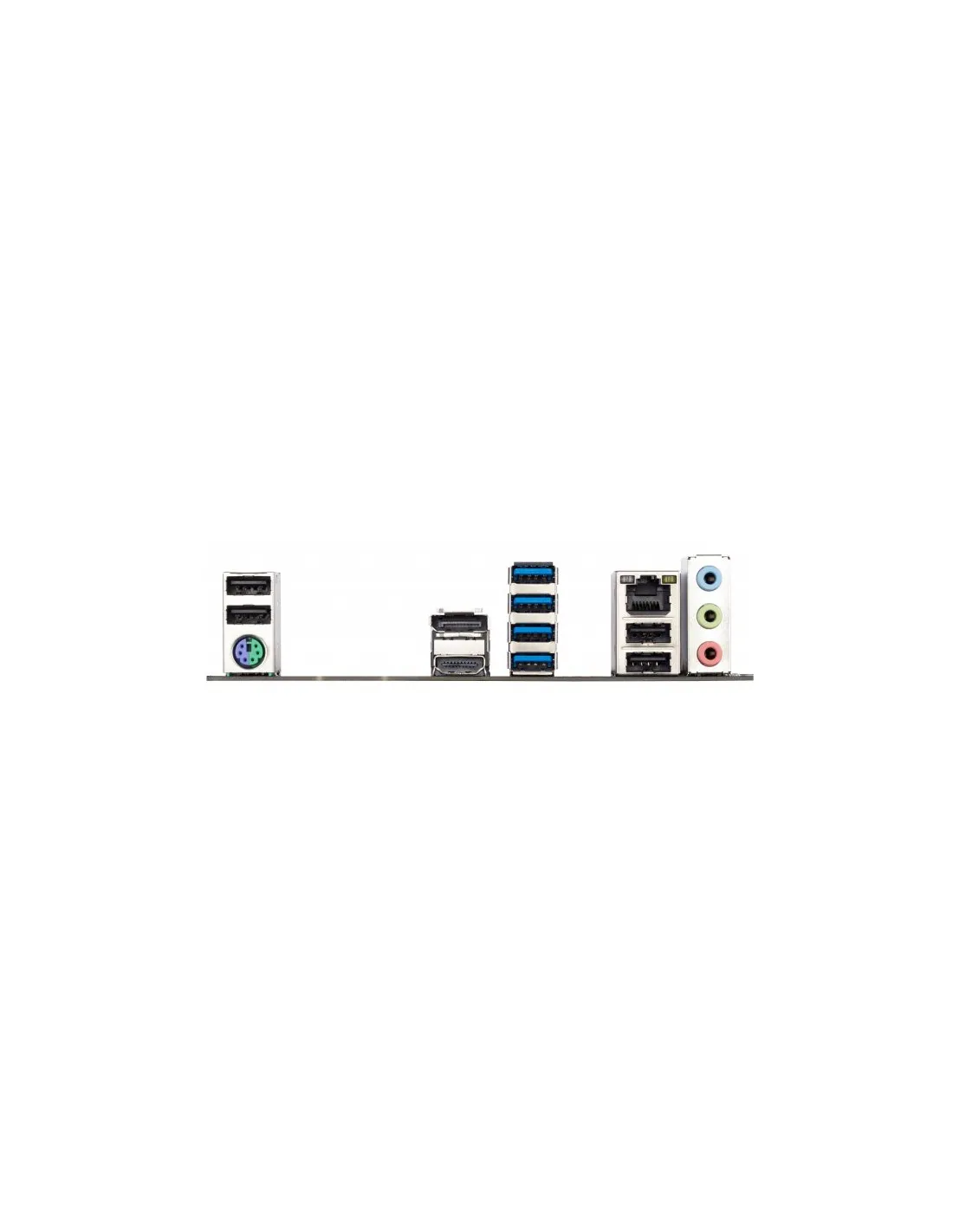

Conectores Traseros
- 1 x PS/2 keyboard/mouse port
- 1 x DisplayPort
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
Factor de forma
- Micro ATX (24.4cm x 24.4cm)
