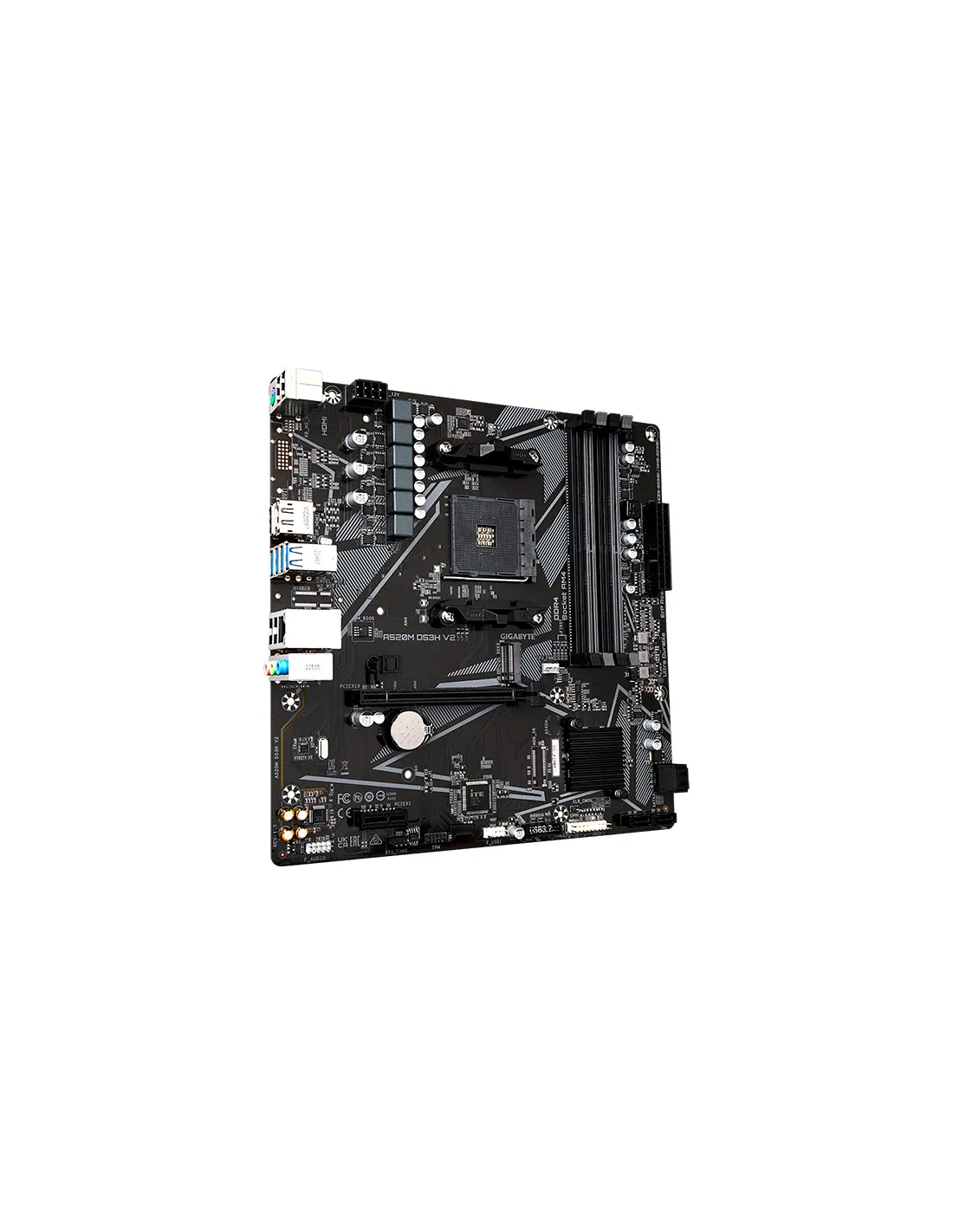

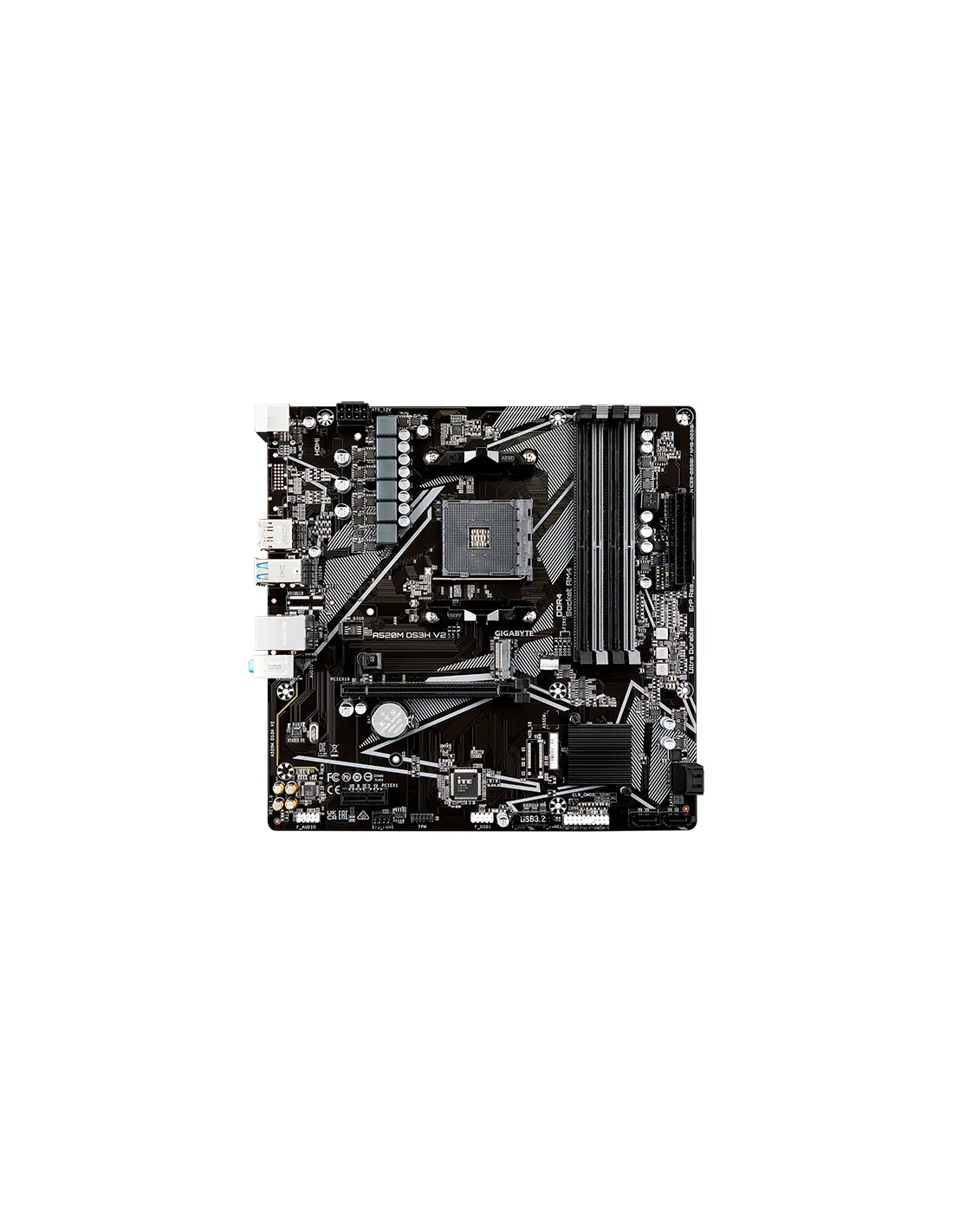

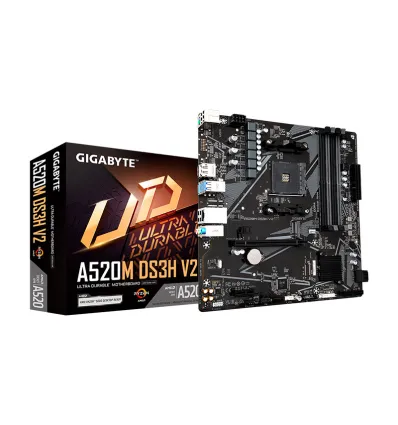

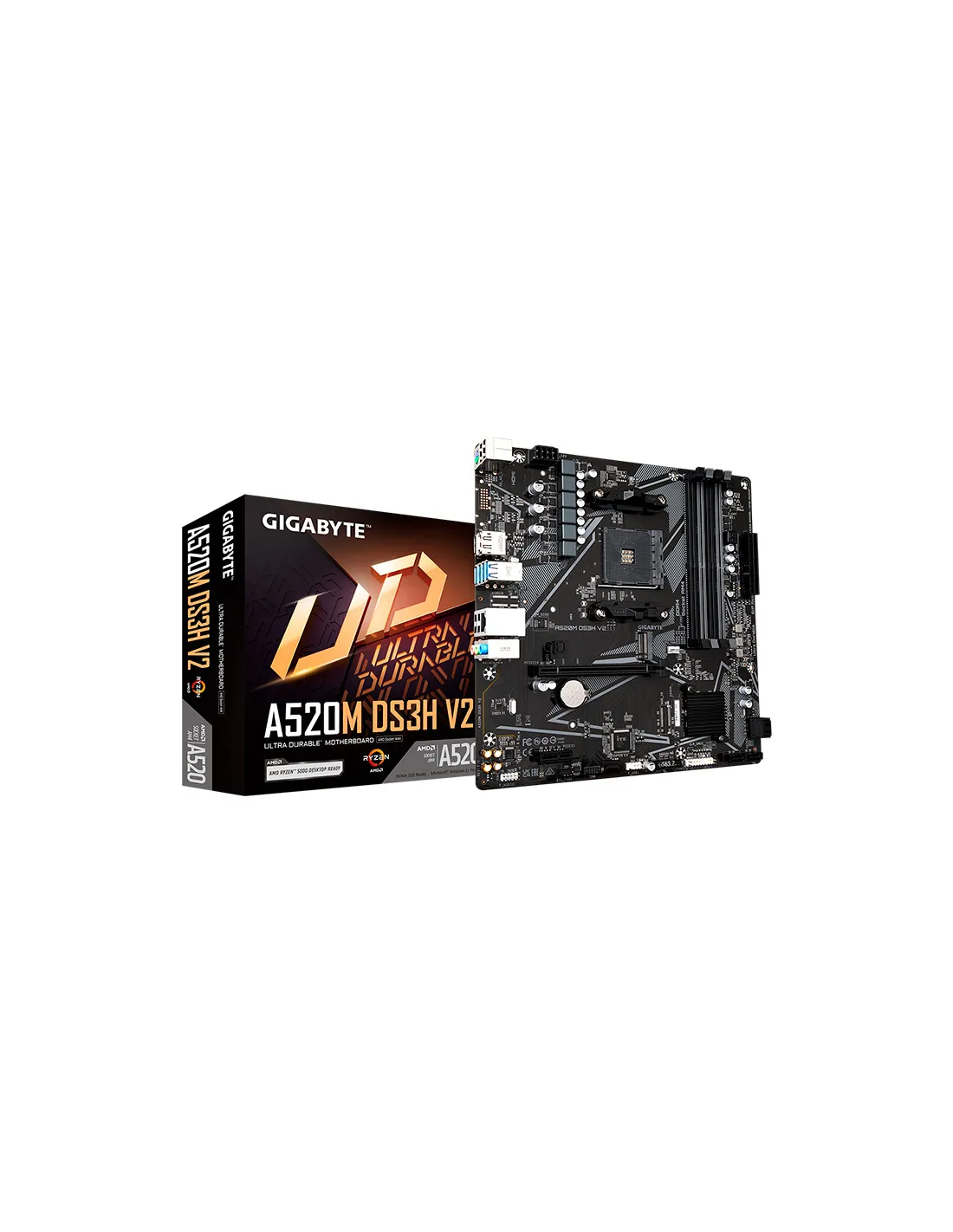

Gigabyte A520M-DS3H V2 Socket AM4 Micro-ATX

Características de la placa base Gigabyte A520M-DS3H V2 Socket AM4 Micro-ATX

Procesador

• AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Chipset

• AMD A520

Memoria

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Gráficos

• 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Slots

• 1 x PCI Express x16 slot, integrated in the CPU
• 1 x PCI Express x1 slot, integrated in the Chipset

Almacenamiento

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset

Conectores USB

• 4 x USB 3.2 Gen 1 ports on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y Redes

• Realtek GbE LAN chip (1 Gbps/100 Mbps)

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper

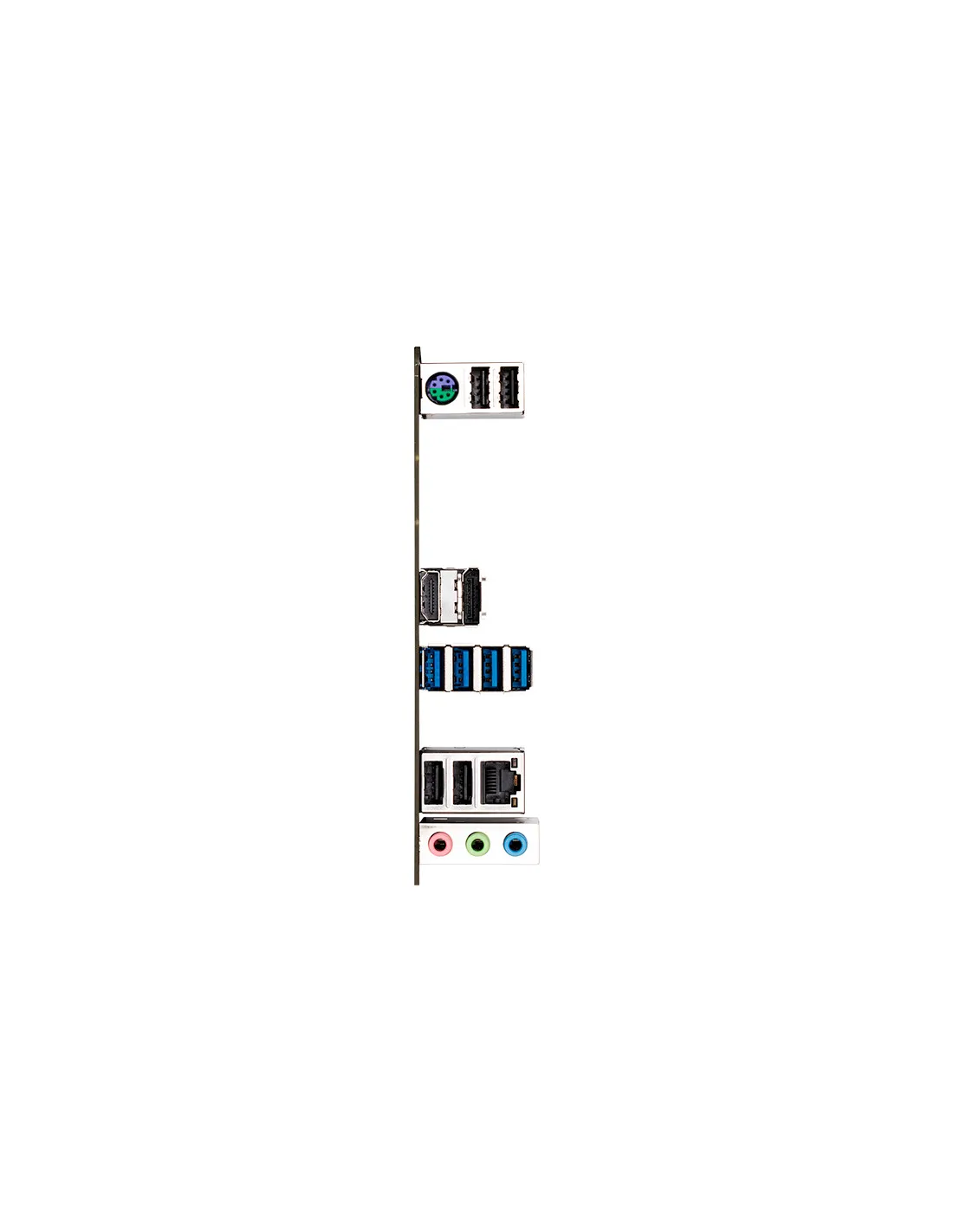

Conectores Traseros

• 1 x PS/2 (Teclado / Ratón)
• 1 x DisplayPort
• 1 x HDMI
• 4 x USB 3.2 (Gen 1) Tipo A
• 2 x USB 2.0 Tipo A
• 1 x RJ45 (1GbE)
• 3 x Jack 3.5mm

Factor de forma

• Micro ATX (24.4cm x 24.4cm)
