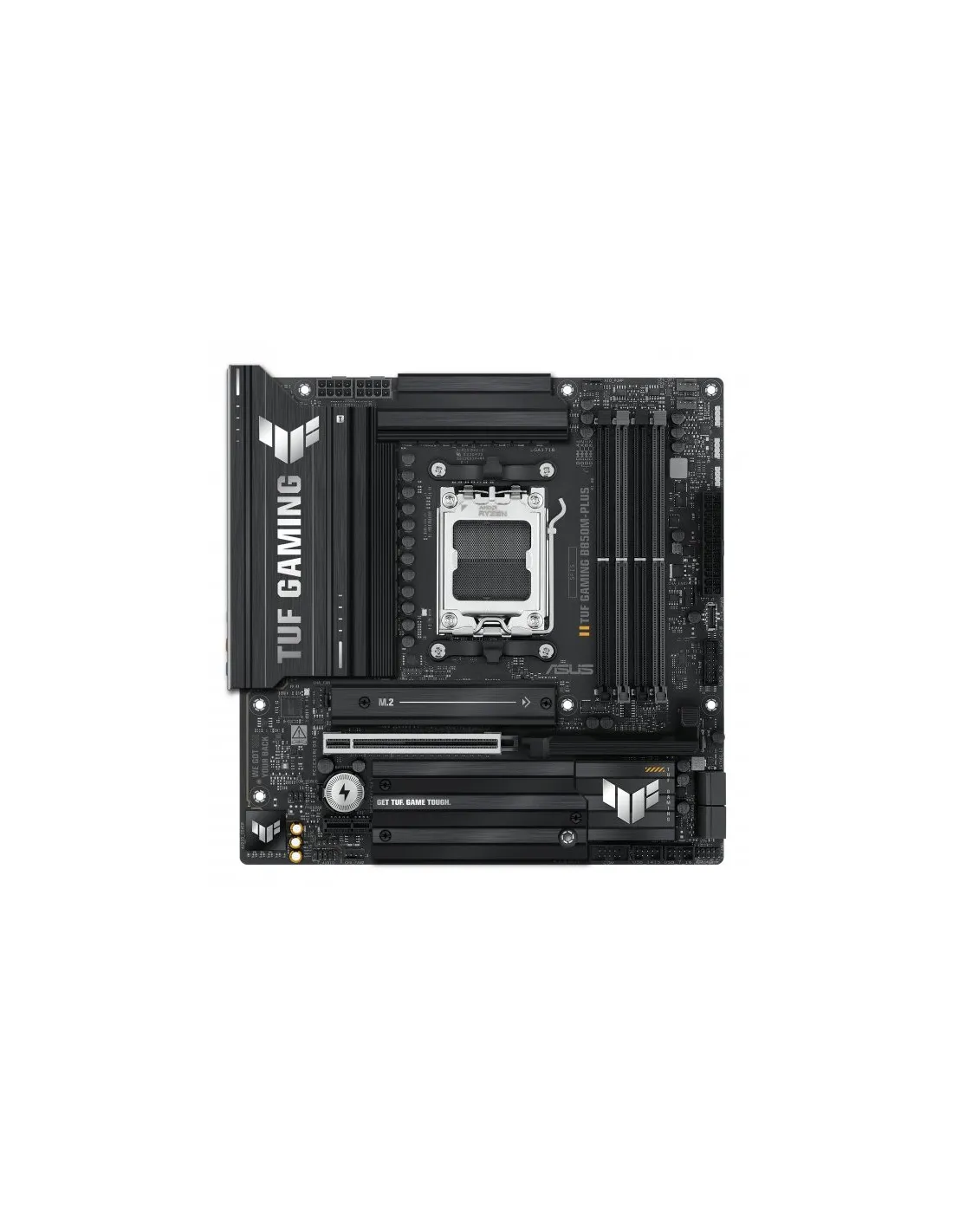

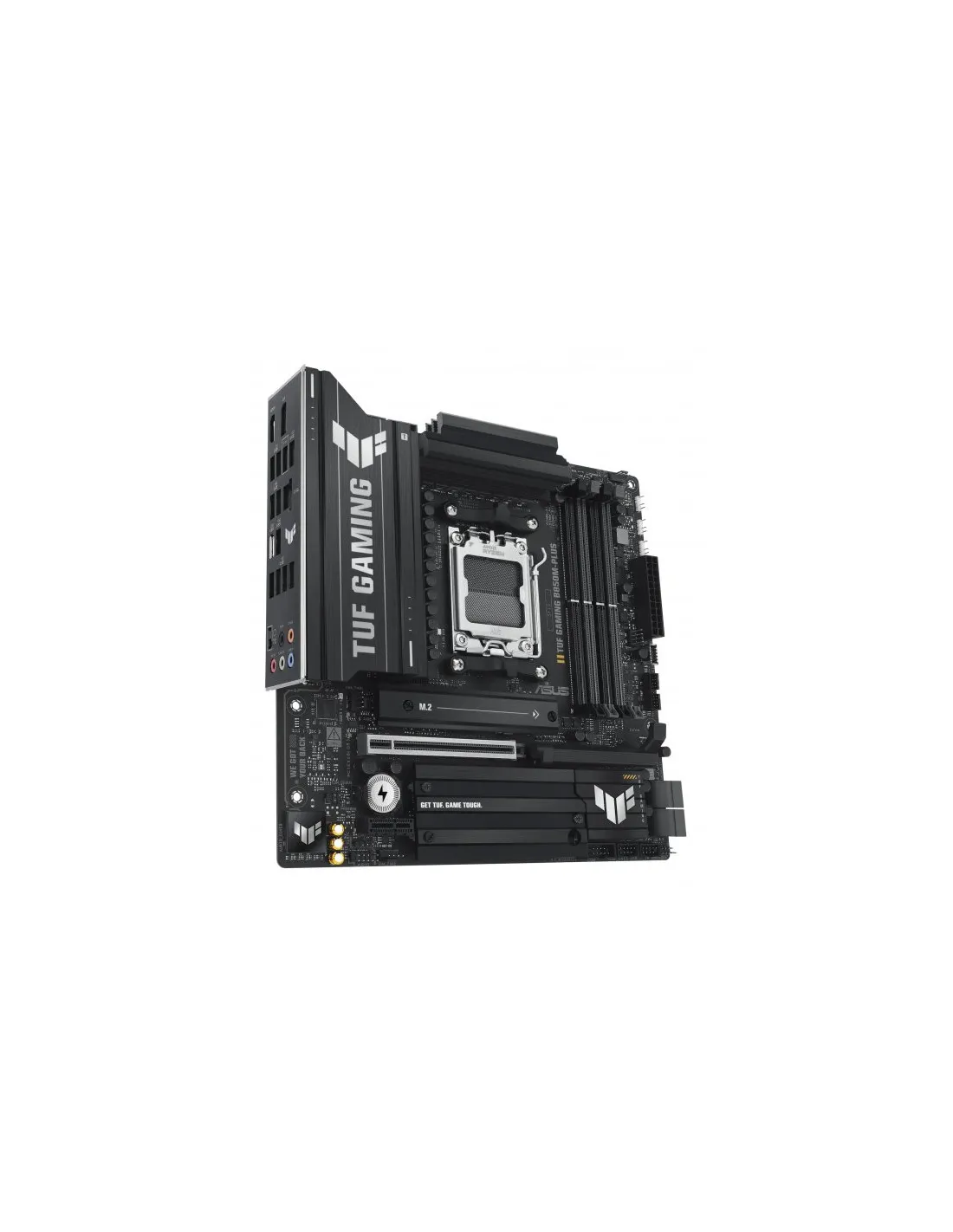

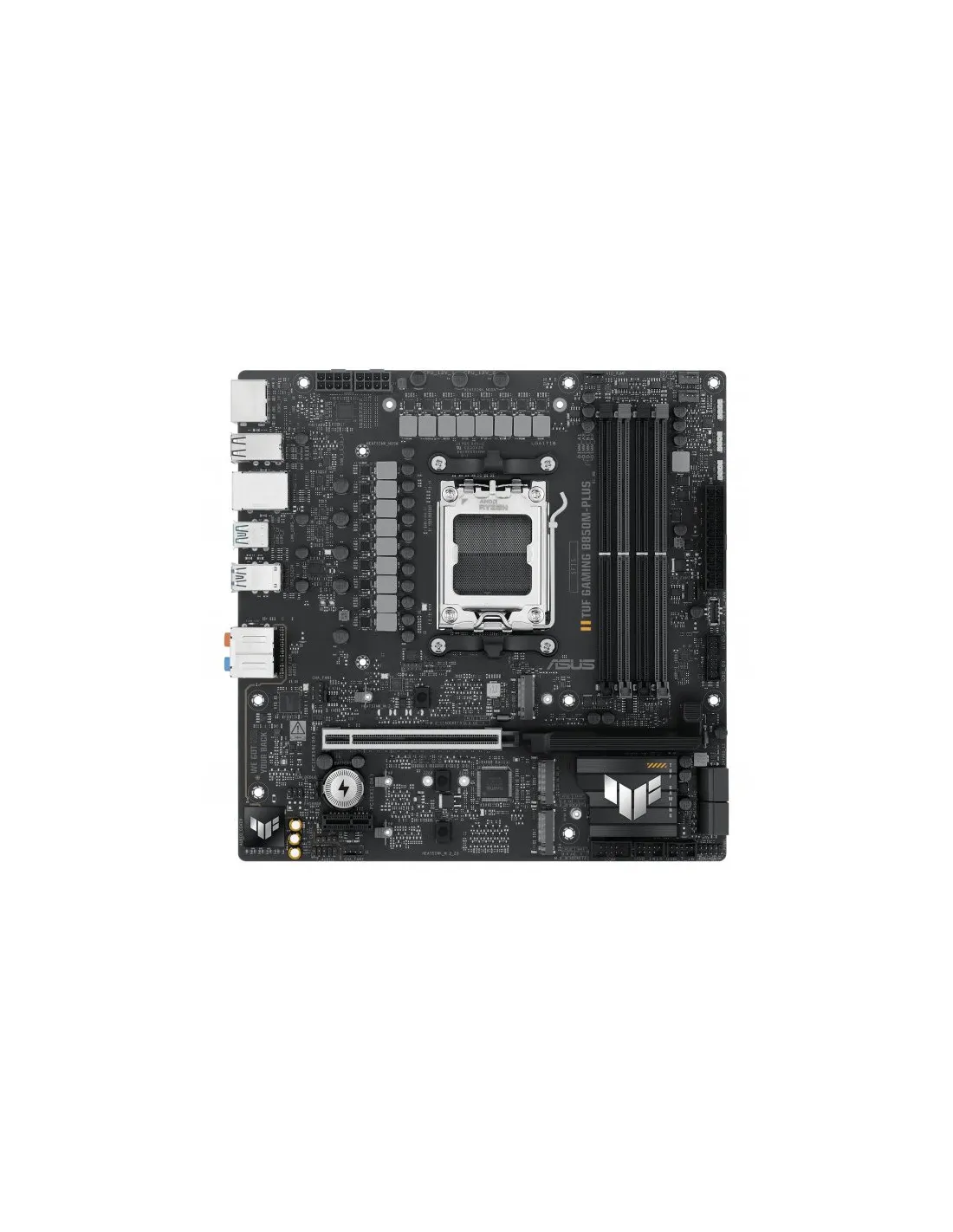

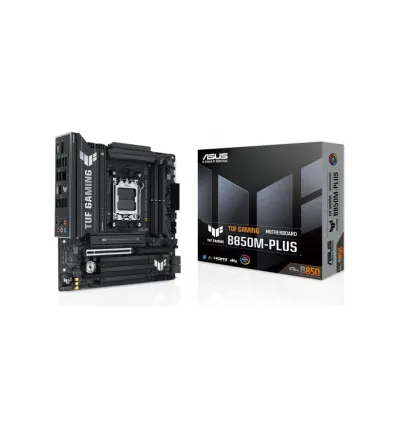

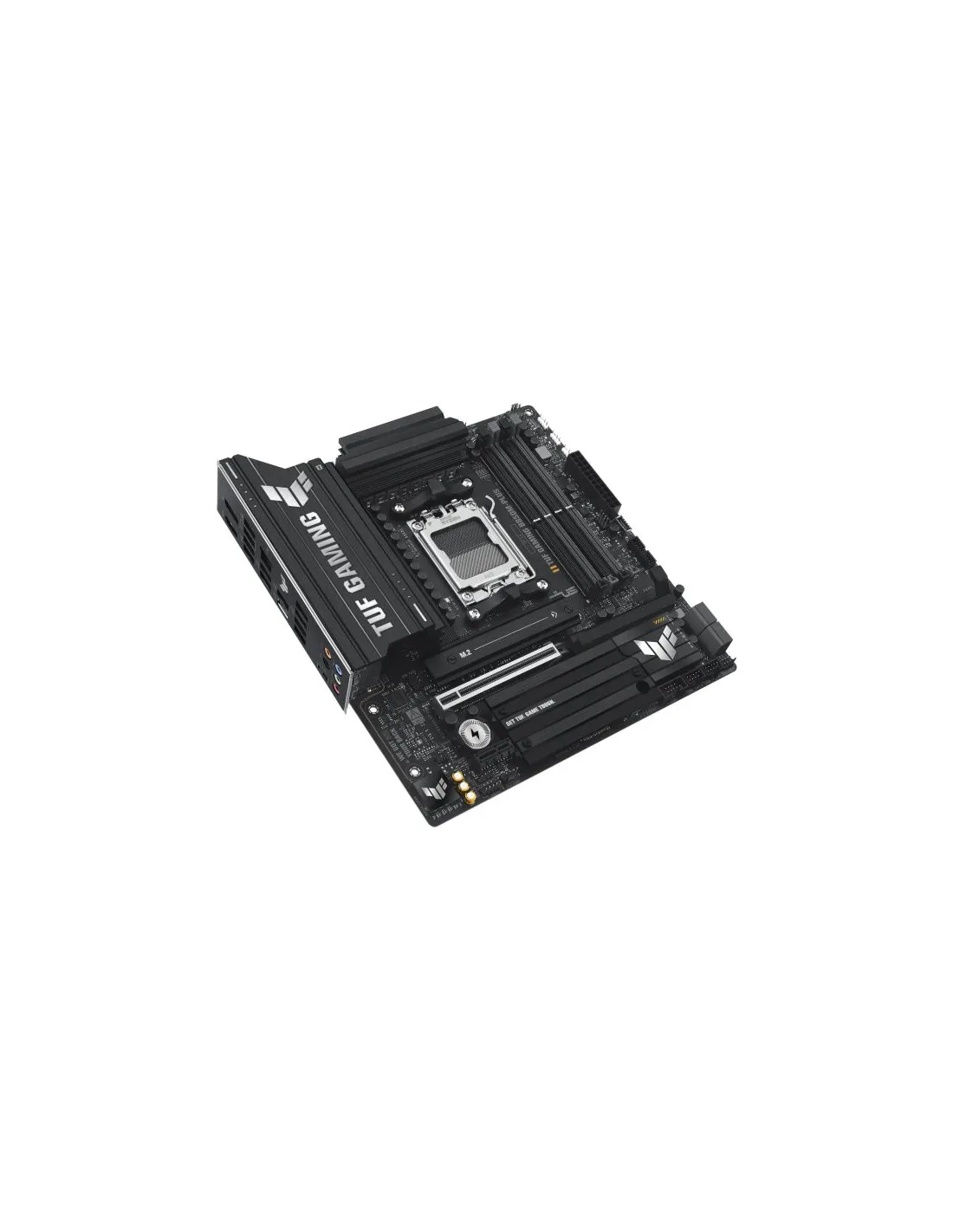

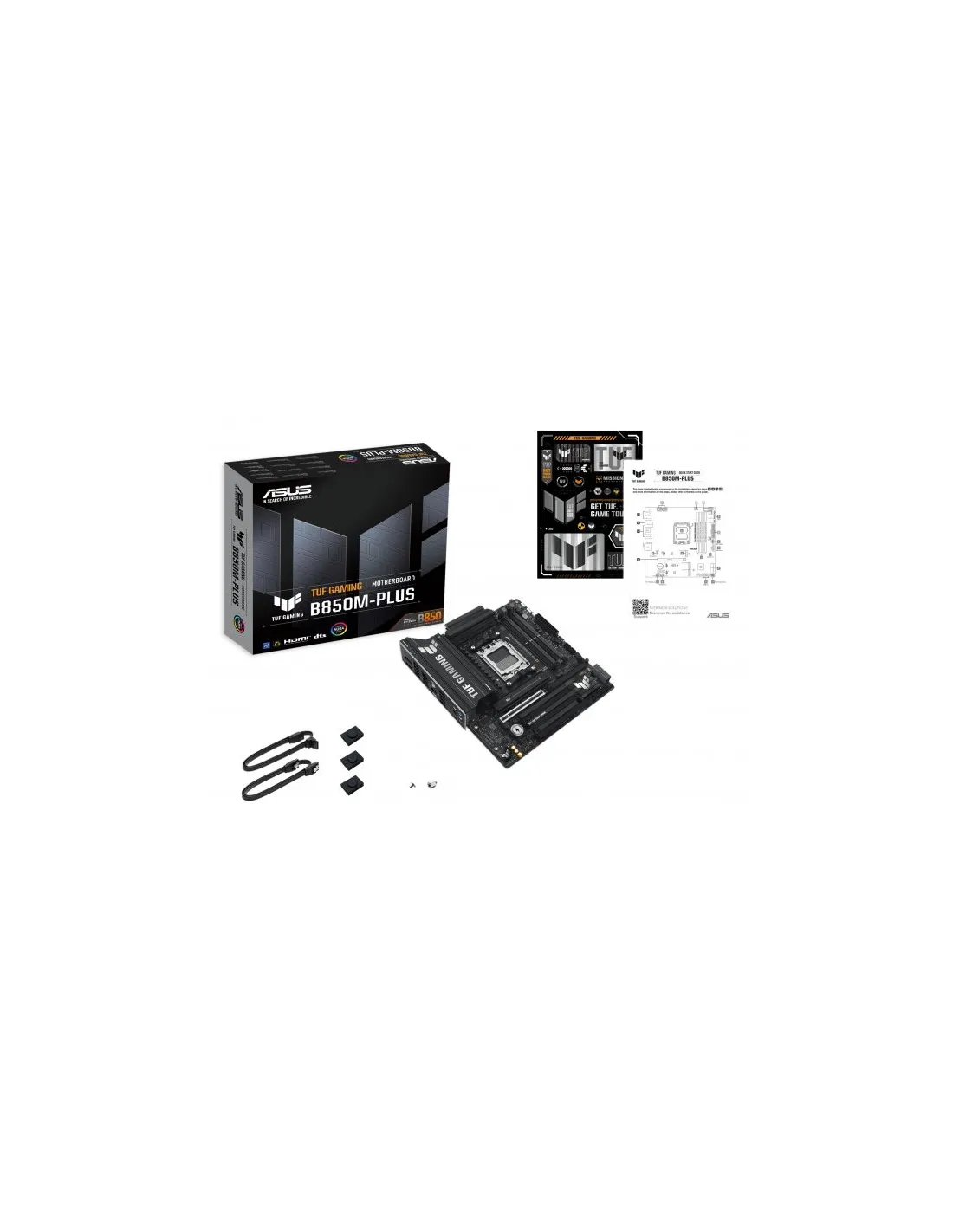

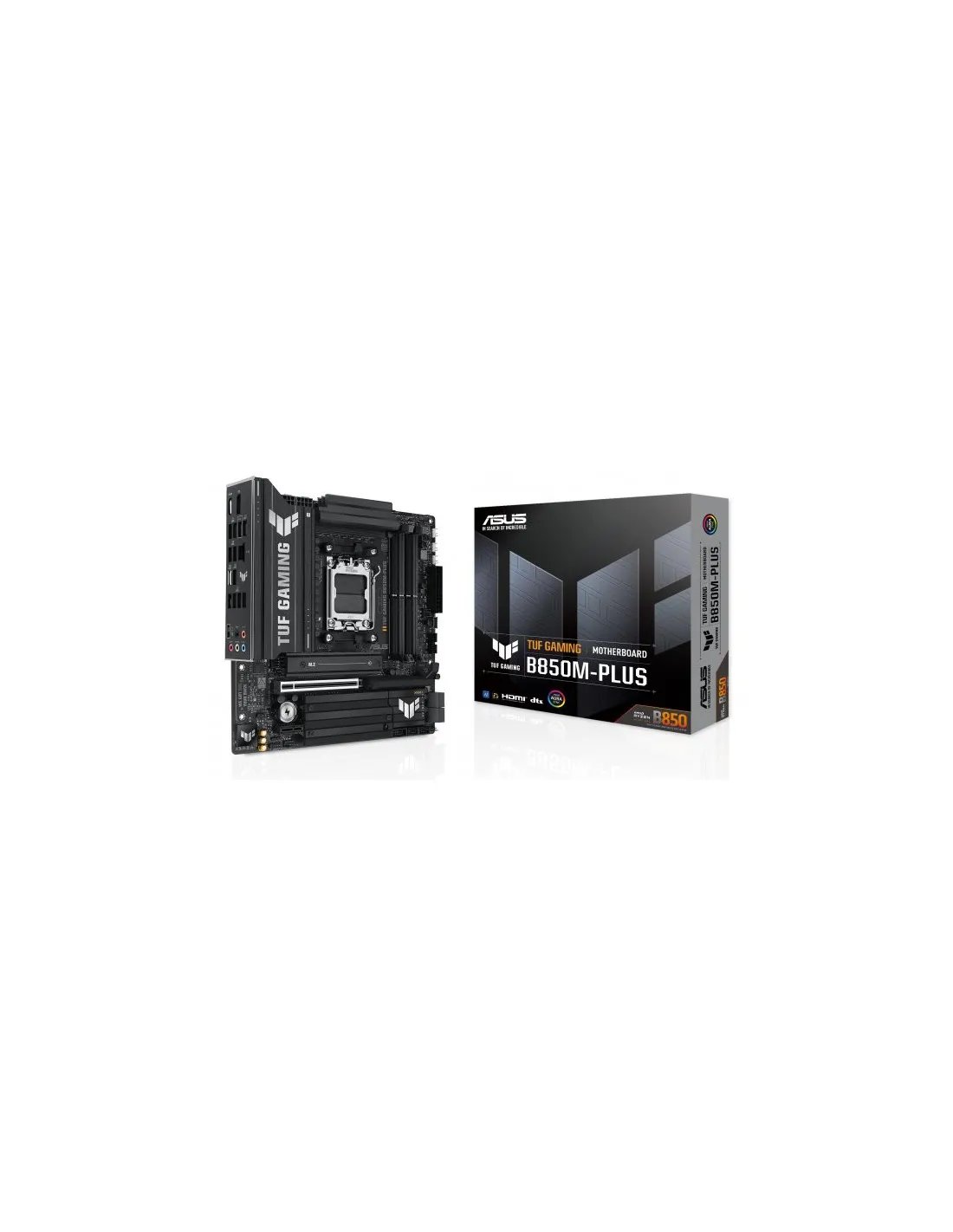

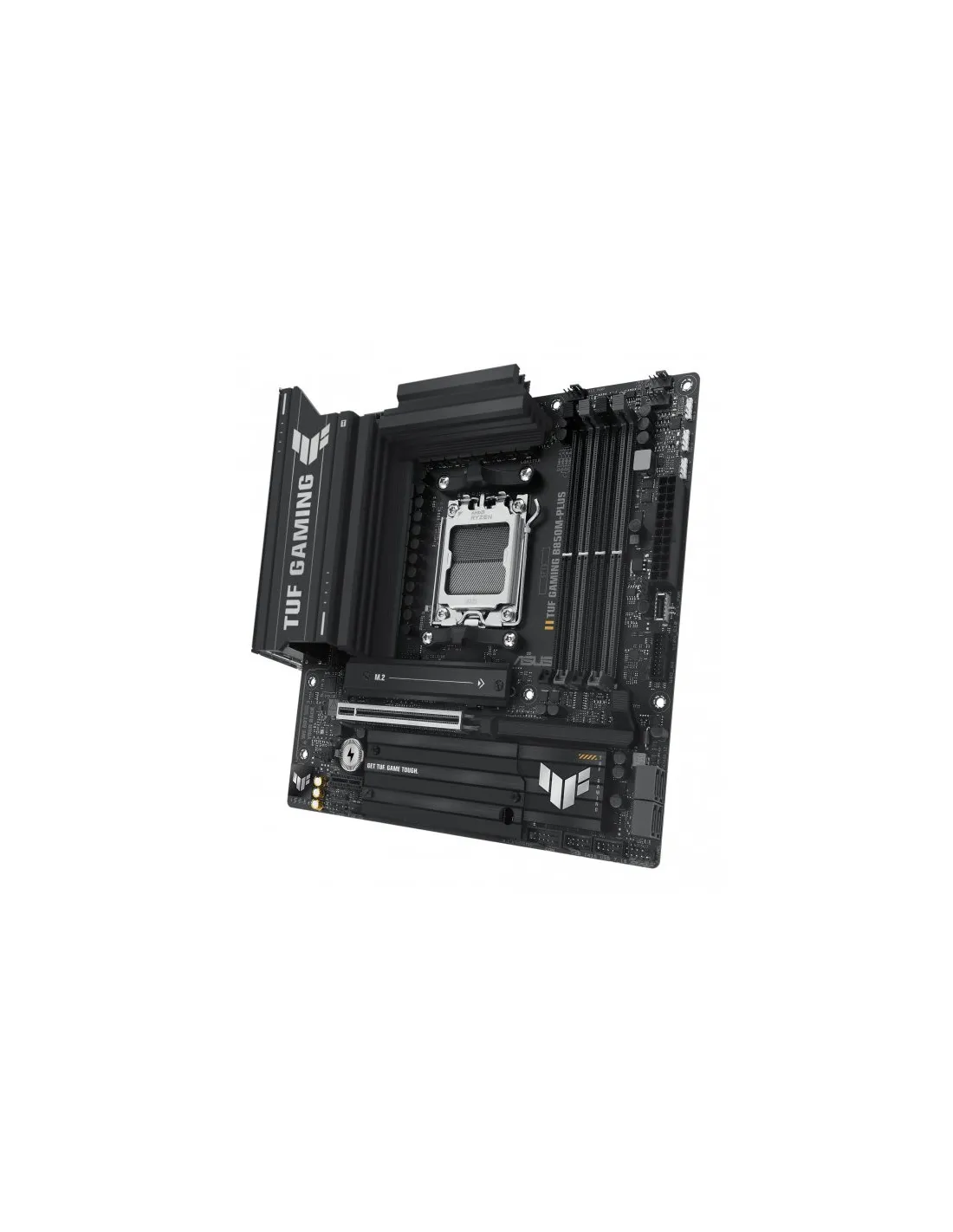

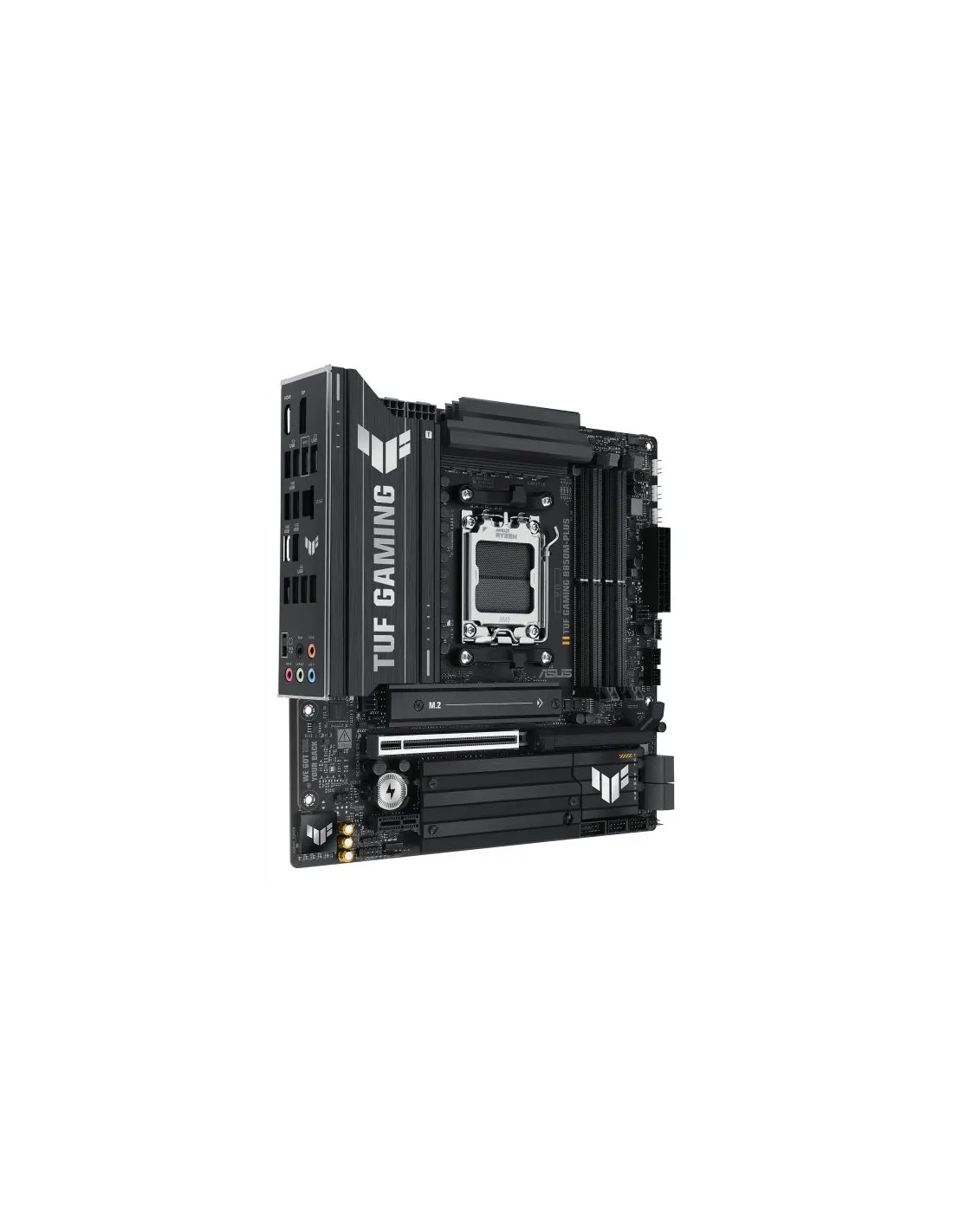

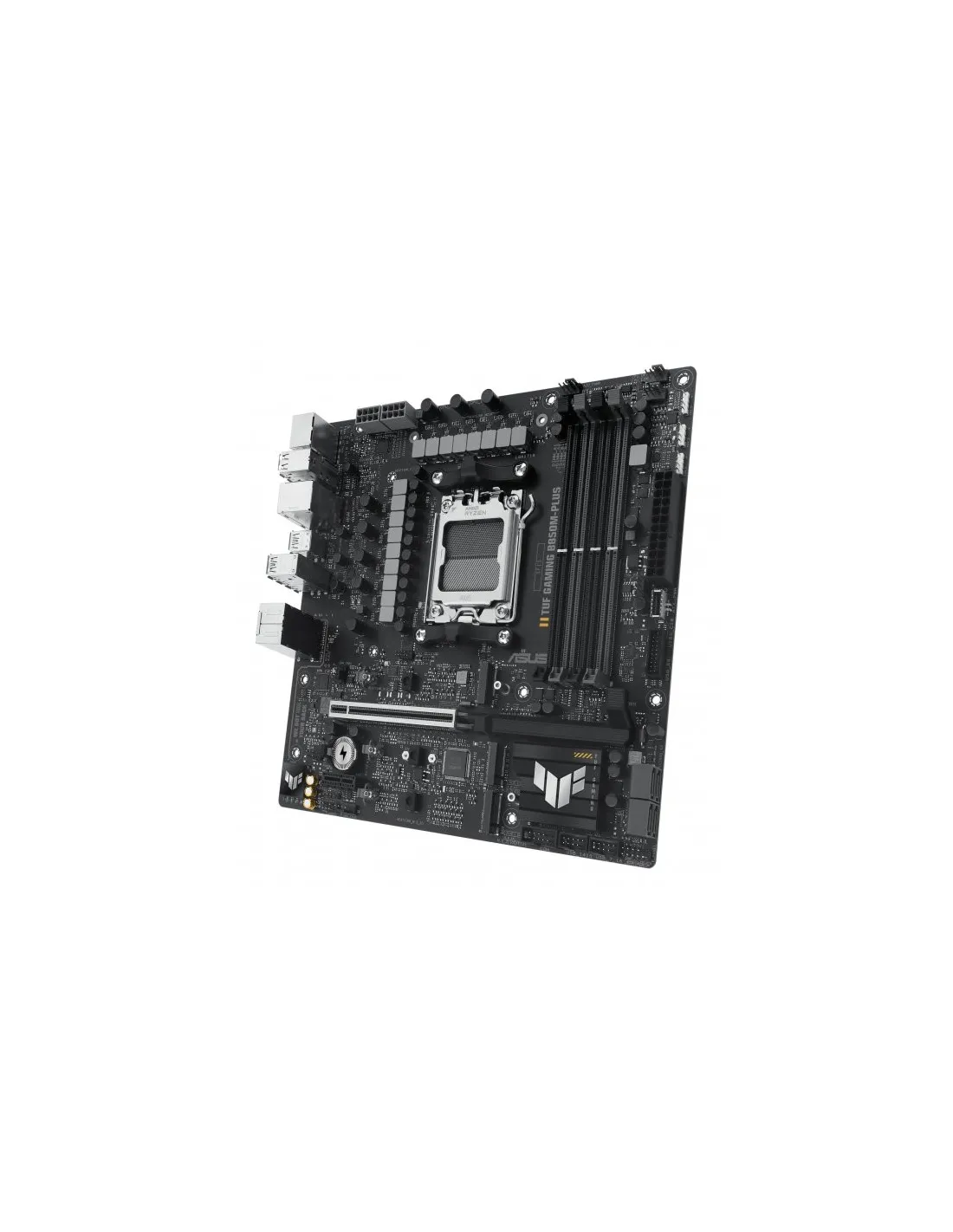

Asus TUF Gaming B850M-Plus Socket AM5 Micro-ATX

Características de la placa base Asus TUF Gaming B850M-Plus Socket AM5 Micro-ATX

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD B850 Chipset

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Gráficos

• 1 x DisplayPort
• 1 x HDMI™ port

Slots

• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• 1 x PCIe 4.0 x1 slot

Almacenamiento

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Conectores USB

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit

Conectividad y Redes

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 10Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header

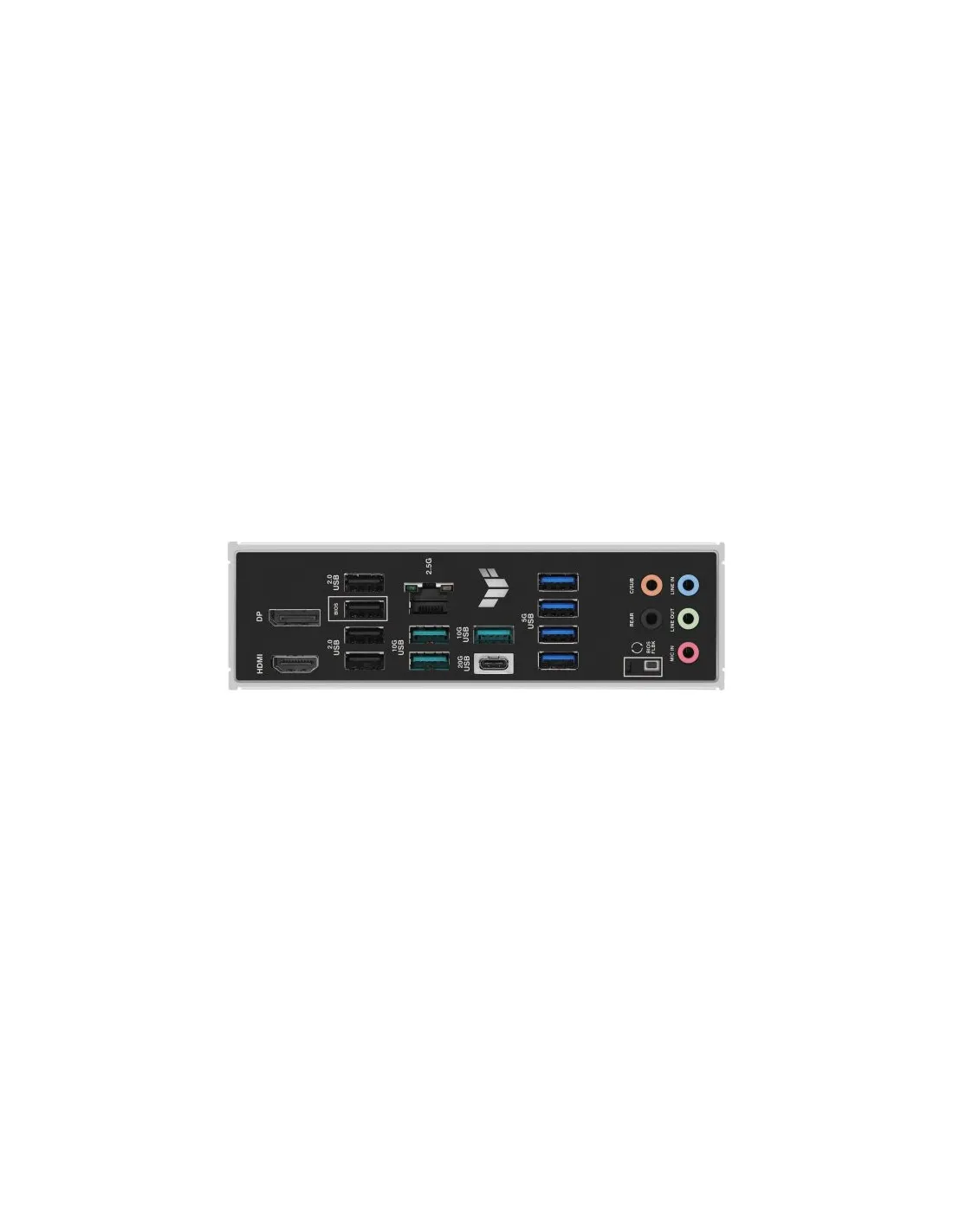

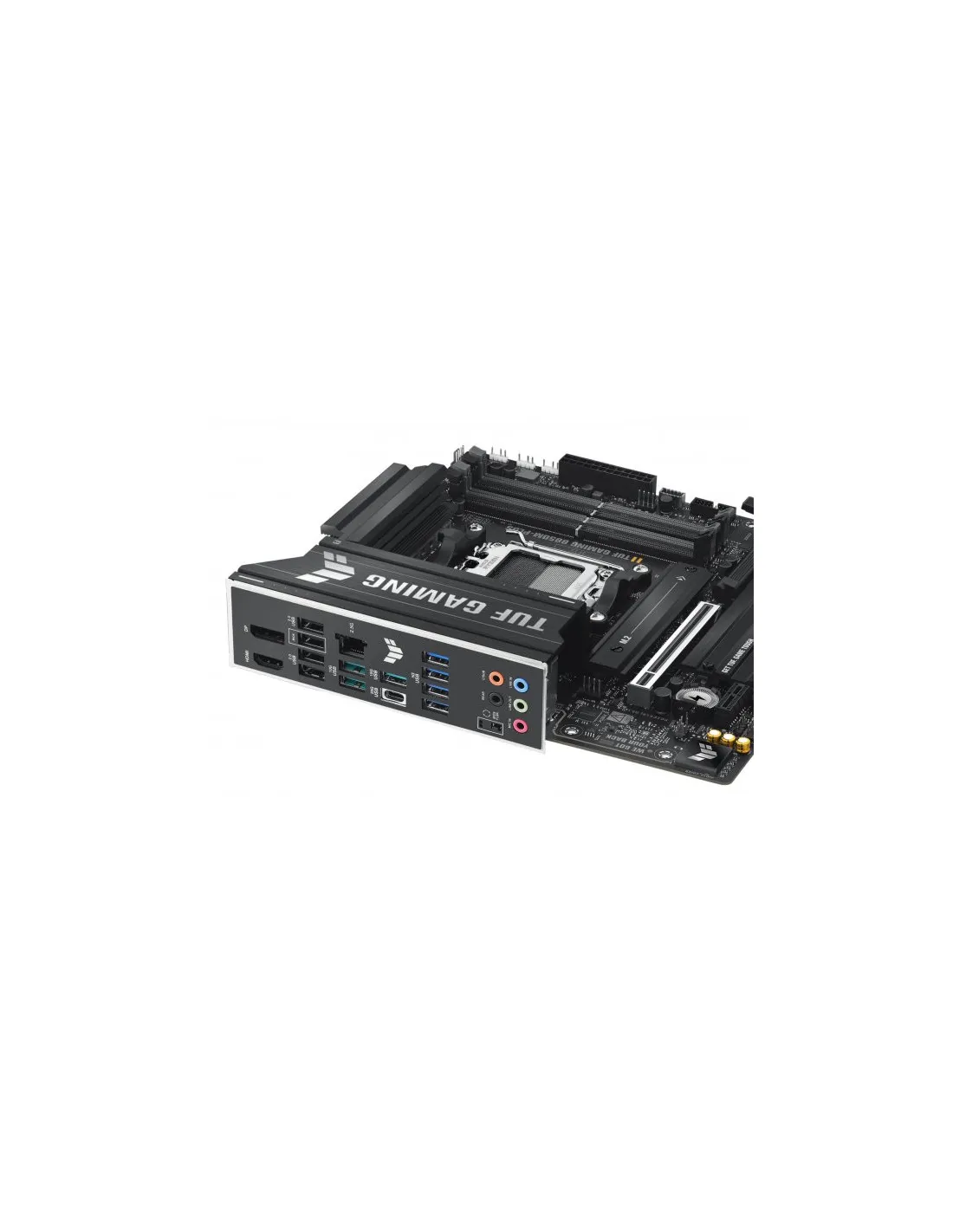

Conectores Traseros

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

Factor de forma

• Micro-ATX (24.4 x 24.4 cm)
