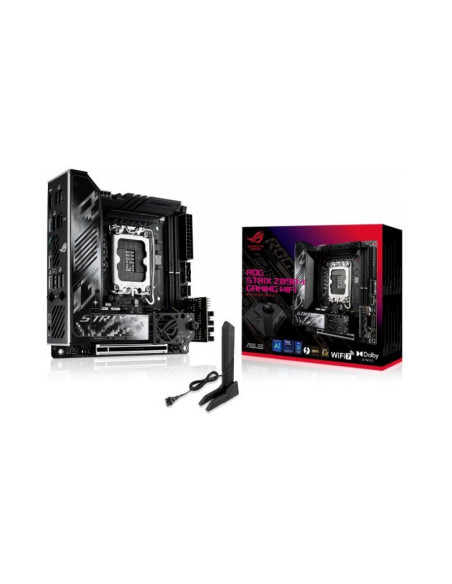

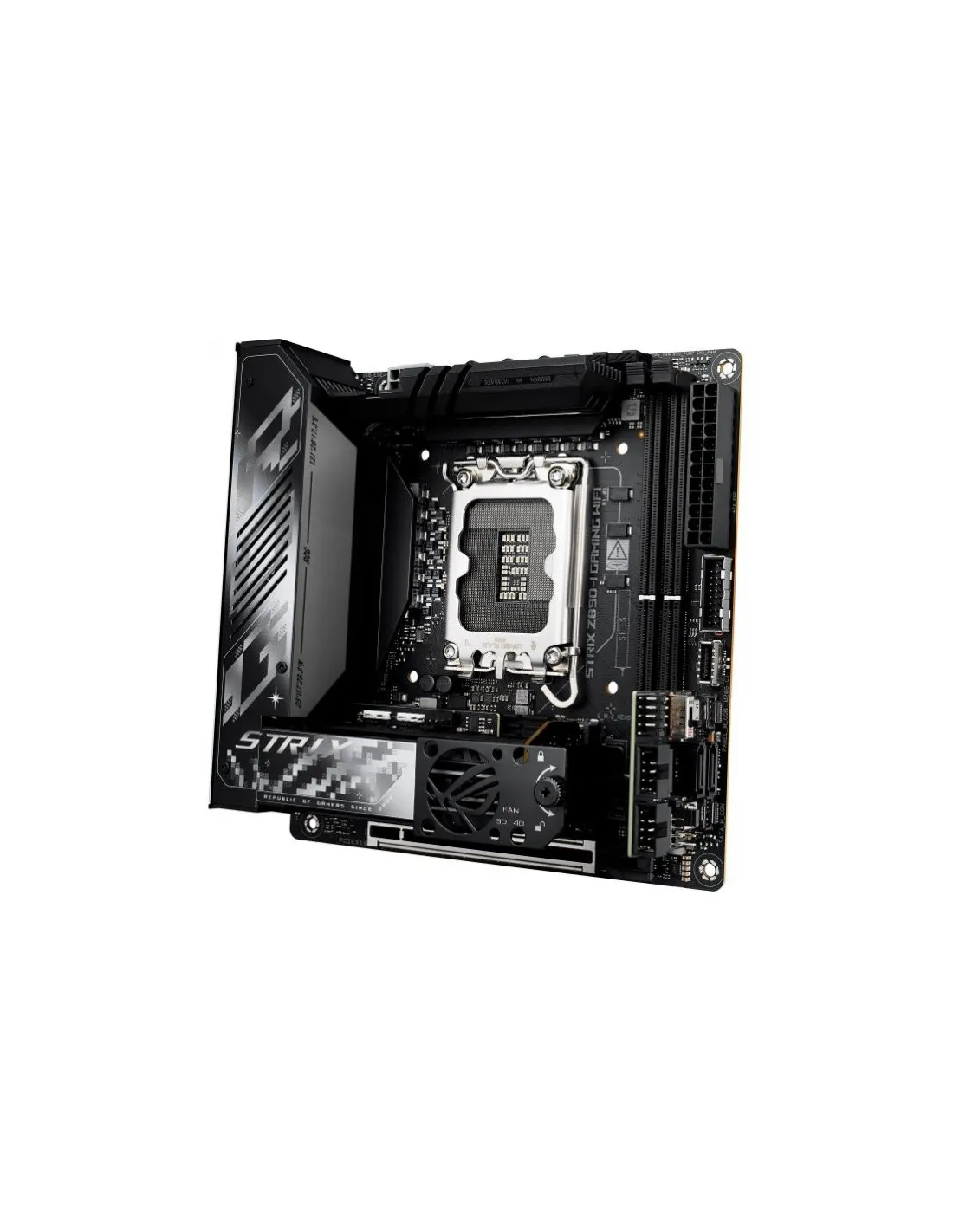

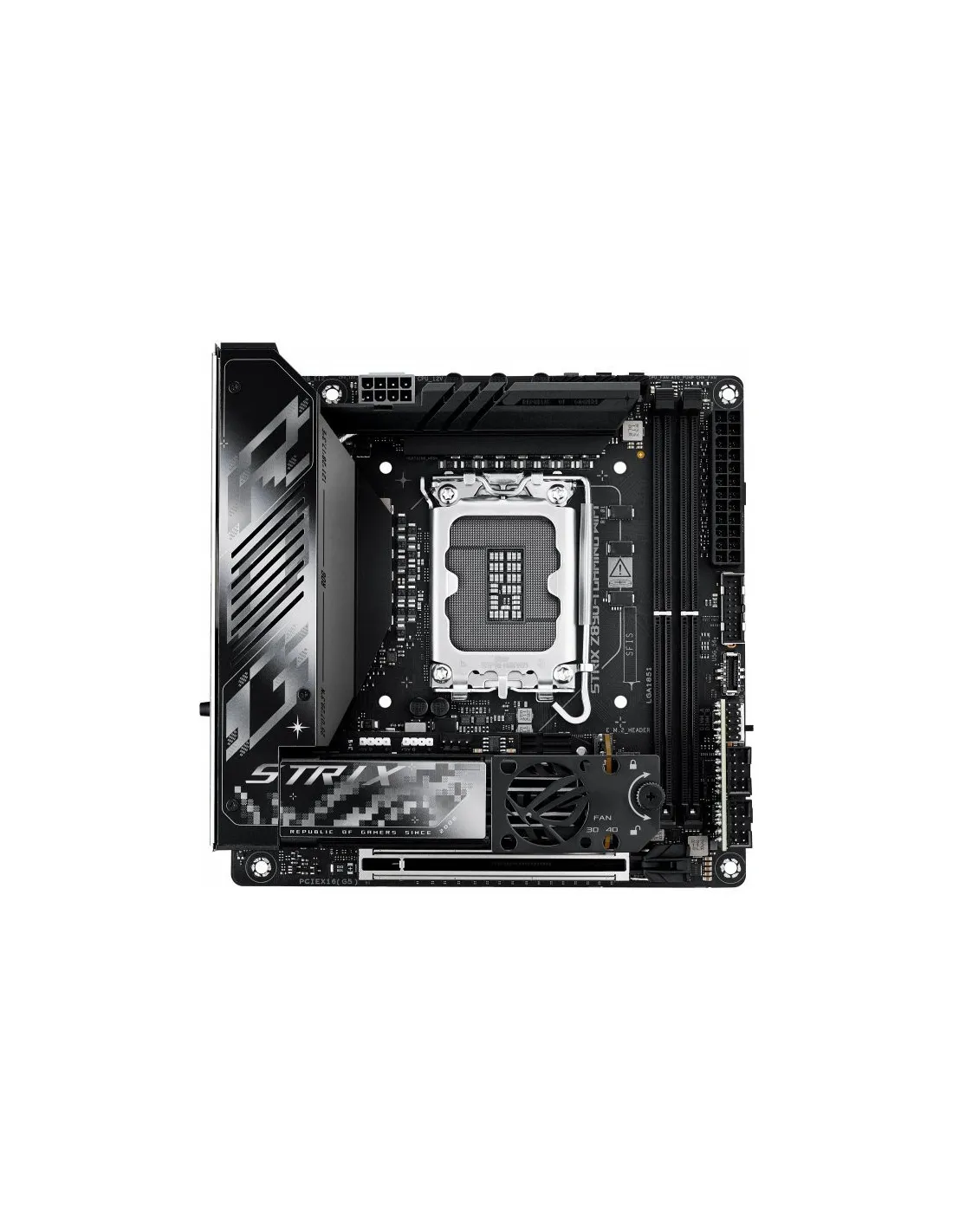

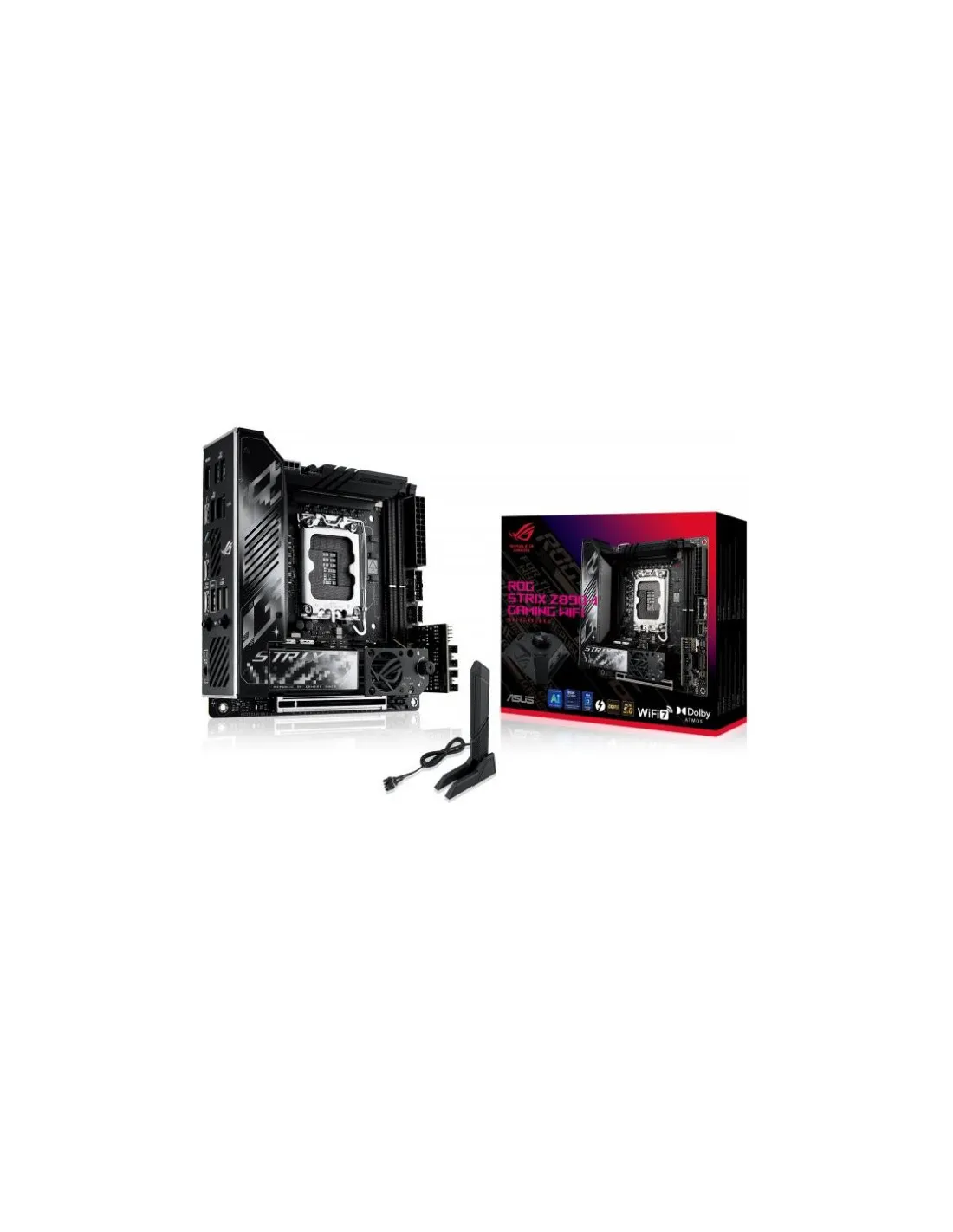

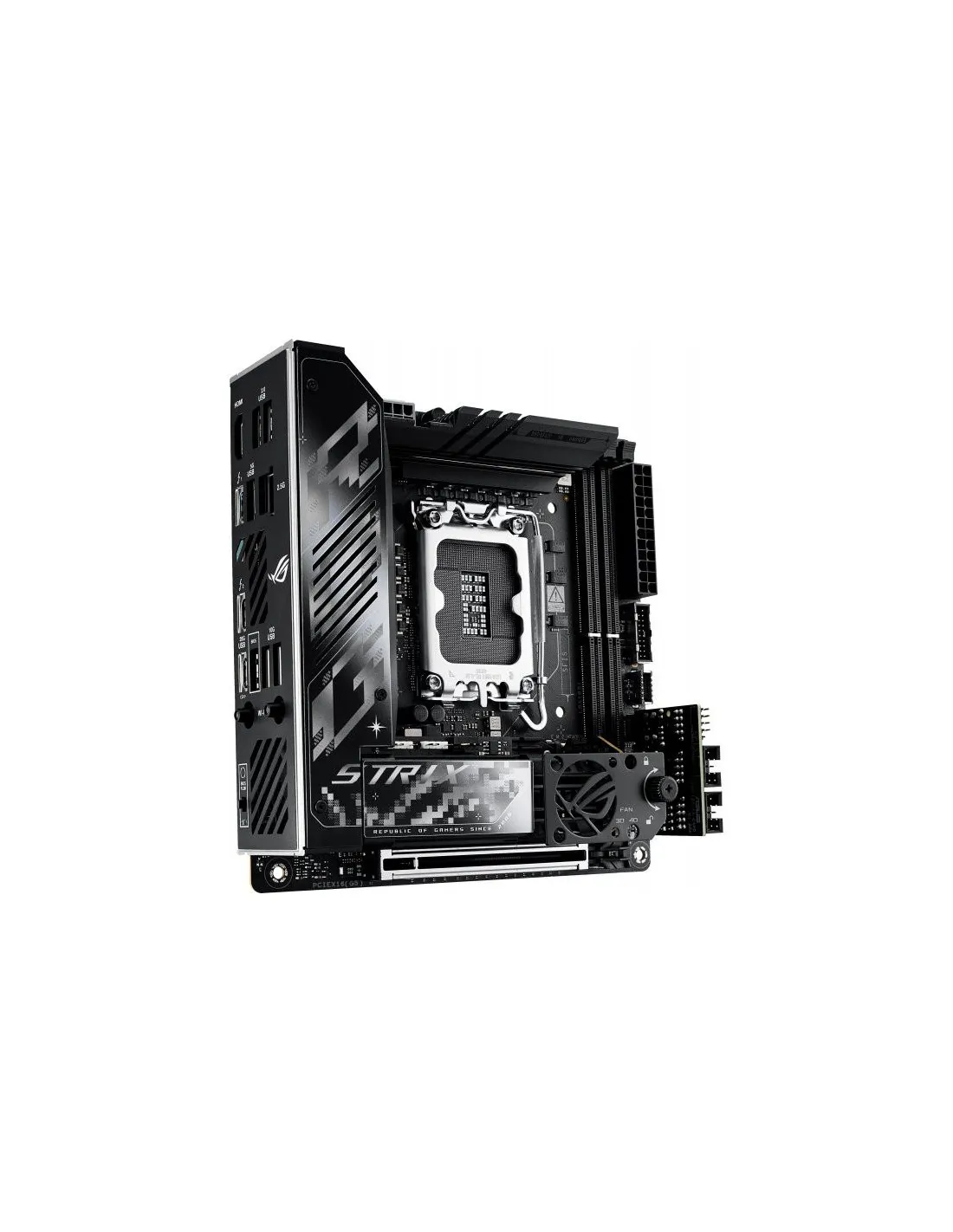

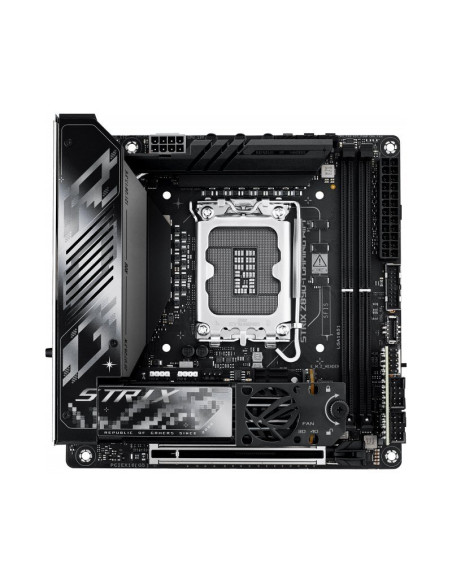

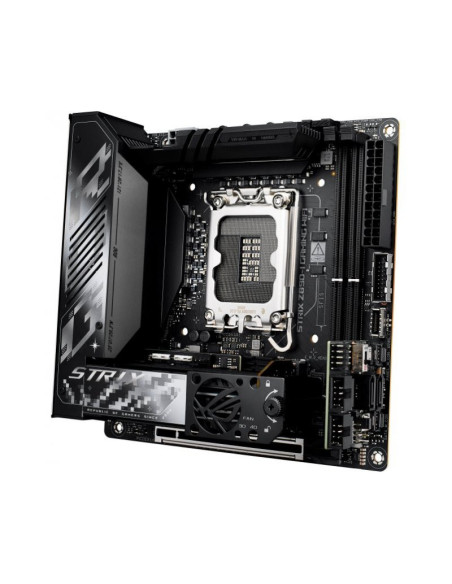

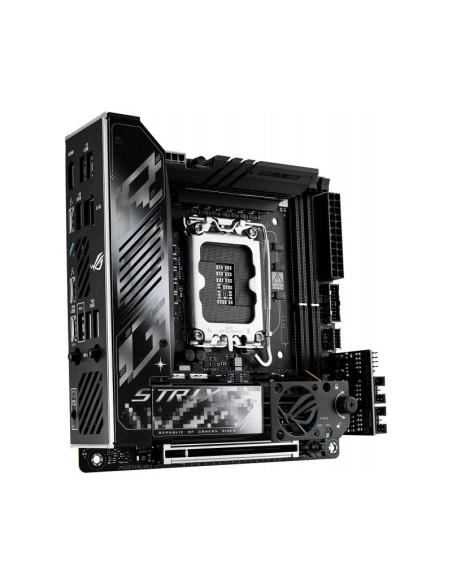

Asus ROG Strix Z890-I Gaming WiFi Socket 1851 Mini-ITX

Características de la placa base Asus ROG Strix Z890-I Gaming WiFi Socket 1851 Mini-ITX

Procesador

• Support Intel® Core™ Ultra Processors(Series 2)
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

• Intel® Z890 Chipset

Memoria

• 2 x DIMM slots, max. 96GB, DDR5
• Support up to 8800+MT/s (OC), ECC and Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*"
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• ASUS Enhanced Memory Profile III (AEMP III)

Slots

• 1 x PCIe 5.0 x16 slot*** (supports x16 mode)

Gráficos

• 1 x HDMI™ port**
• 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***

Almacenamiento

• Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
• M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
• 2 x SATA 6Gb/s ports****

USB

• 2 x Thunderbolt™ 4 (2 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 1 x USB 5Gbps port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A)
• 2 x USB 2.0 header(s) additional 3 USB 2.0 ports
• USB Type-C® power delivery output: max. 5V/3A

Audio

• ROG High Definition Audio CODEC ALC4050
• Supports: Jack-detection
• High quality 121 dB SNR stereo playback output and 94 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback
• ROG Hyper-Grounding Technology
• ESS® SABRE9260Q DAC
• Premium audio capacitors

Conectividad y redes

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth® v5.4***

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin AIO Pump header
• 1 x 4-pin Chassis Fan header
• 1 x Extra Flow Fan header
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• 2 x M.2 slots (Key M)
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x Addressable Gen 2 headers
• 1 x 2-pin Power Button header
• 1 x Thermal Sensor header

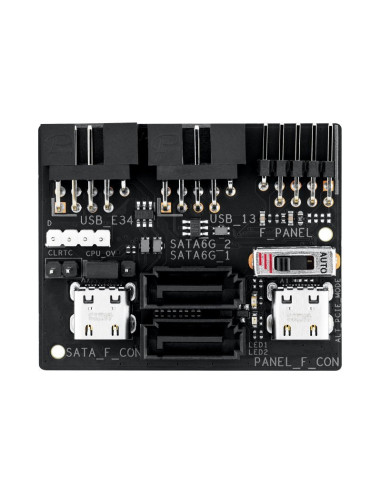

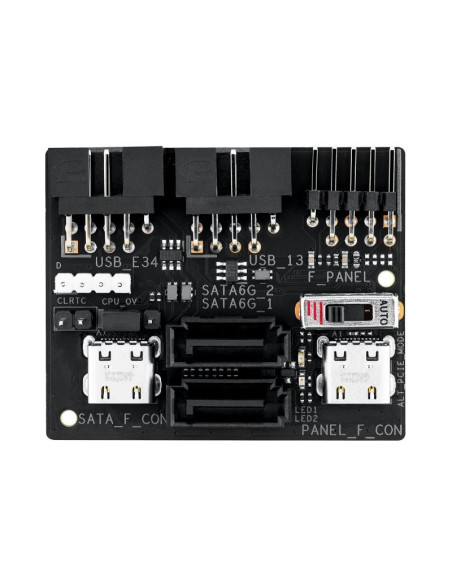

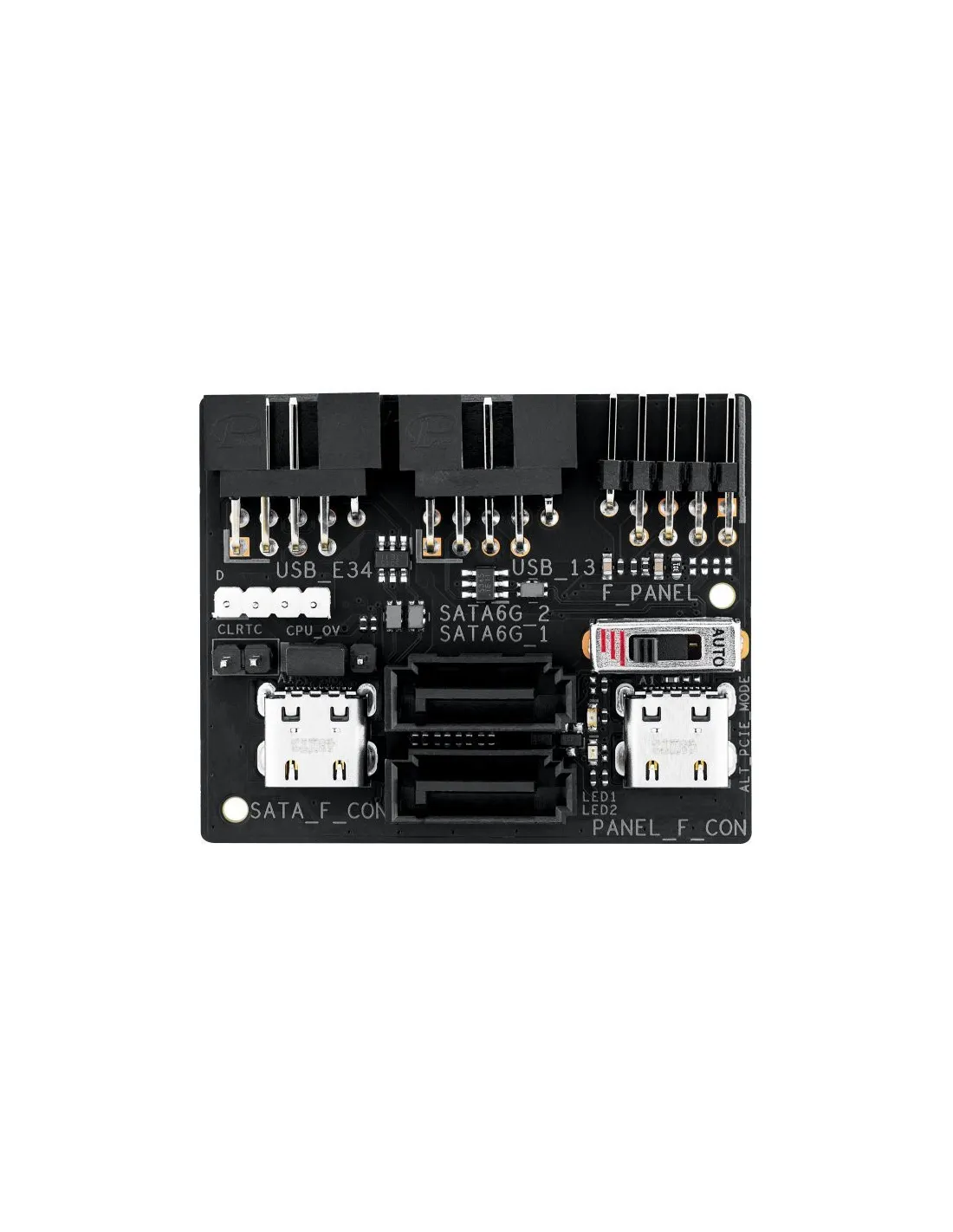

• 2 x USB Type-C® connectors to install ROG FPS card
• 2 x SATA 6Gb/s ports
• 1 x CPU Over Voltage jumper
• 1 x Clear CMOS header
• 1 x Front Panel header
• 1 x Alteration PCIe Mode switch
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

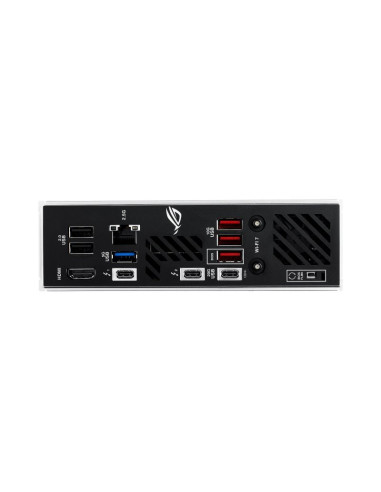

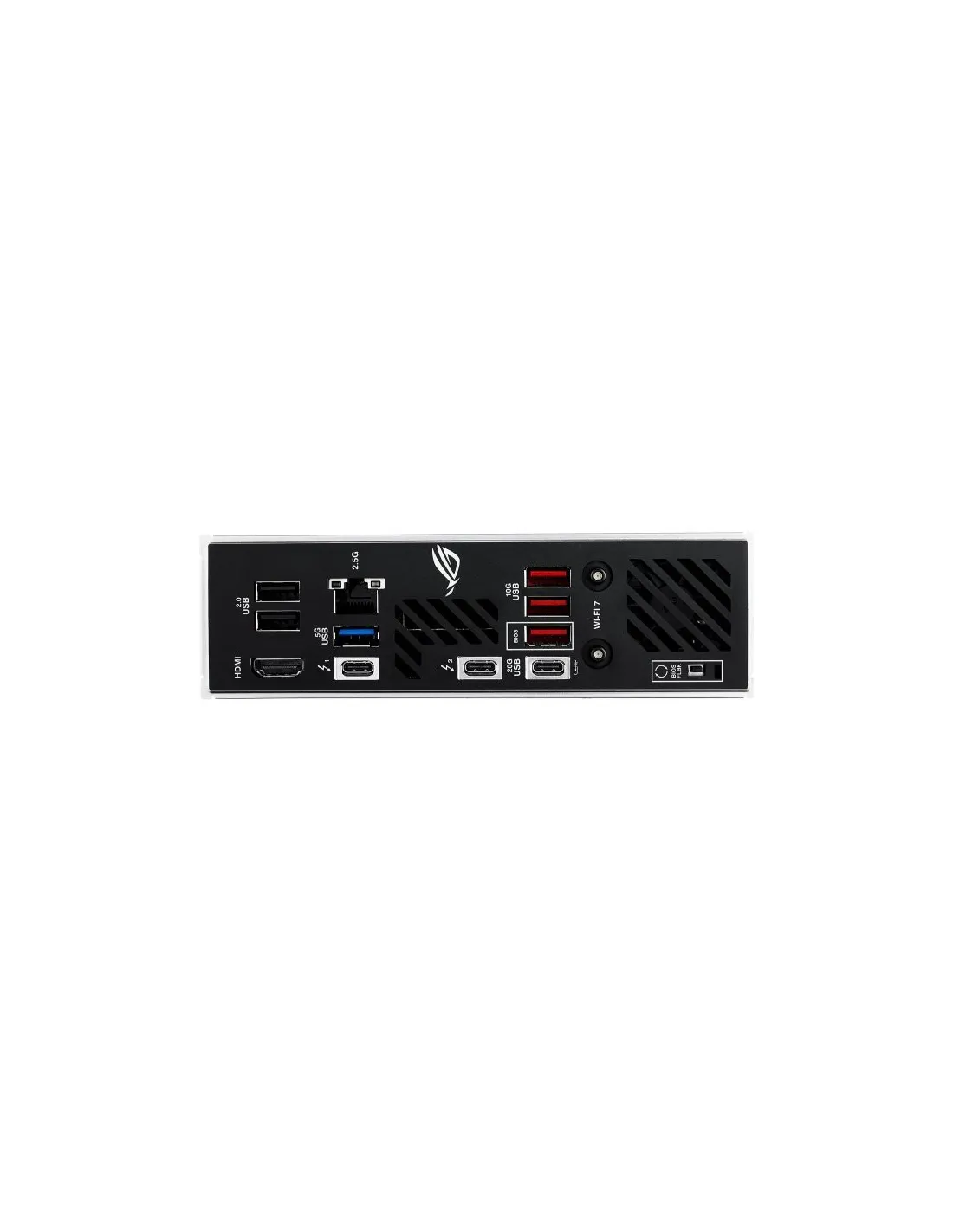

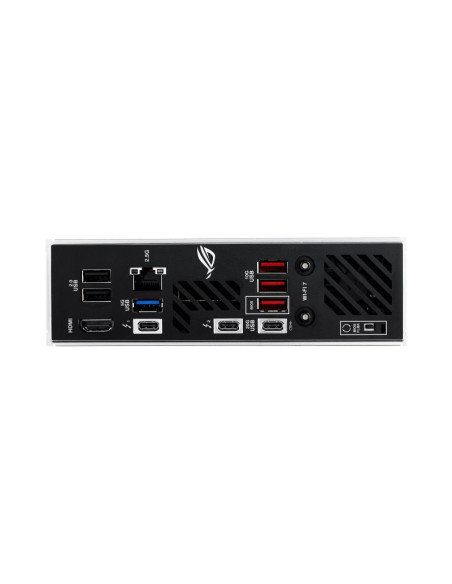

Conectores Traseros

• 2 x Thunderbolt™ 4 (2 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 1 x USB 5Gbps port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 1 x BIOS FlashBack™ button

Factor de forma

• Mini-ITX (17 cm x 17 cm)
