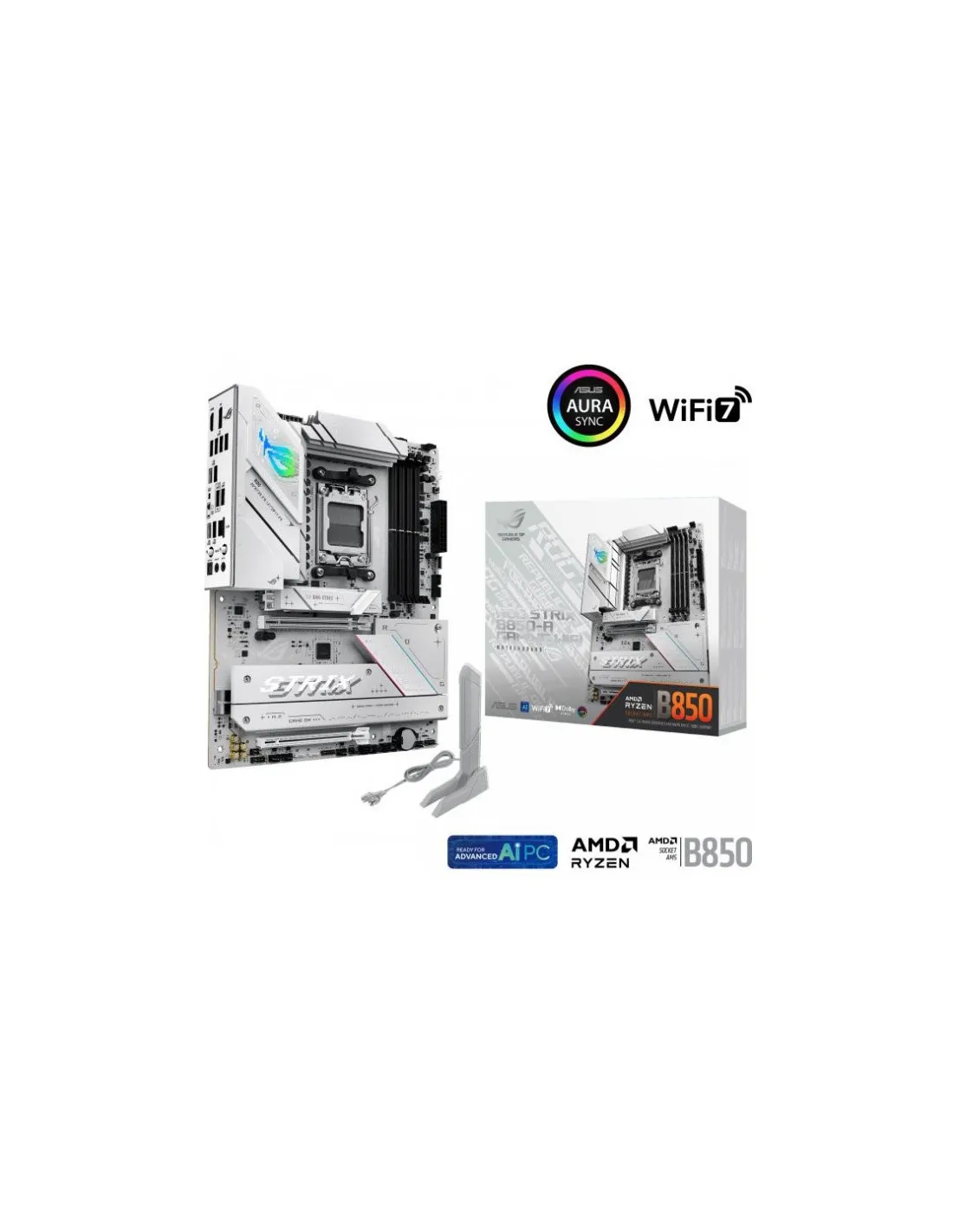

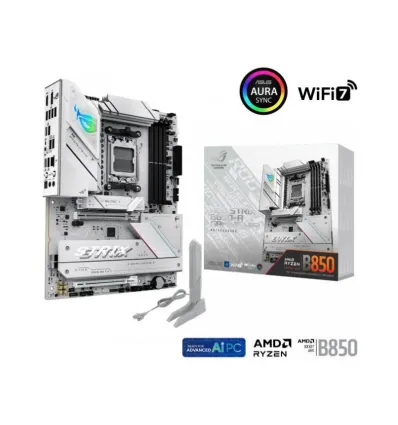

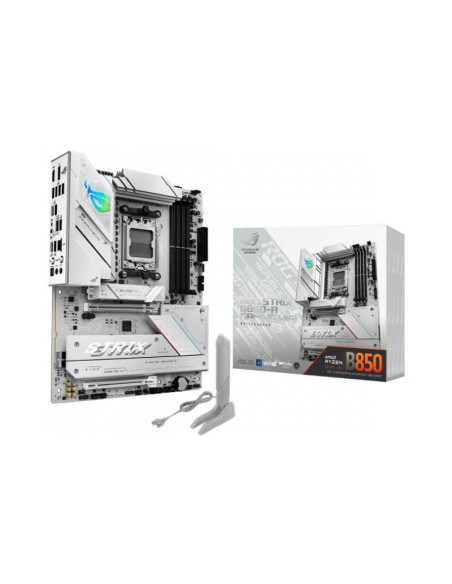

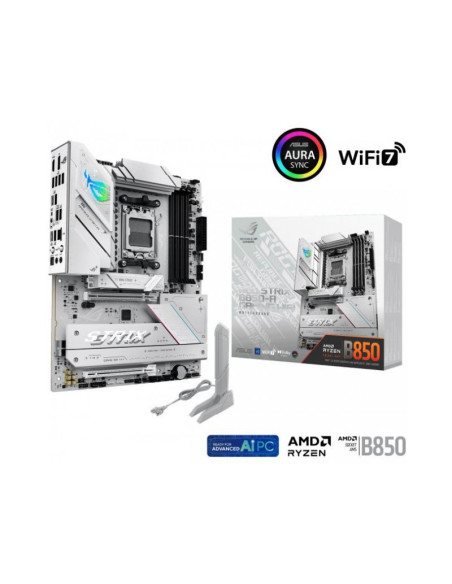

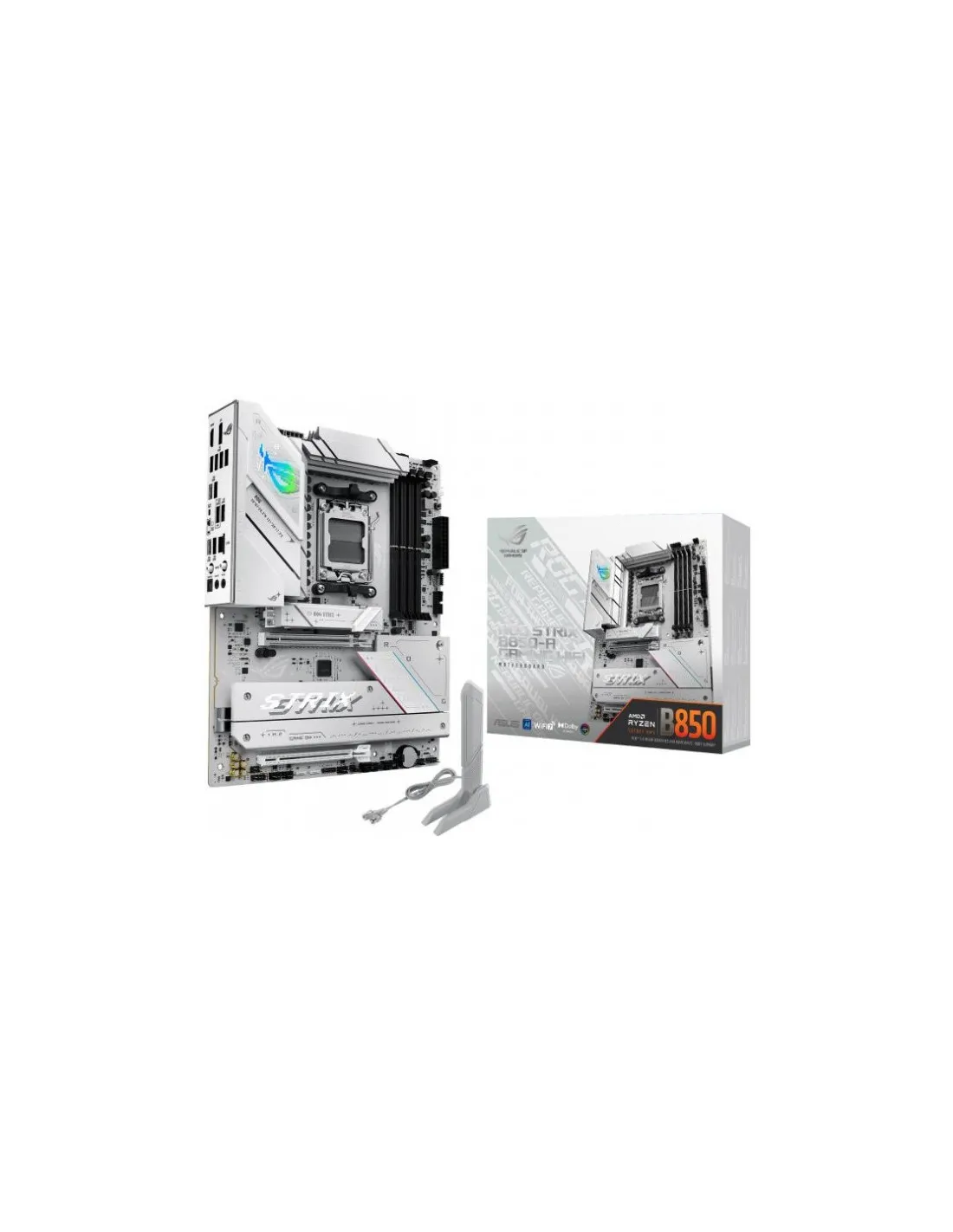

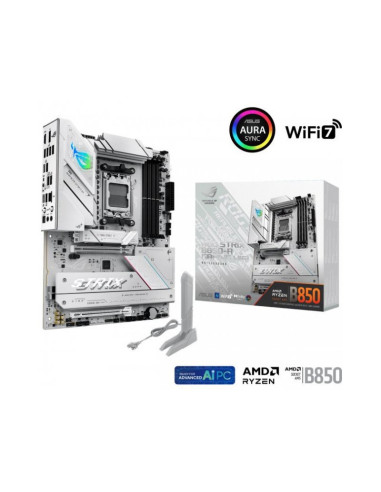

Asus ROG Strix B850-A Gaming WiFi Socket AM5 ATX

Características de la placa base Asus ROG Strix B850-A Gaming WiFi

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD B850 Chipset

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• "Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM"
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 1 x PCIe 5.0 x16 slot with Q-Release Slim
• 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x4 mode)*

Gráficos

• 1 x DisplayPort
• 1 x HDMI™ port

Almacenamiento

• Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
• M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
• M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)
• M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
• 2 x SATA 6Gb/s ports

USB

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (4 x Type-A)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

Conectividad y redes

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4
• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Power button
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

Conectores Traseros

• 1 x DisplayPort
• 1 x HDMI
• 4 x USB Tipo A (5 Gbps)
• 2 x USB Tipo A (10 Gbps)
• 1 x USB Tipo C (20 Gbps)
• 1 x USB Tipo C (10 Gbps)
• 2 x USB 2.0 Tipo A
• 1 x Ethernet 2.5GbE
• 2 x Antena (WiFi / Bluetooth)
• 2 x Jack 3.5mm
• 1 x S/PDIF

Factor de forma

• ATX ( 30.5 x 24.4 cm )
