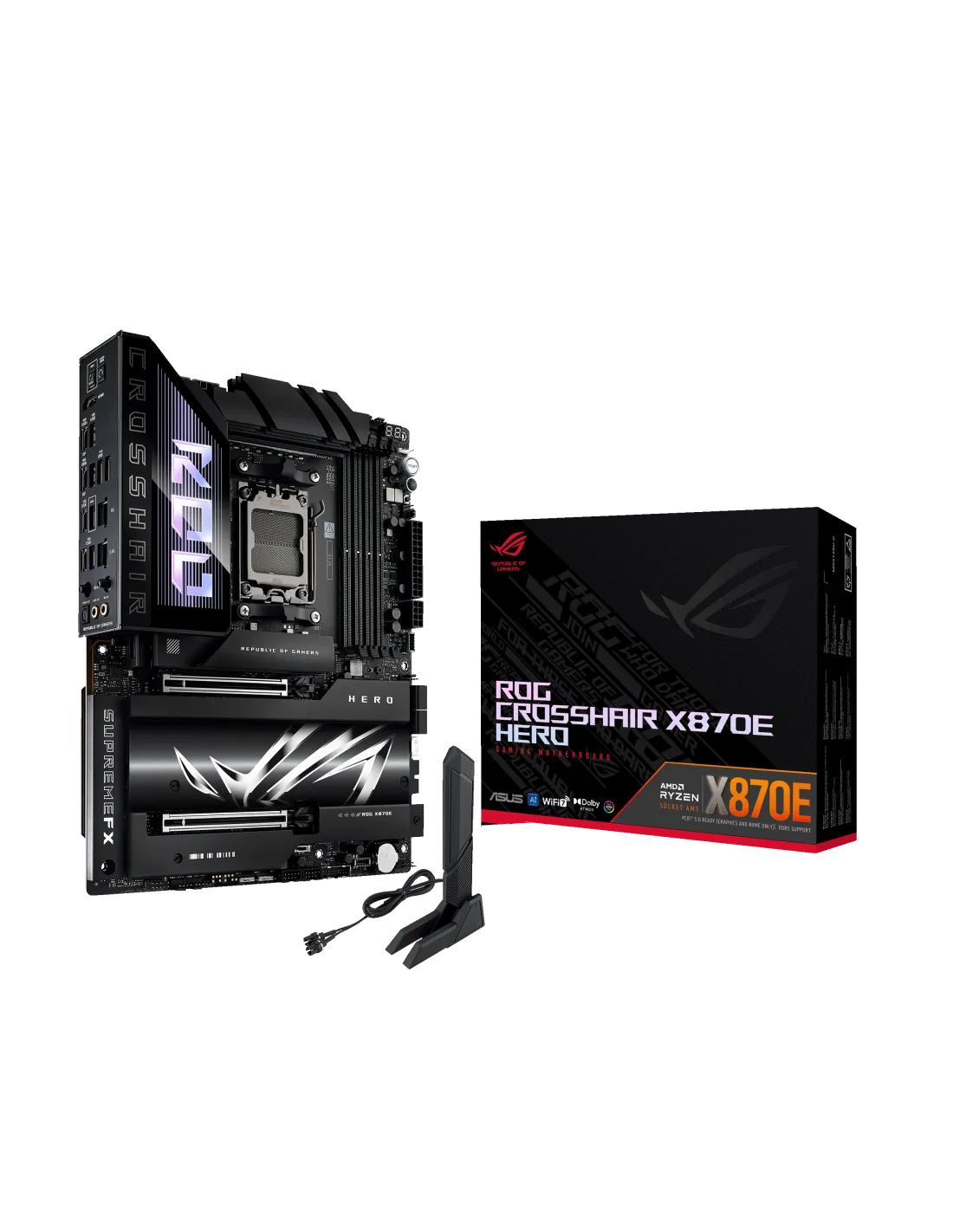

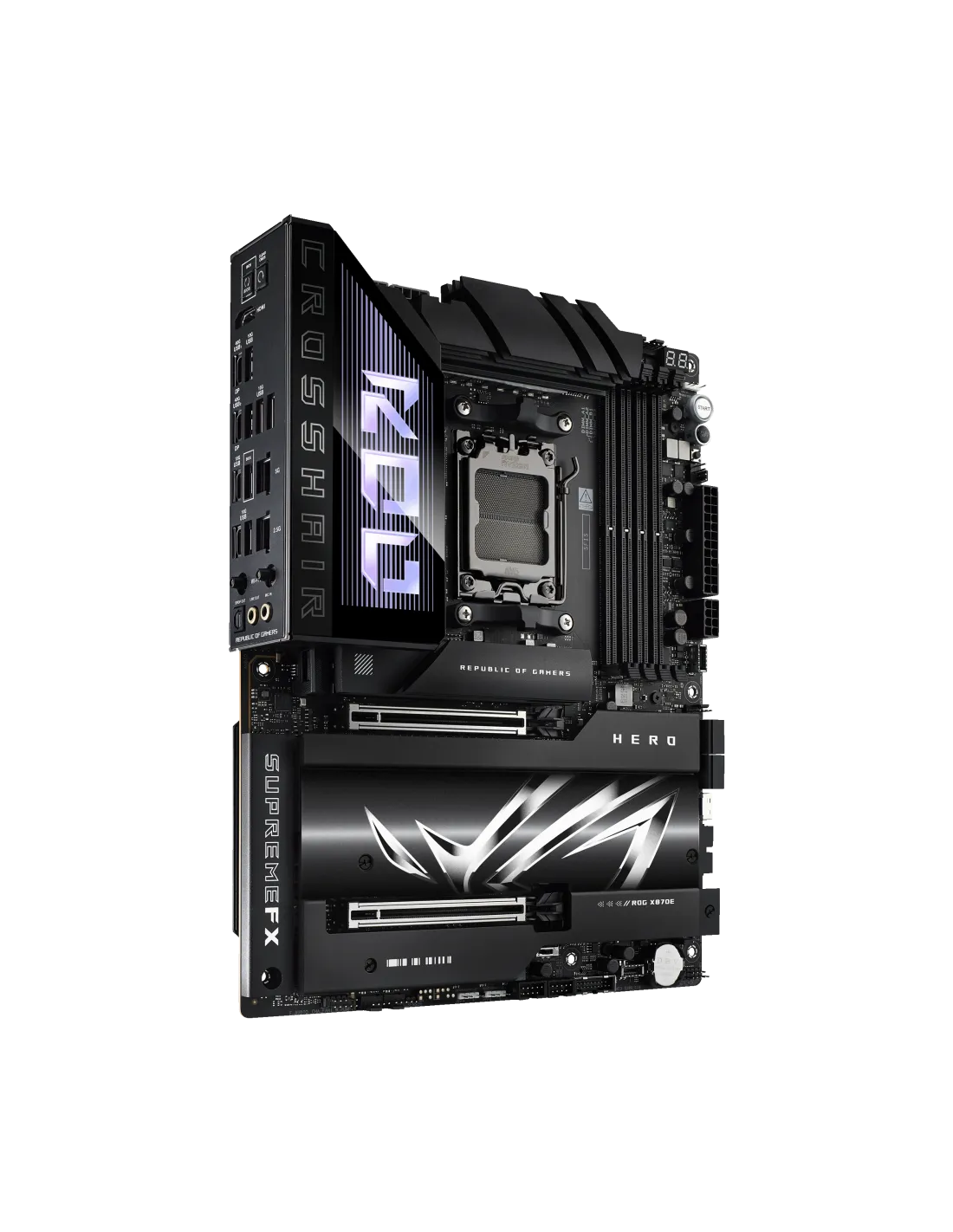

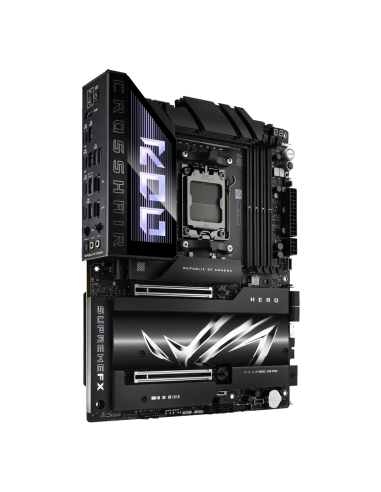

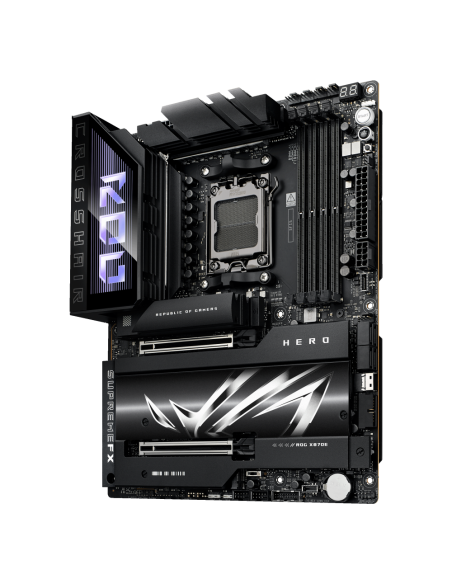

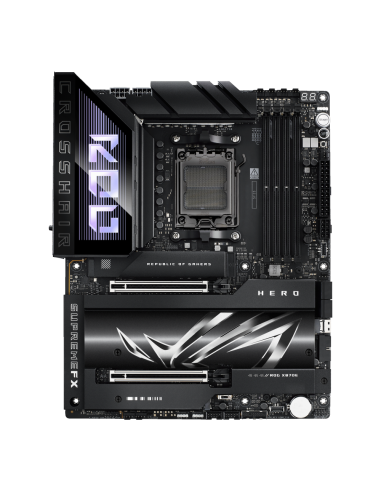

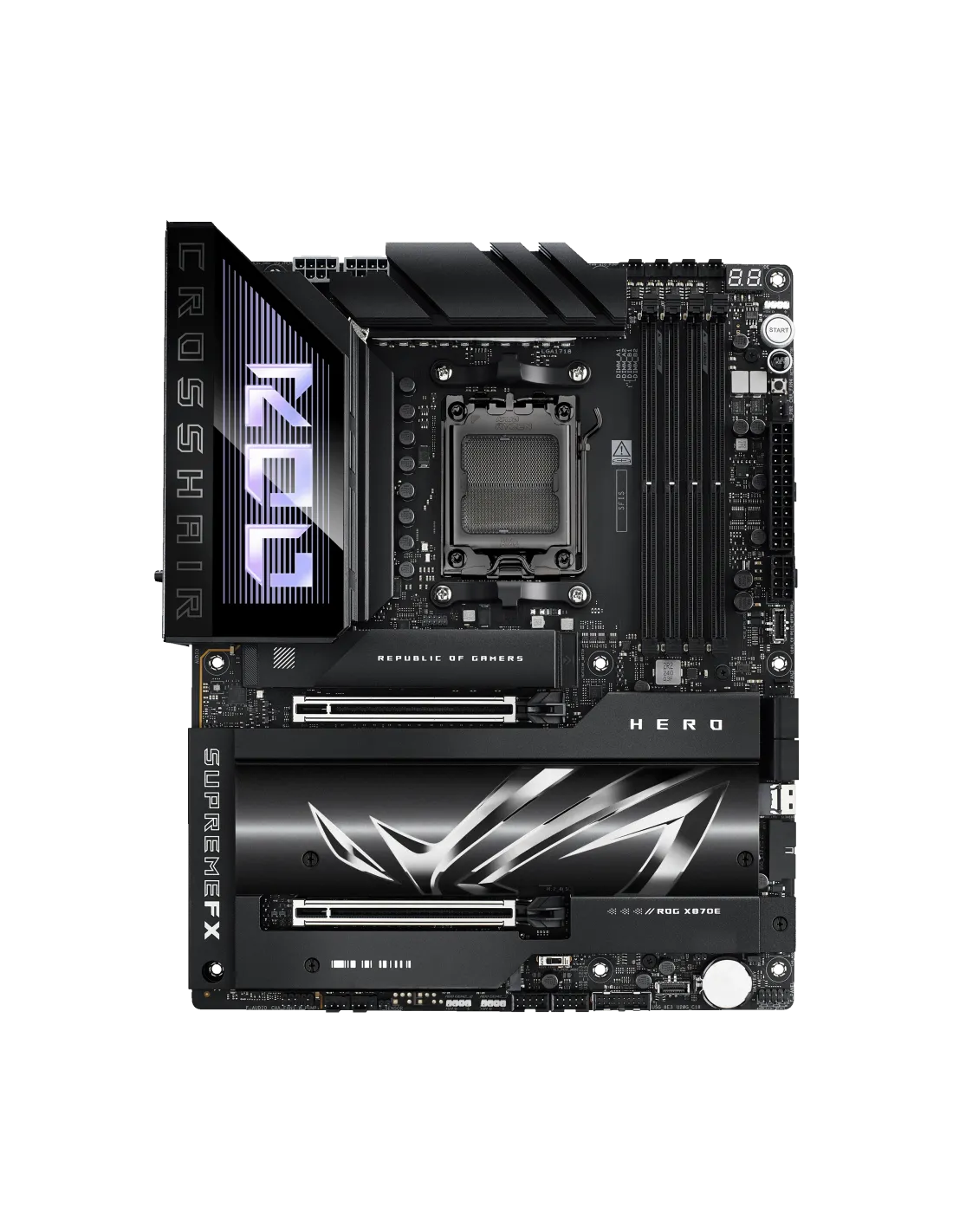

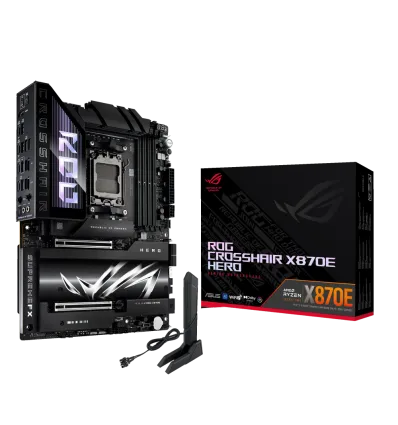

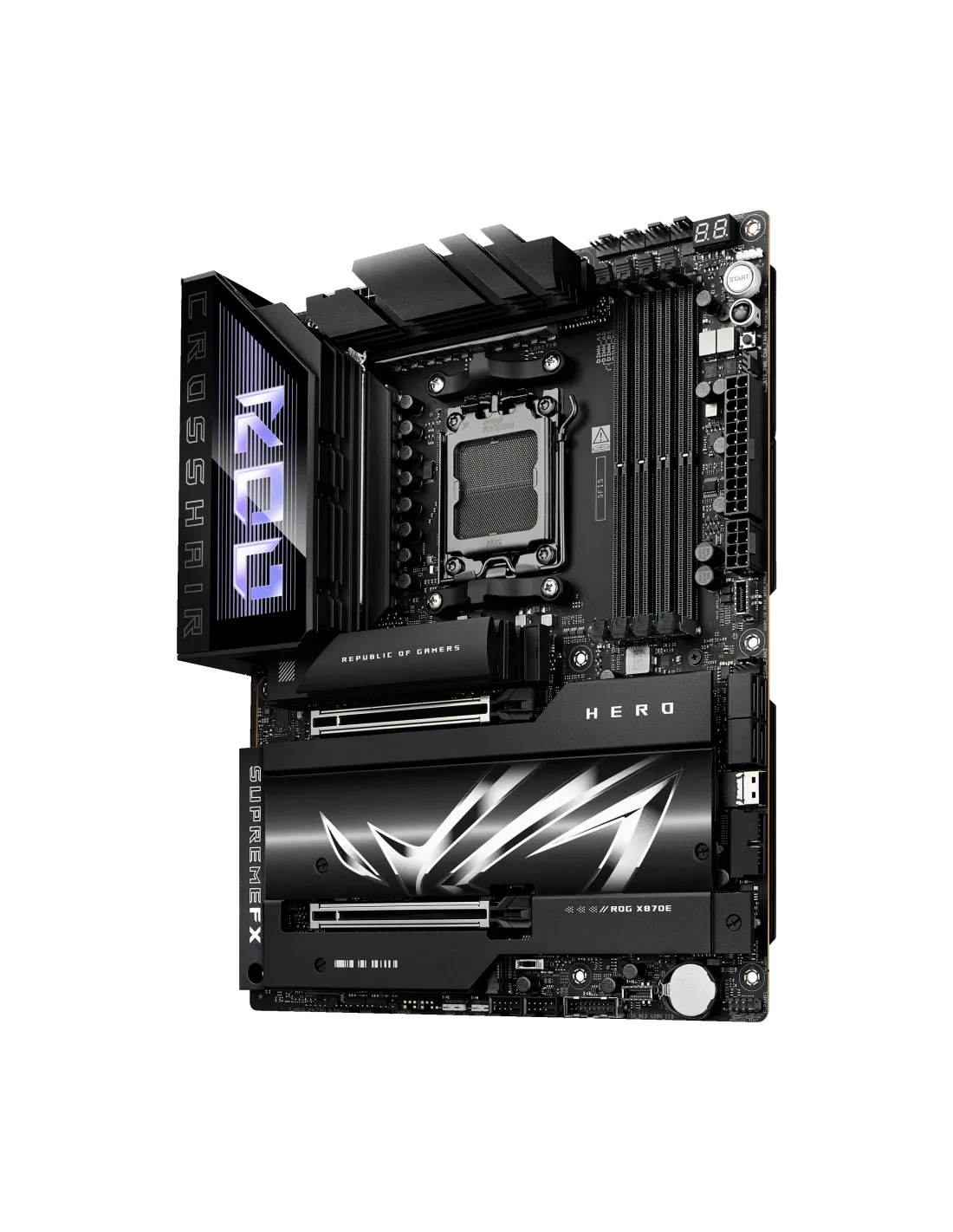

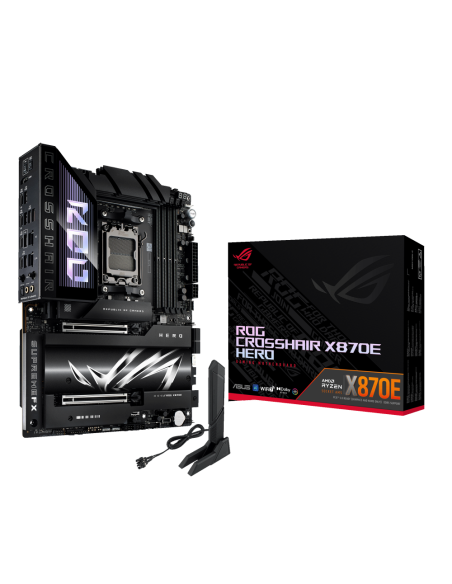

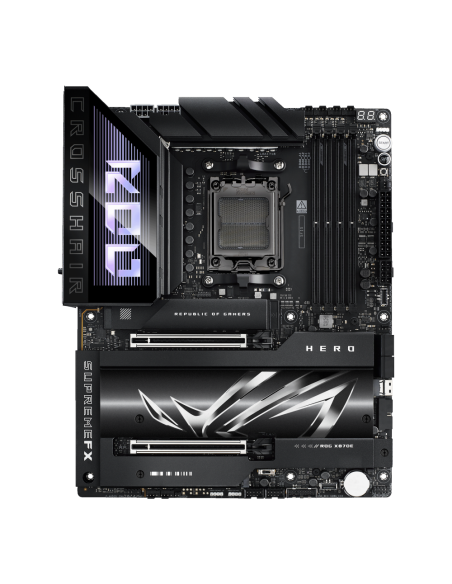

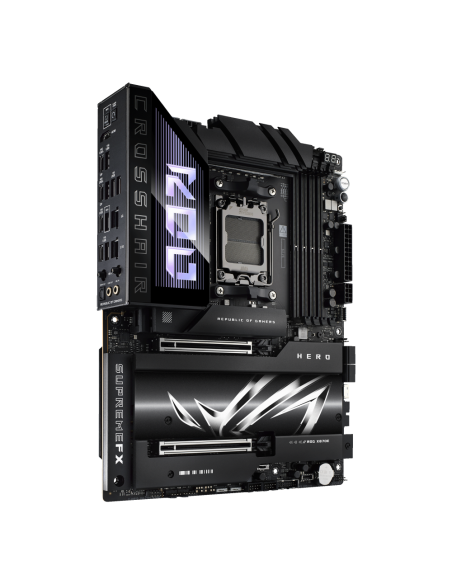

Asus ROG Crosshair X870E Hero Socket AM5 ATX
Descripción
La Asus ROG Crosshair X870E Hero Socket AM5 ATX es una placa base creada para entusiastas del rendimiento y gamers extremos. Con un diseño robusto y una amplia gama de características avanzadas, garantiza una capacidad de overclocking de alto nivel y una estabilidad increíble. Perfecta para los procesadores AMD Ryzen de la serie 9000, 8000 y 7000, ofrece lo último en tecnología DDR5, PCIe 5.0 y una conectividad impresionante que te permitirá llevar tu experiencia de juego y trabajo a un nuevo nivel. Cuenta con 4 ranuras DIMM que soportan hasta 192GB de memoria DDR5 para un ritmo de trabajo fluido y eficiente.
Características de la placa base Asus ROG Crosshair X870E Hero
Procesador
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
- AMD X870E
Memoria
- 4 x DIMM slots, max.192GB, DDR5
- Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors
- Supports up to 8600+MT/s(OC) with Ryzen™ 8000 Series Processors
- Supports up to 8000+MT/s(OC) with Ryzen™ 7000 Series Processors
- ECC and Non-ECC, Un-buffered Memory
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- NitroPath DRAM Technology
- ASUS Enhanced Memory Profile (AEMP)
Slots
- 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes)
- 2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
- 2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
Gráficos
- 1 x HDMI™ port
- 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Almacenamiento
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
- M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- SlimSAS slot supports PCIe 4.0 x4 mode.
- 4 x SATA 6Gb/s ports
USB
- 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
- 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
- 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)
- 1 x USB 20Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Conectividad y redes
- 1 x Intel® 2.5Gb Ethernet
- 1 x Realtek 5Gb Ethernet
- ASUS LANGuard
- Wi-Fi 7
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
- Bluetooth® v5.4
Conectores Internos
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- 1 x W_PUMP+ header
- Power Related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connector
- 1 x 8-pin PCIe Power connector
- Storage Related
- 5 x M.2 slots (Key M)
- 1 x SlimSAS connector
- 4 x SATA 6Gb/s ports
- USB
- 2 x USB 20Gbps connectors (support USB Type-C® )
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Alteration PCIe mode switch
- 1 x FlexKey button
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x ReTry button
- 1 x Start button
- 1 x 10-1 pin System Panel header
- 1 x Thermal Sensor header
- 1 x LN2 Mode jumper

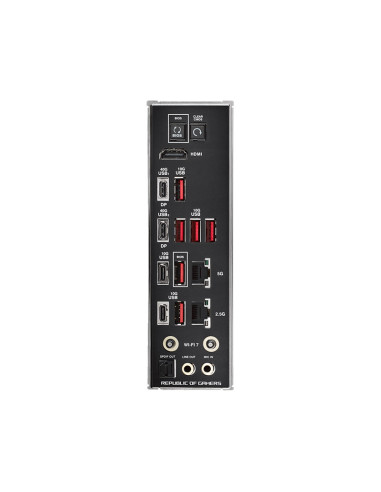

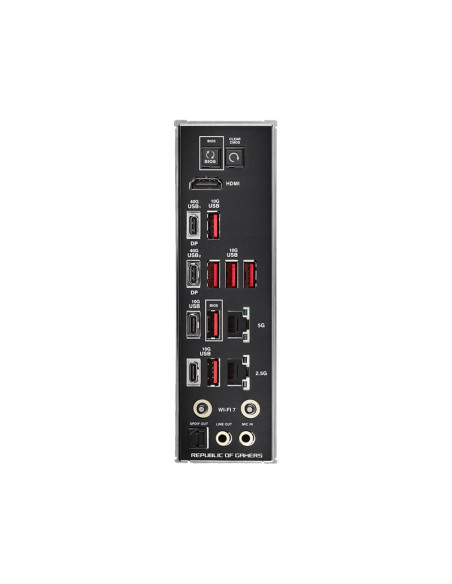

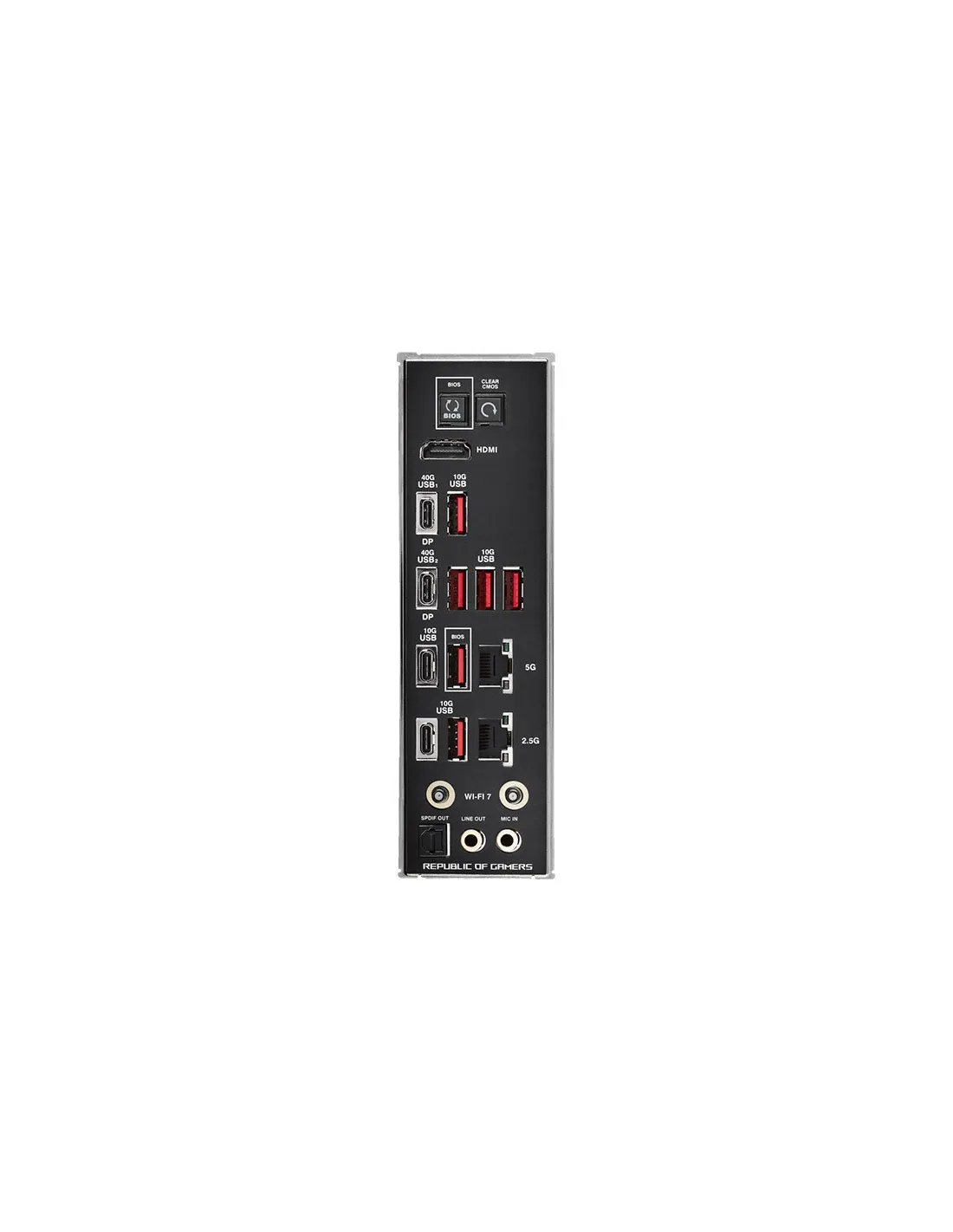

Conectores Traseros
- 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
- 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet port
- 1 x Realtek 5Gb Ethernet port
- 2 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
Factor de forma
- ATX (30.5 x 24.4cm)
