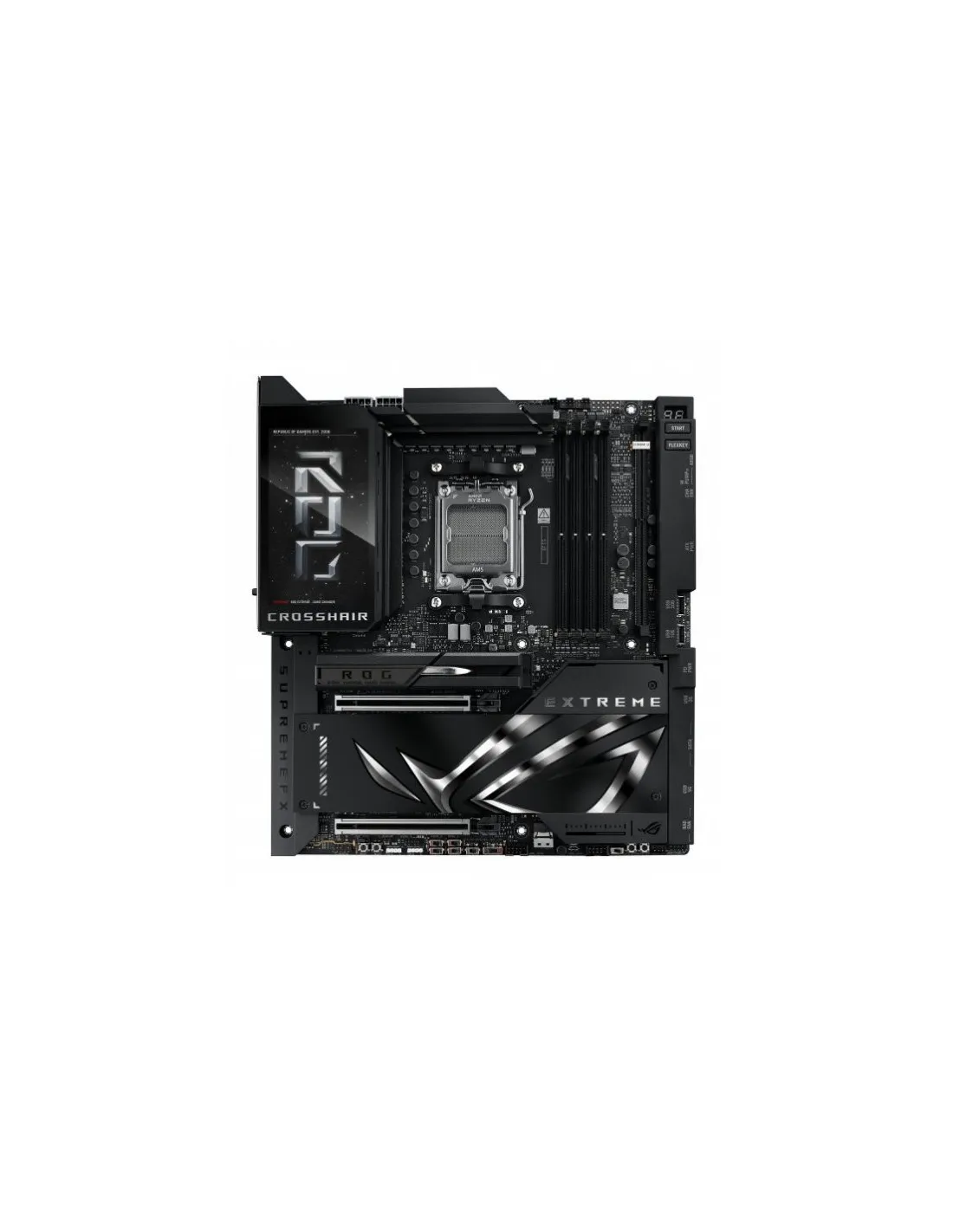

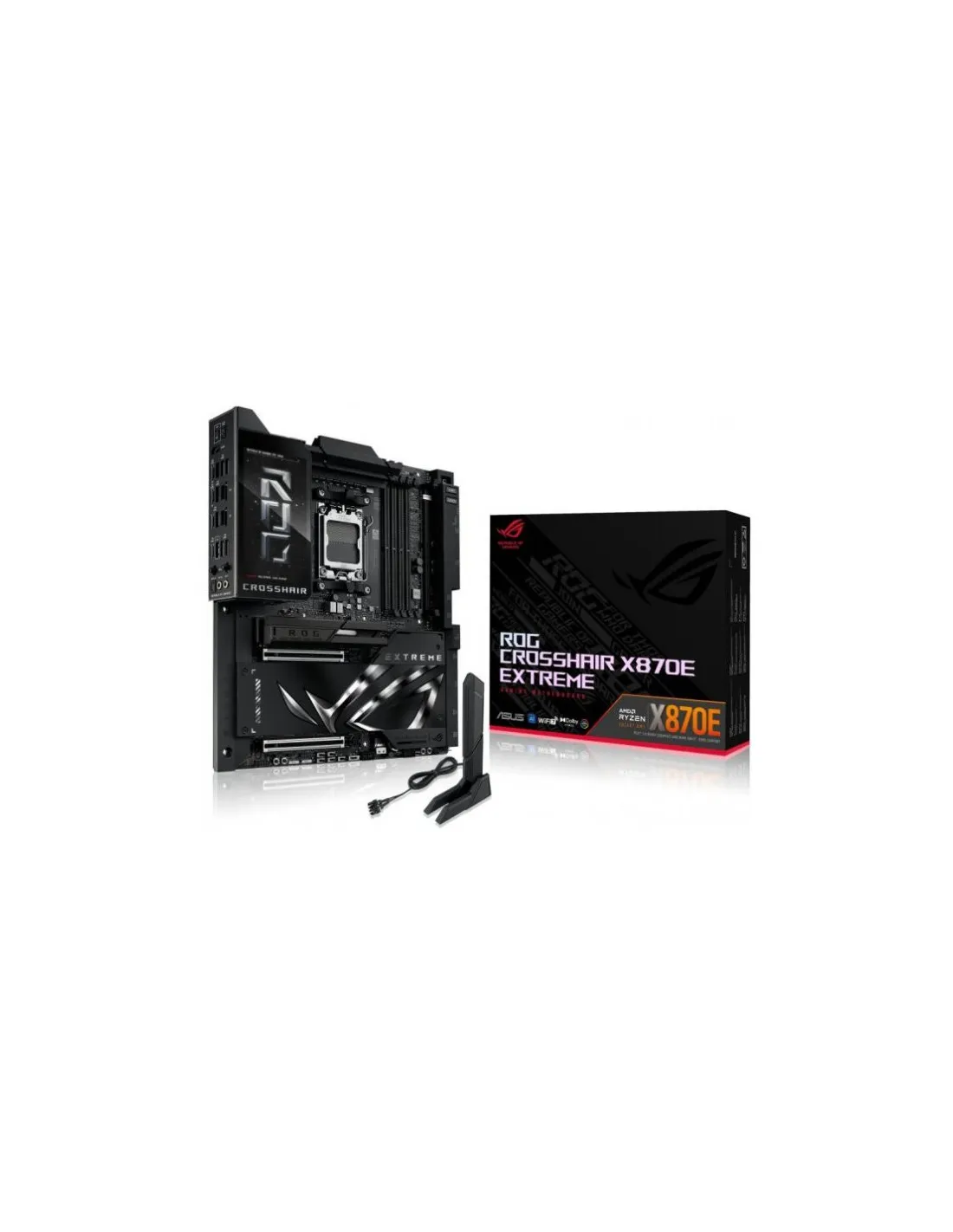

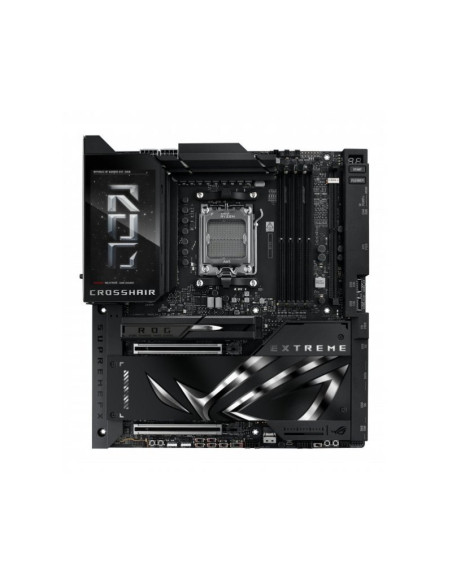

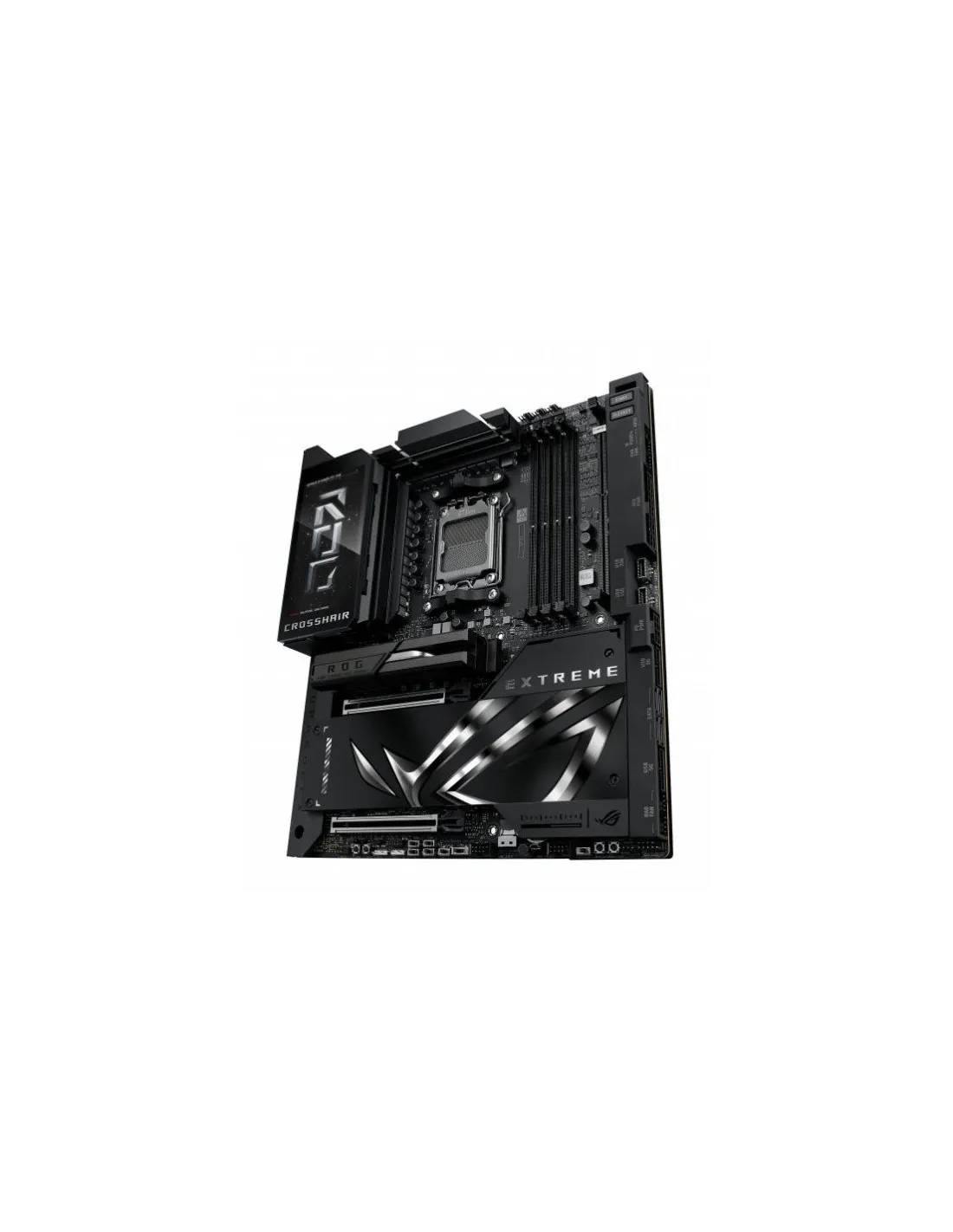

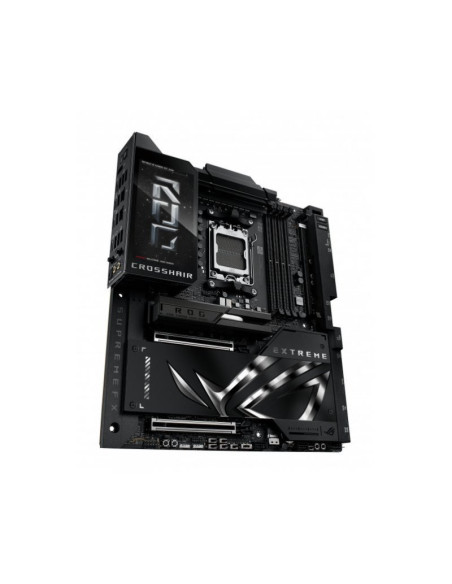

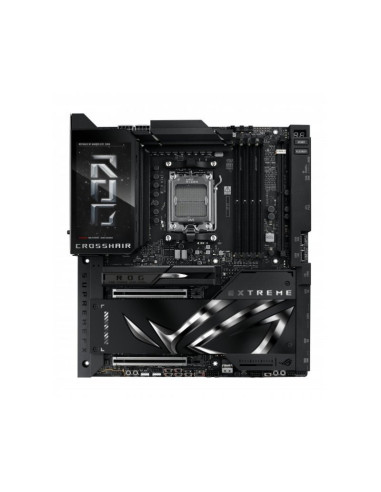

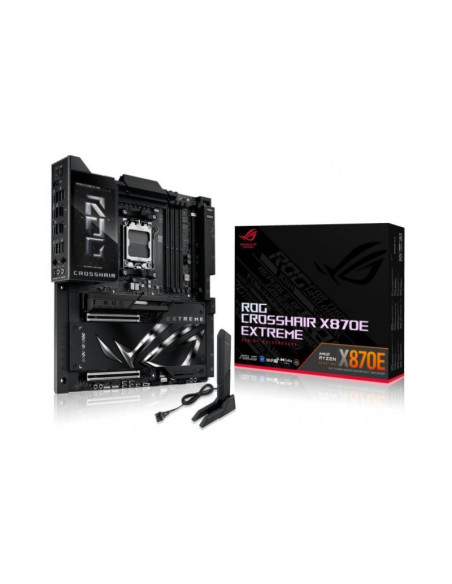

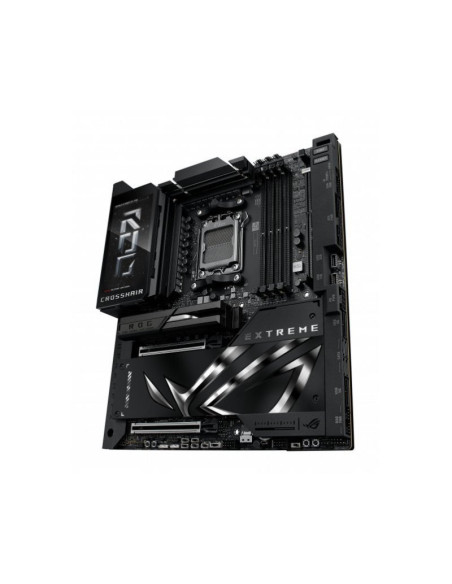

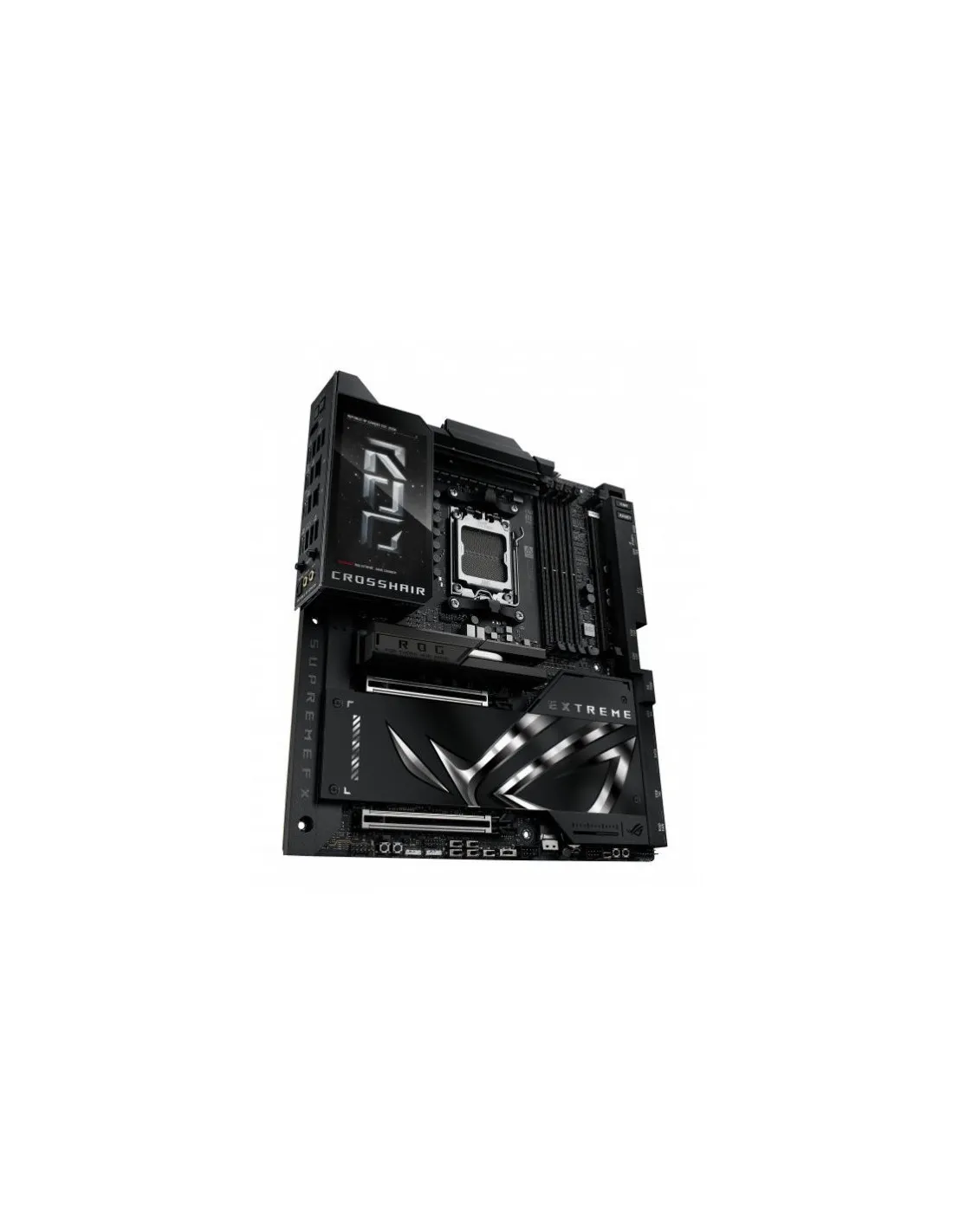

Asus ROG Crosshair X870E Extreme Socket AM5 E-ATX

Características de la placa base Asus ROG Crosshair X870E Extreme

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870E

Memoria

• 4 x DIMM slots, max. 256GB, DDR5
• 8200+MT/s(OC) / 9000+MT/s(OC) / 8000+MT/s(OC)  with Ryzen™ 9000 / 8000 / 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
• NitroPath DRAM Technology

Slots

• 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes)
• 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
• 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)

Gráficos

• 1 x HDMI port
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
• 4 x SATA 6Gb/s ports

USB

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
• SupremeFX Shielding Technology
• ESS® ES9219 QUAD DAC
• LED-illuminated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors

Conectividad y redes

• 1 x Realtek 5Gb Ethernet
• 1 x Marvell® AQtion 10Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
• Bluetooth® v5.4

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers
• 2 x 4-pin Radiator Fan headers
• 2 x W_PUMP+ headers
• 1 x VRM Heatsink Fan header
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• 1 x 8-pin PCIe Power connector
• 3 x M.2 slots (Key M)
• 1 x DIMM.2 slot supports 2 x M.2 slots (KeyM)
• 1 x SlimSAS connector
• 4 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 1 x 6-pin ARGB Gen 2 header to support
• 2 x ARGB Gen 2 headers
• 2 x Addressable Gen 2 header
• 1 x Alteration PCIe mode switch
• 2 x BCLK button
• 1 x BIOS Switch
• 1 x FlexKey button
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x LN2 Mode jumper
• 12 x ProbeIt Measurement Points
• 1 x ReTry button
• 2 x RSVD switchs
• 1 x RSVD header
• 1 x Safe Boot button
• 1 x Slow Mode switch
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Pause switch

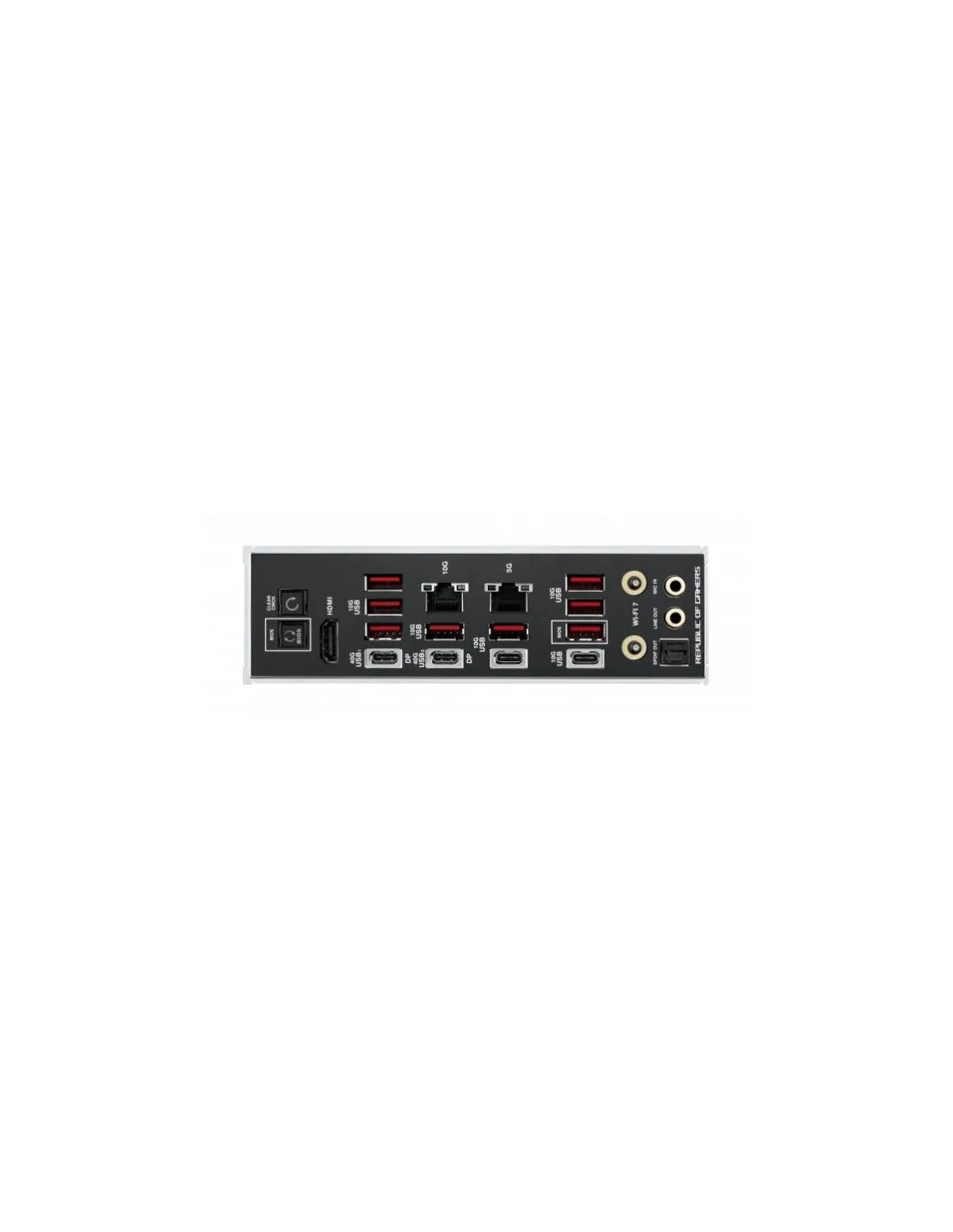

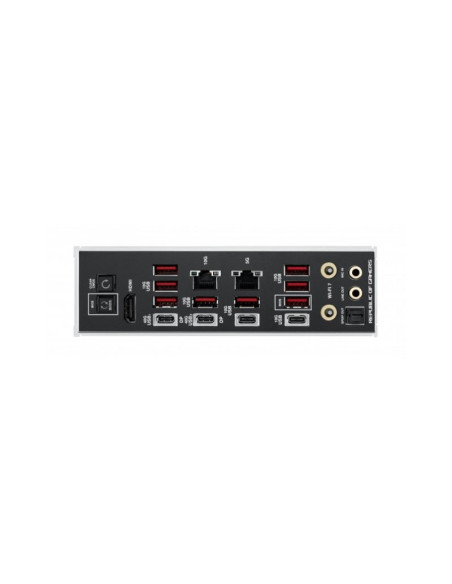

Conectores Traseros

• 2 x USB4 (40Gbps) ports (2 x USB Type-C®)
• 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®)
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 5Gb Ethernet port
• 1 x Marvell® AQtion 10Gb Ethernet port
• 2 x LED-illuminated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de forma

• e-ATX (30.5 cm x 27.7 cm)
