Asus Prime Z890-P WIFI Socket 1851 ATX

Características de la placa base Asus Prime Z890-P WIFI Socket 1851 ATX

Procesador

• Support Intel® Core™ Ultra Processors(Series 2), LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

• Intel® Z890 Chipset

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)

Slots

• Intel® Core™ Ultra Processors(series 2): 1 x PCIe 5.0 x16 slot
• Intel® Z890 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode) / 1 x PCIe 4.0 x16 slot (supports x1 mode)

Gráficos

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****

Almacenamiento

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
• M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

USB

• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)**
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports**

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4***

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin Front System Panel header
• 1 x Thunderbolt™ (USB4®) header

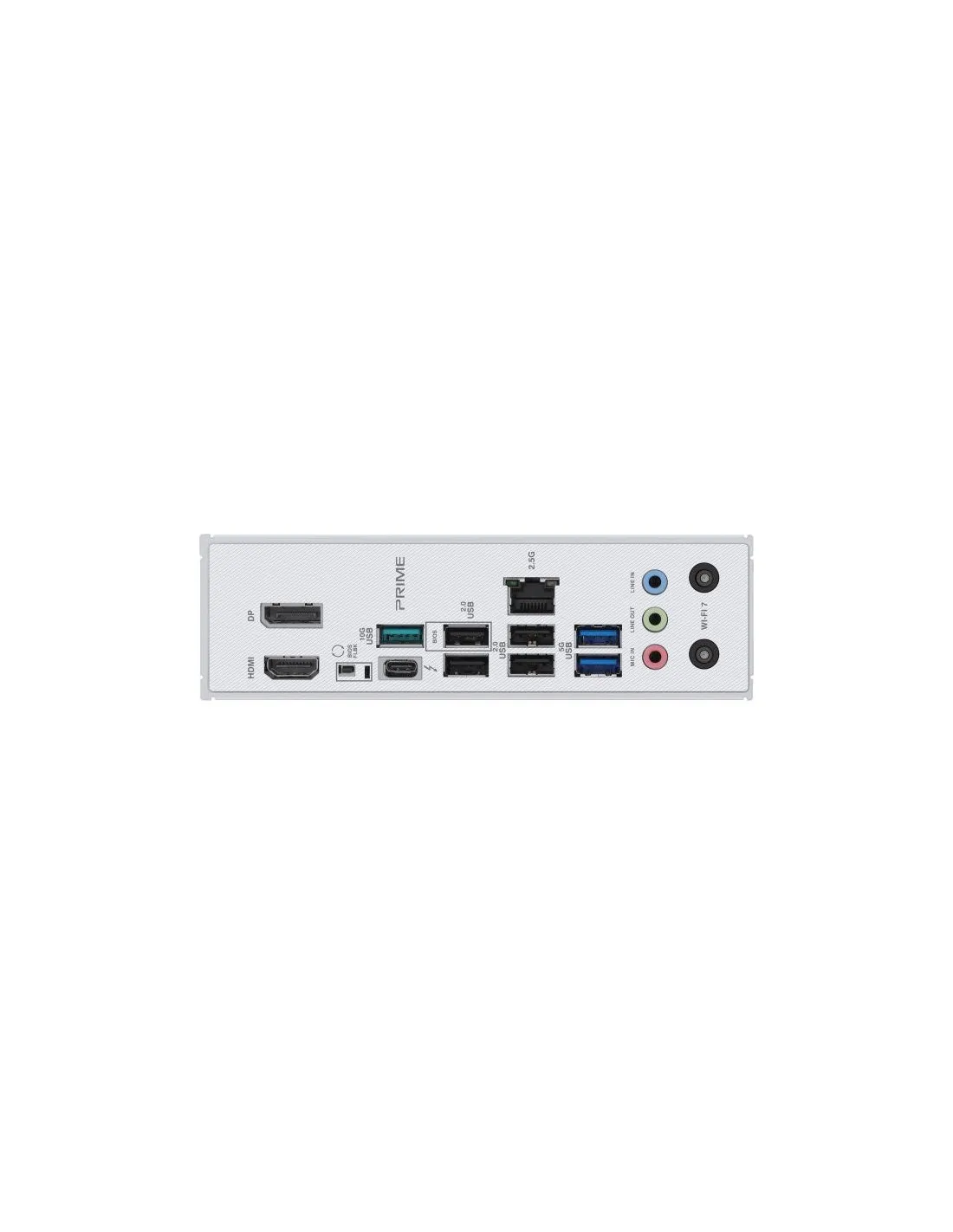

Conectores Traseros

• 1 x Thunderbolt™ 4 USB Type-C® port
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )
