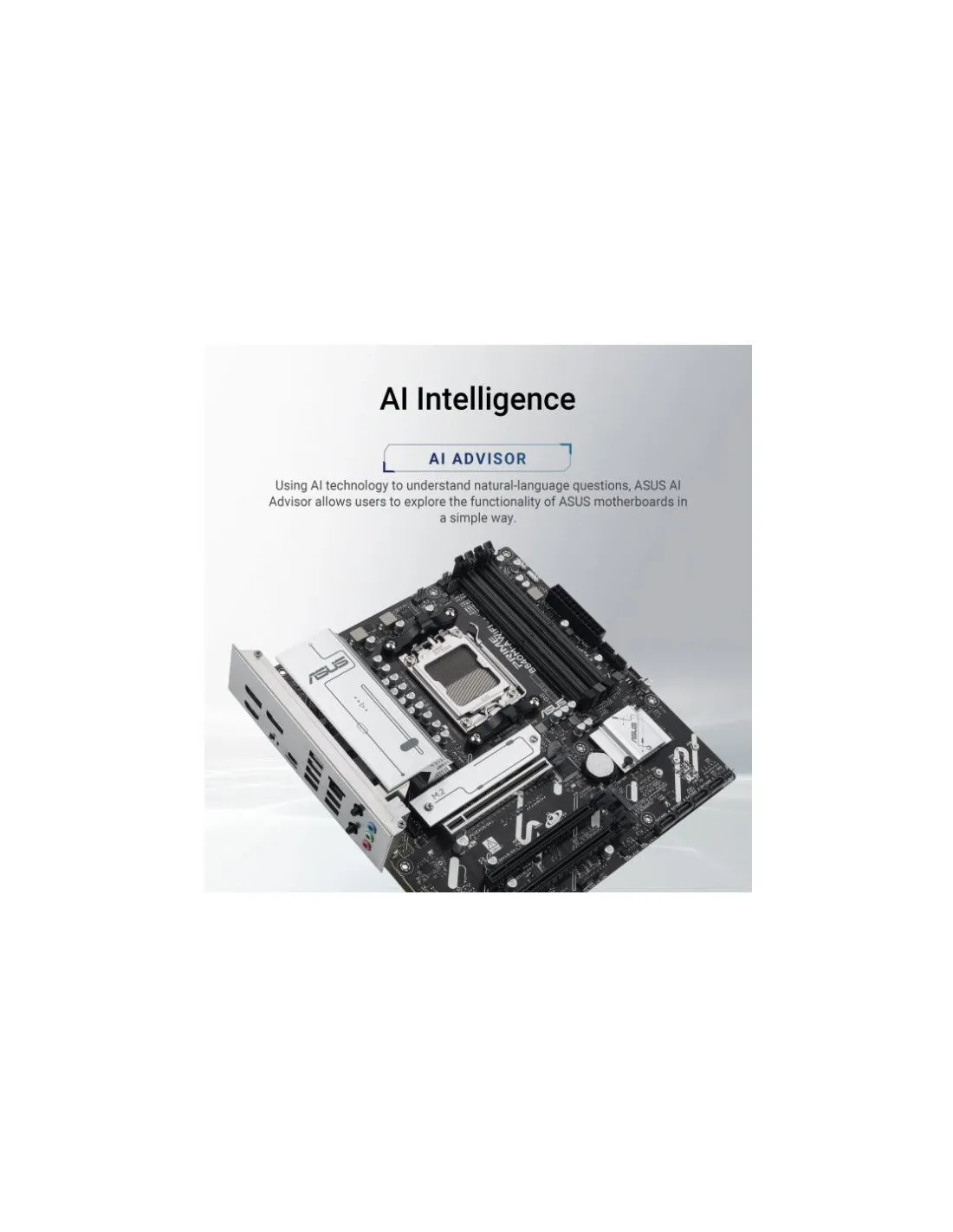

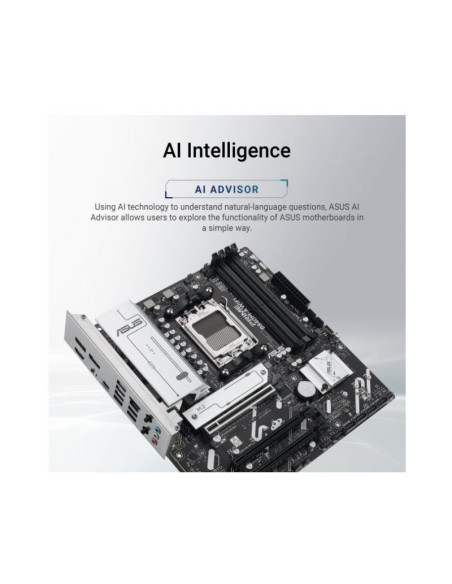

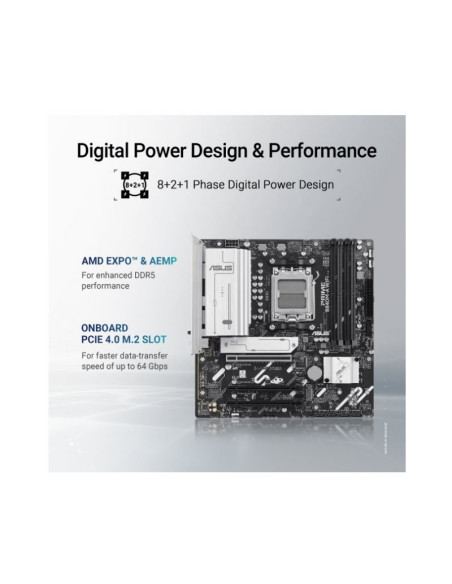

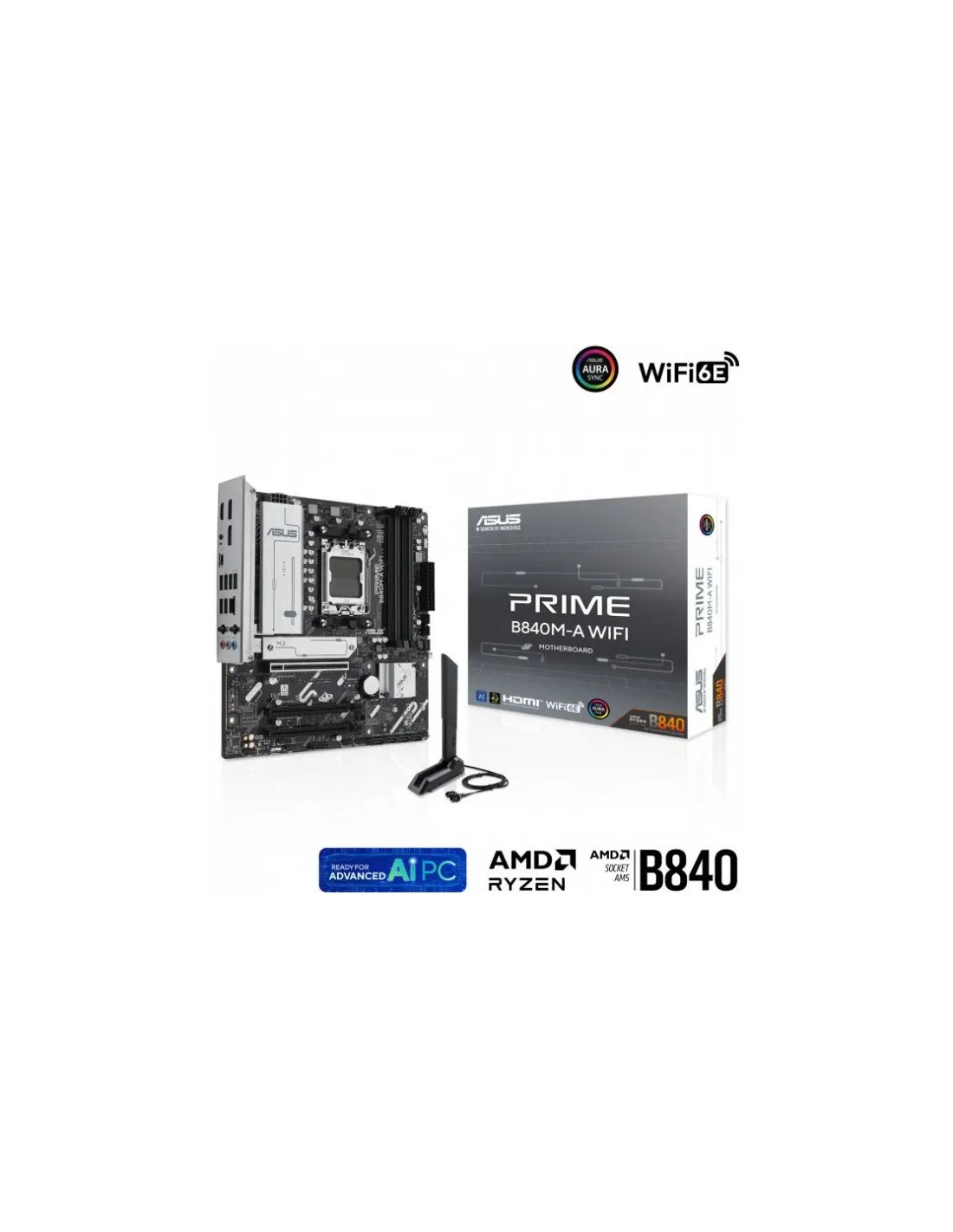

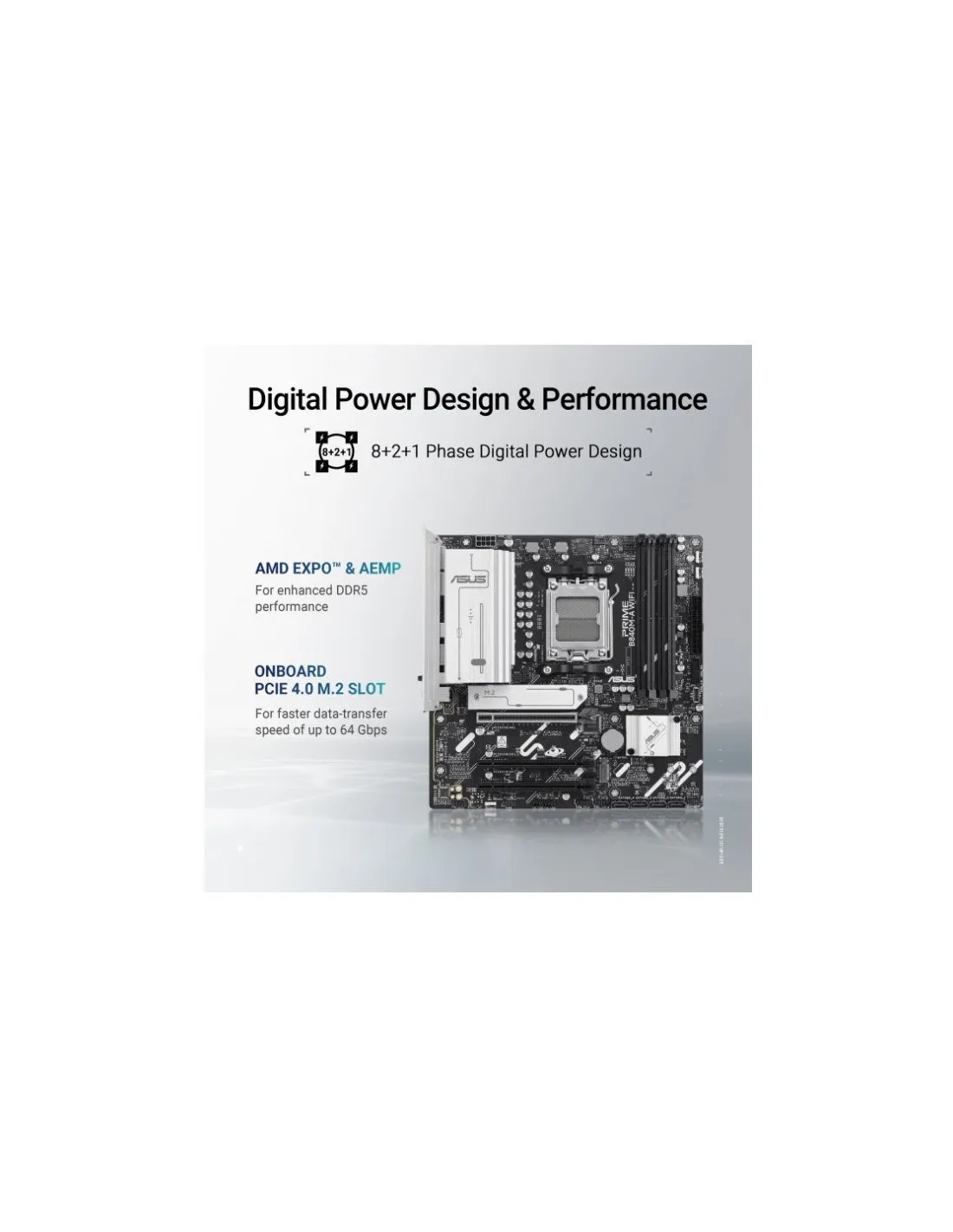

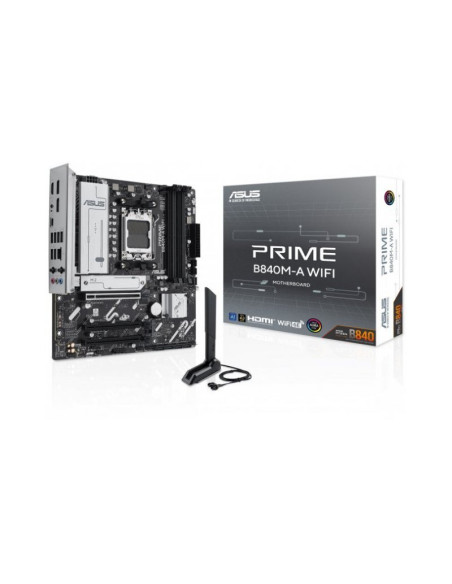

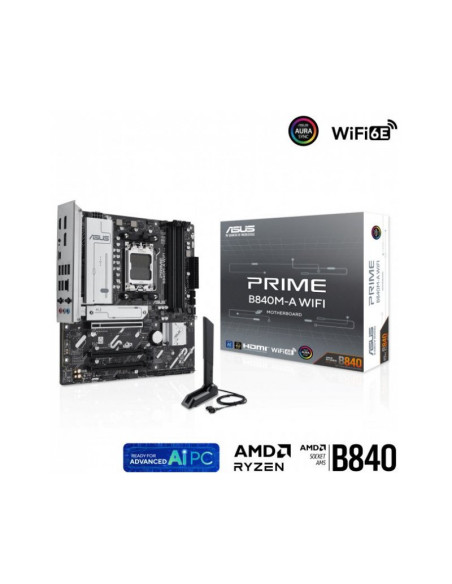

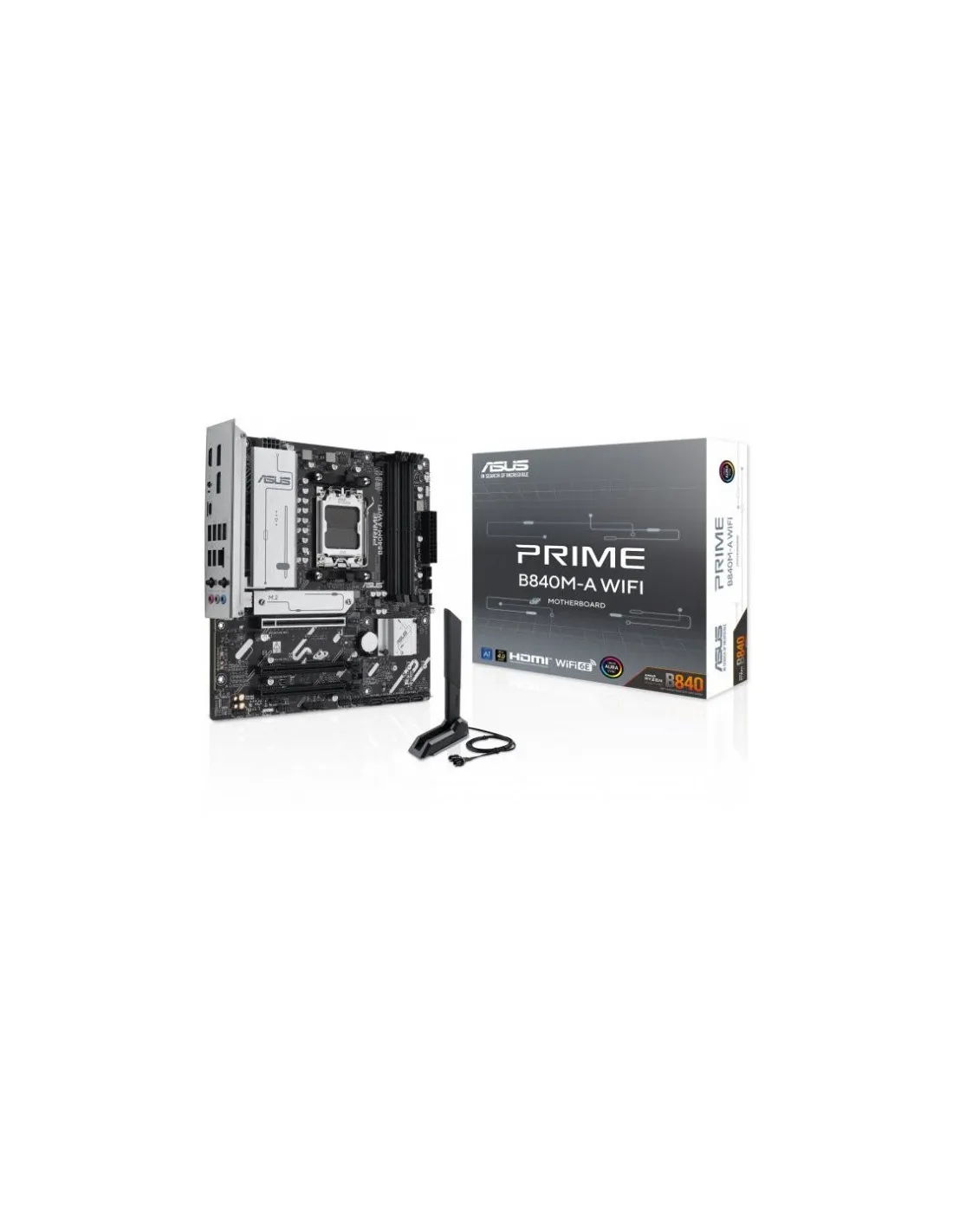

Asus Prime B840M-A WiFi Socket AM5 Micro-ATX

Características de la placa base Asus Prime B840M-A WiFi

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD B840 Chipset

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 7600+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• 2 x PCIe 3.0 x16 slots (support x1 mode)

Gráficos

• 2 x DisplayPort
• 1 x HDMI™ port

Almacenamiento

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 2 x USB 10Gbps ports (2 x Type-A)
• 1 x USB 5Gbps port (1 x USB Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 5Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• Wi-Fi 6E - 802.11ax 2x2
• Supports 2.4/5/6GHz frequency band
• Bluetooth® v5.3

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 5Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front System Panel header

Conectores Traseros

• 2 x DisplayPort
• 1 x HDMI
• 1 x USB Tipo C (5 Gbps)
• 2 x USB Tipo A (10 Gbps)
• 4 x USB 2.0 Tipo A
• 1 x Ethernet 2.5GbE
• 2 x Antena (WiFi / Bluetooth)
• 3 x Jack 3.5mm

Factor de forma

• Micro-ATX (24.4 x 24.4 cm)
