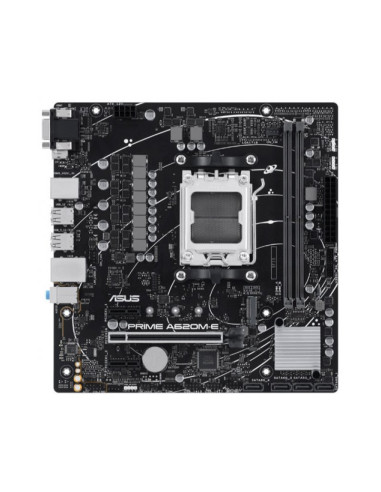

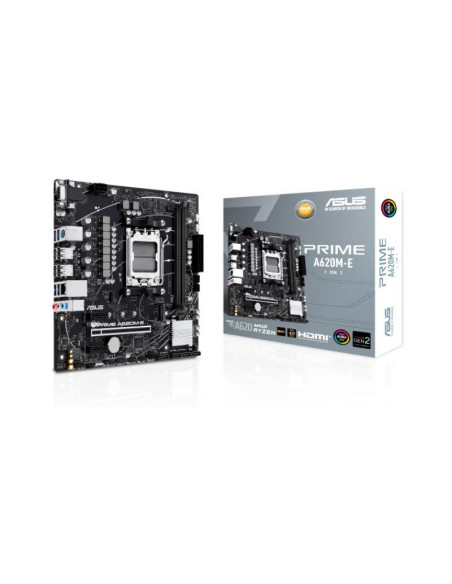

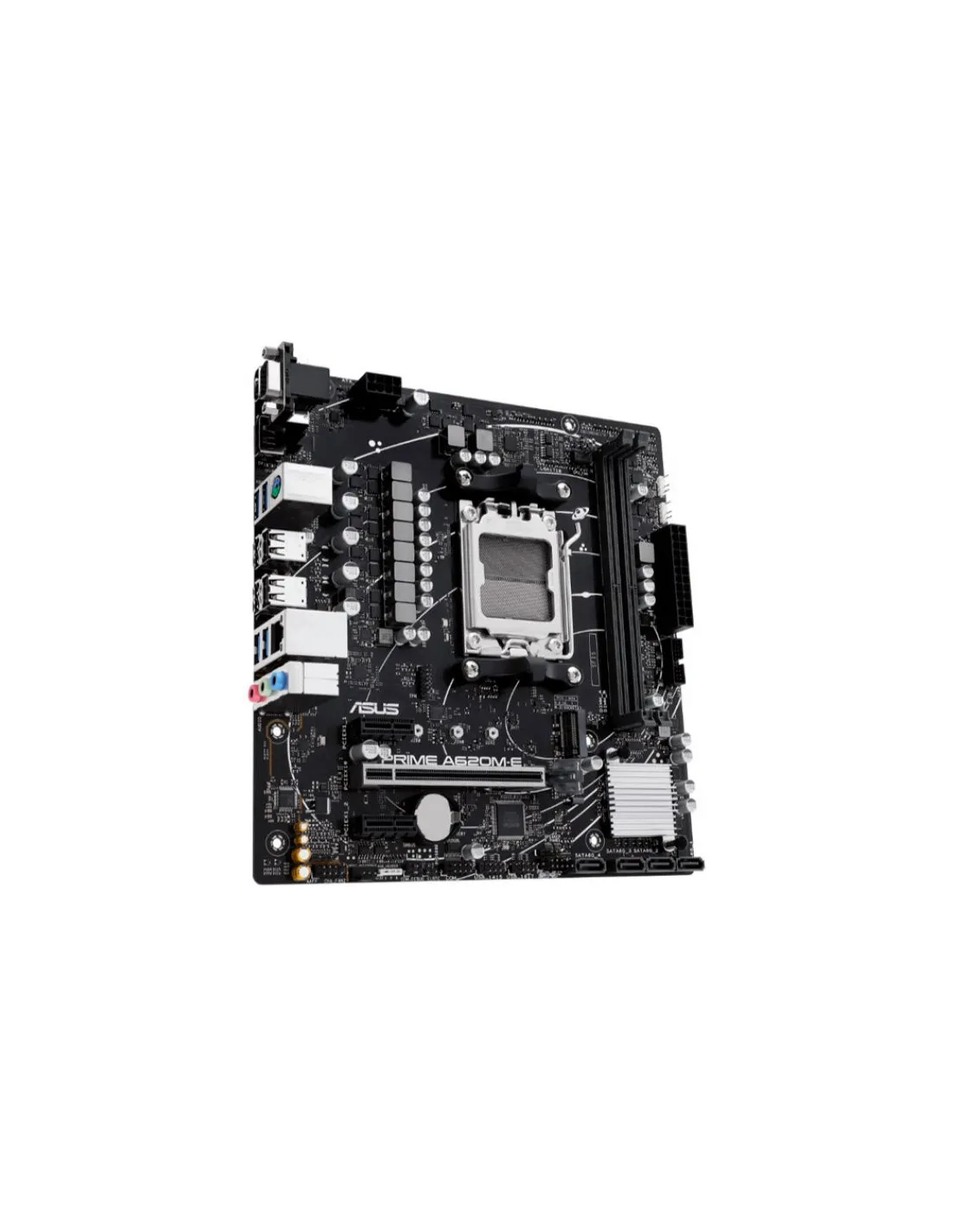

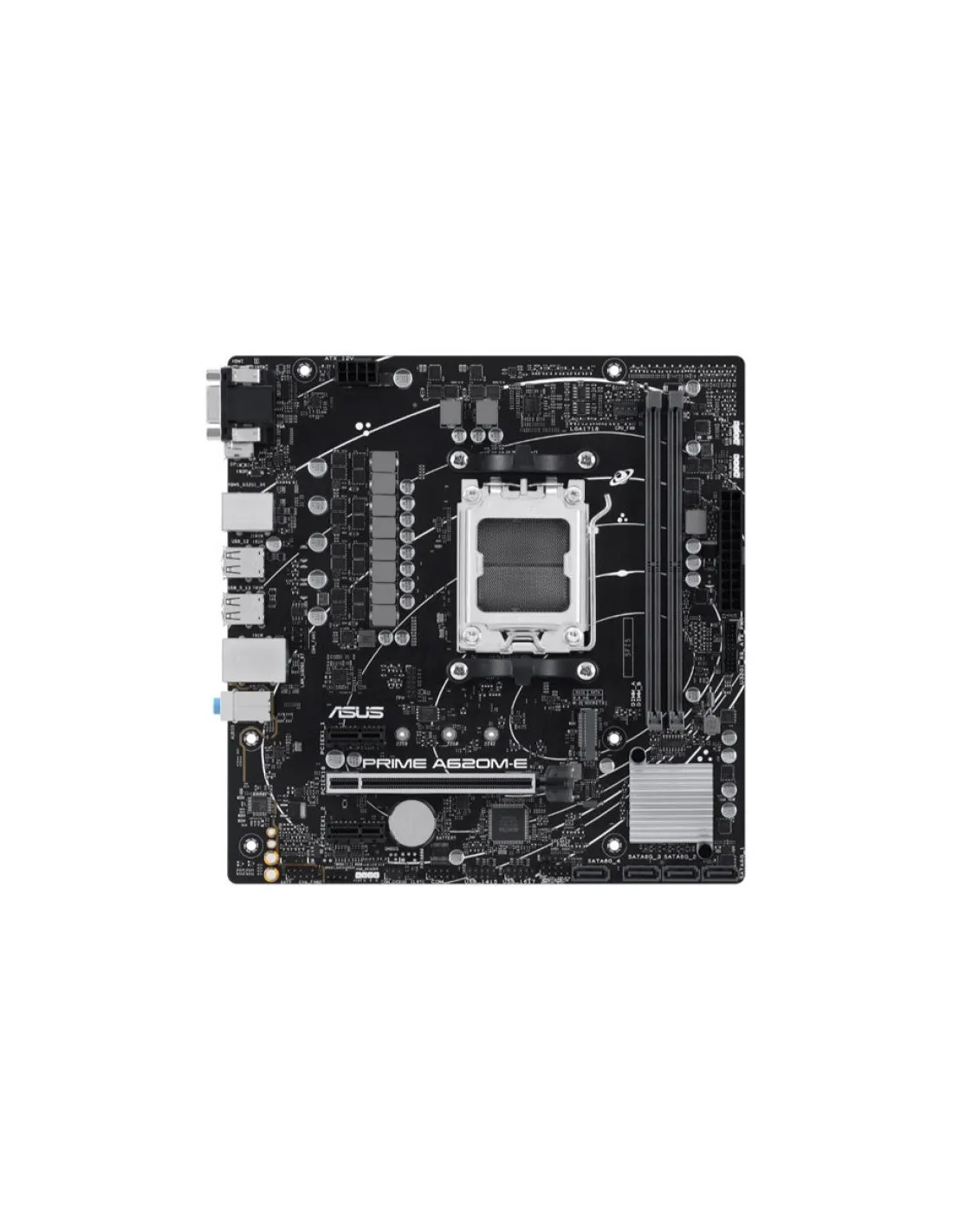

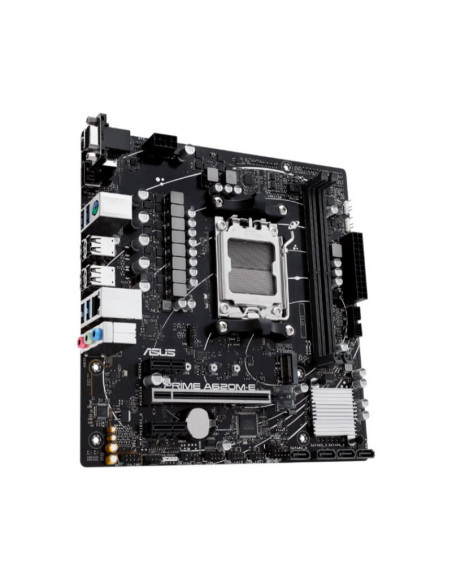

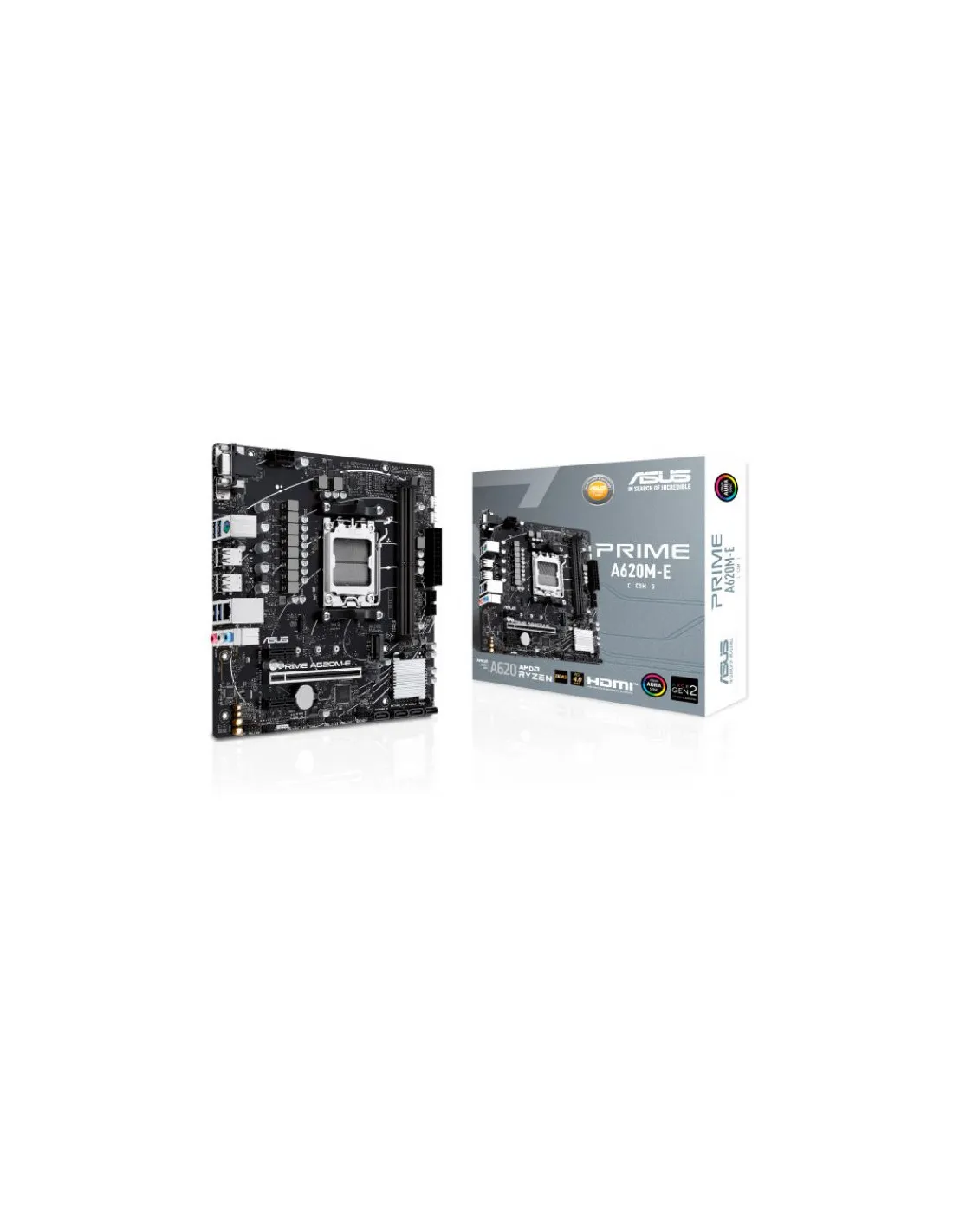

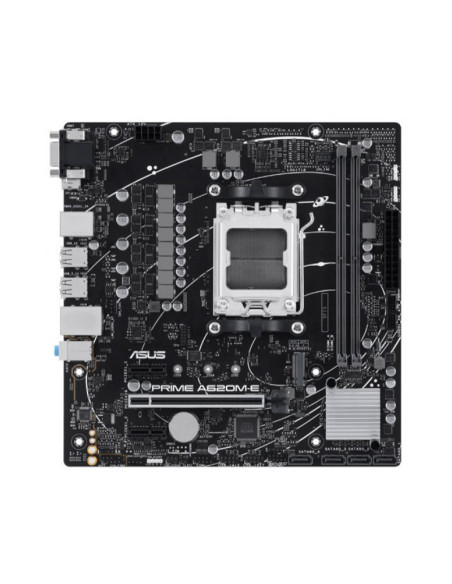

Asus Prime A620M-E-CSM Socket AM5 Micro-ATX

Características de la placa base Asus Prime A620M-E-CSM

Procesador

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
• Supports up to AMD 120W CPU

Chipset

• AMD A620 Chipset

Memoria

• 2 x DIMM slots, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/
• 5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)

Slots

• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• 2 x PCIe 3.0 x1 slots

Gráficos

• 1 x DisplayPort
• 1 x VGA
• 1 x HDMI

Almacenamiento

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 1Gb Ethernet

Conectores Internos

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 2 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Conectores Traseros

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Factor de forma

• micro-ATX (22.6 cm x 22.1 cm)

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/csm/prime-a620m-e-csm/techspec/
