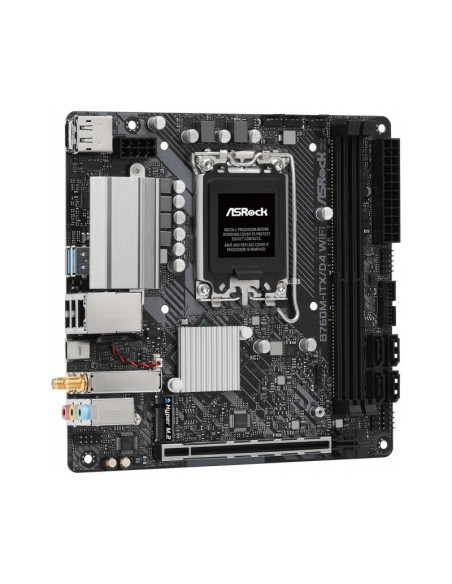

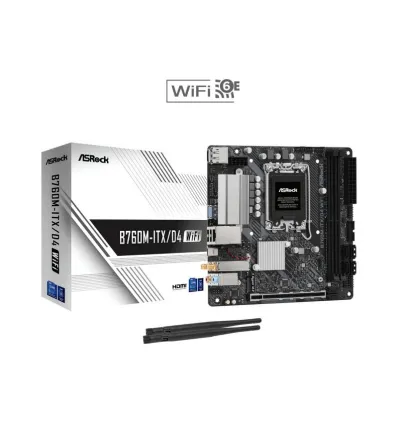

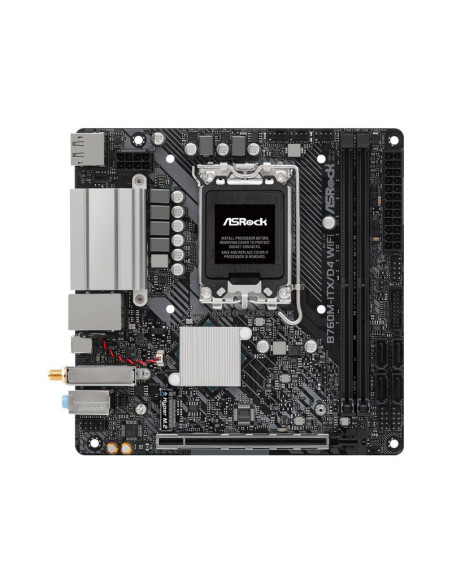

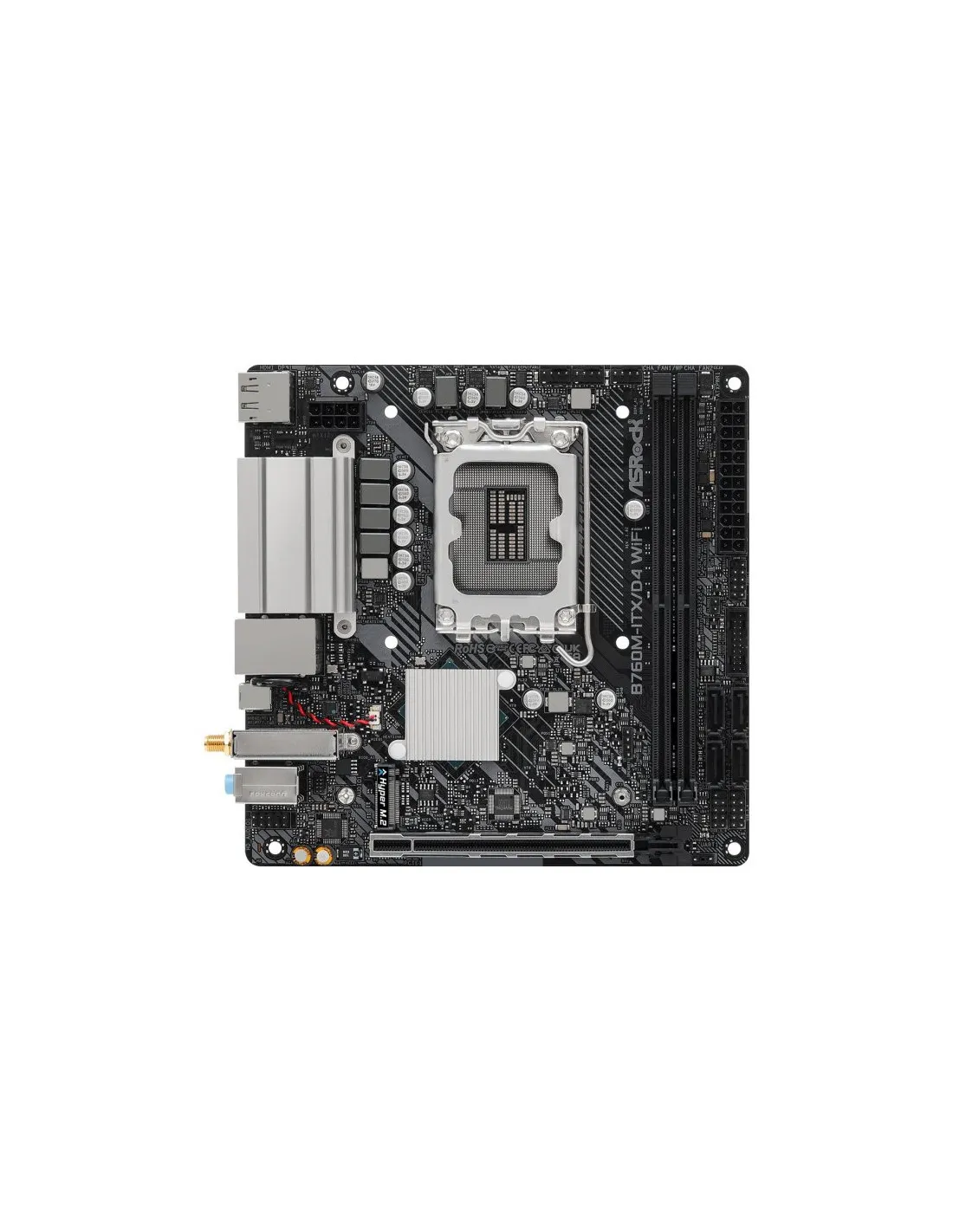

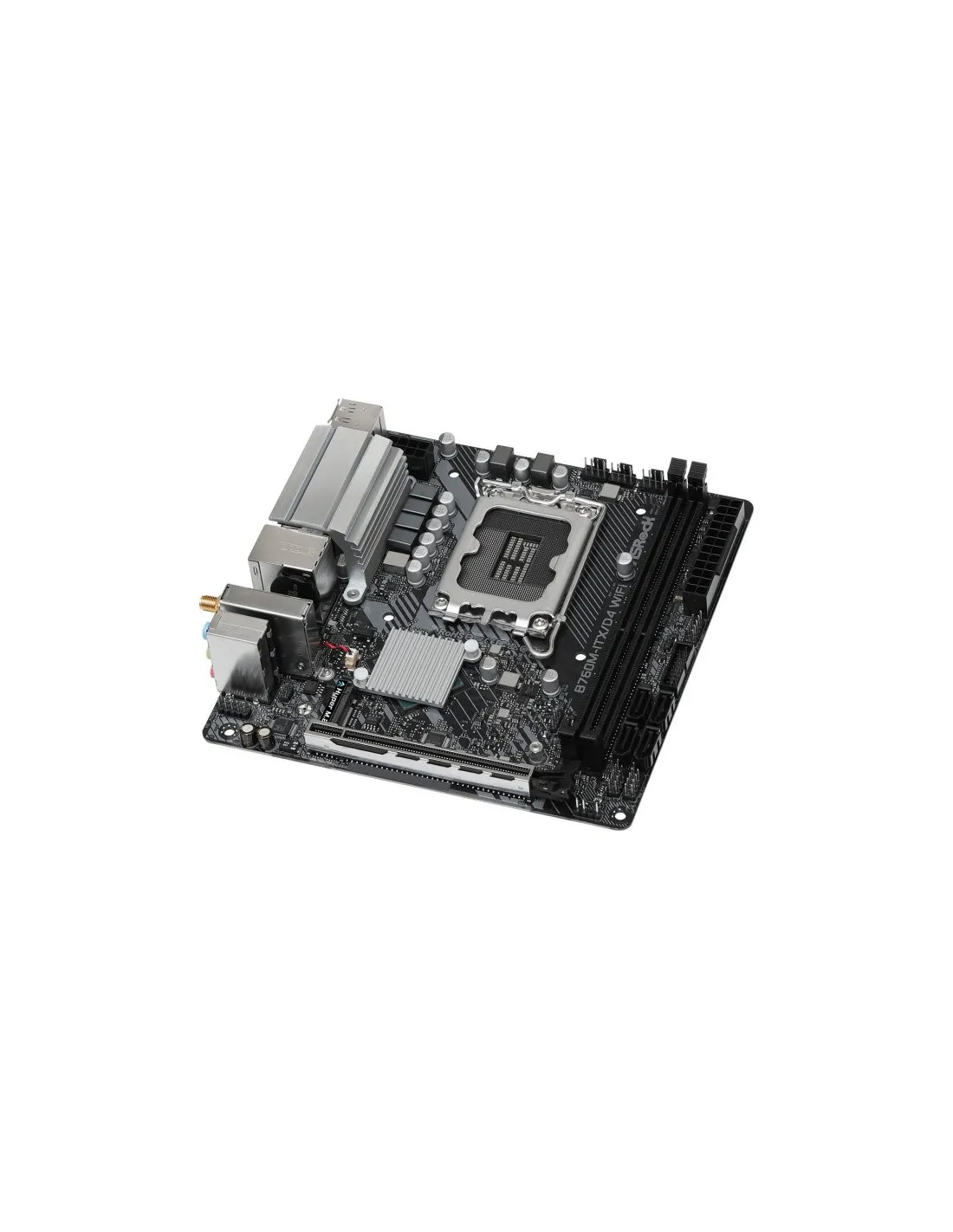

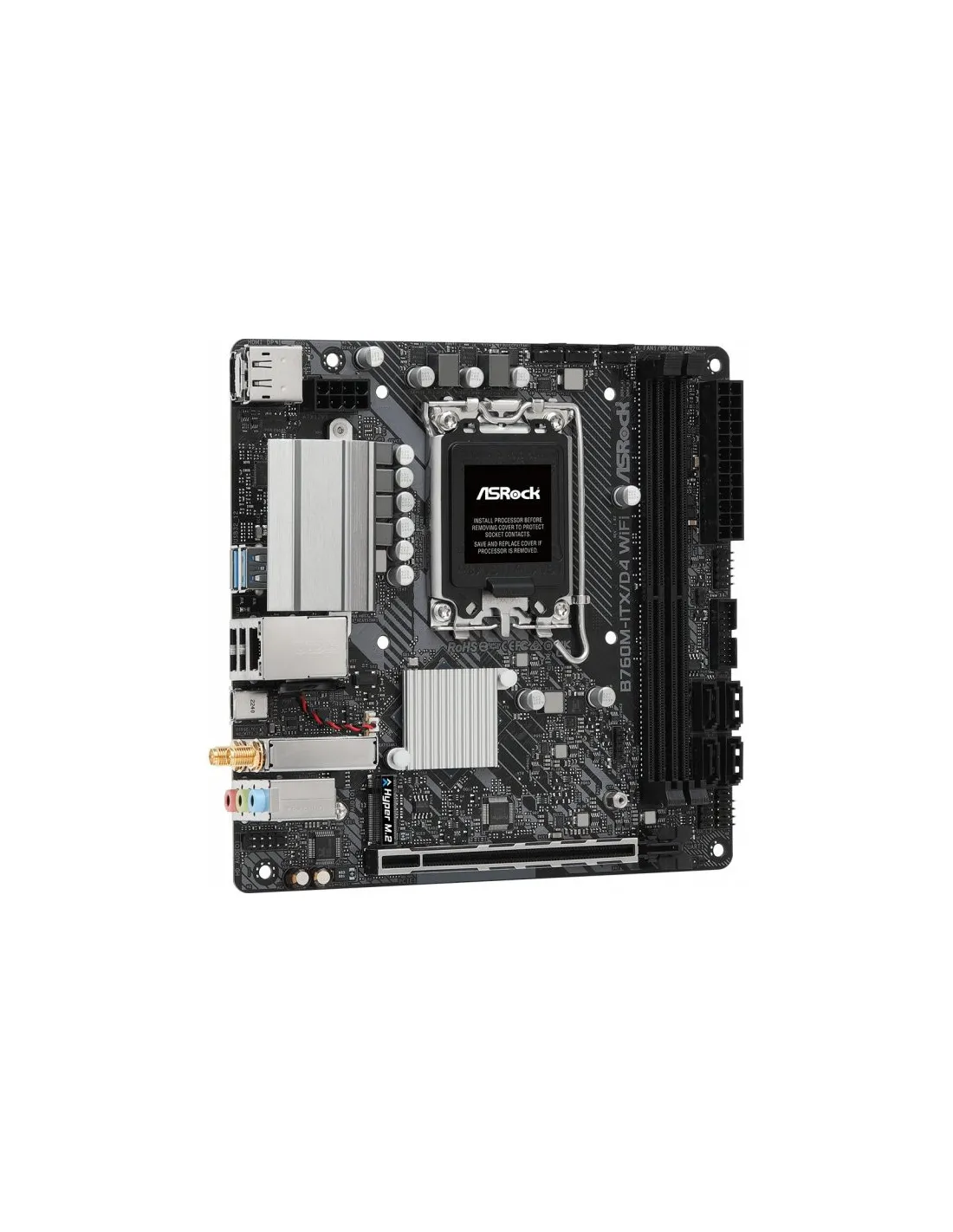

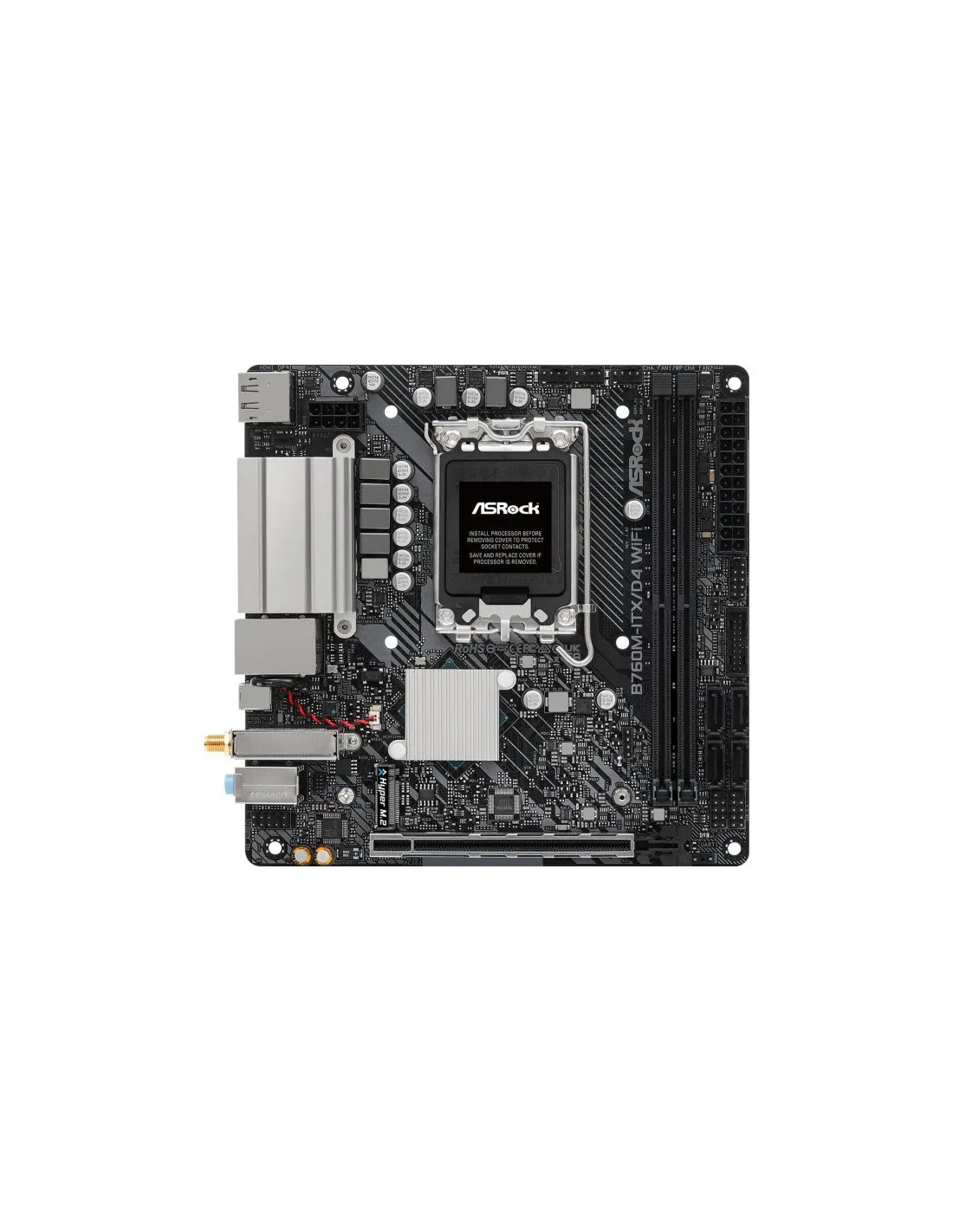

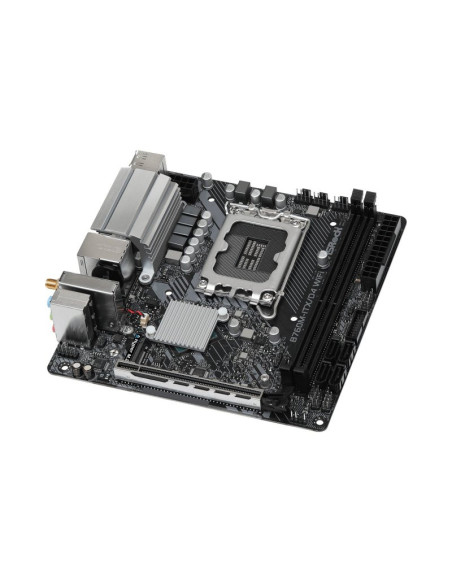

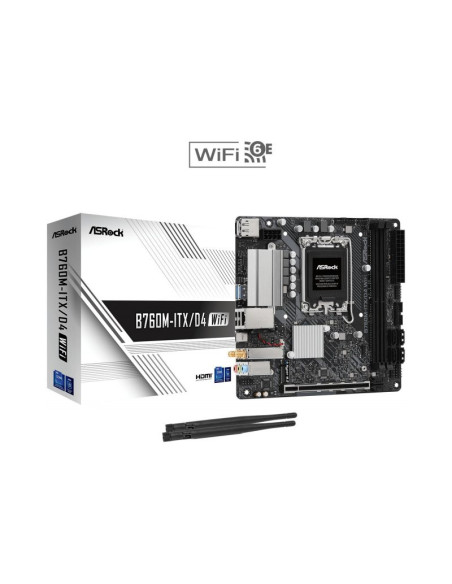

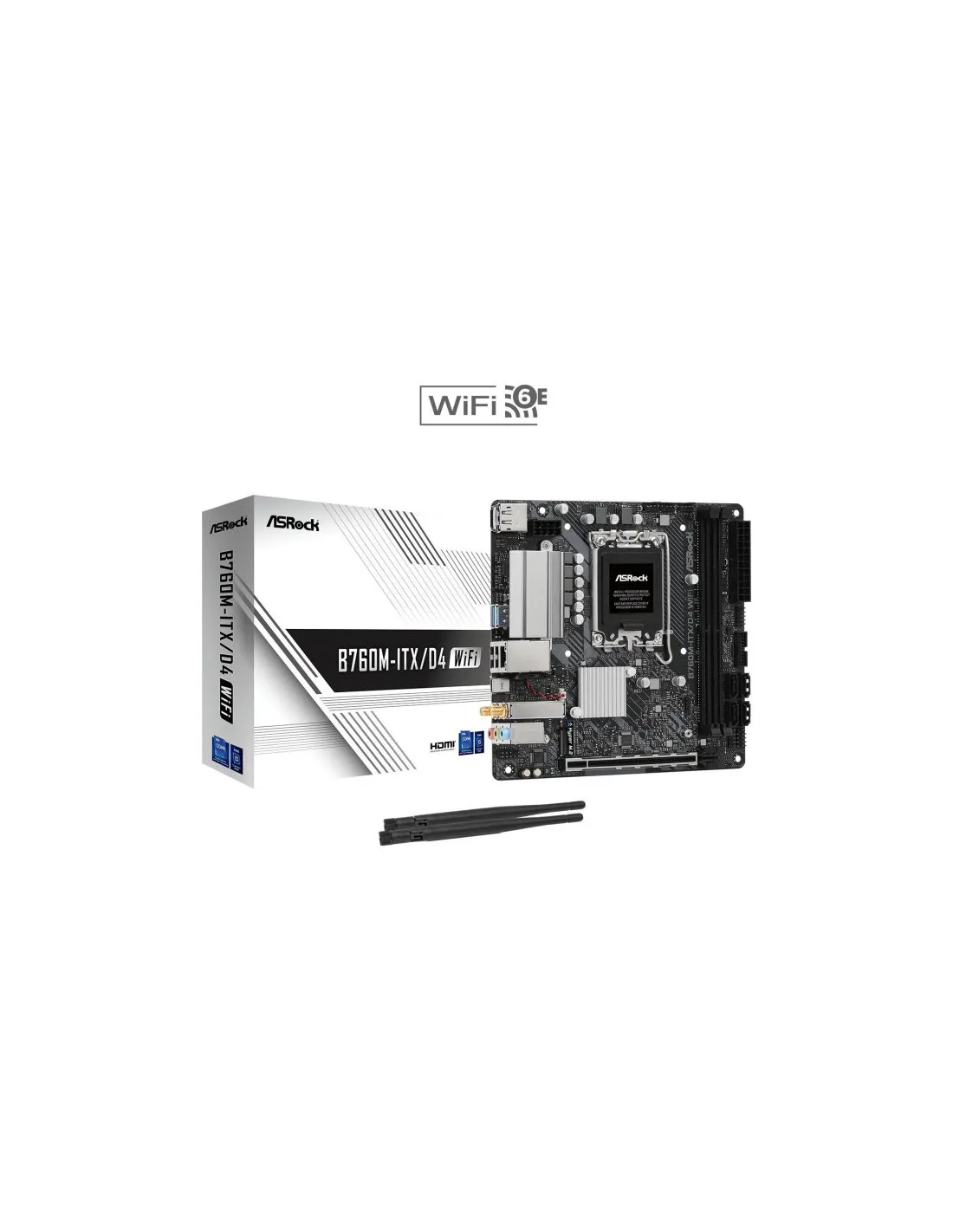

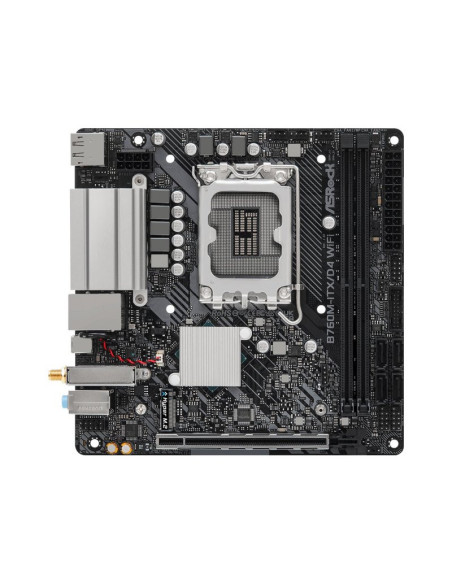

AsRock B760M-ITX/D4 WIFI Socket 1700 Mini-ITX

Características de la placa base AsRock B760M-ITX/D4 WIFI Socket 1700 Mini-ITX

Procesador

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

Chipset

• Intel® B760

Memoria

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Profile (XMP) 2.0

Slots

• CPU:
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Gráficos

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Almacenamiento

• CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset:
• 4 x SATA3 6.0 Gb/s Connectors
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 1 x USB 3.2 Gen2x2 Type-C (Rear)
• 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

Conectividad y redes

• Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with extended 6GHz band support*
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth + High speed class II
• Supports MU-MIMO

Conectores Internos

• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis Fan Connector (4-pin)
• 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

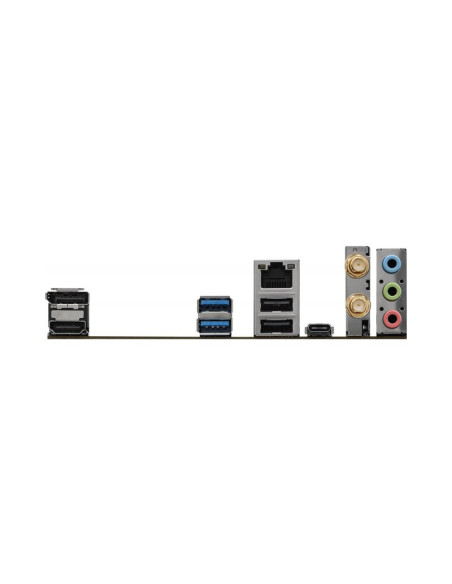

Conectores Traseros

• 2 x Antena Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• 2 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

Factor de forma

• Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

Más información en la web del fabricante:

• https://www.asrock.com/mb/Intel/B760M-ITXD4%20WiFi/index.asp#Specification
